Introducció
The LARSON 356 Lifestyle Fullview Storm Door is designed to enhance your home with natural light and ventilation. It features a retractable Screen Away system, allowing for easy transition between a full glass view and a screen for airflow. Constructed with a durable aluminum frame and tempered safety glass, this storm door provides security, energy efficiency, and a lasting aesthetic.
Image: The LARSON 356 Lifestyle Fullview Storm Door, white, installed on a home's exterior, showcasing its full glass panel and sleek design.
Configuració i instal·lació
Proper measurement and installation are crucial for the optimal performance of your storm door. This door is designed for easy installation into most standard door openings.
Measuring Your Door Opening
Before installation, accurately measure your door opening to ensure proper fit. Refer to the diagram and table below for guidance.
Image: A diagram illustrating the process of measuring a door opening for a storm door. It shows points A, B, C for horizontal measurements and D for vertical measurement, along with a table for corresponding door sizes.
- Measure the opening width horizontally at three points: top (A), middle (B), and bottom (C). Record the narrowest dimension.
- Measure the vertical opening height (D).
- Ensure a 1" x 1" deep mounting surface is required.
- This door supports universal hinging.
General Installation Steps (Refer to full installation guide for detailed instructions)
- Desembaleu tots els components i verifiqueu-los amb la llista de peces.
- Prepare the door opening by cleaning and ensuring it is plumb and square.
- Install the hinge rail to the door frame.
- Mount the door panel to the hinge rail.
- Install the latch rail and strike plate.
- Install the door handle and lock mechanism.
- Adjust the door closer for proper closing speed.
- Seal all edges with appropriate weather-resistant sealant.

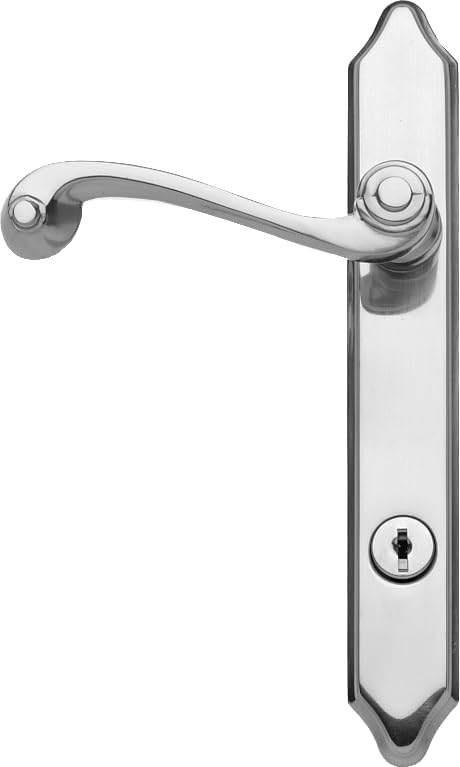

Image: A close-up of the brushed nickel door handle and key lock mechanism, part of the storm door hardware.
Instruccions de funcionament
Your LARSON 356 Lifestyle Fullview Storm Door features a convenient retractable Screen Away system for versatile use.
Retractable Screen Away Operation
- To enjoy a full glass view, ensure the screen is fully retracted into the top cassette.
- To allow fresh air circulation, gently pull the screen down from the top cassette until it latches into place at the bottom.
- To retract the screen, disengage the latch and guide the screen back into the cassette.
- The system is designed for simple operation, allowing for effortless control between glass and screen functions.
Door Latching and Locking
- Ensure the door closes completely and the latch engages securely with the strike plate.
- Use the integrated lock mechanism for added security. Always check that the door is properly latched before locking.
Manteniment
Regular maintenance will ensure the longevity and optimal performance of your storm door.
- Neteja del vidre: Use a mild glass cleaner and a soft cloth. Avoid abrasive cleaners that may scratch the tempered safety glass.
- Neteja del marc: Wipe the durable aluminum frame with a damp cloth and mild soap. The rust-resistant finish requires minimal care.
- Cura de la pantalla: Periodically clean the retractable screen with a soft brush or vacuum to remove dust and debris. Avoid harsh chemicals.
- Lubricació: Apply a silicone-based lubricant to moving parts such as hinges and the screen retraction mechanism annually to ensure smooth operation.
- Segell resistent a la intempèrie: Inspect the weather-resistant seal around the door frame periodically for any signs of wear or damage. Replace if necessary to maintain energy efficiency and prevent drafts.
Resolució de problemes
If you encounter issues with your storm door, refer to the following common troubleshooting tips:
- La porta no tanca correctament:
- Check if the door closer is properly adjusted. Adjust the tension screw on the closer.
- Ensure hinges are securely fastened and not bent.
- Verify that the door frame is plumb and square.
- Screen Does Not Retract Smoothly:
- Inspect the screen for any obstructions or debris in the tracks.
- Clean the screen and tracks.
- Apply a silicone lubricant to the screen tracks.
- Drafts Around the Door:
- Check the weather-resistant seal for damage or gaps. Replace if worn.
- Ensure the door is properly aligned and closes tightly against the frame.
- Lock Mechanism Sticking:
- Apply a graphite lubricant to the lock cylinder.
- Ensure the strike plate is correctly aligned with the latch.
Especificacions
| Marca | Larson |
| Número de model | 35652035 |
| Dimensions del producte | 1.38 x 34 x 81 polzades |
| Mida | 34 polzades x 81 polzades |
| Color | Blanc |
| Pes de l'article | 48.4 lliures |
| Material del marc | Durable Aluminum |
| Tipus de vidre | Vidre temperat de seguretat |
| Tipus de pantalla | Retractable Screen Away |
| Muntatge obligatori | No (referring to the door itself, but installation is required) |
| UPC | 092304126241 |
Informació de la garantia
Specific warranty details for the LARSON 356 Lifestyle Fullview Storm Door are typically provided with the product packaging or can be found on the manufacturer's official website. Please refer to these resources for comprehensive warranty coverage and terms.
For return policy information, please consult your retailer or the point of purchase. The product typically has a 30-day refund/replacement return policy.
Suport
For further assistance, technical support, or to purchase replacement parts, please contact Larson Manufacturing Co. customer service.
- Fabricant: Larson Manufacturing Co.
- Weblloc: Visit the Larson Store on Amazon (per a informació del producte)
- Refer to the documentation included with your product for direct contact information.
