1. Introducció
Gràcies per la compraasing the CROSSIO 23'' Outdoor Ceiling Fan with Lights. This manual provides essential information for the safe installation, operation, and maintenance of your new fan. Please read these instructions thoroughly before installation and retain them for future reference.

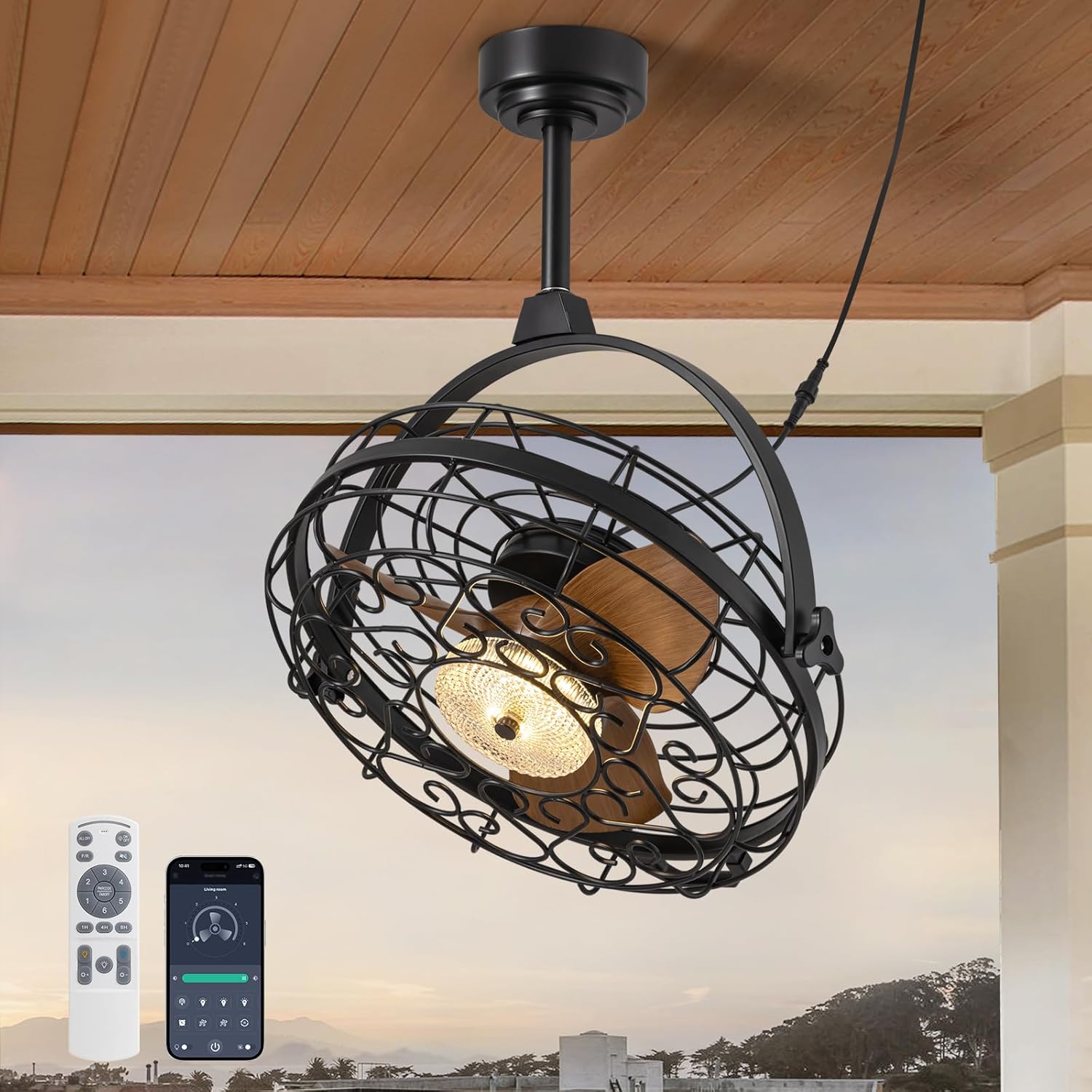

Image 1.1: The CROSSIO 23-inch outdoor ceiling fan, showcasing its design, remote control, and smartphone app interface.
Característiques principals:
- Outdoor & Indoor Ready: Wet-rated design suitable for patios, gazebos, covered porches, living rooms, and bedrooms. Features a sealed motor and rust-proof materials for safe operation in wet conditions.
- Dimmable Fan Light: Integrated LED light with three adjustable color temperatures (Warm 3000K, Natural 4500K, Cool 6000K) and seamless dimming from 10% to 100%.
- Multiple Ceiling Compatibility: Designed for various mounting options including hanging with hooks, fixing to solid wood ceilings, or mounting to an outlet box. Includes two down rod lengths for flexible installation heights.
- Dual 360° Rotation & Reversible Motor: Manual 360° vertical and horizontal adjustment to direct airflow. Reversible motor function provides downdraft cooling in summer and updraft warm air circulation in winter.
- 6-Speed & Timer Function: Six customizable fan speeds and a convenient timer function (1, 4, or 8 hours) for automatic shut-off.
- Mètodes de control: Operable via included remote control and a dedicated smartphone application.
2. Informació de seguretat
Please observe the following safety precautions to reduce the risk of fire, electric shock, or personal injury.
- Llegiu atentament totes les instruccions abans de la instal·lació i l'ús.
- Ensure the power supply is disconnected at the circuit breaker before installation or servicing.
- All electrical connections must be in accordance with local codes, ordinances, and the National Electric Code (NEC). If you are unfamiliar with electrical wiring, consult a qualified electrician.
- The fan must be mounted to a structure capable of supporting a minimum of 35 lbs (15.9 kg).
- No feu funcionar el ventilador amb un cable o un endoll danyats.
- Eviteu col·locar els dits o objectes a les aspes del ventilador mentre aquest està en funcionament.
- This fan is wet-rated for outdoor use in covered areas. Do not expose to direct heavy rain or submerge in water.
- Assegureu-vos que el ventilador estigui instal·lat a una alçada on les pales estiguin com a mínim a 2.13 metres del terra.
- Utilitzeu només peces de recanvi especificades pel fabricant.
3. Contingut del paquet
Verifiqueu que tots els components siguin presents i no estiguin danyats abans de començar la instal·lació. Si falta alguna peça o està danyada, poseu-vos en contacte amb el servei d'atenció al client.
- Ventilador de sostre (amb llum integrada)
- Control remot
- Mounting Hardware Kit (screws, anchors, brackets)
- Down Rods (2 lengths)
- Manual d'instruccions (aquest document)
4. Especificacions

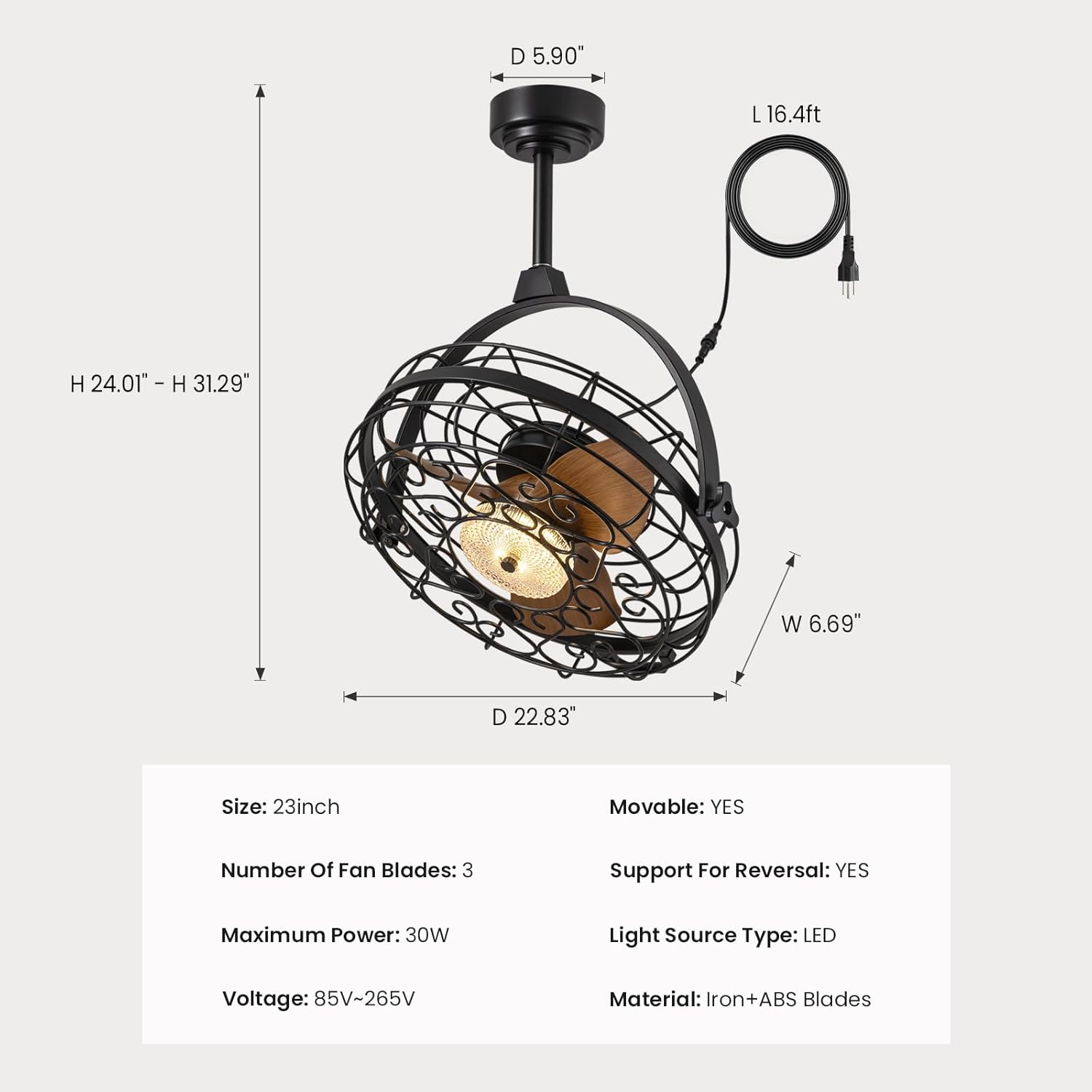

Image 4.1: Detailed dimensions of the fan unit, including height, width, and depth.
| Característica | Especificació |
|---|---|
| Nom del model | FS8912-01 |
| Marca | CROSSIO |
| Mida | 23 polzades |
| Dimensions del producte | 5 "P x 20" W x 20" H |
| Pes de l'article | 22.5 lliures |
| Number of Fan Blades | 3 |
| Potència màxima | 30W |
| Voltage | 85V-265V |
| Font d'alimentació | AC |
| Tipus de font de llum | LED |
| Material | Iron + ABS Blades |
| Mètode de control | Aplicació, comandament a distància |
| Ús interior/exterior | Interior, exterior (resistent a la humit) |
| Característiques especials | Adjustable Color Temperature, Dimmable, Timer, Waterproof, 360° Rotation, Reversible Motor |
| UPC | 733241251473 |
5. Instruccions d'instal·lació
Before installation, ensure the power is turned off at the circuit breaker. Follow these steps for your chosen mounting method.
Image 5.1: Three available installation options: mounting to an outlet box, fixing to solid wood, or hanging with a ceiling hook.
General Steps for All Installations:
- Prepareu la ubicació de muntatge: Ensure the ceiling structure can support the fan's weight (minimum 35 lbs).
- Assemble Down Rod: Attach the desired length of down rod to the fan motor housing.
- Connecteu el cable d'alimentació: The fan comes with a 16ft flexible cord and a 3-prong plug. Ensure the power outlet is within reach and properly grounded.
Image 5.2: The 16ft flexible power cord with a 3-prong plug for easy connection.
Option 1: Outlet Box Mounting
- Secure the mounting bracket to a UL-listed outlet box (not included) that is rated for fan support.
- Attach the fan's down rod assembly to the mounting bracket.
- Make electrical connections (live, neutral, ground) from the fan to the outlet box wiring.
Option 2: Solid Wood Ceiling Mounting
- Drill pilot holes into the solid wood ceiling beam.
- Secure the mounting bracket directly to the wood using appropriate screws (provided in hardware kit).
- Attach the fan's down rod assembly to the mounting bracket.
Option 3: Ceiling Hook Hanging
- Install a sturdy ceiling hook (provided in hardware kit) into a secure ceiling joist or beam.
- Hang the fan unit from the ceiling hook using the integrated hanging mechanism.
Image 5.3: The fan is designed for easy hanging and removal, particularly with the ceiling hook option.
6. Instruccions de funcionament
The CROSSIO ceiling fan can be controlled using the included remote control or a smartphone application.
Image 6.1: The remote control and smartphone application provide comprehensive control over fan and light functions.
Funcions de control remot:
- Interruptor de llum: Encén/apaga la llum.
- Wind Speed Adjustment (1-6): Increases or decreases fan speed.
- Timer Button (1H/4H/8H): Sets the fan to automatically turn off after 1, 4, or 8 hours.
- Ajust de temperatura de color: Cycles through Warm (3000K), Natural (4500K), and Cool (6000K) light.
- Ajust de brillantor (+/-): Dims or brightens the light from 10% to 100%.
- F/R (Forward/Reverse) Button: Changes the direction of fan blade rotation.
Control de l'aplicació per a telèfon intel·ligent:
Download the CROSSIO app from your device's app store. Follow the in-app instructions to pair your fan. The app provides all the functions available on the remote control, plus additional smart features.
Configuració de velocitat del ventilador:

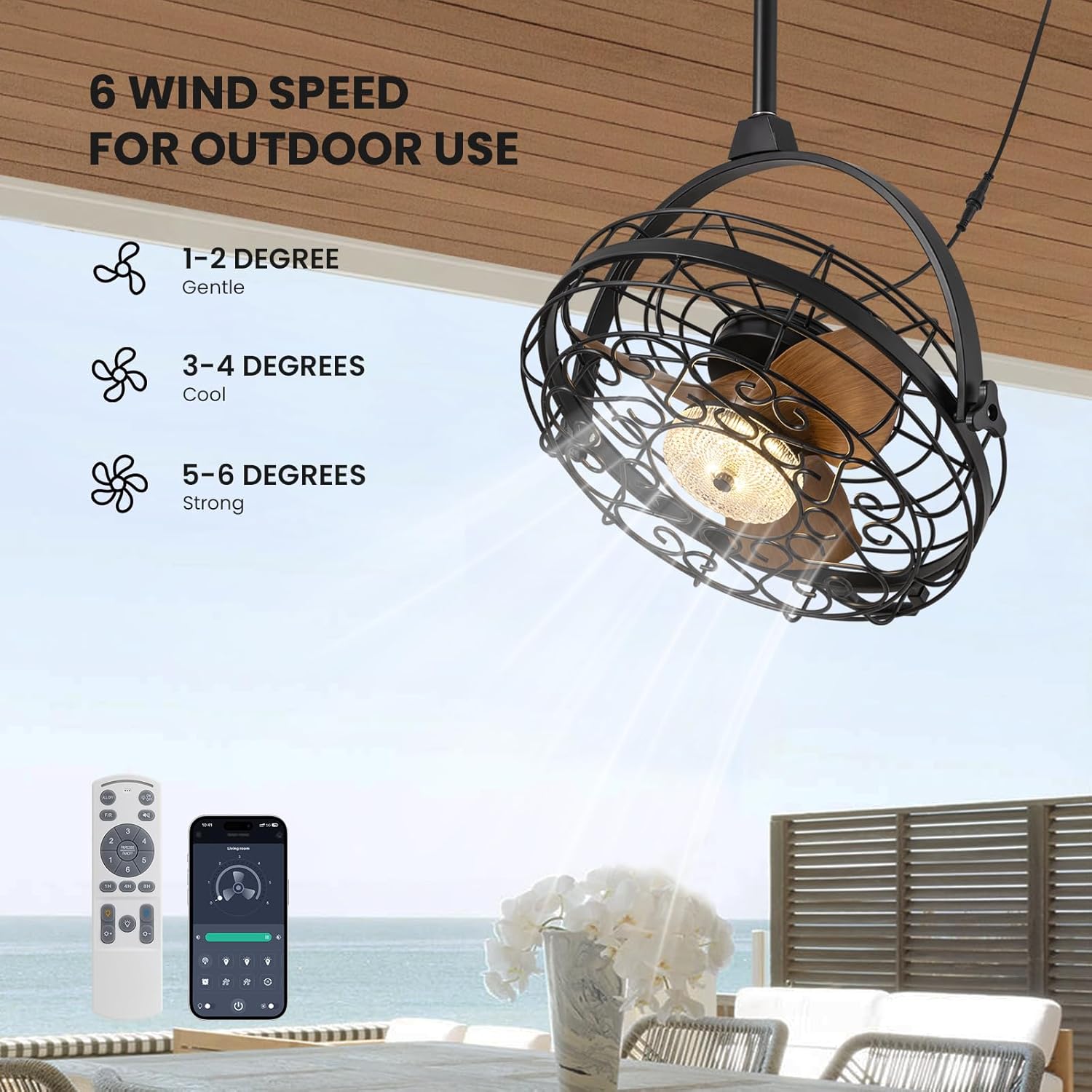

Image 6.2: The fan offers 6 distinct wind speed settings, from gentle to strong.
- Velocitats 1-2: Gentle airflow, ideal for quiet environments or light breeze.
- Velocitats 3-4: Cool airflow, suitable for moderate temperatures.
- Velocitats 5-6: Strong airflow, effective for warmer conditions or larger areas.
Dimmable Light Operation:
Image 6.3: The integrated LED light can be adjusted to three color temperatures and dimmed from 10% to 100% brightness.
Use the color temperature button to cycle through 3000K (Warm), 4500K (Natural), and 6000K (Cool) settings. Use the brightness adjustment buttons to set the light intensity from 10% to 100%.
360° Rotation Feature:
Image 6.4: The fan head can be manually adjusted 360 degrees both horizontally and vertically to direct airflow precisely.
The fan head can be manually rotated 360 degrees horizontally and vertically. This allows you to direct the airflow to specific areas as needed, providing flexible cooling.
Funció del motor reversible:

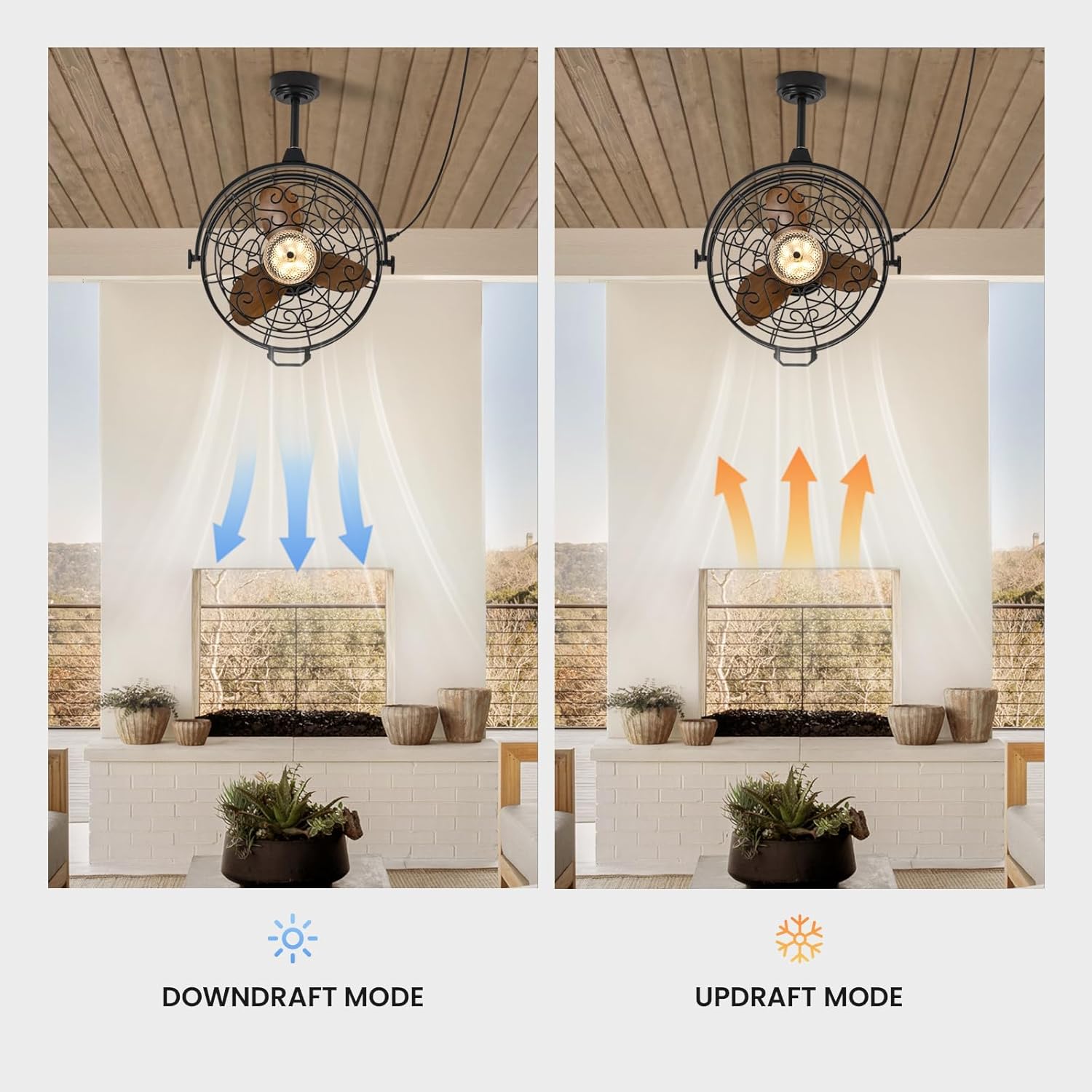

Image 6.5: The fan operates in downdraft mode for cooling in summer and updraft mode for circulating warm air in winter.
Use the F/R button on the remote or the corresponding setting in the app to switch the fan's rotation direction:
- Mode de corrent descendent (estiu): Blades rotate counter-clockwise, pushing air downwards to create a cooling effect.
- Mode corrent ascendent (hivern): Les pales giren en sentit horari, aspirant l'aire cap amunt per fer circular l'aire calent atrapat a prop del sostre.
7. Manteniment
Un manteniment regular garanteix un rendiment òptim i allarga la vida útil del ventilador.
- Neteja: Wipe the fan housing and blades with a soft, damp cloth. Do not use abrasive cleaners or solvents. Ensure the fan is completely dry before operating.
- Pols: Periodically dust the fan blades and light fixture to prevent buildup that can affect performance and light output.
- Inspeccions: Regularly check all connections and mounting hardware for tightness. Ensure the power cord is free from damage.
- Font de llum: La font de llum LED està integrada i, en general, no es pot substituir per l'usuari. Si la llum falla, contacteu amb l'atenció al client.
Caution: Always disconnect power before cleaning or performing any maintenance.
8. Solució De Problemes
If you encounter issues with your fan, refer to the following common problems and solutions.
| Problema | Causa possible | Solució |
|---|---|---|
| El ventilador no s'encén | Sense font d'alimentació Bateria del comandament a distància baixa/descarregada Fan not properly plugged in | Comproveu l'interruptor de circuit i l'interruptor de paret Substituïu les piles del comandament a distància Assegureu-vos que l'endoll estigui completament inserit en una presa de corrent que funcioni |
| La llum no s'encén | Interruptor de llum apagat Falla del LED | Press the light switch button on the remote/app Contacteu amb l'assistència al client per obtenir assistència |
| El ventilador fa un soroll excessiu | Cargols de muntatge solts Obstrucció a les pales del ventilador | Ensure all mounting screws are tightened Check for any objects interfering with the blades (with power off) |
| El comandament a distància no funciona | Piles baixes/descarregades Obstruction between remote and fan Fan not paired | Substituïu les piles Assegureu-vos una línia de visió clara Refer to pairing instructions in the app or contact support |
| Flux d'aire feble | Velocitat del ventilador massa baixa Incorrect fan direction (winter mode in summer) | Increase fan speed setting Switch to downdraft mode (counter-clockwise rotation) |
Si el problema persisteix després d'intentar aquestes solucions, poseu-vos en contacte amb l'atenció al client.
9. Garantia i Suport
Informació de la garantia:
This CROSSIO product is covered by a manufacturer's warranty against defects in materials and workmanship. The specific terms and duration of the warranty may vary. Please retain your proof of purchase for warranty claims.
Atenció al client:
For any questions, technical assistance, or warranty claims, please contact CROSSIO customer support. You can typically find contact information on the product packaging, the official CROSSIO weblloc web o a través de la vostra plataforma de compra.
When contacting support, please have your product model number (FS8912-01) and proof of purchase readily available.
