Introducció
Thank you for choosing the Raddy PT-5 Solar Pool Thermometer. This device is designed to provide accurate and easy-to-read temperature measurements for various water environments, including swimming pools, hot tubs, ponds, aquariums, and ice baths. Featuring dual power options (solar and USB-C charging) and a durable waterproof design, the PT-5 ensures reliable performance and convenience.
Image: The Raddy PT-5 Solar Pool Thermometer, a floating device designed for water temperature measurement.
Característiques del producte
- IPX8 Impermeable: Designed with dual sealing rings for superior water resistance, ensuring durability in aquatic environments.
- Pantalla digital: Provides clear and easy-to-read temperature measurements.
- Mètodes de càrrega dual: Equipped with a solar panel for continuous charging in sunlight and a USB-C port for convenient charging on cloudy days or indoors.
- Bateria recarregable de 1200 mAh: Built-in lithium battery for extended operation and low maintenance.
- High Accuracy Sensor: Delivers precise temperature readings, accurate to ±1°C (2°F).
- Interruptor °C/°F: Easily switch between Celsius and Fahrenheit temperature units.
- Ampli rang de temperatures: Capable of measuring temperatures from -50°C to 70°C (-58°F to 158°F).
Image: The Raddy PT-5 is IPX8 waterproof, featuring dual sealing rings for enhanced protection against water ingress.

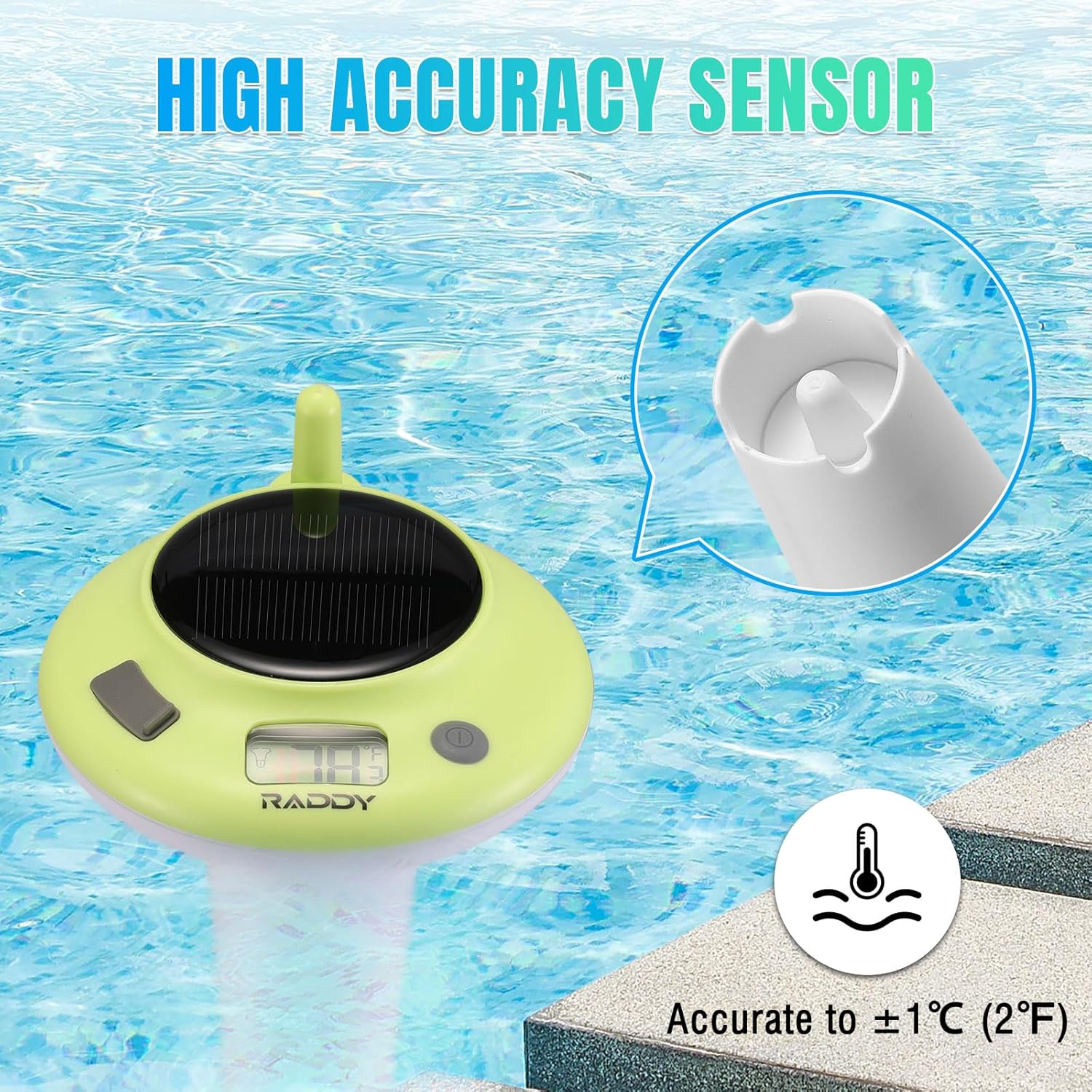

Imatge: Primer pla view of the high accuracy sensor, ensuring precise temperature readings.
Image: Illustration of the dual charging methods: solar panel charging and USB-C charging.
Image: Visual representation of the internal 1200mAh rechargeable battery, providing long-lasting power.
Image: The Raddy PT-5 is capable of measuring a wide range of temperatures, suitable for various climates.
Configuració
- Càrrec inicial: Before first use, it is recommended to fully charge the thermometer using the provided USB-C cable. Connect the cable to the USB-C charging port located under the protective cap. The charging indicator will show status.
- Càrrega solar: Once charged, the built-in solar panel will continuously charge the device when exposed to sunlight, minimizing the need for manual charging.
- Encès/apagat: Press and hold the power button (usually marked with a circle and line) for a few seconds to turn the device on or off.
- Seleccioneu la unitat de temperatura: Briefly press the °C/°F switch button to toggle between Celsius and Fahrenheit display modes.
- Col·locació: Gently place the Raddy PT-5 into the water. Ensure it floats freely and the solar panel is exposed to sunlight for optimal performance.
Image: Diagram illustrating the main components of the Raddy PT-5, including the solar panel, USB-C charging port, temperature display, and power/unit switch, along with its dimensions.
Instruccions de funcionament
The Raddy PT-5 is designed for simple, continuous operation. Once powered on and placed in water, it will automatically detect and display the water temperature on its digital screen.
- Temperatura de lectura: The current water temperature will be clearly displayed on the digital screen. The large display ensures readability from a distance.
- Funcionament automàtic: The thermometer is designed to float and continuously monitor water temperature. No further interaction is required unless you wish to change the temperature unit or turn it off.
Image: The Raddy PT-5 thermometer shown in various applications, including a swimming pool, hot spring, bathtub, and aquarium, demonstrating its versatility.
Manteniment
- Neteja: Periodically clean the thermometer's surface, especially the solar panel and the temperature sensor area, with a soft, damp drap. Eviteu productes de neteja o dissolvents abrasius.
- Cura de la bateria: Ensure the solar panel is regularly exposed to sunlight to maintain battery charge. If stored for extended periods, fully charge the device via USB-C before storage and recharge every few months to preserve battery life.
- Emmagatzematge: When not in use for prolonged periods, store the thermometer in a cool, dry place away from direct sunlight and extreme temperatures. Ensure the USB-C port protective cap is securely closed.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Display is blank or not turning on. | Bateria baixa; el dispositiu està apagat. | Charge the device via USB-C or place it in direct sunlight. Press and hold the power button to turn it on. |
| Lectura de temperatura inexacta. | Sensor dirty; device not fully submerged; extreme water flow. | Clean the sensor area. Ensure the device is floating freely and the sensor is fully immersed. Allow time for temperature stabilization. |
| Device is not floating correctly. | Damage to the floating mechanism. | Inspect the device for any physical damage. Ensure no foreign objects are attached. |
| Water inside the device. | Protective cap not sealed; physical damage. | Immediately remove from water. Ensure the USB-C protective cap is securely closed. If damage is visible, contact customer support. |
Especificacions
| Característica | Detall |
|---|---|
| Nom del model | PT-5 |
| Font d'alimentació | Battery Powered (Solar & USB-C) |
| Tipus de bateria | Bateria de liti recarregable de 1200 mAh |
| Tipus de visualització | Digital |
| Classificació impermeable | IPX8 |
| Interval de temperatura | -50 °C a 70 °C (-58 °F a 158 °F) |
| Precisió | ±1 °C (2 °F) |
| Dimensions | 17.8 cm (7.0 inches) height, 10.0 cm (3.9 inches) diameter (approx.) |
| Material | Plàstic |
| Components inclosos | Instruction Manual, USB-C Cable |
Garantia i Suport
Raddy products are manufactured with high-quality standards. For specific warranty details, please refer to the warranty card included with your product or visit the official Raddy weblloc.
For technical support, troubleshooting assistance, or any inquiries regarding your Raddy PT-5 thermometer, please contact our customer support team:
- Correu electrònic: support@iraddy.com
- Weblloc: www.iraddy.com
- Raddy Store on Amazon: Visit the Raddy Store
