VASTFIRE 16W Starlight Headliner Kit Instruction Manual

Introducció

This manual provides detailed instructions for the installation, operation, and maintenance of your VASTFIRE 16W Starlight Headliner Kit. This kit is designed to transform your vehicle's interior into a captivating starry night sky, suitable for various car types and even home applications. Please read this manual thoroughly before proceeding with installation and use to ensure proper functionality and safety.

Contingut del paquet

Before beginning, please verify that all components are present in your kit:

• 16W Starlight Headliner Light Engine (Music Sync & Meteor Effects)
• RF Remote (28-key wireless control)
• 750 Fiber Optic Strands (0.75mm x 10ft, trimmable)
• 110V Home Power Adapter
• Carregador de cotxe de 12V
• Manual d'usuari

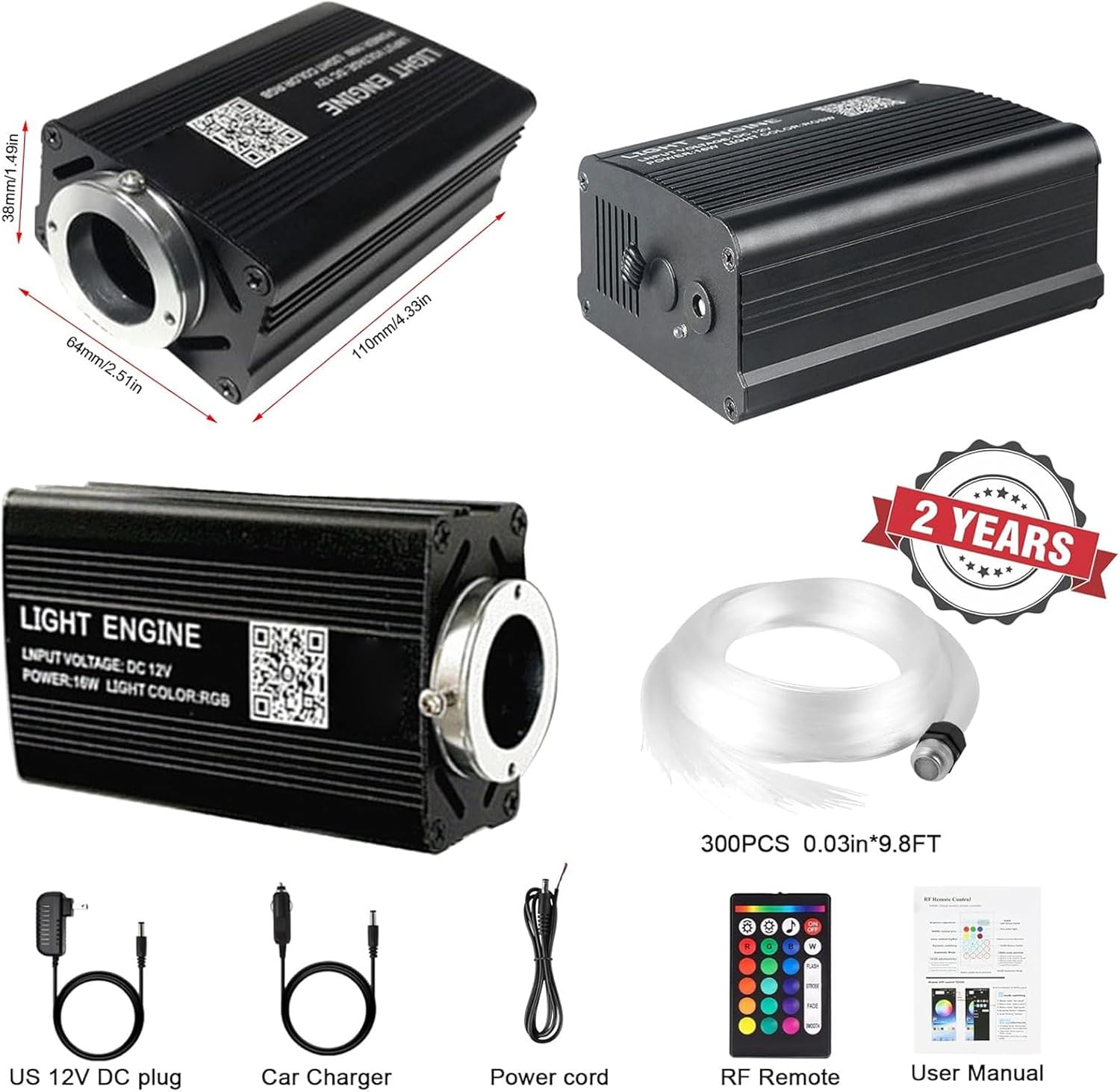

Image: All components included in the VASTFIRE Starlight Headliner Kit, including the light engine, fiber optic bundles, remote control, and power adapters.

Configuració i instal·lació

The installation process involves preparing the headliner, inserting the fiber optic strands, and connecting the light engine. Professional installation is recommended for optimal results, but DIY installation is possible with careful attention to detail.

Passos d'instal·lació:

1. Remove the Car Roof Headliner: Carefully detach and remove the car's interior roof headliner. This step may vary depending on your vehicle model.
2. Marca i perfora els forats: On the back of the headliner, mark the desired pattern for your starlight effect. Use a small drill bit (appropriate for the fiber optic diameter) to create holes at each marked point.
3. Insert Fiber Optic Strands: Begin inserting the fiber optic strands through the drilled holes from the front (visible side) of the headliner. Arrange them according to your desired pattern.
4. Organize Fiber Optic Strands: On the back of the headliner, gather and organize the fiber optic strands. Ensure they are evenly distributed and not tangled.
5. Secure Fiber Optic Strands: Use a suitable adhesive (e.g., hot glue) to fix the fiber optic strands in place on the back of the headliner, preventing them from slipping out.
6. Insulate and Protect: Apply light sponge, cloth, or other suitable insulating material over the secured fiber optic strands to protect them and prevent rattling.
7. Trim Excess Fiber: Once all fibers are in place and secured, cut the extra length of fiber optic strands on the visible side of the headliner to achieve a flush finish.
8. Reinstall the Car Roof Headliner: Carefully reinstall the headliner back into your car, connecting the light engine to the fiber optic bundle and the power source.

Image: Illustrates the difference in fiber optic cable lengths required for various vehicle types, showing that 9.5 ft fibers fit car panels and 13.5 ft fibers fit truck panels better.

Instruccions de funcionament

Your VASTFIRE Starlight Headliner Kit offers multiple control options and lighting modes to customize your experience.

Mètodes de control:

• Control remot RF: Use the included 28-key wireless remote to adjust colors, brightness, and dynamic modes.
• Smartphone App (Bluetooth): Download the dedicated app for iOS/Android to access 16 million colors, static, twinkle, and shooting star modes, music sync, and more advanced customization.
• Control de so: The light engine features music sync capabilities, allowing the lights to react to audio.

Característiques principals:

• 16 milions de colors: Choose from a vast spectrum of colors to match your mood or vehicle interior.
• Brillantor ajustable: Dim or brighten the starlight effect from 1% to 100%.
• Efecte centelleig: Simulate a realistic starry night with adjustable twinkle speed.
• Modes dinàmics: Explore various pre-set modes such as fade, jump, flash, and breathe for animated lighting effects.
• Shooting Star Effect: Create a meteor shower effect (if applicable to your specific kit configuration).

Image: Displays the RF remote control and a smartphone app interface, highlighting seamless control over RGBW colors, music sync, brightness, twinkle, and timing functions.

Manteniment

To ensure the longevity and optimal performance of your VASTFIRE Starlight Headliner Kit, follow these simple maintenance guidelines:

• Neteja: Gently wipe the fiber optic ends and the light engine housing with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials.
• Eviteu l'exposició a l'aigua: The light engine is not water-resistant. Ensure it is installed in a dry location and protected from moisture.
• Cura de la fibra: Avoid bending or sharply creasing the fiber optic strands, as this can damage them and reduce light transmission.

Resolució de problemes

If you encounter any issues with your VASTFIRE Starlight Headliner Kit, please refer to the following common problems and solutions:

• Sense sortida de llum:
  • Comproveu totes les connexions d'alimentació per assegurar-vos que estiguin ben fixades.
  • Verify that the power adapter is functioning correctly and receiving power.
  • Ensure the light engine is properly connected to the fiber optic bundle.
• El control remot no funciona:
  • Replace the battery in the RF remote control.
  • Assegureu-vos que no hi hagi obstacles entre el comandament a distància i el receptor del motor de llums.
• Problemes de connectivitat de l'aplicació:
  • Assegureu-vos que el Bluetooth estigui habilitat al vostre telèfon intel·ligent.
  • Restart the app and the light engine.
  • Try pairing the device again through the app settings.
• Inconsistent Lighting/Dim Spots:
  • Check for any kinks or damage in the fiber optic strands.
  • Ensure the fiber optic bundle is fully inserted into the light engine's port.

Si el problema persisteix després d'intentar aquestes solucions, poseu-vos en contacte amb l'atenció al client.

Especificacions

Garantia

The VASTFIRE 16W Starlight Headliner Kit comes with a 2-year service warranty. Please retain your proof of purchase for any warranty claims.

Suport

For further assistance, technical support, or warranty inquiries, please refer to the contact information provided with your purchase or visit the official VASTFIRE weblloc.
