Introducció
Thank you for choosing the Ledvion Rechargeable Wall Light with Motion Sensor. This manual provides essential information for the safe and efficient use of your new wall light. Please read these instructions carefully before installation and operation, and retain them for future reference.

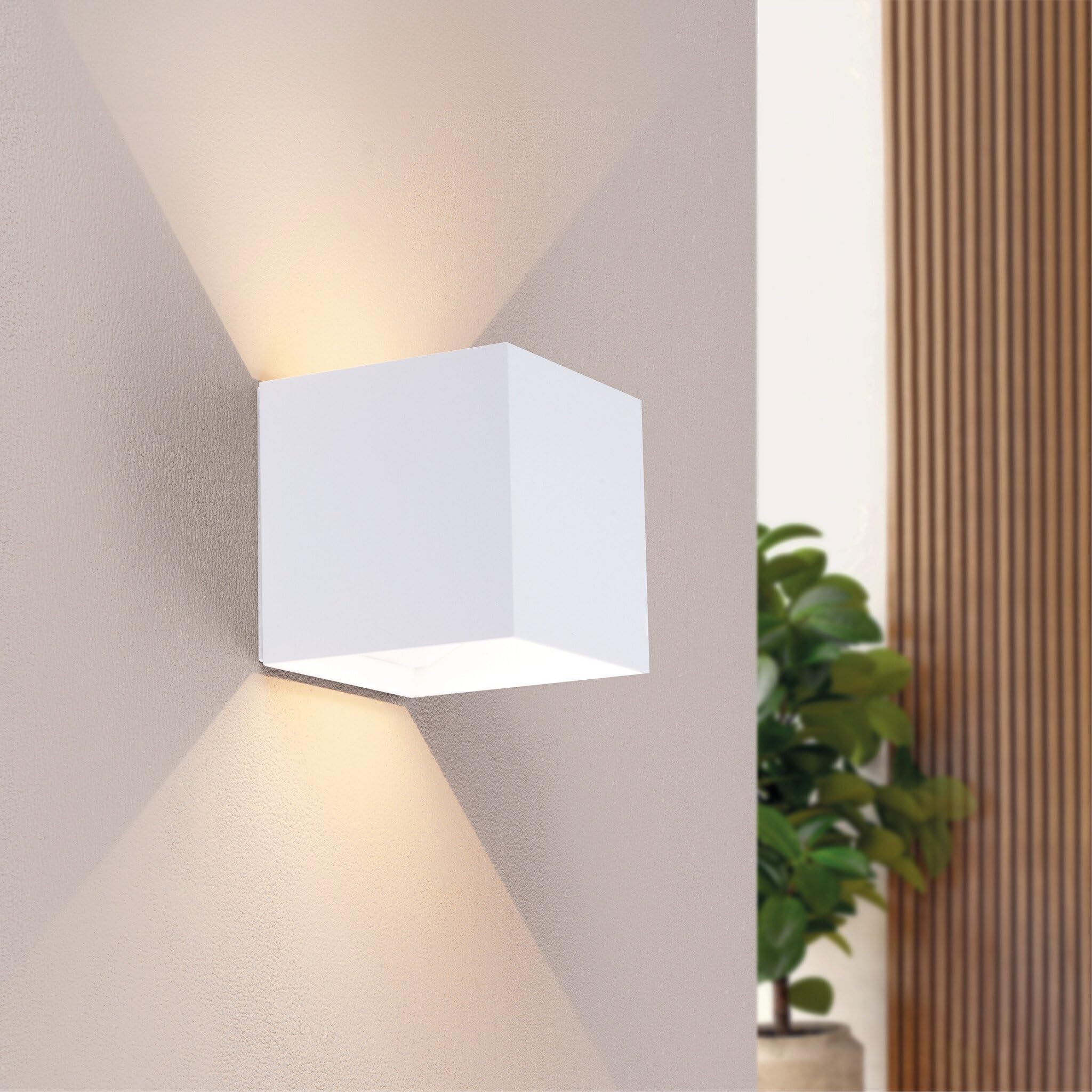

The Ledvion Rechargeable Wall Light in a typical indoor setting.
The IP44 rating makes this light suitable for damp ambients com els banys.
This wall light features a built-in 4400mAh rechargeable battery, USB-C charging, an integrated motion sensor with three operating modes, and an IP44 rating for splash protection, making it suitable for various indoor and sheltered outdoor environments.
Contingut del paquet
Illustration of included components.
- 1x Ledvion LED Wall Light (Cube)
- 1 x suport de muntatge
- 1x cable de càrrega USB-C
- 2x cargols de muntatge
- 2x Screw Wall Plugs
- 1x Manual d'instruccions (aquest document)
Informació de seguretat
- Llegiu totes les instruccions abans d'utilitzar.
- No intenteu desmuntar, reparar o modificar el dispositiu. Això anul·larà la garantia i pot causar danys o lesions.
- Mantingueu el dispositiu allunyat de temperatures extremes, llum solar directa i humitat.
- Ensure the mounting surface is strong enough to support the weight of the light.
- Feu servir només el cable USB-C proporcionat per carregar.
- The IP44 rating protects against splashes. Do not immerse the light in water.
- Desfeu-vos del producte i de la bateria de manera responsable d'acord amb la normativa local.
Configuració i instal·lació
Carregant la bateria
Before first use, fully charge the wall light. Connect the supplied USB-C cable to the charging port on the light and to a standard USB power adapter (not included). A full charge takes approximately 6.5 hours.
The wall light is rechargeable via USB-C. A full charge takes approximately 6.5 hours.
Mounting the Wall Light
The Ledvion wall light is designed for easy, wireless installation using the included mounting bracket, screws, and wall plugs. The light attaches to the bracket via strong magnetic suction.
- Trieu una ubicació: Select a suitable location on a wall. Ensure the surface is clean, dry, and capable of supporting the light's weight. Consider the desired detection range for the motion sensor (up to 6 meters).
- Marca els punts de perforació: Hold the mounting bracket against the wall at the desired height and mark the positions for the two screw holes.
- Forats: Drill two holes at the marked positions. Insert the provided wall plugs into the drilled holes.
- Fixeu el suport: Align the mounting bracket with the wall plugs and secure it firmly to the wall using the provided screws.
- Connectar llum: Once the bracket is securely mounted, simply place the Ledvion wall light onto the bracket. The strong magnetic suction will hold it in place.

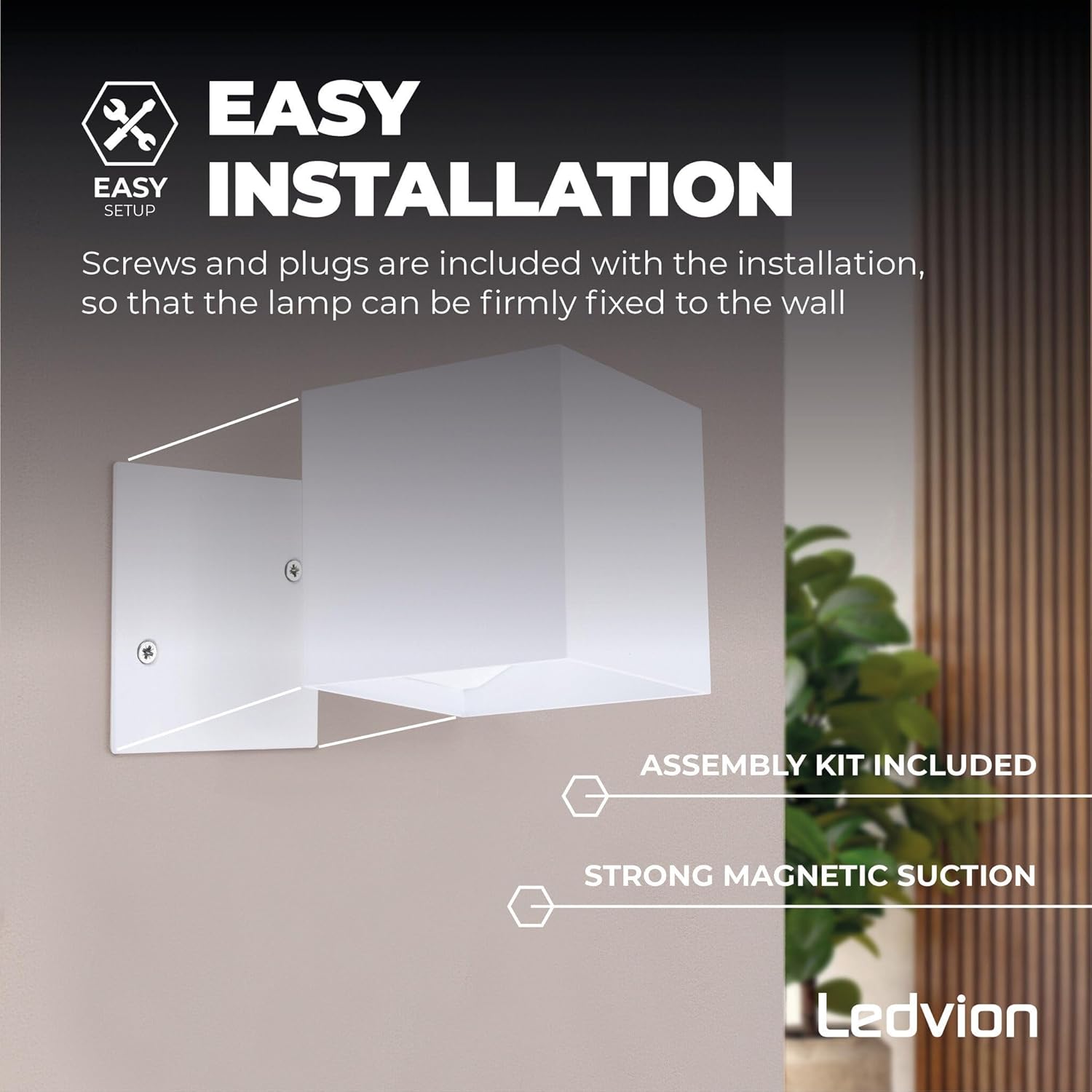

The light attaches to the mounting bracket using strong magnetic suction, making installation simple.
Operating the Wall Light
The Ledvion wall light features a motion sensor and multiple operating modes. The control panel is located on the underside of the light.

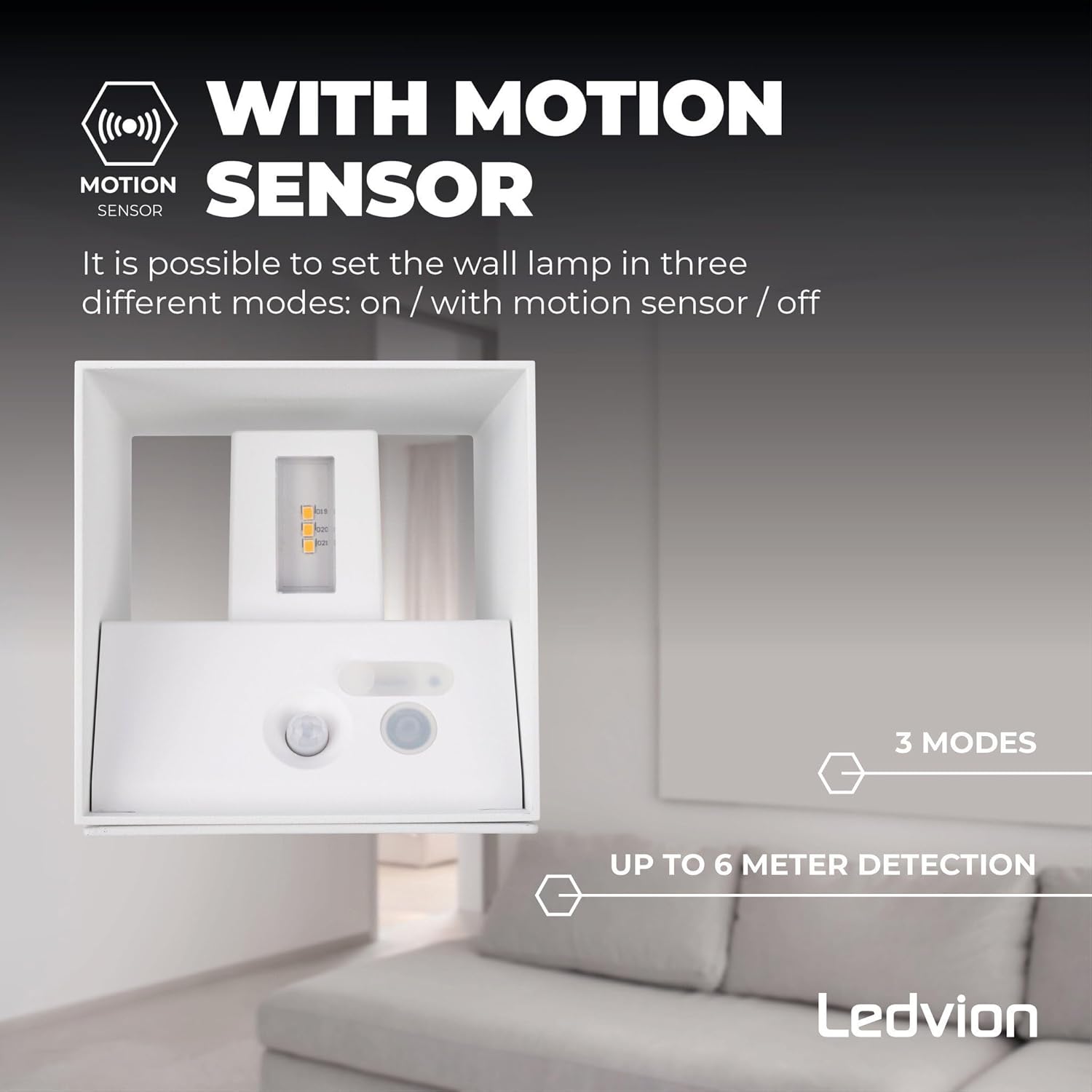

The control panel allows selection of operating modes.
Modes de funcionament
The wall light offers three distinct operating modes, selectable via a switch on the control panel:
- Mode ON: La llum romandrà encesa contínuament fins que s'apagui manualment o s'esgoti la bateria.
- Mode sensor de moviment: The light will automatically turn on when motion is detected within its range (up to 6 meters) and in low light conditions. It will turn off after a period of no motion.
- Mode OFF: El llum romandrà apagat, estalviant bateria.
Select the desired mode based on your lighting needs. For optimal battery life and convenience, the motion sensor mode is recommended for most applications.
Durada de la bateria
With a fully charged 4400mAh battery, the wall light can operate for up to 18 hours, depending on the selected mode and frequency of activation (in motion sensor mode).
The 4400mAh battery provides up to 18 hours of operation.
Manteniment
- Neteja: Netegeu la superfície de la llum amb un suau, damp tela. No utilitzeu netejadors abrasius ni dissolvents.
- Càrrega: Recharge the battery when the light output diminishes or when it stops functioning. Regular charging helps maintain battery health.
- Cura del sensor: Keep the motion sensor lens clean and free from obstructions to ensure optimal performance.
- Emmagatzematge: If storing the light for an extended period, ensure it is fully charged and store it in a cool, dry place. Recharge every 3-6 months to prevent deep discharge.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| La llum no s’encén. | La bateria està esgotada. | Carregueu la llum amb el cable USB-C. |
| La llum no detecta moviment. | Incorrect mode selected (e.g., OFF or ON mode). El sensor està obstruït o brut. Motion is outside detection range. | Ensure the light is set to Motion Sensor mode. Netegeu la lent del sensor. Adjust the light's position or ensure motion occurs within 6 meters. |
| El llum s'encén inesperadament. | Environmental factors (e.g., heat sources, moving objects). | Relocate the light away from sources of false triggers. |
| La llum no carrega. | Faulty USB-C cable or power adapter. El port de càrrega està danyat. | Try a different USB-C cable and power adapter. If the issue persists, contact customer support. |
Especificacions del producte
Dimensions of the Ledvion Wall Light.
| Marca: | Ledvion |
| Número de model: | LVO10113 |
| Dimensions del producte: | 10 x 10 x 10 cm (approx. 100 x 100 x 103 mm as per image) |
| Pes del producte: | 620 g |
| Color: | Blanc |
| Forma: | Cub |
| Material: | Plastic (Shade), Aluminium (Housing) |
| Font de llum: | LED integrat |
| Flux lluminós: | 170 lúmens |
| Temperatura de color: | 3000 Kelvin (Blanc càlid) |
| Poder Electric: | 5 watts |
| Font d'alimentació: | Bateria recarregable |
| Capacitat de la bateria: | 4400 mAh |
| Temps de càrrega: | Approx. 6.5 hours (via USB-C) |
| Temps de funcionament: | Up to 18 hours (depending on mode/usage) |
| Tipus de sensor: | Sensor de moviment |
| Interval de detecció de moviment: | Fins a 6 metres |
| Classificació IP: | IP44 (a prova d'esquitxades) |
| Tipus d'instal·lació: | Suport de paret (magnètic) |
| Ús recomanat: | Indoor (e.g., bathrooms) and sheltered outdoor areas (e.g., gardens, patios) |
Garantia i Suport
Ledvion products are manufactured to high-quality standards. For information regarding warranty terms and conditions, please refer to the documentation provided with your purchase or visit the official Ledvion weblloc.
If you encounter any issues or have questions about your Ledvion Rechargeable Wall Light, please contact Ledvion customer support for assistance.
Fabricant: Ledvion
Model: LVO10113
