Manual d'instruccions

1. Introducció

This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your new chartustriable 95-inch Fireplace TV Stand. Please read all instructions carefully before assembly and use to ensure safe and proper operation.

The Fireplace TV Stand is designed to accommodate televisions up to 100 inches and features a 60-inch electric fireplace, integrated LED lighting, and a convenient charging station.

2. Informació de seguretat

• Assegureu-vos que totes les connexions elèctriques compleixin els codis i les normatives locals.
• Do not overload the power outlets on the charging station.
• Mantingueu els materials inflamables a una distància mínima de 0.9 metres de la part frontal de la xemeneia elèctrica.
• The electric fireplace includes an overheat cut-off function for safety. If the unit overheats, it will automatically shut off.
• Desendolleu sempre la unitat de la presa de corrent abans de netejar-la o fer-ne qualsevol manteniment.
• This product is heavy and requires two people for safe assembly and relocation.
• Utilize the included anti-tipping device to secure the TV stand to the wall, preventing accidental tipping.

3. Contingut del paquet

Your chartustriable Fireplace TV Stand will arrive in two separate packages. Please ensure both packages are received before beginning assembly.

• All necessary engineered wood panels for the TV stand structure.
• 60-inch Electric Fireplace insert.
• LED light strips and associated power supply.
• Charging station with 2 power outlets and 2 USB ports.
• Hardware kit (screws, dowels, cam locks, hinges, handles, anti-tipping device, etc.).
• Remote control for electric fireplace and LED lights.
• Manual d'instruccions.

4. Instruccions de muntatge

It is recommended that two people complete the assembly process. Lay out all components on a soft, clean surface (such as a carpet or the opened cardboard packaging) to prevent scratches. Identify all parts and hardware using the provided labels and diagrams.

Figure 4.1: Overall dimensions of the 95.3"W x 15.8"D x 33.1"H Fireplace TV Stand. Note the 60.2" wide electric fireplace opening and the 17.1" height for the fireplace insert.

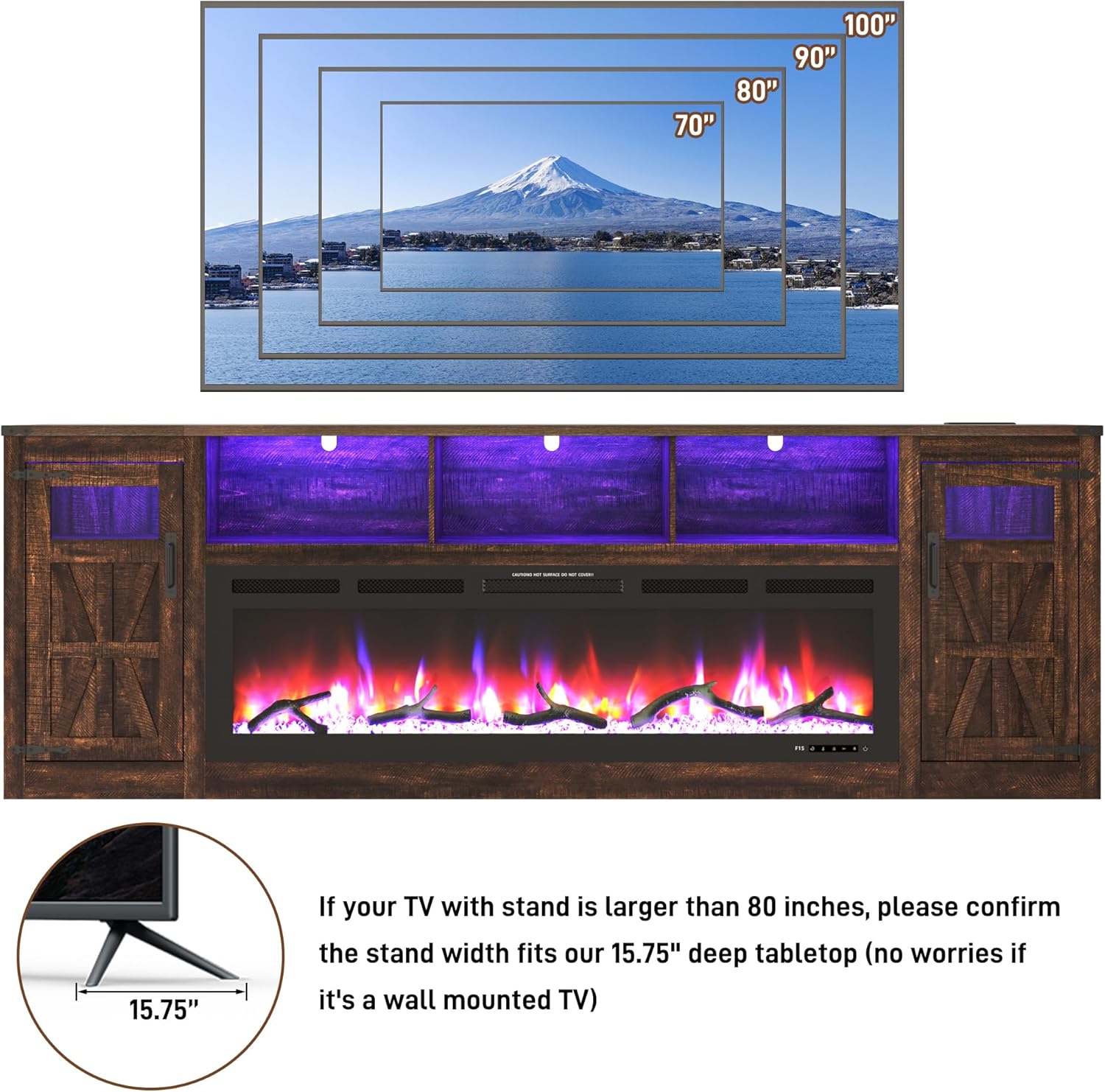

Figure 4.2: The TV stand can accommodate TVs up to 100 inches. For TVs larger than 80 inches, confirm the stand's 15.75" deep tabletop is suitable. Wall-mounted TVs do not require tabletop depth consideration.

Guia de vídeo de muntatge

Passos clau del muntatge:

1. Desembalatge: Carefully open the packaging. Place furniture panels on protective layers to avoid scratches. Organize hardware by number for easy access.
2. Construcció de la base: Assemble the base frame using the designated panels and hardware.
3. Side and Center Supports: Attach the vertical side and center support panels.
4. Prestatges: Install the adjustable shelves within the storage compartments.
5. Tauler superior: Secure the top panel to the assembled structure.
6. Instal·lació de la porta: Attach the rustic barn doors using the provided hinges and handles.
7. Electric Fireplace Insert: Carefully slide the 60-inch electric fireplace into its designated opening. Secure it according to the fireplace's specific instructions.
8. LED Lights & Charging Station: Install the LED light strips in the semi-open compartments and secure the charging station into the tabletop cutout. Connect all electrical components.
9. Dispositiu antibolcada: Securely attach the anti-tipping device to the back of the TV stand and to a wall stud.

5. Instruccions de funcionament

5.1 Llar de foc elèctrica

The 60-inch electric fireplace provides realistic 3D flame effects and supplemental heating. It can be controlled via the unit's panel or the included remote control.

Figure 5.1: The electric fireplace remote control allows for easy adjustment of settings. Multiple flame colors and ember bed colors are available.

• Encès/Apagat: Premeu el botó d'engegada per encendre o apagar la llar de foc.
• Color de la flama: Cycle through various flame colors (e.g., red, blue, green, purple, white, and combinations) to match your ambiance.
• Ember Bed Color: Select from multiple ember bed colors (e.g., clear crystal, charcoal) to enhance the visual effect.
• Brightness (Dimmer): Ajusteu la brillantor de la flama en 5 nivells.
• Potència de calor: The 5000 BTU heater can effectively warm areas up to 400 square feet. Adjust the temperature setting from 60°F to 99°F.
• Temporitzador: Set the automatic shut-off timer for 0.5 to 8 hours.
• Bloqueig per a nens: Activate the child lock feature for added safety.

5.2 llums LED

The integrated LED light strips enhance the visual appeal of the TV stand and can be synchronized with the fireplace flames.

Figure 5.2: The LED light strips offer over 6000 colors, adjustable brightness, timer function, music mode, and microphone mode, controllable via app or remote.

• Control the LED lights using the dedicated remote control or a compatible smartphone application.
• Choose from over 6000 colors and adjust brightness levels.
• Utilize music mode or microphone mode for dynamic lighting effects.

5.3 Punt de recàrrega

The built-in charging station provides convenient power access for your electronic devices.

• The charging station includes two standard power outlets and two USB ports.
• Connect mobile phones, tablets, and other electronic devices for charging.

6. Manteniment

• Neteja: Netegeu les superfícies amb un suau, damp cloth. Avoid harsh chemicals or abrasive cleaners that may damage the engineered wood finish.
• Pols: Netegeu la unitat regularment per evitar acumulacions de pols.
• Cura de la xemeneia: Ensure the electric fireplace vents are clear of obstructions for proper operation and to prevent overheating.
• Comprovació de maquinari: Reviseu periòdicament tots els cargols i connexions per assegurar-vos que estiguin ben ajustats.

7. Solució De Problemes

• La llar de foc no s'encén: Check if the power cord is securely plugged into a working outlet. Verify the power button on the unit or remote is pressed. Check the circuit breaker.
• Sense sortida de calor: Ensure the heat function is activated and the temperature setting is above the ambient room temperature. Check for any obstructions around the heater vents.
• Els llums LED no funcionen: Check the power connection for the LED strips. Ensure the remote control batteries are functional.
• L'estació de càrrega no funciona: Verify the main power cord for the TV stand is plugged in. Test the outlets with another device.
• Suport inestable: Ensure all assembly screws are tightened. Adjust leveling feet if applicable. Confirm the anti-tipping device is properly installed.

8. Especificacions

9. Garantia i Suport

This chartustriable product comes with a limited warranty. For specific warranty details, please refer to the documentation included in your product packaging or contact customer support.

Atenció al client

For any questions regarding assembly, operation, or troubleshooting, please contact our 24-hour customer service team. Contact information can be found on the product packaging or our official weblloc.

Figure 9.1: Our dedicated customer service team is available to assist you.
