Manual d'usuari del controlador Bluetooth sense fil ShanWan Q38

1. Producte acabatview

The ShanWan Q38 is a versatile wireless Bluetooth controller designed for a wide range of gaming platforms. It features advanced controls such as Hall Effect joysticks and micro-switch buttons for enhanced precision and responsiveness.

Imatge 1.1: De dalt a baix view of the ShanWan Q38 Wireless Bluetooth Controller, showcasinel seu disseny compacte i la disposició dels botons.

2. Contingut del paquet

Si us plau, assegureu-vos que tots els elements estiguin presents al paquet:

• Controlador Bluetooth sense fil ShanWan Q38
• Cable de càrrega USB
• Manual d'usuari (aquest document)
• 1 pila AAA (preinstal·lada o inclosa per separat)

3. Configuració i connectivitat

3.1 Càrrega del controlador

Before initial use, ensure the controller is sufficiently charged. Connect the provided USB charging cable to the controller's charging port and to a USB power source (e.g., computer, USB wall adapter). The LED indicator will show charging status.

3.2 Compatibilitat

The ShanWan Q38 controller is compatible with the following platforms:

• Nintendo Switch / Switch 2 (firmware upgrade may be required for Switch 2)
• Steam Deck
• PC (Windows)
• Android devices (phones, tablets)
• iPhone
• iPad
• dispositius macOS
• PS4 (as indicated by mode switch, specific compatibility may vary)

Image 3.1: The ShanWan Q38 controller demonstrating compatibility with multiple gaming platforms.

3.3 Connexió mitjançant Bluetooth

Per connectar el controlador al dispositiu:

1. Encès: Press and hold the Home button on the controller until the indicator lights begin to flash.
2. Seleccioneu el mode: Use the mode switch located on the top edge of the controller to select the appropriate mode for your device:
• X Mode: For Mobile & Computer (Android, PC, macOS, iOS).
• Mode S: Per a Nintendo Switch.
• Mode P: For PS4 (if compatible).

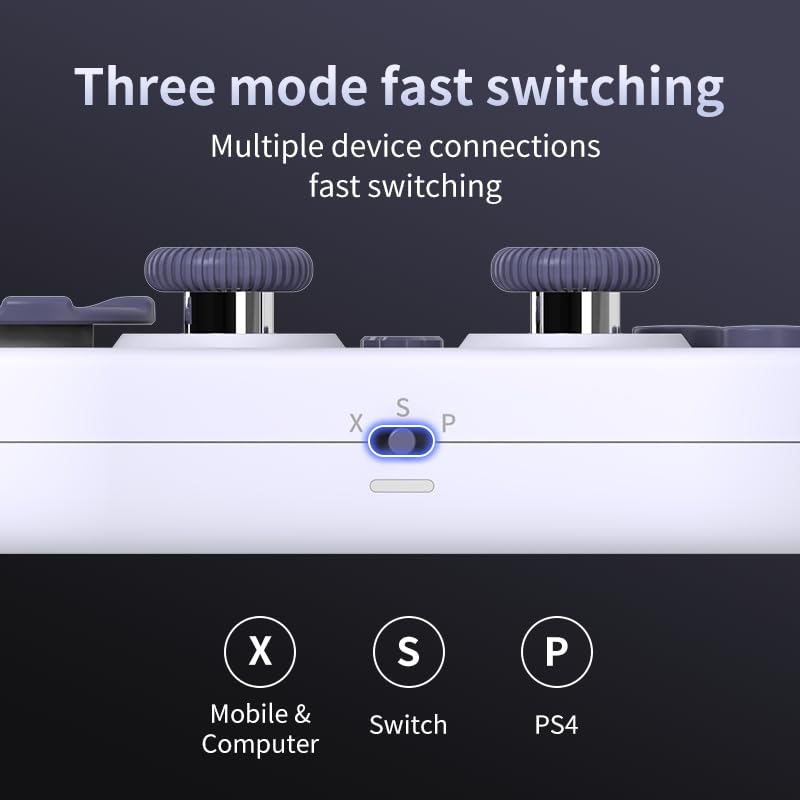

Image 3.2: Detail of the three-mode fast switching selector on the controller.

3. Maridatge: On your device, navigate to the Bluetooth settings and search for available devices. Select "ShanWan Q38" (or similar) from the list to pair.
4. Confirmació: Once successfully paired, the indicator light on the controller will become solid.

3.4 Customization and Calibration

For advanced customization, including button remapping and macro functions, download the official "gamepad space" application. This application also allows for controller calibration to ensure optimal performance.

4. Funcionament del controlador

4.1 Característiques clau

• Joysticks d'efecte Hall: Provides high precision and sensitivity. The joystick height is adjustable between 5mm and 8mm for personalized comfort.


Image 4.1: Detail of the adjustable Hall Effect joysticks.

• Composite Micro-Switch Buttons: These buttons offer a tactile response similar to mechanical keyboards, providing quick and precise input.

Image 4.2: Close-up of the composite micro-switch action buttons.


Image 4.3: Diagram illustrating the internal components of the composite micro-keypad.

• Mechanical Triggers: Designed for fast response times.
• Dual Micro Motors: Provides dual vibration feedback for an immersive gaming experience.
• Somatosensory Gyroscope: Equipped with a 6-axis gyroscope for motion control in supported games.

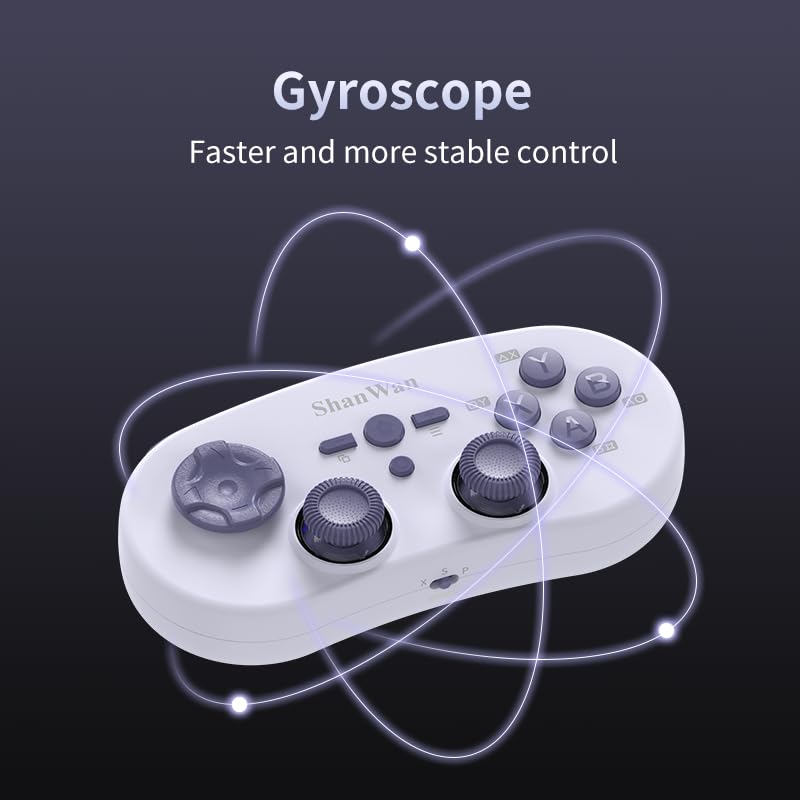

Image 4.4: Visual representation of the controller's gyroscope functionality.

4.2 Experiència de joc

The compact design allows for portability, making it suitable for gaming on the go with devices like the Nintendo Switch or smartphones.

Image 4.5: Controller in use with a Nintendo Switch.

Image 4.6: Controller paired with a smartphone for mobile gaming.

Image 4.7: Two controllers in use for multiplayer gaming on a PC.

5. Manteniment

To ensure the longevity and optimal performance of your ShanWan Q38 controller, follow these maintenance guidelines:

• Neteja: Use a soft, dry cloth to wipe the controller. For stubborn dirt, a slightly damp es pot fer servir un drap, però assegureu-vos que no entri humitat al dispositiu. Eviteu productes químics agressius o netejadors abrasius.
• Emmagatzematge: Guardeu el controlador en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
• Cura de la bateria: If using replaceable AAA batteries, remove them if the controller will not be used for an extended period to prevent leakage.
• Eviteu les gotes: Protect the controller from physical impact and drops, which can damage internal components.

6. Solució De Problemes

If you encounter issues with your ShanWan Q38 controller, refer to the following common problems and solutions:

• Controller Does Not Power On:
  • Ensure the battery is correctly inserted and has sufficient charge. Replace AAA batteries if necessary.
  • Connect the controller to a power source using the USB cable to confirm if it charges.
• Difficulty Connecting via Bluetooth:
  • Ensure the controller is in the correct mode (X, S, or P) for your device.
  • Desactiva i activa el Bluetooth del dispositiu.
  • Oblida el dispositiu a la configuració de Bluetooth i intenta tornar-lo a emparellar.
  • Ensure the controller is within the effective range of your device.
• Buttons or Joysticks Not Responding Correctly:
  • Calibrate the controller using the "gamepad space" application.
  • Check for any physical obstructions or debris around the buttons or joysticks.
  • Ensure the controller's firmware is up to date, especially for Switch 2 compatibility.
• Random Disconnections:
  • Assegureu-vos que no hi hagi interferències sense fil fortes a prop.
  • Keep the controller close to the connected device.
  • Re-pair the controller if disconnections are frequent.

7. Especificacions

Image 7.1: Physical dimensions of the ShanWan Q38 controller.

8. Garantia i Suport

For warranty information and customer support, please refer to the official ShanWan weblloc web o poseu-vos en contacte amb el distribuïdor on vau comprar el producte. Conserveu el comprovant de compra per a reclamacions de garantia.
