SKIL Compact Workbench with Folding Stand (Model SBT0011) Instruction Manual

1. Introducció

The SKIL Compact Workbench with Folding Stand (Model SBT0011) is a versatile and portable solution designed to support various woodworking and DIY tasks. It features a quick-connect system for easy setup, integrated clamping controls for securing materials, and a fold-flat design for convenient storage. This manual provides essential information for the safe assembly, operation, and maintenance of your workbench.

Figure 1.1: Fully assembled SKIL Compact Workbench with Folding Stand.

2. Informació de seguretat

Always observe basic safety precautions when using this product to reduce the risk of personal injury and damage to the workbench. Read and understand all instructions before use.

• Llegeix totes les instruccions: Familiarize yourself with the workbench's features and operation.
• Porteu equip de seguretat: Always wear appropriate personal protective equipment, such as safety glasses, when working with tools on the workbench.
• Superfície estable: Assegureu-vos que el banc de treball estigui col·locat sobre una superfície estable i anivellada abans d'utilitzar-lo.
• Capacitat de pes: Do not exceed the maximum weight capacity of the workbench. Refer to the specifications section for details.
• Peça de treball segura: Always properly secure your workpiece using the clamping mechanisms to prevent movement during operation.
• Mantenir la zona neta: Maintain a clean and well-lit work area. Cluttered areas invite accidents.
• Infants i espectadors: Keep children and bystanders away while operating the workbench.
• Inspeccionar abans d'utilitzar: Before each use, inspect the workbench for any damaged parts. Do not use if damaged.

3. Contingut del paquet

Verify that all components are present upon unpacking. If any parts are missing or damaged, contact SKIL customer service.

• SKIL Compact Workbench Assembly
• Muntatge de suport plegable
• Quick-Install Dust Bag
• Manual d'instruccions (aquest document)

4. Configuració

Follow these steps to set up your SKIL Compact Workbench.

4.1 Desplegament del suport

1. Col·loqueu el suport plegat sobre una superfície plana.
2. Carefully extend the legs until they lock into place, forming a stable 'X' shape.
3. Ensure all locking mechanisms are engaged before proceeding.

Figura 4.1: Frontal view of the workbench stand in an unfolded position.

4.2 Attaching the Workbench Top (Quick-Connect System)

1. Align the quick-connect points on the workbench top with the corresponding receivers on the unfolded stand.
2. Press down firmly until the workbench top clicks securely into place. This system allows for fast, tool-free attachment.
3. Verify that the workbench top is firmly attached and does not wobble.

Figure 4.2: Detail of the quick-connect system for attaching the workbench top to the stand.

4.3 Instal·lació de la bossa de pols

1. Locate the quick-install dust bag.
2. Attach the dust bag to the designated hooks or clips on the stand, typically located beneath the workbench surface.
3. Ensure the bag is securely fastened to collect debris effectively.

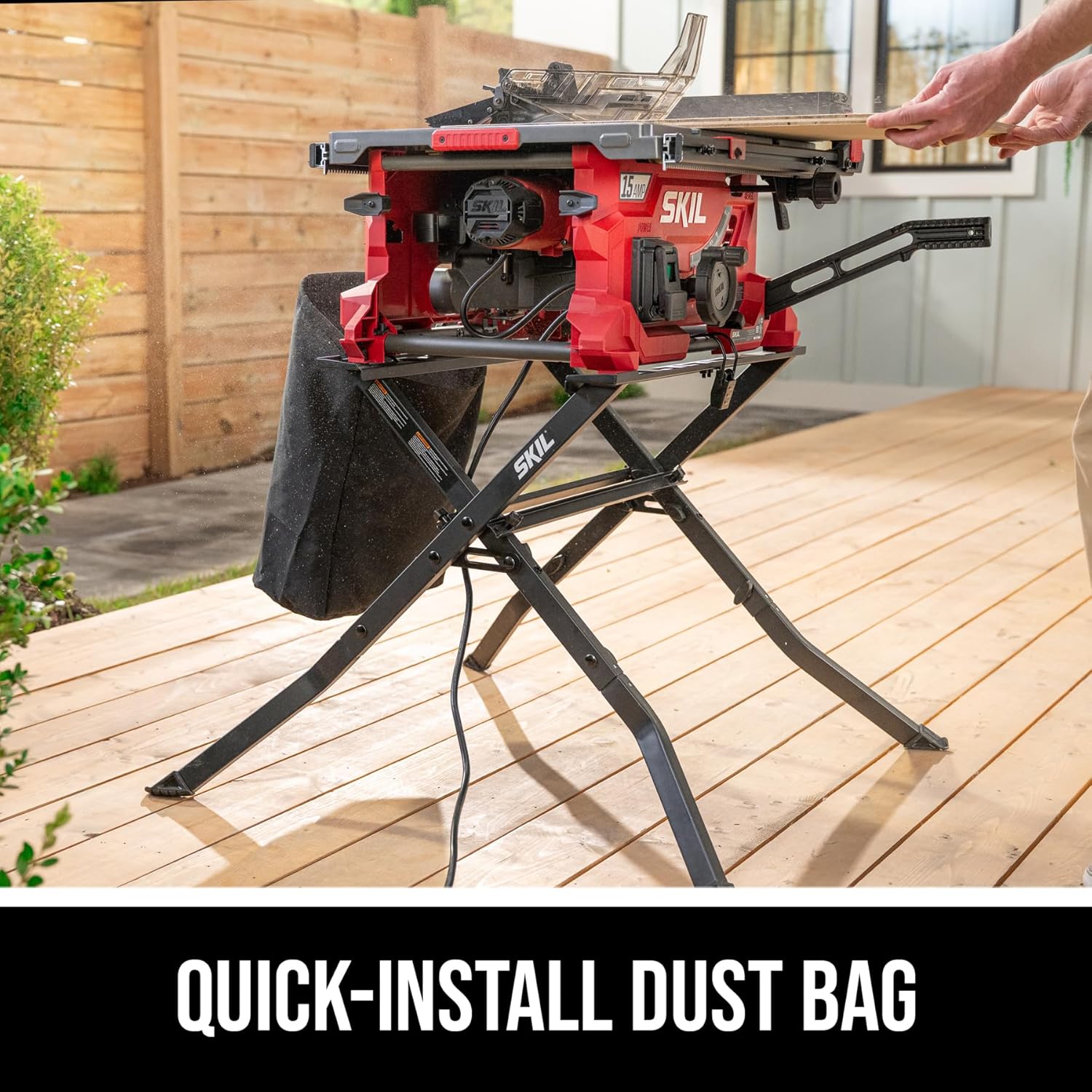

Figure 4.3: The quick-install dust bag attached to the workbench stand, collecting sawdust from an attached tool.

5. Instruccions de funcionament

5.1 Using ClampControls

The workbench features integrated controls for clamping and securing various objects. These controls allow for precise adjustment to hold both small and large workpieces firmly in place.

• Ajust de les mandíbules: Rotate the handle to open or close the workbench jaws.
• Fixació de la peça de treball: Place your material between the jaws and turn the handle until the workpiece is securely clamped. No estrenyeu massa.
• Using Bench Dogs: Utilize the included bench dogs in the pre-drilled holes on the workbench surface for irregular shapes or additional clamppunts d'ing.

Figure 5.1: Demonstrating the easy-to-use clamping controls for securing a workpiece on the workbench.

5.2 Compatibility with Other SKIL Tools

The SKIL Compact Workbench is designed for compatibility with several other SKIL products (sold separately), enhancing its functionality.

• Folding Stand Compatibility: The stand is compatible with SKIL Table Saws (models TS6308, TS6328) and the 5-1/2 In. Flooring Saw (model FS3602).
• Workbench Compatibility: The workbench itself is compatible with the Portable Miter Saw Stand (model SRS0001) and the Rolling Tool Box 3 Pc. Tower Set (model TSM0002-3).

Figure 5.2: The workbench stand supporting a SKIL table saw, illustrating tool compatibility.

6. Manteniment

Regular maintenance ensures the longevity and optimal performance of your SKIL Compact Workbench.

• Neteja: After each use, wipe down the workbench surfaces with a damp cloth to remove dust and debris. Avoid harsh chemicals.
• Bossa de pols: Regularly empty the quick-install dust bag to maintain effective dust collection and prevent clogging.
• Lubricació: Periodically apply a light lubricant to the clamping mechanism's moving parts to ensure smooth operation.
• Emmagatzematge: When not in use, fold the workbench flat for easy storage in a dry, protected area.

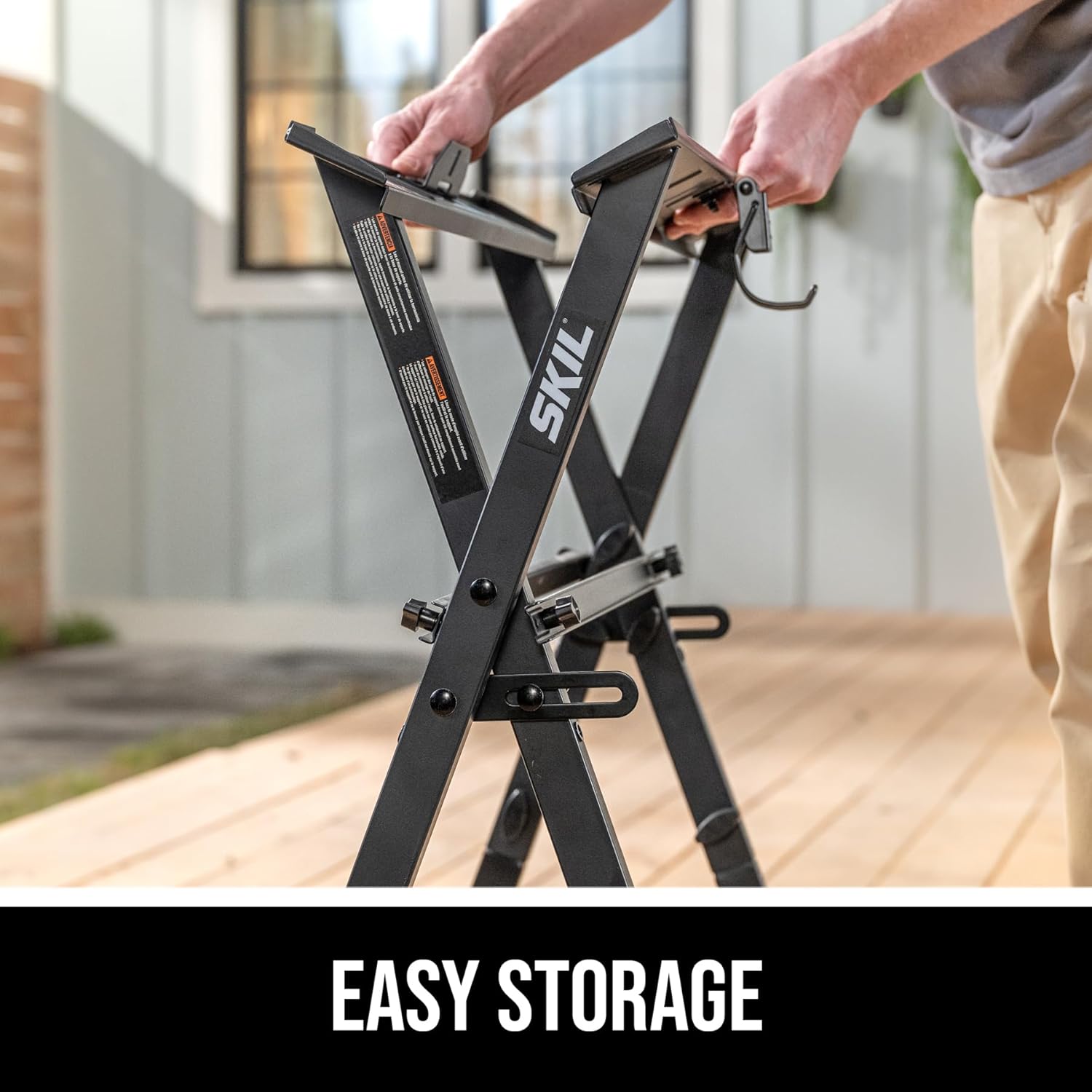

Figure 6.1: The workbench stand in its folded position, ready for compact storage.

7. Solució De Problemes

This section addresses common issues you might encounter with your workbench.

• Workbench Wobbles:
  • Ensure all stand legs are fully extended and locked.
  • Verify the quick-connect system is securely engaged between the top and stand.
  • Place the workbench on a level surface.
• Clamping Mechanism Stiff:
  • Clean any debris from the screw threads and jaws.
  • Apply a light lubricant to the moving parts of the clampmecanisme d'acció.
• Dust Bag Not Collecting:
  • Check if the dust bag is full and empty it.
  • Ensure the dust bag is properly attached and sealed to the collection port.

If you encounter issues not listed here or require further assistance, please contact SKIL customer support.

8. Especificacions

Figure 8.1: The steel locker plate, contributing to increased weight capacity and stability.

9. Garantia i Suport

For warranty information, product registration, or technical support, please refer to the official SKIL weblloc web o poseu-vos en contacte amb el seu departament d'atenció al client. Conserveu el rebut de compra com a comprovant de compra.

SKIL Customer Service: www.skil.com/support

Recursos en línia: For additional tips, FAQs, and product videos, visit the official SKIL weblloc.
