Hisense RB18N6CDX1 Bottom Mount Refrigerator

1. Introducció

Thank you for choosing a Hisense refrigerator. This manual provides essential information for the safe and efficient use of your new appliance. Please read it thoroughly before installation and operation, and keep it for future reference.

2. Informació de seguretat

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and personal injury. This appliance is intended for household use only. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. Ensure the appliance is properly grounded. Do not damage the refrigerant circuit.

3. Producte acabatview

The Hisense RB18N6CDX1 is an 18 cubic feet bottom mount refrigerator designed for optimal food preservation and convenience. It features Total No Frost technology, electronic controls, and a Super Freeze function.

Image: Hisense RB18N6CDX1 Refrigerator showing overall dimensions (175.6cm height, 79.0cm width, 67.5cm depth) and internal capacities (343L refrigerator, 144L freezer).

Característiques principals:

• Flat Door Design: Modern aesthetic that integrates seamlessly into your kitchen.
• Optimal Shelf Depth: Designed to fit perfectly in your kitchen while offering flexible storage.
• Il·luminació LED suau: Provides clear visibility of contents and is energy-efficient.
• Total sense gelades: Prevents ice buildup, eliminating the need for manual defrosting.
• Flux d'aire múltiple: Ensures uniform cold air distribution for optimal temperature throughout the refrigerator.
• Control electrònic: Easy temperature management and function activation.

Image: Visual representation of the refrigerator's top features, including Flat Door Design, Shelf Depth, Soft LED Illumination, Total No Frost, Multi Air Flow, and Electronic Control.

Interior and Storage:

Image: The interior of the refrigerator, showcasing multiple shelves, door bins, and crisper drawers filled with various food items.

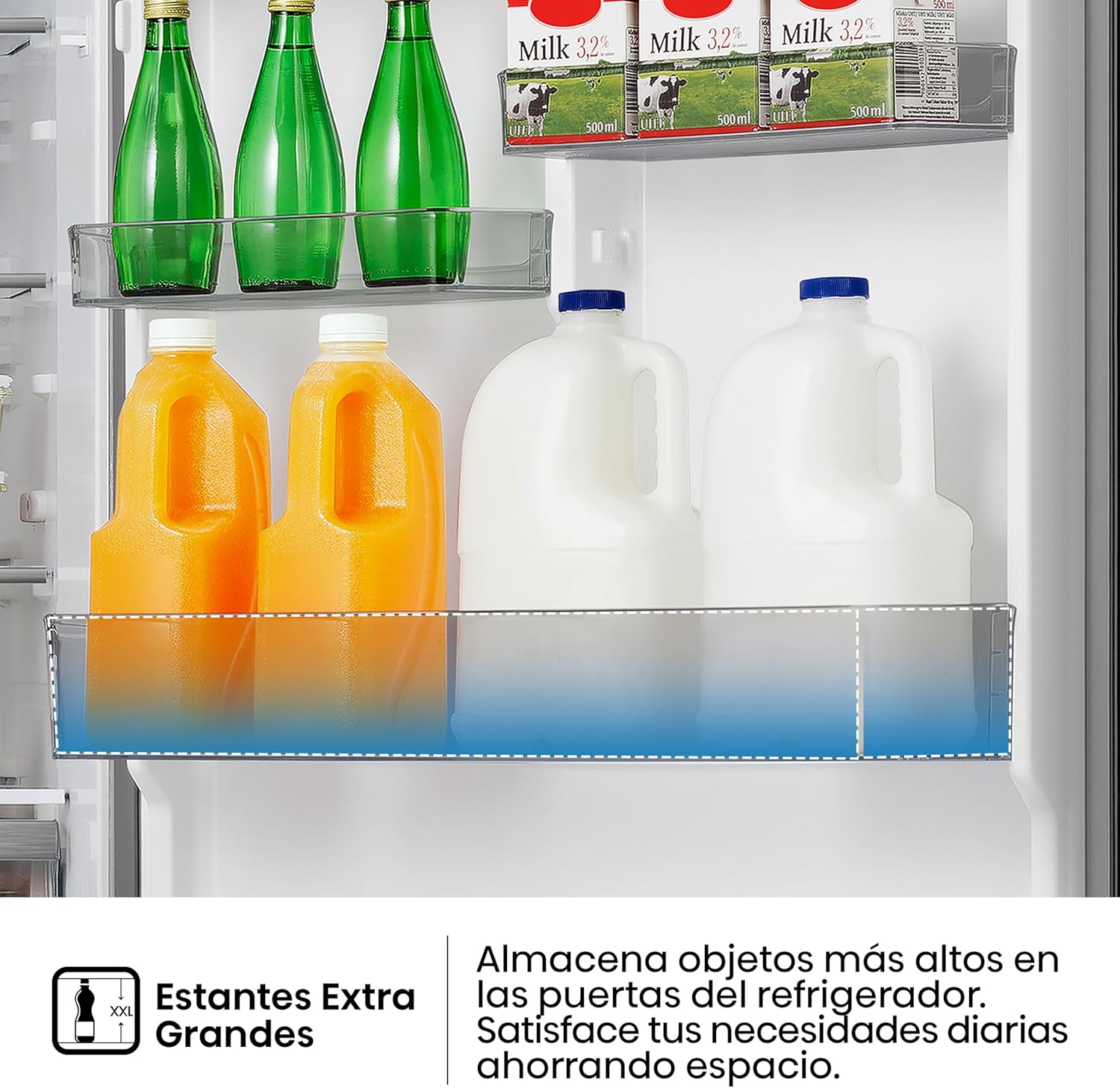

Image: Close-up of the refrigerator door showing extra-large shelves designed to store taller items, maximizing storage space.

4. Configuració i instal·lació

4.1 Desembalatge

Carefully remove all packaging materials, including foam and adhesive tape. Dispose of packaging responsibly. Keep plastic bags away from children.

4.2 Col·locació

Place the refrigerator on a firm, level surface away from direct sunlight and heat sources. Ensure adequate ventilation around the appliance. Allow sufficient space for the doors to open fully. This refrigerator-freezer is designed with a specific shelf depth to fit perfectly in your kitchen.

Image: The refrigerator positioned in a kitchen, illustrating its 23.6-inch depth designed for seamless integration with kitchen cabinetry.

4.3 Anivellació

Ajusteu els peus anivelladors a la part inferior de la nevera per assegurar-vos que estigui estable i anivellat. Això ajuda a evitar vibracions i garanteix un bon segellat de la porta.

4.4 Connexió elèctrica

Connect the refrigerator to a dedicated 115 Volt, 60 Hz grounded electrical outlet. Do not use extension cords or adapter plugs. Allow the refrigerator to stand upright for at least 2-4 hours before plugging it in to allow the refrigerant to settle.

5. Instruccions de funcionament

5.1 Control electrònic

The electronic control panel allows you to easily adjust the internal temperature of the refrigerator and freezer, and activate special functions like ECO mode or Super Freeze with a single touch. It is clear, easy to access, and simple to use.

Image: Close-up of the electronic control panel located inside the refrigerator compartment, showing temperature settings and function buttons.

5.2 Temperature Control (Super Cool & Super Freeze)

Use the electronic controls to set your desired temperature. For rapid cooling or freezing, utilize the special functions:

• Superguai: This system can quickly lower the refrigerator temperature and maintain it at 2°C for 6 hours, allowing rapid cooling of stored food. This function ensures the preservation of flavor and nutrients in fresh foods and is excellent for quickly chilling beverages.
• Super Freeze: Super Freeze rapidly lowers the temperature and freezes food much faster than usual. This function preserves the natural flavor of foods, their original texture, and all beneficial vitamins and minerals.

Image: The refrigerator interior with an overlay indicating '12% Faster Cooling Speed' and the Super Cool icon, highlighting its rapid cooling capability.

Image: The freezer drawer with an overlay indicating '12% Faster Freezing Speed' and the Super Freeze icon, demonstrating its rapid freezing capability for packaged foods.

5.3 Sense gebre total

The Total No Frost technology prevents the formation of frost and ice inside both the refrigerator and freezer compartments. This means you will never need to manually defrost your appliance, ensuring food stays fresh and nutritious for longer.

Image: A side-by-side comparison showing cherries with frost on the left and fresh, frost-free cherries on the right, illustrating the benefit of Total No Frost technology.

5.4 Multi Air Flow

The intelligent Multi Air Flow system achieves uniform cold air distribution to maintain an optimal temperature constantly throughout the refrigerator. This helps keep your food fresher for longer by minimizing temperature fluctuations.

Image: An illustration of the refrigerator interior with blue arrows indicating the circulation of cold air, demonstrating the Multi Air Flow system's uniform distribution.

6. Manteniment

6.1 Neteja

Regularly clean the interior and exterior of your refrigerator. Unplug the appliance before cleaning. Use a soft cloth with a mild detergent and warm water. Avoid abrasive cleaners or solvents. Dry all surfaces thoroughly.

6.2 Descongelació

Due to the Total No Frost feature, manual defrosting is not required for this appliance. If ice buildup occurs, check if the door is sealing properly or if the temperature setting is too low.

6.3 Atenció

Periodically check the door seals for any damage or gaps. Clean the condenser coils at the back of the refrigerator annually to ensure efficient operation. When going on vacation, empty the refrigerator, unplug it, clean it, and leave the doors slightly ajar to prevent odors.

7. Solució De Problemes

Si teniu problemes amb la nevera, consulteu els següents consells habituals per a la resolució de problemes abans de contactar amb el servei tècnic:

• La nevera no refreda: Check if the power cord is securely plugged in, the circuit breaker is not tripped, and the temperature control is set correctly. Ensure the door is closed properly.
• Sorolls inusuals: Minor noises are normal during operation. If the noise is loud or unusual, check if the refrigerator is level and not touching a wall or other objects.
• Excessive frost/ice buildup: Although it has Total No Frost, check if the door is frequently opened or not sealing correctly.
• Aigua al terra: Check the drain pan and ensure the drain hose is not blocked.

For more detailed troubleshooting or persistent issues, please refer to the support section.

8. Especificacions

9. Informació de la garantia

Hisense products are manufactured to the highest quality standards. For specific warranty details, including coverage period and terms, please refer to the warranty card included with your purchase or visit the official Hisense weblloc web. Conserveu el comprovant de compra per a reclamacions de garantia.

10. Suport

If you have questions or need assistance, our customer service team is ready to help. Contact us for the best service.

Image: Hisense customer support contact details, including phone numbers and webinformació del lloc.

Opcions de contacte:

• Option 1: Call Us
  Telèfon: 800 0088 880
• Option 2: Online Support
  Visita l'oficial weblloc: hisense.com.mx
  Click on 'Technical Support Chat' in the bottom left corner.
  You can also call us at: +55 41 53 1200

Horari de servei:

• Monday - Friday: 9:00 am - 9:00 pm
• Dissabte: 9:00 am - 3:00 pm
