1. Introducció
This instruction manual provides detailed guidance for assembling the Revell 14546 1980 Ford Dually Pickup Truck model kit. This kit is designed for model builders aged 12 and up, with a Skill Level 4 rating, indicating that experience in gluing and painting is required. Follow these instructions carefully to ensure a successful and enjoyable building experience.
Image 1.1: Completed Revell 1980 Ford Dually Pickup Truck model.
2. Informació de seguretat
Always prioritize safety when working with model kits. This kit contains small parts and requires the use of adhesives and paints, which may contain chemicals. Please observe the following safety guidelines:
- Supervisió d'adults: Recommended for builders under 16 years of age.
- Ventilació: Work in a well-ventilated area when using glues and paints.
- Protecció ocular: Consider wearing safety glasses to protect against small flying plastic pieces during cutting or sanding.
- Mantenir fora de l'abast: Store all kit components, tools, glues, and paints out of reach of small children and pets.
- Sharp Tools: Exercise caution when using hobby knives, clippers, and other sharp tools.
Image 2.1: Revell Skill Level Guide, highlighting Level 4 requirements.
3. Kit Contents and Required Materials
The Revell 14546 kit includes 40 plastic parts molded in white, black, and clear. It also includes a detailed instruction sheet and decals. Please note that paint and glue are required and are not included en aquest kit.
3.1. Components inclosos:
- 40-piece plastic model kit (molded in white, black, and clear)
- Full de calcomanies
- Instruccions detallades
3.2. Materials Required (Not Included):
- Plastic model cement (glue)
- Hobby knife or sprue cutters
- Petit files or sandpaper (various grits)
- Model paints (acrylic or enamel, as desired)
- Paintbrushes (various sizes)
- Pinces
- Drap net
Image 3.1: Decal sheet included with the model kit.
4. Configuració i preparació
Before beginning assembly, prepare your workspace and model parts:
- Espai de treball net: Ensure your work area is clean, well-lit, and free from clutter.
- Organitzar peces: Carefully remove all parts from their sprues using sprue cutters or a hobby knife. Be gentle to avoid damaging small pieces.
- Peces netes: Wash all plastic parts in mild soapy water, rinse thoroughly, and allow them to air dry completely. This removes mold release agents that can interfere with paint and glue adhesion.
- Inspeccionar peces: Check for any flash (excess plastic) or mold lines. Carefully remove these using a hobby knife, files, or fine-grit sandpaper.
5. Instruccions de muntatge
Follow these steps in order for optimal assembly. Refer to the included detailed instruction sheet for specific part numbers and diagrams.
5.1. Chassis and Drivetrain Assembly
Begin by assembling the four-wheel-drive chassis. Attach the separately molded axles to the chassis frame. Ensure all connections are secure before proceeding.
Imatge 5.1: Part inferior view of the chassis and drivetrain.
Imatge 5.2: Detallada view of the chassis components.
5.2. Engine Detail
Assemble the V-8 engine components. The kit features an opening hood to display the engine detail. Paint engine parts before assembly for a more realistic finish.

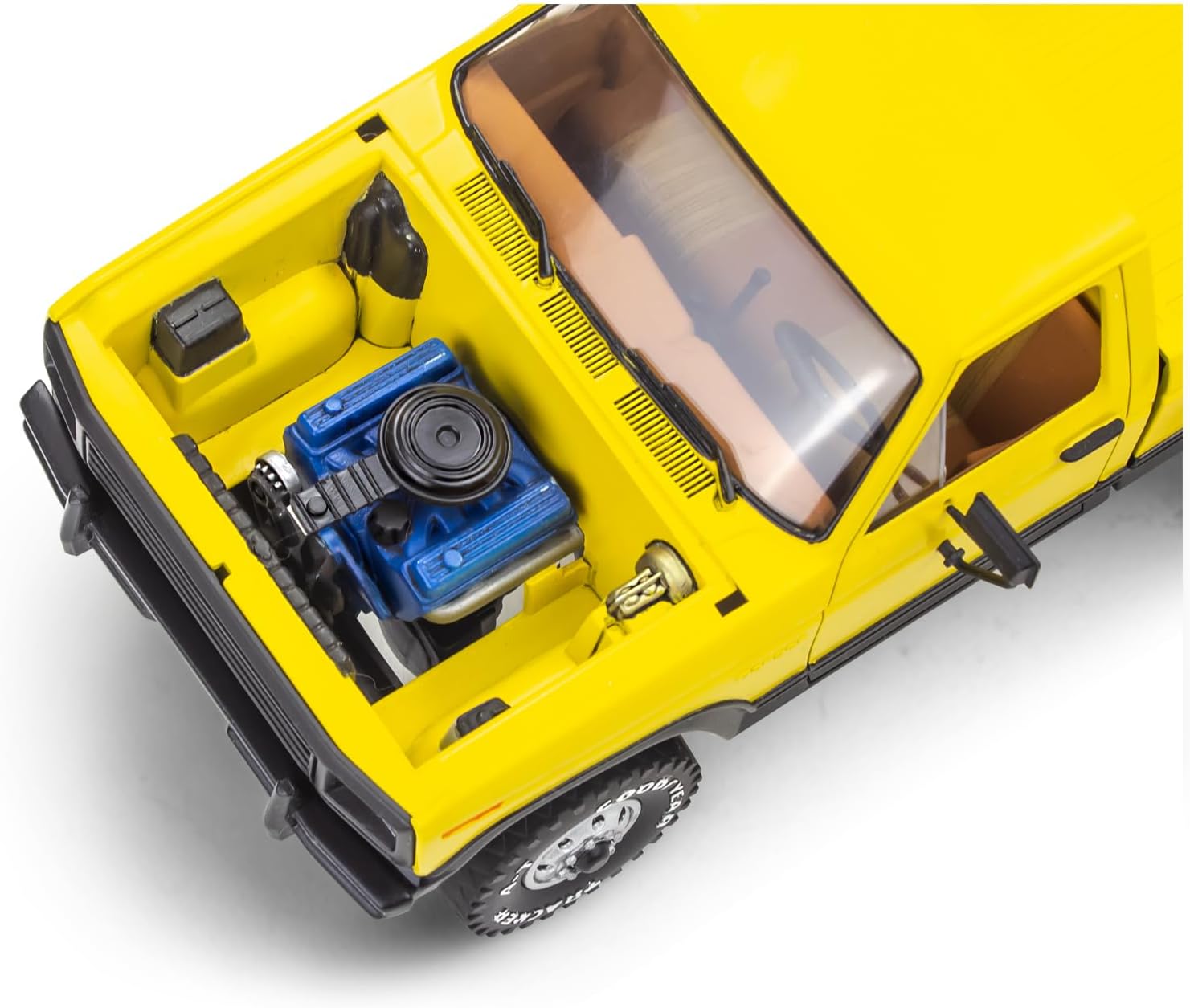

Image 5.3: Engine bay with V-8 engine detail.
5.3. Cab and Front End Assembly
Assemble the standard cab and attach it to the chassis. Then, assemble the finely detailed grille and front bumper components. Attach the door-mounted oversize mirrors.

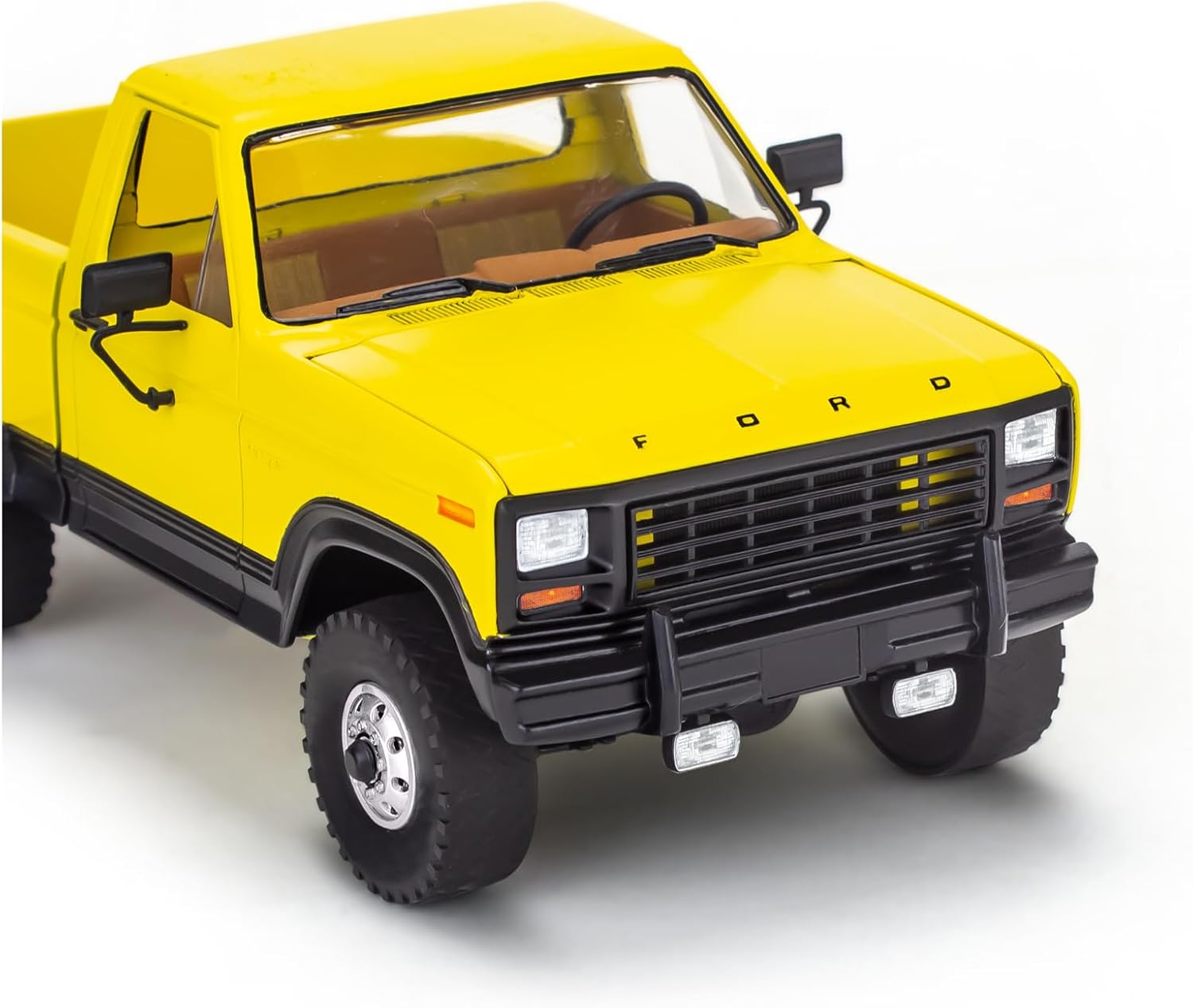

Image 5.4: Front end assembly with grille and bumper.
5.4. Pickup Bed Assembly
Assemble the one-piece “shortie” pickup bed with its extended “dually” rear fenders. Attach the bed to the cab and chassis assembly.
Image 5.5: Rear pickup bed with dually fenders.
5.5. Rodes i pneumàtics
Mount the big-rig-style wheels onto the oversize tires. Attach the completed wheel assemblies to the axles. Ensure they rotate freely if desired.
5.6. Final Details and Decals
Apply any remaining small detail parts. Carefully apply the decals according to the decal placement guide provided in the kit instructions. Use a decal setting solution for best results.
Imatge 5.6: Frontal view del model muntat.
6. Painting Guide
Painting is a crucial step for a realistic finish. This kit is molded in white, black, and clear, providing a good base for customization. Consider the following:
- Primer: Apply a thin coat of primer before painting to ensure better paint adhesion and a uniform base color.
- Thin Coats: Apply multiple thin coats of paint rather than one thick coat to avoid obscuring details and to prevent paint runs.
- Temps d'assecat: Allow adequate drying time between coats and before handling painted parts.
- Detail Painting: Use fine brushes for small details like interior components, lights, and trim.
- Capa transparent: After decals are applied and dry, a clear gloss or matte coat can protect the paint and decals and provide a uniform finish.
7. Manteniment
Once your Revell 1980 Ford Dually Pickup Truck model is complete, proper care will preserve its appearance:
- Pols: Regularly dust the model with a soft brush or a can of compressed air to prevent dust buildup.
- Neteja: For more thorough cleaning, gently wipe with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners, which can damage paint and plastic.
- Visualització: Display the model in a cool, dry place away from direct sunlight to prevent fading and warping. A display case can offer additional protection from dust and accidental damage.
- Manipulació: Handle the model by its base or main body whenever possible to avoid stressing delicate parts.
8. Resolució de problemes comuns
Here are solutions to common problems encountered during model building:
| Problema | Causa possible | Solució |
|---|---|---|
| Les peces no encaixen entre si | Excess flash, mold lines, or incorrect part orientation. | Carefully trim flash/mold lines. Double-check part numbers and orientation with instructions. |
| Paint not adhering or peeling | Oily residue on parts, no primer, or incompatible paint type. | Ensure parts are clean and dry. Use a primer. Use paints designed for plastic models. |
| Decals wrinkling or tearing | Insufficient water, too much handling, or uneven surface. | Ensure decals are fully wet before sliding. Use tweezers. Apply to a smooth, glossy surface. Use decal setting solution. |
| Glue marks visible | Too much glue applied. | Apply glue sparingly. Use a fine applicator. Some glues can be cleaned with a cotton swab dipped in thinner (test first). |
9. Especificacions del producte
| Característica | Detall |
|---|---|
| Marca | Revell |
| Nom del model | 1980 Ford Dually Pickup Truck |
| Número de model de l'article | 14546 |
| Escala | Escala 1: 25 |
| Nombre de peces | 40 |
| Nivell d'habilitat | 4 (Advanced) |
| Edat recomanada | 12 anys i més |
| Material | Plàstic |
| Dimensions del producte | 7.75 x 4.13 x 3.13 polzades |
| Pes de l'article | 0.704 unces (0.02 quilograms) |
| Característiques clau | One-piece “shortie” pickup bed with extended “dually” rear fenders, Four-wheel-drive chassis with separately molded axles, Big-rig-style wheels and oversize tires, Opening hood shows V-8 engine detail. |
10. Garantia i Suport
This Revell model kit comes with a limited warranty. For specific details regarding warranty coverage or for technical support, please refer to the contact information provided on the product packaging or visit the official Revell website. For general inquiries or to purchase replacement parts (if available), please contact Revell customer service.
Revell Oficial Weblloc: www.revell.com
