Acogedor 4K Action Camera User Manual

1. Introducció

Thank you for choosing the Acogedor 4K Action Camera. This manual provides essential information for the safe and efficient operation of your device. Please read it thoroughly before use and retain it for future reference.

This camera is designed to capture high-quality video and photos of your adventures, featuring 4K video recording, 16MP photos, a 170-degree wide-angle lens, and a 2.0-inch HD screen.

2. Informació de seguretat

• Do not expose the camera to extreme temperatures or direct sunlight for extended periods.
• Keep the camera away from strong magnetic fields to prevent data loss or malfunction.
• Ensure all ports are securely closed if using the camera in or near water (if applicable with a waterproof case, not explicitly stated for the camera itself).
• Use only the specified charging cable and battery to avoid damage or fire hazards.
• No intenteu desmuntar ni reparar la càmera vosaltres mateixos. Poseu-vos en contacte amb el servei d'atenció al client per obtenir ajuda.

3. Contingut del paquet

Verifiqueu que tots els elements que s'enumeren a continuació s'inclouen al vostre paquet:

• Càmera 4K x 1
• Cable de càrrega x 1
• Extension Frame Components x 5
• Handlebar Components x 4
• Corretja x 1
• Hook and Loop Fastener x 1
• Manual d'usuari x 1

Image: All included accessories for the Acogedor 4K Action Camera.

4. Producte acabatview

Familiarize yourself with the main components and features of your Acogedor 4K Action Camera.

Imatge: Frontal view of the camera, highlighting the lens and Wi-Fi indicator.

Imatge: Lateral view of the camera, displaying the control buttons and Micro USB port.

Imatge: Enrere view of the camera, featuring the 2.0-inch HD display.

Característiques principals:

• Vídeo 4K i fotos de 16MP: Capture high-resolution footage i imatges.
• Lent gran angular de 170 graus: Ofereix un ampli camp de view for immersive shots.
• Pantalla HD de 2.0 polzades: For easy framing and playback.
• Multi-Axis Anti-Shake Technology: Minimizes motion blur for stable footage.
• Connectivitat Wi-Fi: Seamlessly sync with the GoPlus CamPro app for remote control and file transferència.

5. Configuració

5.1. Inseriu la targeta de memòria

The camera supports a memory card up to 64GB (not included). Locate the memory card slot on the side of the camera. Insert the memory card with the contacts facing the correct direction until it clicks into place.

5.2. Carregant la bateria

The camera comes with a 1050mAh Polymer Lithium Ion battery. Connect the camera to a power source using the provided Micro USB charging cable. The charging indicator will illuminate during charging and turn off when fully charged.

5.3. Fixació d'accessoris

Utilize the various included accessories, such as the handlebar components and extension frames, to mount your camera for different activities. Refer to the accessory diagrams for proper attachment.

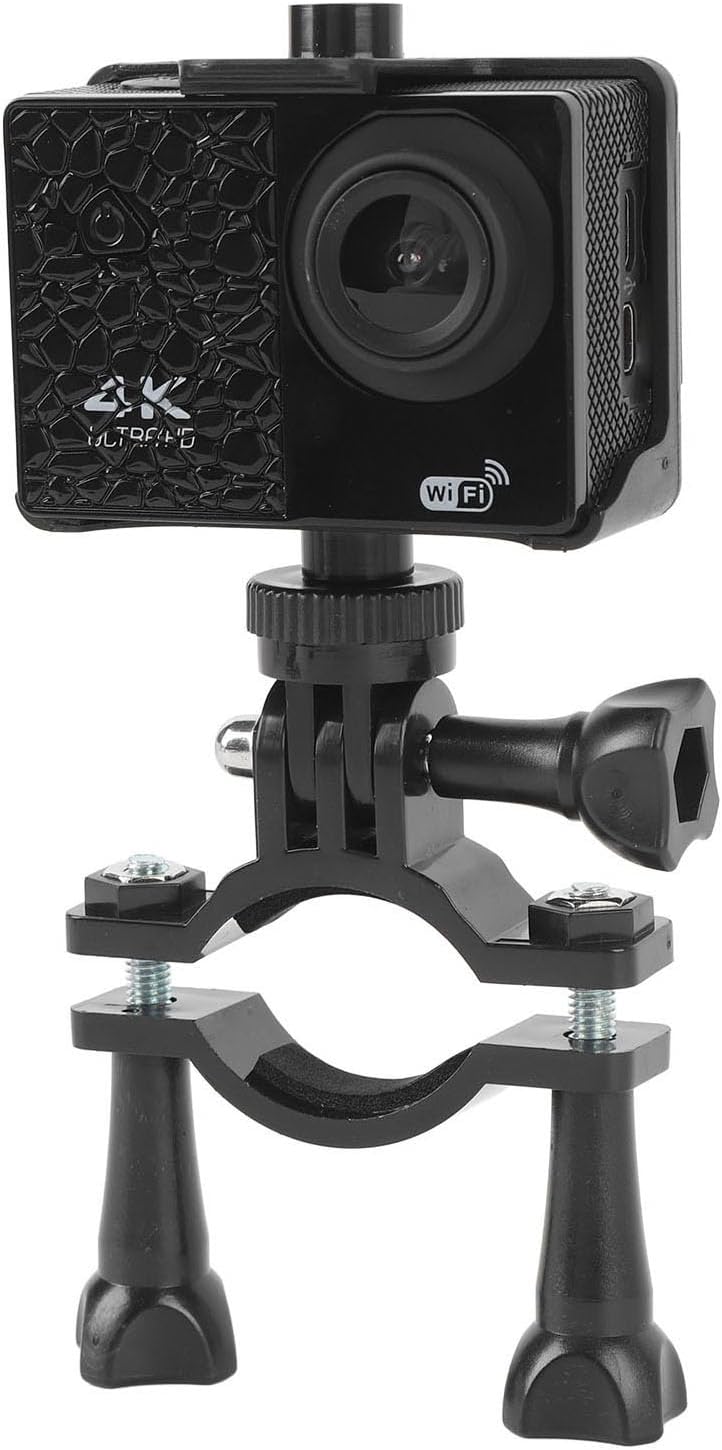

Image: Camera mounted on a handlebar, demonstrating accessory use.

6. Instruccions de funcionament

6.1. Encendre/apagar

To power on the camera, press and hold the power key. To power off, press and hold the power key again.

6.2. Canvi de mode

Briefly press the 'Up' key to switch between different modes (e.g., Video, Photo, Playback). The current mode will be displayed on the 2.0-inch screen.

Image: Camera screen showing recorded footage.

6.3. Photo Functions

The camera supports various photo modes:

• Tir únic: Captures one photo per press.
• Timed Shot: Sets a delay before capturing a photo.
• Tir continu: Fa diverses fotos en una successió ràpida.

6.4. Wi-Fi Connection (GoPlus CamPro App)

To enable wireless functionality, briefly press the 'Up' key to activate Wi-Fi. Download the 'GoPlus CamPro' app on your smartphone. Connect your phone to the camera's Wi-Fi network. This allows for seamless photo and video transfer directly to your device for sharing.

Image: Wireless synchronization with the GoPlus CamPro app on a smartphone.

7. Manteniment

7.1. Neteja

• Feu servir un drap suau i sense borrissol per netejar el cos de la càmera.
• Per a la lent i la pantalla, feu servir un drap i una solució especials per netejar lents per evitar ratllades.
• No utilitzeu productes químics o materials abrasius.

7.2. Cura de la bateria

• Carregueu la bateria completament abans del primer ús.
• Eviteu esgotar completament la bateria regularment per allargar-ne la vida útil.
• Store the camera and battery in a cool, dry place when not in use.

8. Solució De Problemes

Si teniu problemes amb la càmera, consulteu les solucions habituals següents:

• La càmera no s'encén: Ensure the battery is charged and properly inserted. Try charging the camera for at least 30 minutes.
• Error de la targeta de memòria: Format the memory card (this will erase all data) or try a different, compatible memory card. Ensure the card is inserted correctly.
• Mala qualitat d'imatge/vídeo: Check the lens for smudges or dirt. Ensure you are in adequate lighting conditions. Verify resolution settings.
• Problemes de connexió Wi-Fi: Restart both the camera and your smartphone. Ensure the GoPlus CamPro app is updated to the latest version.

Si els problemes persisteixen, poseu-vos en contacte amb l'atenció al client per obtenir més ajuda.

9. Especificacions

10. Garantia i Suport

For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official Acogedor weblloc web. Conserveu el comprovant de compra per a reclamacions de garantia.
