VINGLI Rolling Ergonomic Office Desk Chair User Manual

1. Introducció

Thank you for choosing the VINGLI Rolling Ergonomic Office Desk Chair. This manual provides essential information for the safe assembly, operation, and maintenance of your new chair. Designed for comfort and versatility, this chair features a high back, padded flip-up arms, 360° swivel, and adjustable height, making it suitable for various environments including home offices, game rooms, and study areas.

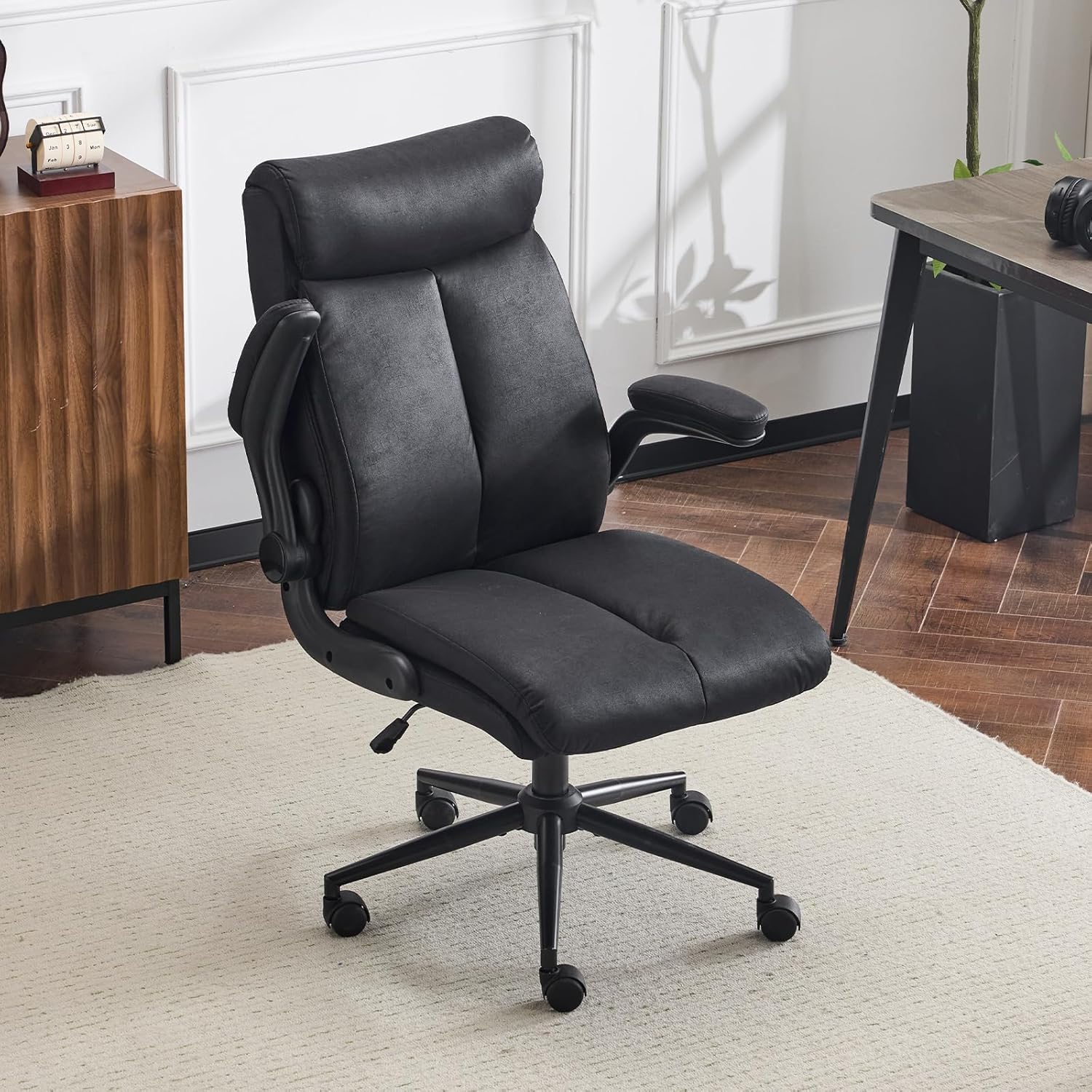

Image 1.1: The VINGLI Rolling Ergonomic Office Desk Chair, showcasing its design and black leather finish.

2. Informació de seguretat

Si us plau, llegiu i comprengui totes les instruccions de seguretat abans del muntatge i l'ús. Si no segueix aquestes instruccions, pot patir lesions o danys al producte.

• Assegureu-vos que tots els components estiguin ben subjectats abans d'utilitzar-los.
• No us atureu a la cadira.
• Do not use the chair on uneven surfaces.
• Mantingueu els nens allunyats de les peces mòbils durant el muntatge i l'ajust.
• Capacitat màxima de pes: 150 kg. No supereu aquest límit.
• Use caution when adjusting the chair's height and recline to avoid pinching.

3. Contingut del paquet

Before beginning assembly, verify that all parts and tools are present. If any items are missing or damaged, please contact customer support immediately.

• Respatller de la cadira
• Coixí de seient
• Reposabraços (2)
• Cilindre d'elevació de gas
• Base d’estrelles
• Rodes (5)
• Placa de mecanisme
• Paquet de ferramenta (cargols, volanderes, clau Allen)

Image 3.1: Key components and accessories, highlighting the sturdy metal base, explosion-proof gas lift, and flexible silent wheels.

4. Instruccions de muntatge

Assembly typically takes about 20 minutes. Follow these steps carefully:

1. Fixeu les rodes a la base: Insert the five casters into the holes at the end of each leg of the star base until they click securely into place.
2. Inseriu l'elevador de gas: Col·loqueu el cilindre d'elevació de gas al forat central de la base en estrella.
3. Attach Mechanism Plate: Secure the mechanism plate to the underside of the seat cushion using the provided screws. Ensure the front of the mechanism faces the front of the seat.
4. Col·loqueu els recolzabraços: Fasten the armrests to the sides of the seat cushion and the backrest using the designated screws. Do not overtighten initially.
5. Connectar el respatller al seient: Align the backrest with the seat cushion and secure it with the remaining screws. Tighten all screws firmly once the chair is fully assembled.
6. Col·loqueu el conjunt del seient a l'elevador de gas: Col·loqueu amb cura el seient muntat sobre el cilindre d'elevació de gas, assegurant-vos que estigui centrat i estable.

Once assembled, test all functions to ensure proper operation.

5. Com utilitzar la cadira

Your VINGLI office chair offers several adjustable features for personalized comfort:

• Alçada ajustable: To raise the seat, lift the lever on the right side of the chair while taking your weight off the seat. To lower the seat, lift the lever while seated. The height adjusts from 17.5 inches to 21.3 inches (seat cushion to floor).
• Reposabraços abatibles: The armrests can be flipped up 90° to allow the chair to be stored under a desk, saving space. Simply lift or lower them as needed.
• Giració de 360°: The chair features a full 360-degree swivel, allowing for easy movement and access to different areas of your workspace without needing to reposition the entire chair.
• Funció de balanceig: The chair has a rocking function with an angle range of 105°-120°. Pull out the lever on the right side to activate the rocking motion. Push the lever in to lock the chair in an upright position.

Imatge 5.1: acabatview of the chair's adjustable features, including rocking, swivel, and height adjustment.

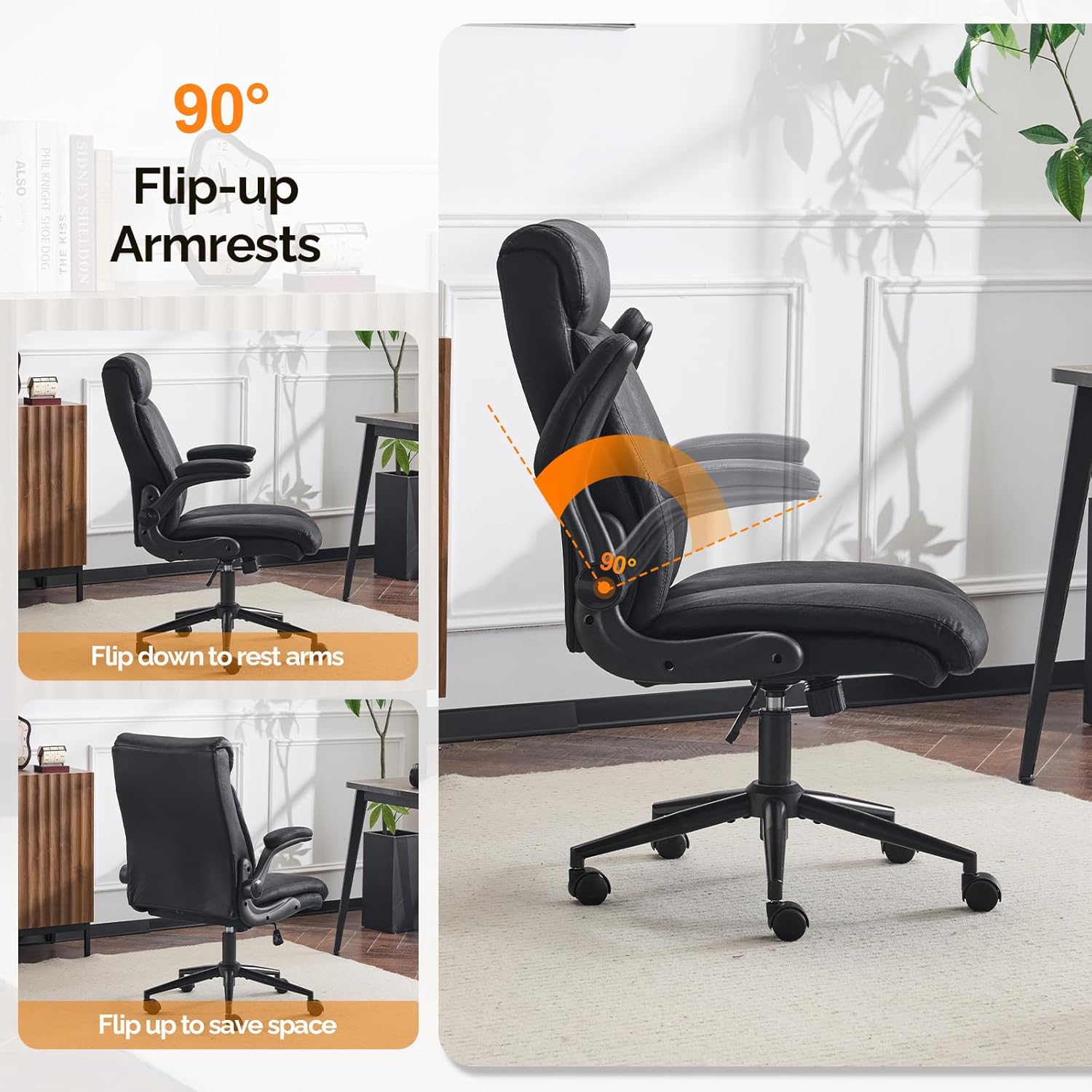

Image 5.2: Detail of the flip-up armrests, showing their functionality for space-saving.

Image 5.3: Visual representation of the chair's rocking mechanism and range.

6. Cura i Manteniment

Proper care will extend the life and appearance of your chair:

• Neteja: For leather or microfiber surfaces, wipe with a soft, damp drap. Per a taques més difícils, utilitzeu una solució de sabó suau i eixugueu immediatament. Eviteu productes químics agressius o netejadors abrasius.
• Rodes: Periodically check casters for hair or debris that may hinder smooth rolling. Clean as needed.
• Maquinari: De tant en tant, comproveu tots els cargols i perns per assegurar-vos que estiguin ben ajustats. Torneu-los a apretar si cal.
• Eviteu la llum solar directa: Prolonged exposure to direct sunlight can cause fading or damage to the upholstery.

Image 6.1: Detail of the chair's high-quality sponge padding and durable upholstery material.

7. Solució De Problemes

Si teniu algun problema amb la cadira, consulteu els següents problemes i solucions habituals:

• La cadira està trontollant: Ensure all screws are tightened securely. Check that the gas lift is properly seated in the base.
• La cadira no s'ajusta en alçada: Verify that the gas lift lever is functioning correctly and that the gas lift cylinder is not damaged. Ensure no obstructions are preventing movement.
• Les rodes no giren suaument: Check casters for trapped debris (hair, lint) and clean them. Ensure they are fully inserted into the base.
• Peces que falten durant el muntatge: Double-check the package contents against the list in Section 3. If parts are genuinely missing, contact customer support for replacements.
• Chair is uncomfortable: Adjust the height and rocking function to find your preferred ergonomic position. Consider adding an additional seat cushion if needed for prolonged use.

8. Especificacions

Image 8.1: Detailed size specifications and dimensions of the chair.

Image 8.2: Illustration of the ergonomic support provided by the chair for the entire body.

9. Atenció al client

For any questions, concerns, or assistance with your VINGLI Rolling Ergonomic Office Desk Chair, please contact the seller directly through your purchase platform. Please have your order number and product model number (6501ee08-d5de-42c2-b59d-888963deb9bc) ready for faster service.

While specific warranty details are not provided in this manual, most products come with a standard manufacturer's warranty against defects. Please refer to your purchase documentation or contact the seller for warranty information.
