1. Introducció
This manual provides essential information for the installation, operation, and maintenance of your BAFANG BBS02B 48V 750W Mid-Drive Motor Kit with VD04 Display. Please read this manual thoroughly before installation and use to ensure proper function and safety. This kit is designed to convert a standard bicycle into an electric bicycle, offering enhanced performance and assistance.
2. Compatibilitat
The BAFANG BBS02B 750W mid-drive motor kit is compatible with most standard bicycles. To ensure proper fitment, verify your bicycle's bottom bracket dimensions.
- Bottom Bracket Length: 68-73 mm
- Bottom Bracket Inner Diameter: 33.5-36 mm
- Ensure the sprocket will not interfere with your bike's chainstay.
- Not compatible with belt drive chainrings or coaster brake bikes.
Image: This diagram illustrates how to measure your bike's bottom bracket to confirm compatibility with the BAFANG mid-drive motor kit. It highlights the required inner diameter (33.5-36mm), bottom bracket length (68-73mm), and the importance of checking chainstay clearance.
The kit is suitable for various bicycle types, including city bikes, mountain bikes, and fat bikes, provided they meet the bottom bracket specifications.
Image: This image displays several types of bicycles, such as a classic city bike, a mountain bike, and a fat bike, all successfully converted using the BAFANG mid-drive motor kit, demonstrating its versatility across different bike styles.
3. Contingut del kit
The BAFANG BBS02B 48V 750W Mid-Drive Motor Kit includes the following components:
- 1x BAFANG 48V 750W Mid-Drive Motor (CAN protocol)
- 1x LCD Display (VD04 model)
- 1x 44T Chainring (36T/42T options available upon request with order number)
- 1x Speed Sensor
- 1x Thumb Throttle
- 1x Pair of Brake Levers (e-brake cams)
- 1x 1T4 Waterproof Main Cable
- 1x Front Light
- Eines d'instal·lació
- Braços de biela
Image: This image displays the complete set of accessories included in the BAFANG mid-drive motor kit, such as the motor unit, optional brake types, thumb throttle, speed sensor, optional display, crank arms, and a 44T sprocket.
4. Configuració i instal·lació
Installation of the BAFANG BBS02B kit requires mechanical aptitude. If you are unsure about any steps, it is recommended to seek professional assistance.
4.1 Passos generals d'instal·lació
- Prepare the Bicycle: Remove the existing bottom bracket, crankset, and chain.
- Instal·leu el motor: Insert the BAFANG mid-drive motor into the bottom bracket shell. Secure it using the provided lock nuts and washers.
- Install Chainring and Cranks: Attach the chainring to the motor and then install the crank arms.
- Mount Display and Controls: Install the VD04 display, throttle, and brake levers onto the handlebars.
- Connecteu el cablejat: Connect all components (display, throttle, brake levers, speed sensor, front light) to the main 1T4 waterproof cable, and then connect the main cable to the motor. Ensure all connections are secure and waterproof.
- Install Speed Sensor: Mount the speed sensor on the chainstay and attach the magnet to a spoke on the rear wheel. Adjust the distance between the sensor and magnet to be within 5-10mm.
- Connexió de la bateria: Connect your 48V battery (not included in this kit) to the motor's power cable. Ensure the battery uses the CAN protocol for optimal compatibility with the 2025 updated motor.
- Comprovacions finals: Verify all bolts are tightened, cables are routed safely, and no components interfere with moving parts.

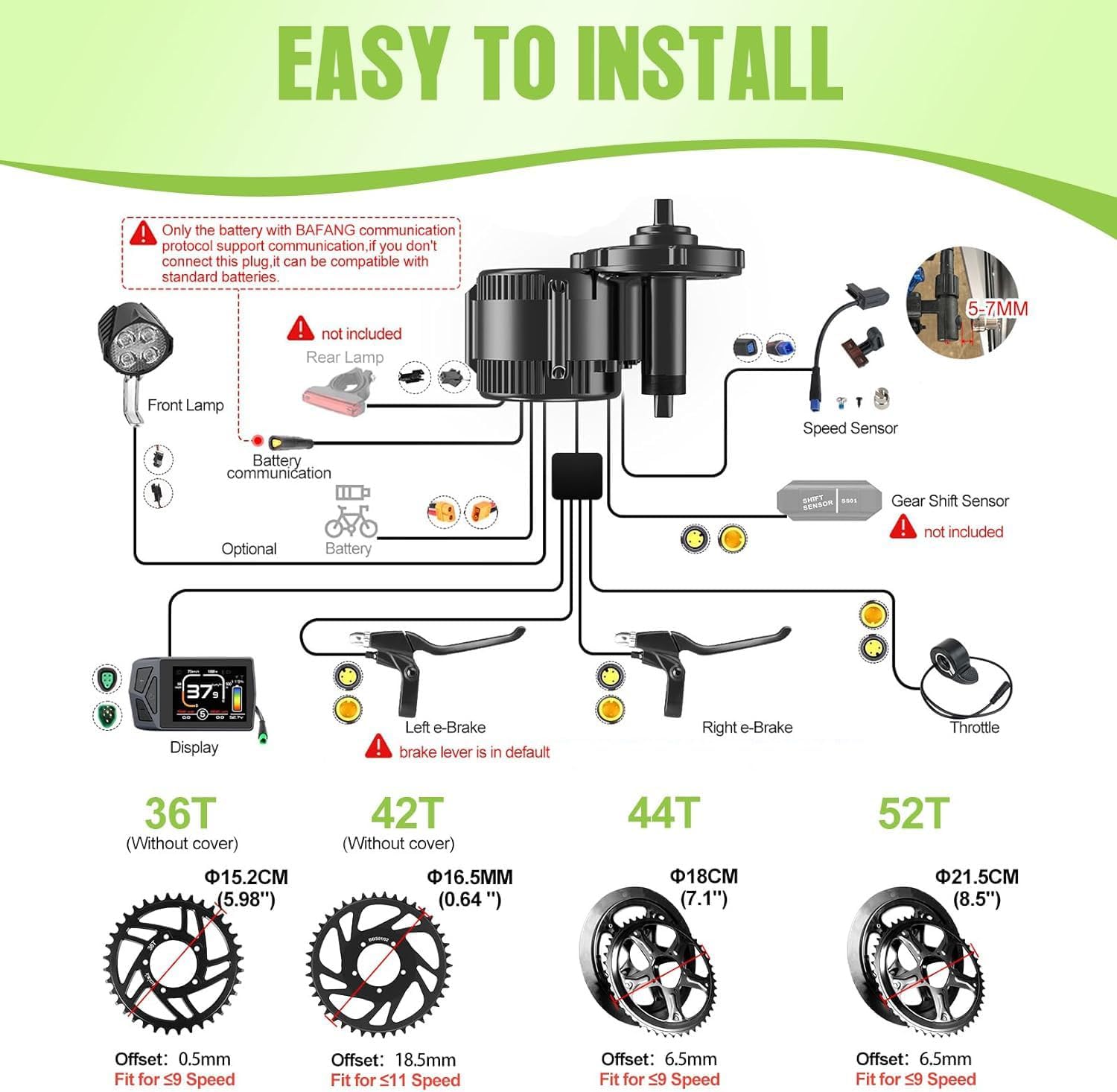

Image: This detailed diagram illustrates the wiring connections for the BAFANG mid-drive motor kit, including the motor, display, battery communication, speed sensor, gear shift sensor (optional), brake levers, and throttle. It also shows various chainring options (36T, 42T, 44T, 52T) with their offsets.
5. Operating Instructions (VD04 Display)
The VD04 Digital Display provides essential information and control for your e-bike system.
5.1 Característiques de visualització
- Pantalla IPS de 3.5 polzades: Pantalla clara i vibrant.
- Nivell PAS: 3, 5, or 9 levels of pedal assist.
- Visualització de velocitat: Real-time speed (km/h or mph).
- Indicador de bateria: Mostra el percentatge actual de la bateriatage.
- Single-Trip Mileage: Distància recorreguda en el trajecte actual.
- Total Odometer (ODO): Total distance covered by the bike.
- Potència de sortida: Real-time motor power in Watts.
- Indicador de fars: Shows if the headlight is on.
- Brake Icon: Indica quan s'apliquen els frens.
- Identificació d'errors: Displays error codes for troubleshooting.
- Connectivitat Bluetooth: For mobile configuration (with DPC080/DPC010 screens, not VD04).
- Port USB tipus C: 5V 1A charge output for mobile devices.
Imatge: Aquesta imatge ofereix informació detallada view of the VD04 Digital Display, highlighting its features such as the 3.5-inch IPS screen, PAS level indicator, real-time speed, battery percentage, single-trip mileage, and a Type-C 5V 1A charging port. It also shows the display mounted on a bicycle handlebar.
5.2 Funcionament bàsic
- Encès/apagat: Press and hold the power button on the display to turn the system on or off.
- Ajusta el nivell de PAS: Use the '+' and '-' buttons to cycle through the pedal assist levels (0-9). Level 0 provides no assistance.
- Throttle Use: The thumb throttle provides instant power without pedaling. Use it cautiously, especially at higher assist levels.
- Control dels fars: Press the light button to turn the integrated front light on or off.
- Visualització d'informació: Cycle through different information screens (e.g., ODO, Trip, Max Speed, Avg Speed) using the mode button.
6. Característiques de rendiment
The BAFANG BBS02B motor kit is engineered for robust performance and reliability.
- Parell màxim: 120 N·m, providing strong acceleration and climbing ability.
- Velocitat màxima: Up to 50 km/h (31 mph), depending on local regulations and bike setup.
- Potència màxima: 1000 W, for demanding terrains and high-performance conversions.
- Climbing Capability: Capable of assisting on inclines up to 45 degrees.
- CAN Protocol Update (2025): Enhanced stability and reduced failures with a dual Hall speed sensor for superior accuracy.
- Modes de funcionament: Supports Throttle Electric Mode, Power Assisted Mode, and Walk Assist Mode.
- Classificació IP65: Provides protection against dust and low-pressure water jets.
Image: This infographic highlights the key performance features of the BAFANG BBS02B 48V 750W motor, including its 120 N·m max torque, 50 km/h max speed, IP65 rating, 45-degree hill climbing ability, and the three operating modes: Throttle Electric, Power Assisted, and Walk Assist.
7. Battery Options
While the battery is not included with this kit, BAFANG recommends using certified batteries for safety and performance. Ensure your chosen battery is compatible with the 48V system and CAN protocol.
- For Urban Use: 48V 13Ah or 48V 17.5Ah batteries are suitable.
- For Long Distance: 48V 20Ah or 52V 20Ah batteries are recommended.
8. Manteniment
Regular maintenance ensures the longevity and optimal performance of your e-bike system.
- Neteja: Keep the motor and electrical connections clean and free from dirt and debris. Use a damp drap; eviteu rentar a alta pressió directament sobre els components elèctrics.
- Inspecció del cable: Periodically check all cables for wear, cuts, or loose connections. Ensure waterproof connectors are properly seated.
- Comprovació de fixació: Regularly inspect all bolts and fasteners on the motor, chainring, and cranks to ensure they are tight.
- Manteniment de la cadena: Keep your chain clean and lubricated for smooth operation and to prevent premature wear.
- Cura de la bateria: Follow the manufacturer's instructions for your battery, including charging cycles and storage.
- Actualitzacions de programari: If applicable, ensure your display and motor firmware are up to date.
9. Solució De Problemes
This section addresses common issues you might encounter with your BAFANG BBS02B kit.
| Problema | Causa possible | Solució |
|---|---|---|
| El motor no ofereix assistència | Battery low/disconnected; PAS level 0; Loose cable connection; Speed sensor issue | Check battery charge and connection; Increase PAS level; Inspect all cables; Verify speed sensor alignment. |
| La pantalla no s'encén | Battery low/disconnected; Loose display cable; Faulty display | Check battery charge and connection; Reconnect display cable securely; Contact support if issue persists. |
| Codi d'error a la pantalla | Specific component malfunction (e.g., motor, controller, sensor) | Refer to the VD04 display manual for specific error code meanings and troubleshooting steps. |
| Brakes not cutting motor power | Brake lever sensor disconnected or faulty | Check brake lever cable connections; Ensure brake levers are properly installed. |
10. Especificacions
Key technical specifications for the BAFANG BBS02B 48V 750W Mid-Drive Motor Kit:
- Nom del model: BBS02B
- Tipus de motor: Motor de tracció mitjana
- Voltage: 48 V
- Potència nominal: 750W
- Parell màxim: 120 N·m
- Velocitat màxima: 50 km/h (31 mph)
- Bottom Bracket Compatibility: 68-73 mm length, 33.5-36 mm inner diameter
- Visualització: VD04 LCD Display
- Chainring: 44T (standard, other options available)
- Estil de fre: Compatible with Rim Brakes (e-brake levers included)
- Material: Metall
- Classificació IP: IP65
- CAN Protocol: Yes (2025 update)
- Components inclosos: Motor, LCD display, 44T chainring, speed sensor, throttle, brake cams, 1T4 main cable, front light, tools, crank arms.
11. Garantia i Suport
BAFANG is committed to customer satisfaction and provides comprehensive support for its products.
- Garantia: Garantia de 1 anys des de la data de compra.
- Política de devolució: 30-day return period.
- Suport tècnic: Lifetime assistance is available for all BAFANG products.
- Local Stock: Products are supported by local stock for efficient service.
For any technical issues, warranty claims, or support inquiries, please contact your retailer or BAFANG customer service directly. Provide your order number and product details for faster assistance.
