1. Introducció
The FurBabyFeeder Sphere RFID Automatic Cat Feeder is an innovative solution designed to provide personalized and secure meal access for your pets, particularly in multi-cat households. Utilizing advanced RFID technology, this smart feeder ensures that only the designated pet can access their food, preventing food theft and promoting healthier eating habits. It features a user-friendly LCD display, secure locking doors, and a convenient mute option for a quieter feeding experience.
Image: The FurBabyFeeder Sphere, an RFID collar tag, and a cat, illustrating the product's core components.
Producte acabatview Vídeo
Vídeo: Una anàlisi completaview of the FurBabyFeeder Sphere, demonstrating its features and benefits in a home environment.
2. Característiques clau
- Smart RFID Technology: Ensures personalized meal access, preventing food theft and supporting healthier eating habits.
- Opció de silenci: Silences the door closing sound, ideal for noise-sensitive pets and a quieter home environment.
- RFID Tag màniga: Allows the RFID tag to be securely slid onto your pet's own collar for improved comfort and better signal range.
- Secure Locking Doors: Features a strong mechanism that keeps food fresh and secure, opening only for authorized pets.
- User-Friendly LCD Menu: Provides easy navigation for lock/unlock functions and managing RFID tag programació.
- Doble font d'alimentació: Operates via USB-C with a 48-hour AA battery backup for continuous operation during power outages.
- Food-Grade Melamine Bowl: Easy to clean and suitable for both wet and dry food.
3. Què s'inclou
Your FurBabyFeeder Sphere package includes the following components:
- Sphere Feeder Unit
- Single White Melamine Food Bowl
- Manual d'usuari
- Cable d'alimentació USB tipus C
- 1 x Sphere RFID Collar Tag
- RFID Tag màniga

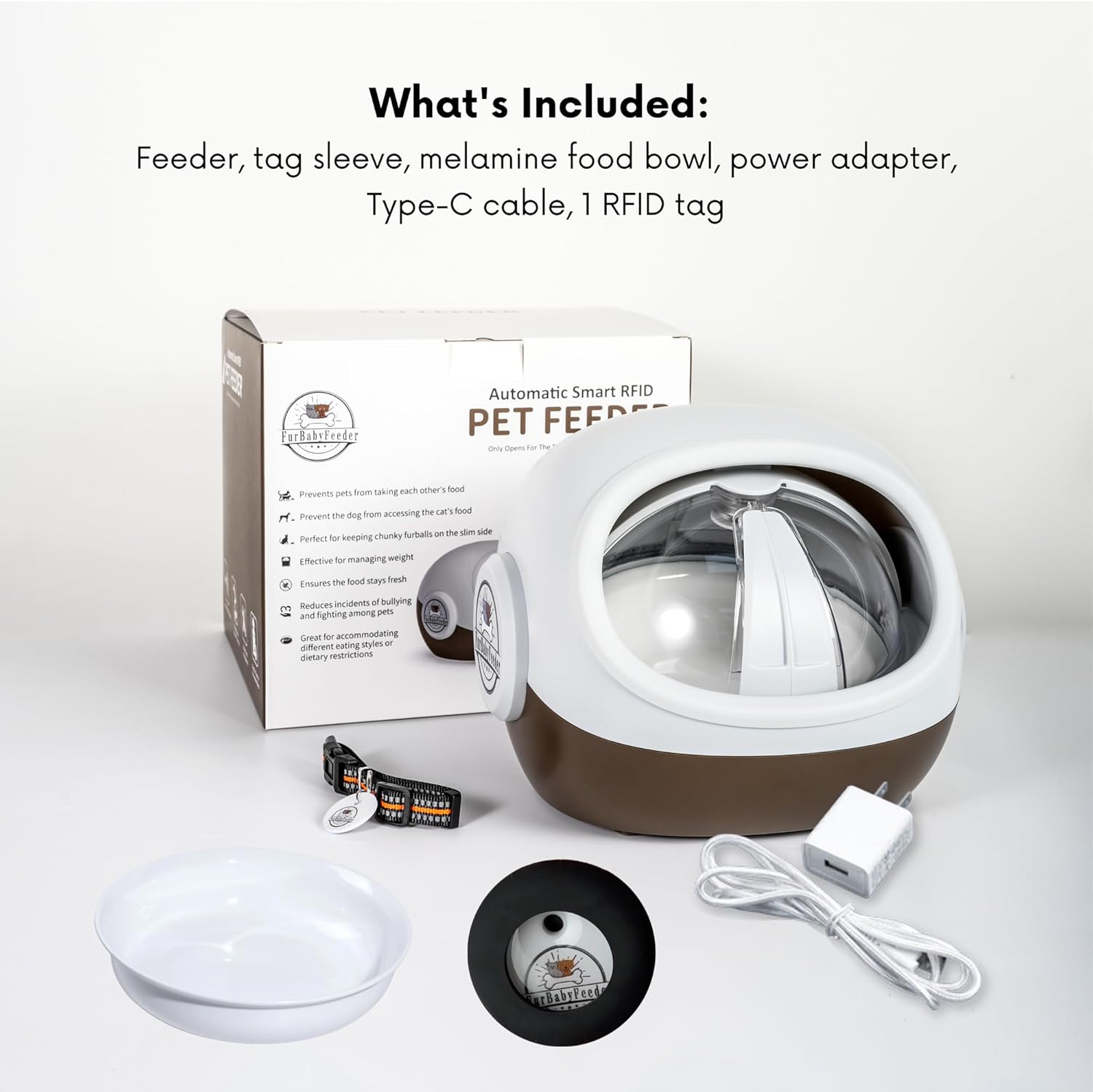

Image: All components included with the FurBabyFeeder Sphere: the feeder, food bowl, power cable, and RFID tag with sleeve.
4. Guia de configuració
Follow these steps to set up your FurBabyFeeder Sphere:
- Connexió d'alimentació: Connect the feeder using the provided USB-C cable. For backup power, insert 4 AA batteries (not included) into the battery compartment located at the bottom of the unit.
- RFID Tag Preparació: Insert the RFID tag into the new RFID tag sleeve. Then, securely slide the sleeve onto your pet's collar. This ensures optimal signal reception and comfort.
- RFID Tag Programació: Turn on the feeder. Use the LCD menu to navigate to the RFID programming option. Follow the on-screen prompts to program the RFID tag to the feeder. Note: This feeder is not compatible with pet microchips; it requires the included RFID collar tag.
- Col·locació del bol: Place the melamine feeding bowl inside the feeder.
- Feeder Placement: Position the feeder indoors in a dry area. If you are using multiple feeders for different pets, ensure they are placed at least 12 inches (30 cm) apart to prevent signal interference.
Image: Demonstrates multiple feeders in a home, highlighting personalized feeding for each pet.
5. Instruccions de funcionament
5.1. RFID Tag and Sleeve Functionality
The feeder's primary function relies on the RFID collar tag. When your pet, wearing the programmed tag, approaches the feeder, the RFID reader detects the tag, and the secure doors automatically open. The new RFID tag sleeve ensures the tag remains in the optimal position for continuous recognition, preventing the doors from closing prematurely while your pet is eating.
Image: Illustrates the RFID tag sleeve, designed to keep the tag stable and improve signal range.
Image: Shows a cat interacting with the feeder, demonstrating the RFID technology in action.
5.2. Mute Option
For pets sensitive to noise, the Sphere model includes a mute option. To activate or deactivate the beeping sound when the doors close, navigate through the LCD menu using the control buttons. This feature provides a quieter and less startling feeding experience for your pet.

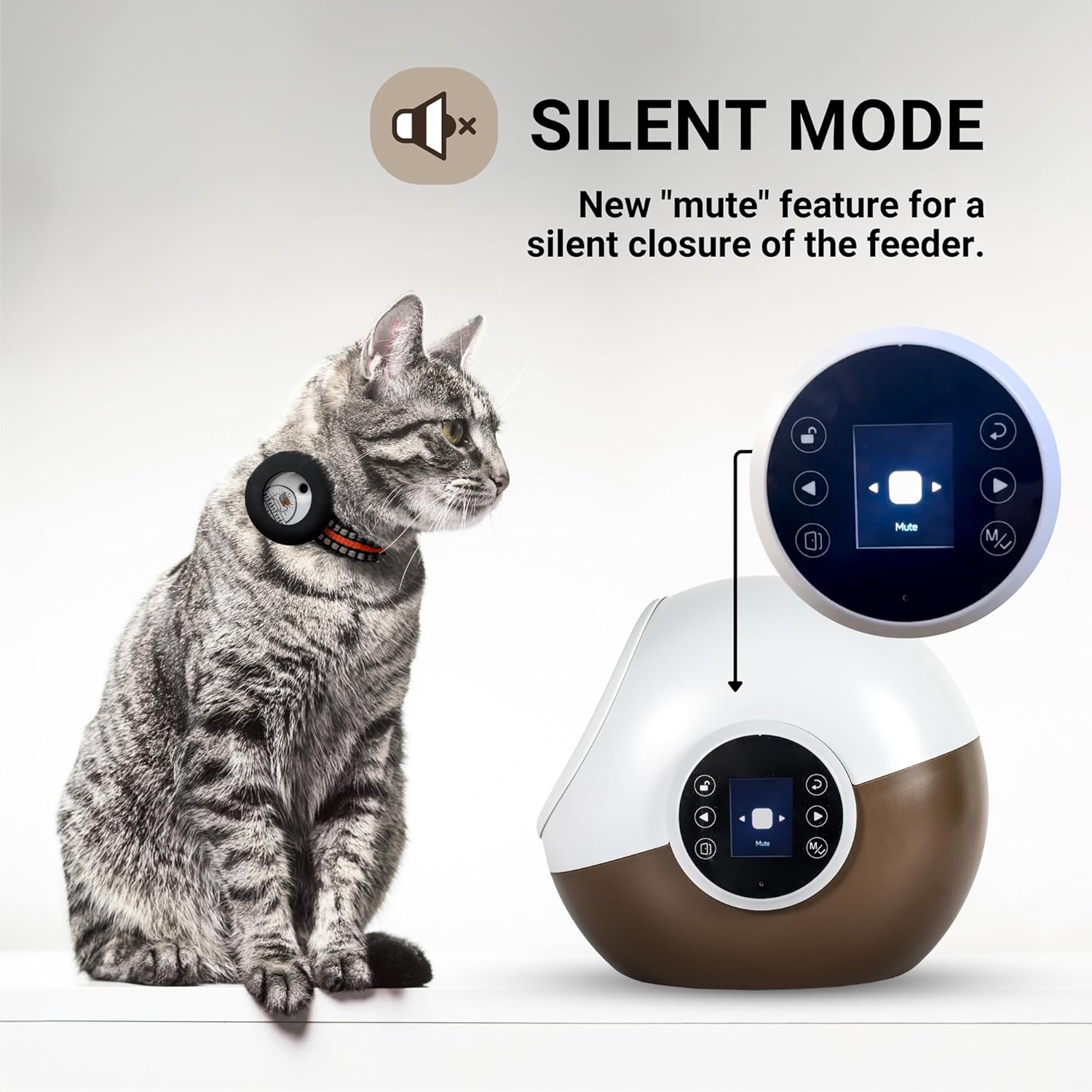

Image: Highlights the mute feature on the feeder's LCD screen, allowing for silent operation.
5.3. Dual Power Supply
The FurBabyFeeder Sphere can be powered using the provided USB-C cable. For added reliability and to ensure your pet never misses a meal during power outages, the feeder also supports 4 AA batteries (not included) as a backup power source, providing up to 48 hours of operation.
Image: Displays the dual power supply options, including the USB-C port and battery compartment.
5.4. Food Compatibility
The included melamine feeding bowl is designed to accommodate both wet and dry pet food. Ensure that the food level does not exceed the bowl's capacity to prevent any obstruction to the secure locking doors.
Image: Highlights the feeder's versatility for both wet and dry food, and its easy-to-clean design.
6. Manteniment
Regular cleaning and proper care will ensure the longevity and optimal performance of your FurBabyFeeder Sphere:
- Neteja del bol: The melamine feeding bowl is food-grade and dishwasher safe. Remove it regularly for cleaning to maintain hygiene.
- Cleaning the Feeder Unit: The top part of the feeder can be detached for easier cleaning. To remove, hold down the button on the back of the unit for a few seconds. Wipe the interior and exterior surfaces with a damp tela.
- Important: Do not wash the feeder base or the RFID reader with water, as this can damage the electronic components. Keep the feeder indoors and in a dry environment.
- Residus alimentaris: Periodically check for and remove any food debris that may accumulate in the door mechanism or track to ensure smooth operation.
7. Solució De Problemes
If you encounter any issues with your FurBabyFeeder Sphere, refer to the following common problems and solutions:
- Feeder Not Opening:
- Ensure the RFID tag is properly attached to your pet's collar and positioned correctly within the sleeve.
- Verify that the RFID tag has been successfully programmed to the feeder.
- Check if the feeder has power (USB-C connected or sufficient AA battery charge).
- Doors Not Closing/Getting Stuck:
- Do not overfill the bowl with kibble, as this can obstruct the door mechanism.
- Inspect the door tracks for any food debris or foreign objects and clean them thoroughly.
- Unwanted Beeping Sound:
- Activate the mute option via the LCD menu to silence the door closing sound.
- RFID Tag Not Reading Consistently:
- Ensure the RFID tag is securely placed in its sleeve and positioned on the collar for optimal signal reception.
- Confirm that the feeder is placed in a dry area and away from large metal objects that might interfere with the RFID signal.
8. Especificacions
| Atribut | Detall |
|---|---|
| Nom del model | Sphere Coffee |
| Número de model de l'article | FBF-SPHERE-COFFEE |
| Marca | FurBabyFeeder |
| Material | Plàstic |
| Color | Cafè |
| Pes de l'article | 4.73 lliures (2.15 kg) |
| Dimensions del producte (LxWxH) | 9.75 x 10.25 x 10.65 polzades (24.76 x 26.03 x 27.05 cm) |
| Font d'alimentació | USB-C (DC 5V) or 4 AA Batteries (48-hour backup) |
| Components inclosos | Sphere Feeder, Single White Bowl, User Manual, USB Type C Power Cable, 1 x Sphere RFID Collar Tag, Sleeve |
| Espècie objectiu | House-cats, Small-animal-pets, Dogs |
Image: Visual representation of the feeder's dimensions for easy reference.
9. Garantia i assistència
Garantia: The FurBabyFeeder Sphere RFID Automatic Cat Feeder comes with a 1-Year Manufacturer Warranty, covering defects in materials and workmanship under normal use.
Suport: For technical assistance, troubleshooting, or warranty claims, please refer to the contact information provided in the physical user manual included with your product. You may also visit the official FurBabyFeeder weblloc per obtenir recursos i suport addicionals.
