Producte acabatview
The Daikin 18 SEER2 ENTRA R32 series single zone inverter wall-mounted system offers energy-efficient and comfortable climate control. This heat pump system features a streamlined, wall-mounted indoor unit paired with a compact outdoor unit. It provides efficient cooling and heating operation with reduced operating costs compared to conventional systems. The unit is designed for easy installation and blends with various home decors, ideal for single room enhancements or additions.
Què s'inclou
Imatge: Més deview of the Daikin Mini-Split system components, including indoor unit, remote, outdoor unit, and installation kit items.
- Entra 18,000 Btu Wall Mount Indoor Fan Coil
- Smart DC Inverter Condenser Pre-charged with R-32 Refrigerant
- Control remot
- Kit d'instal·lació de línia de refrigerant Maxwell de 15 peus 1/4 x 1/2 amb cables d'interconnexió
- Suport de muntatge a paret Maxwell
- Línies de coure aïllades a gas i líquid de 15 peus amb connexions acampanades de fàbrica
- Cable d'interconnexió de 4 cables de calibre 16 trenat i sense blindatge
- Massilla de farciment de paret
- Tap de paret decoratiu
- Cilindre de màniga de paret
- Cinta d'embolcall decorativa no adhesiva
- Mànega flexible de drenatge de condensats de 6 peus de llarg
- 1/2-inch x 6 ft Liquid-tight Flexible Electrical Whip with 3- #10 AWG Wires
- 30 A Fusible Disconnect Switch
Característiques clau
Image: Visual representation of key features including Powerful Operation, Blue Fin Protection, ECO+, and Titanium Apatite Photocatalytic Air Purifying Filter.
- Eficiència excepcional: Provides 18,100 BTUs of cooling power (Min 6,900 BTU - Max 20,000 BTU) and 18,000 BTUs of heating capacity (Min 5,800 BTU - Max 22,500 BTU). Achieves a high 18 SEER2 energy efficiency rating, 9 HSPF2, 10.5 EER2, and 3.30 COP, ensuring efficient year-round climate control thanks to DC Inverter technology. Covers an area of up to 1,000 sq. ft.
- All-Season Comfort: Operates effectively within a broad temperature range, providing efficient cooling from 50°F to 115°F and reliable heating from 5°F to 65°F.
- Advanced Air Quality: Features Blue Fin Protection for enhanced coil cleanliness and lifespan, and a Titanium Apatite Photocatalytic Air Purifying Filter for improved indoor air quality.
- Smart Operation Modes: Includes Powerful Operation for a rapid boost in cooling/heating, ECO+ for energy efficiency, Dry Mode, Fan Mode, Auto Mode, and Sleep Mode.
- Autodiagnòstic: Equipped with Self-Diagnostics and a Digital Display for easy monitoring.
Configuració i instal·lació
Daikin ENTRA wall-mounted units are designed for straightforward installation. The system includes pre-flared refrigerant lines and interconnecting cables to simplify the process. Ensure all electrical connections are made by a qualified professional to comply with local codes and safety standards.
Imatge: Detallada view of the Maxwell installation kit, showing copper lines, electrical cable, wall accessories, and electrical components.
Passos d'instal·lació acabatsview:
- Instal·lació de la placa de muntatge: Securely attach the indoor unit mounting plate to the wall, ensuring it is level and positioned correctly according to the provided template.
- Perforar la paret: Drill a hole through the wall for the refrigerant lines, drain hose, and interconnecting cables.
- Connexió de la línia de refrigerant: Connect the pre-flared refrigerant lines between the indoor and outdoor units. Ensure connections are tight and leak-free.
- Connexió de la mànega de drenatge: Connect the flexible condensate drain hose to the indoor unit and route it to an appropriate drainage point.
- Cablejat elèctric: Connect the interconnecting cables between the indoor and outdoor units. A qualified electrician should handle the connection of the electrical whip and disconnect switch to the main power supply.
- Vacuum and Refrigerant Release: Evacuate the air from the refrigerant lines using a vacuum pump. Once evacuated, release the pre-charged R-32 refrigerant from the outdoor unit into the system.
- Assemblea final: Secure the indoor unit to the mounting plate and close all covers.
Video d'instal·lació:
Video: This video demonstrates the installation process for a similar mini-split unit, covering steps from mounting the plate to connecting piping and wiring. It highlights features for easy installation and maintenance.
Instruccions de funcionament
The Daikin Mini-Split system offers various modes and features for optimal comfort and energy efficiency, controlled via the included remote.
Funcionament bàsic:
- Encès/apagat: Use the ON/OFF button on the remote to start or stop the unit.
- Selecció del mode: Press the MODE button to cycle through available modes: Auto, Cool, Dry, Fan, and Heat.
- Ajust de temperatura: Use the UP/DOWN arrows to set your desired temperature.
- Velocitat del ventilador: Adjust the fan speed using the FAN button to control airflow.
Característiques avançades:
- Funcionament potent: Activate this mode for a rapid boost in cooling or heating for a 20-minute period.
- Mode ECO+: Engages intelligent energy-saving operation, automatically adjusting settings to meet basic human comfort needs while optimizing energy consumption.
- Air Direction (Swing): Use the SWING function to adjust the vertical airflow direction for even distribution or to avoid direct drafts.
- Mode de repòs: Optimizes temperature settings during sleep for comfort and energy saving.
- Funció de temporitzador: Programa la unitat perquè s'encengui o s'apagui a hores específiques.
Image: Daikin indoor unit with a visual representation of connecting to a DKN Cloud Wi-Fi Adaptor (not included) for remote control via smartphone app.
For remote control via smartphone, a DKN Cloud Wi-Fi Adaptor (not included) is required. This adaptor allows you to turn units ON/OFF, adjust settings, control fan speed, monitor room temperature, and receive error alerts using the DKN App.
Manteniment
Regular maintenance ensures optimal performance and longevity of your Daikin Mini-Split system.
- Neteja del filtre d'aire: Clean the air filters regularly (e.g., monthly or bi-monthly, depending on usage and air quality) to maintain airflow and efficiency. Refer to the unit's manual for specific instructions on how to access and clean the filters.
- Neteja de la unitat exterior: Keep the outdoor unit free from debris, leaves, and other obstructions to ensure proper airflow and heat exchange.
- Neteja de bobines: The unit features Blue Fin Protection, which helps maintain coil cleanliness. However, periodic professional coil cleaning may be beneficial.
- Titanium Apatite Photocatalytic Air Purifying Filter: This filter should be cleaned and replaced according to the manufacturer's recommendations to ensure effective air purification.
Resolució de problemes
If you encounter issues with your Daikin Mini-Split system, consider the following common troubleshooting steps:
- La unitat no s'encén: Check the power supply and ensure the disconnect switch is in the ON position. Verify the remote control batteries are functional.
- Refrigeració/calefacció insuficient: Ensure air filters are clean and not obstructed. Check that the desired temperature setting is appropriate for the current mode. Verify no obstructions around the outdoor unit.
- Sorolls inusuals: Minor noises during operation are normal. If loud or unusual noises occur, inspect for loose parts or contact customer support.
- Fuga d'aigua: Check the drain hose for kinks or blockages. Ensure the indoor unit is properly leveled.
- Codis d'error: The unit's digital display may show error codes. Refer to the full user manual for a list of codes and their corresponding solutions.
For persistent issues, contact a qualified HVAC technician or Daikin customer support.
Especificacions

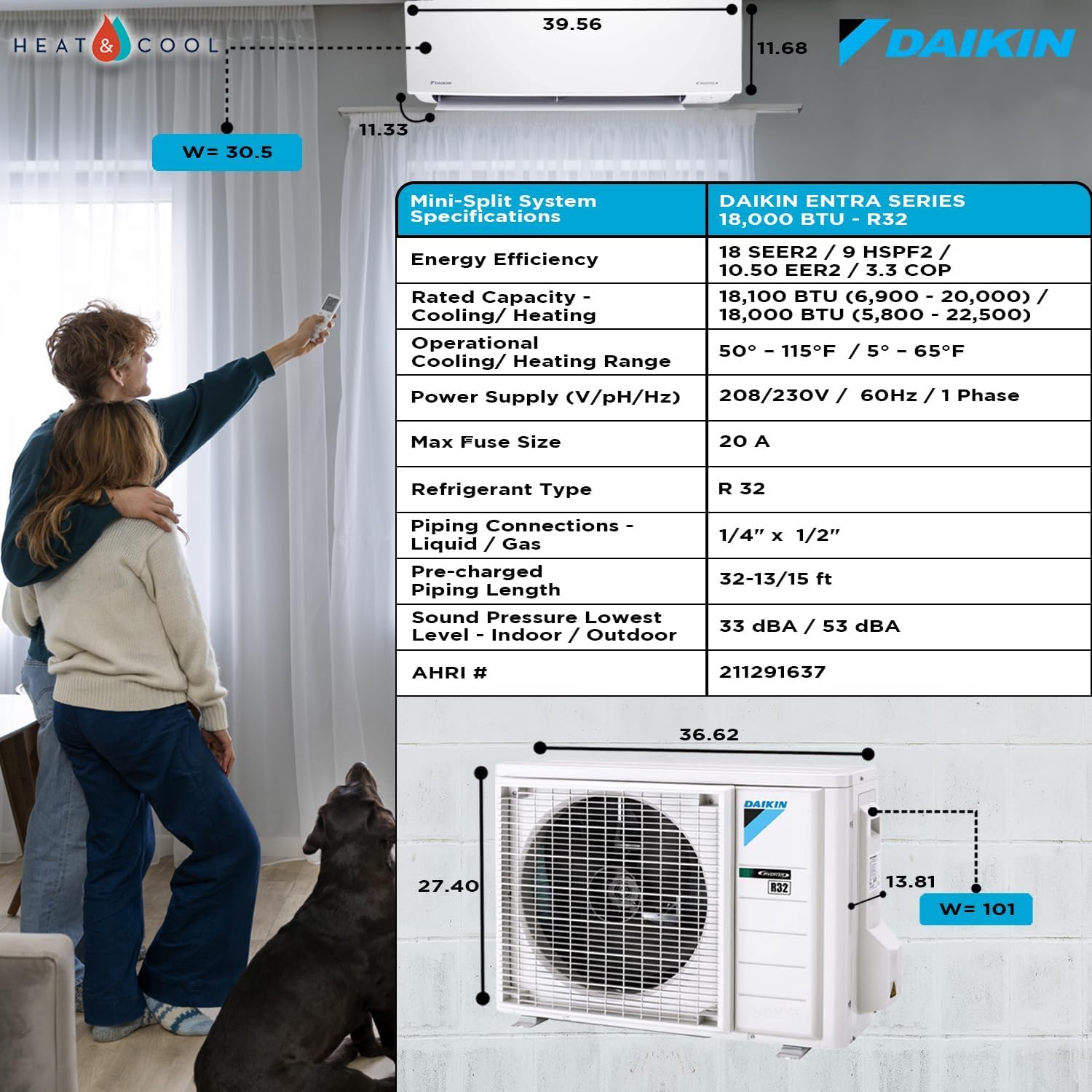

Image: Diagram showing the dimensions and key specifications of the Daikin ENTRA Series 18,000 BTU - R32 Mini-Split System.
| Especificació | Detall |
|---|---|
| Nom de marca | DAIKIN |
| Informació del model | FTXC18AXVJU |
| Número de model de l'article | FTXC18AXVJU |
| Potència de refrigeració | 18,100 British Thermal Units (Min 6,900 BTU - Max 20,000 BTU) |
| Capacitat de calefacció | 18,000 British Thermal Units (Min 5,800 BTU - Max 22,500 BTU) |
| Classificació SEER2 | 18 |
| Classificació HSPF2 | 9 |
| Classificació EER2 | 10.5 |
| COP | 3.30 |
| Àrea de cobertura | Fins a 1,000 peus quadrats |
| Temperatura de funcionament (refrigeració) | De 50 °F a 115 °F |
| Operating Temperature (Heating) | De 5 °F a 65 °F |
| Tipus de refrigerant | R-32 |
| Voltage | 230 Volts |
| Nivell de soroll | 43 decibels |
| Indoor Unit Dimensions (H*W*D) | 11.69 x 39.56 x 11.03 polzades |
| Outdoor Unit Dimensions (H*W*D) | 27.40 x 36.62 x 13.81 polzades |
| Pes de l'article | 128 lliures |
Garantia i Suport
The Daikin 18 SEER2 ENTRA R32 series system comes with a 10 any de garantia del fabricant. For any product support, technical assistance, or warranty claims, please refer to the contact information provided in your product packaging or visit the official DAIKIN weblloc.
For additional support, you may contact the seller, Heatandcool, or Amazon customer support for 30-day easy returns and customer service.
