Introducció
This manual provides essential information for the safe operation, maintenance, and troubleshooting of your DEERC 308E Brushless RC Truck. Please read this manual thoroughly before operating the vehicle to ensure proper function and longevity.
Image: The DEERC 308E Brushless RC Truck, remote control, two batteries, and spare parts.
Informació de seguretat
Avís: This product contains small parts and is not suitable for children under 14 years old. Always operate the product under adult supervision, especially in areas with traffic or potential hazards. Failure to follow safety guidelines may result in injury or damage to the product.
- Mantingueu les mans, els cabells i la roba solta lluny de les peces mòbils.
- Do not operate the RC truck near people, pets, or obstacles.
- Avoid operating in wet conditions or near water unless specifically designed for it. The ESC is waterproof (IPX4), but other components may not be.
- Apagueu sempre el vehicle i el comandament a distància quan no els feu servir.
- Use only approved batteries and chargers.
Contingut del paquet
Verifiqueu que tots els elements que s'enumeren a continuació s'inclouen al vostre paquet:
- 1 x DEERC RC Truck (Model 308E)
- 1 comandament a distància de 2.4 GHz
- 2 x 7.4V 1500 mAh Rechargeable Batteries
- 1 x cable de càrrega
- 1 x Manual del producte (aquest document)
- 1 x tornavís
- 1 x Kit de peces de recanvi
Image: Visual representation of the DEERC 308E RC Truck, remote, batteries, charging cable, and user manual.
Configuració i primer ús
1. Càrrega de la bateria
- Connect the provided 7.4V 1500mAh rechargeable battery to the charging cable.
- Plug the charging cable into a suitable USB power adapter (not included).
- Allow the battery to charge fully. Refer to the charging cable's indicator light for charging status (e.g., red for charging, green for fully charged).
- No deixeu les piles sense vigilància mentre es carreguen.
2. Instal·lació de la bateria del vehicle
- Carefully remove the body shell of the RC truck.
- Insert a fully charged 7.4V 1500mAh battery into the designated battery compartment.
- Connecteu el connector de la bateria al connector d'alimentació del vehicle.
- Secure the battery and reattach the body shell.
3. Instal·lació de la bateria del control remot
- Obriu el compartiment de la bateria a la part posterior del comandament a distància.
- Insert 2 CR5 batteries (included) according to the polarity markings.
- Tanqueu el compartiment de la bateria.
4. Vinculació del comandament a distància
- Turn on the RC truck by pressing its power button.
- Engegueu el comandament a distància.
- The remote control and truck should automatically pair. If not, refer to the remote control's specific pairing instructions (usually involves turning both on, then pressing a bind button on the remote or truck).
5. Comprovacions prèvies a l'operació
- Assegureu-vos que totes les connexions siguin segures.
- Check for any loose screws or damaged parts.
- Verify that the steering and throttle respond correctly to remote control inputs.
Guia d’operacions
1. Controls bàsics
- Activador de l'accelerador: Estireu per accelerar endavant, empenyeu per frenar/retrocedir.
- Volant: Gireu a l'esquerra o a la dreta per dirigir el vehicle.
- The 2.4GHz full proportional control system allows for precise steering and throttle adjustments.
2. Driving on Various Terrains
The DEERC 308E is designed for all-terrain performance with its 4x4 off-road system and heavy-duty tires. It can operate effectively on gravel, sand, mud, grass, and skate parks.
Image: The DEERC 308E RC Truck demonstrating its capability on diverse surfaces.
3. Speed and Performance Notes
- The vehicle can reach speeds of up to 55 KM/H (approximately 34 MPH) with the included 2S battery, and up to 43 MPH with a 3S LiPo battery (not included).
- The two included 7.4V 1500mAh batteries provide up to 50 minutes of continuous play time.

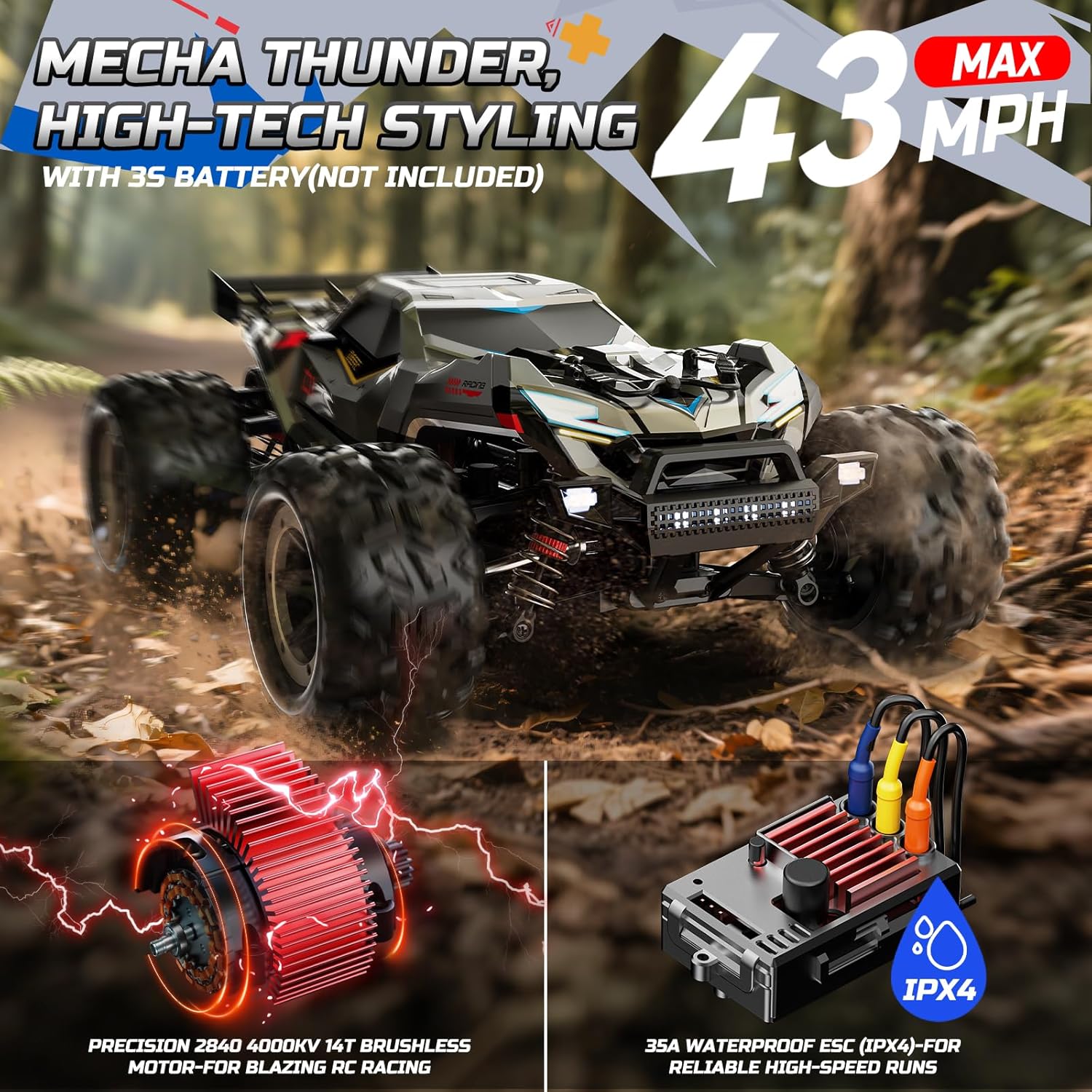

Image: The DEERC 308E RC Truck showcasing its speed capabilities, powered by a 2840 4000KV 14T brushless motor and 35A waterproof ESC.
Manteniment i cura
1. Neteja general
- After each use, especially in dirty or dusty conditions, clean the vehicle to prevent debris from affecting performance.
- Use a soft brush or compressed air to remove dirt from the chassis, wheels, and suspension components.
- Netegeu el cos amb anunciamp tela. Eviteu utilitzar productes químics aggressivs.
2. Cura i emmagatzematge de la bateria
- Always disconnect batteries from the vehicle when not in use.
- Guardeu les piles en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
- The vehicle features a smart low-voltage cutoff system to protect the battery during operation.
3. Inspecció de components
Regularly inspect the following components for wear or damage:
- Xocs: Check for leaks or damage to the adjustable oil-filled shocks.
- Transmissió: Inspect the metal spur gear differential and full metal drive shafts for smooth operation and signs of wear.
- Servos: Ensure the pro-grade 3-wire copper gear servo operates freely and without excessive play.
- Tires and Bumpers: Check heavy-duty tires for punctures or excessive wear, and reinforced bumpers for structural integrity.
Imatge: Detallada view of the DEERC 308E's internal structure, highlighting the high-performance metal spur gear differential, pro-grade 3-wire copper gear servo, adjustable oil-filled shocks, and metal CVDs.
Resolució de problemes
If you encounter issues with your DEERC 308E RC Truck, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| Vehicle does not turn on | Battery not charged or improperly connected; vehicle power switch off. | Charge battery fully, ensure proper connection, turn on vehicle power switch. |
| Cap resposta del comandament a distància | Remote control batteries low or incorrectly installed; vehicle and remote not paired. | Replace remote control batteries, check polarity, re-pair remote and vehicle. |
| Velocitat o potència reduïda | Vehicle battery low; motor or ESC overheating; debris in drivetrain. | Recharge vehicle battery, allow components to cool, clean drivetrain. |
| Poor steering control | Servo damage or loose connections; steering trim incorrect. | Check servo connections, adjust steering trim on remote, inspect servo for damage. |
| Sorolls inusuals durant el funcionament | Debris in gears; damaged gears or bearings. | Inspect and clean gears, replace any damaged components. |
If issues persist, contact DEERC customer support for further assistance. Spare parts are generally available for common components.
Especificacions del producte
| Característica | Especificació |
|---|---|
| Número de model | AU-308E |
| Escala | 1:18 |
| Motor | 2840 4000KV 14T Brushless Motor |
| Controlador electrònic de velocitat (ESC) | 35A Waterproof (IPX4) |
| Velocitat màxima | Up to 55 KM/H (34 MPH) with 2S battery; Up to 43 MPH with 3S LiPo battery (not included) |
| Sistema d'accionament | 4x4 All-Terrain |
| Sistema de control | 2.4GHz Full Proportional |
| Bateries (incloses) | 2 x 7.4V 1500mAh Rechargeable Batteries |
| Temps d'execució | Fins a 50 minuts (amb 2 piles incloses) |
| Bateries de comandament a distància | 2 piles CR5 (incloses) |
| Dimensions del producte | 7.87 x 3.94 x 11.02 polzades |
| Pes de l'article | 2.99 lliures |
| Edat recomanada | 14 anys i més |
| Key Durability Features | Metal spur gear differential, full metal drive shafts, adjustable oil-filled shocks, pro-grade 3-wire copper gear servo, reinforced bumpers, heavy-duty tires. |
Garantia i Suport
For warranty information, please refer to the documentation included with your product packaging or visit the official DEERC website. DEERC strives to provide comprehensive customer support.
If you require assistance with your DEERC 308E RC Truck, have questions, or need to report an issue, please contact DEERC customer support. Contact details can typically be found on the product packaging or the official DEERC brand store online.
Image: A customer support representative, symbolizing available assistance for product users.
