1. Introducció
Thank you for choosing the KOSCHEAL C16R. This device is a versatile 3-in-1 solution, integrating a gimbal stabilizer, an extendable selfie stick, and a stable tripod. It features advanced AI facial tracking, an adjustable fill light, and a wireless remote control, designed to enhance your mobile photography and videography experience. This manual provides detailed instructions for setup, operation, maintenance, and troubleshooting to ensure optimal performance.
2. Informació de seguretat
- No desmunteu, repareu o modifiqueu el dispositiu.
- Mantingueu el dispositiu allunyat de l'aigua, el foc i les altes temperatures.
- Eviteu deixar caure o sotmetre el dispositiu a forts impactes.
- Feu servir només el cable de càrrega proporcionat o un equivalent certificat.
- Ensure your phone is securely mounted before operation.
3. Contingut del paquet
- KOSCHEAL C16R Stabilizer/Selfie Stick
- Comandament a distància sense fil
- Cable de càrrega USB
- Manual d'usuari
4. Producte acabatview
The KOSCHEAL C16R integrates multiple functions into a compact design. Familiarize yourself with its components:
- Telèfon Clamp: Subjecta el teu telèfon intel·ligent de manera segura.
- Gimbal Head: Provides stabilization and rotation.
- Barra d'extensió: Extends the device length for wider shots.
- Handle/Tripod Base: Serves as a grip or unfolds into a stable tripod.
- Llum d'ompliment: Integrated light with adjustable brightness and color temperature.
- Comandament a distància sense fil: Detachable remote for controlling shutter and gimbal functions.
Imatge 4.1: acabatview of the KOSCHEAL C16R in various configurations, including the detachable remote control.
Image 4.2: Illustration of the 3-in-1 functionality: gimbal for anti-vibration, selfie stick for extended reach, and tripod for stable shots.
5. Configuració
5.1 Desplegament del dispositiu
- Agafeu el mànec fermament.
- Gently pull the top part upwards to extend the selfie stick rod.
- To use as a tripod, spread the legs at the bottom of the handle until they are stable.
5.2 Connectar el telèfon intel·ligent
- Obre el telèfon clamp.
- Carefully insert your smartphone into the clamp, ensuring it is centered and secure.
- For optimal balance, ensure the phone is positioned evenly.
5.3 Càrrega del dispositiu
- Connecteu el cable de càrrega USB al port de càrrega del dispositiu.
- Connect the other end to a USB power adapter (not included).
- The indicator light will show charging status. A full charge provides approximately 8 hours of operation.
5.4 Emparellatge del comandament a distància sense fil
- Ensure the remote control is charged (if applicable) or has a working battery.
- Turn on the KOSCHEAL C16R.
- Activa el Bluetooth al teu telèfon intel·ligent.
- Cerca available devices and select "KOSCHEAL C16R" or a similar name.
- Once paired, the remote control can operate your phone's camera shutter and gimbal functions.
Image 5.1: The detachable wireless remote control allows for capturing photos and videos from up to 10 meters away.
6. Instruccions de funcionament
6.1 Encès/Apagat
- Per engegar-lo, premeu i manteniu premut el botó d'engegada fins que s'il·lumini l'indicador lluminós.
- Per apagar-lo, premeu i manteniu premut el botó d'engegada fins que l'indicador lluminós s'apagui.
6.2 Gimbal Stabilization Modes
The C16R offers various stabilization modes for different shooting scenarios:
- Seguiment d'IA: Utilizes artificial intelligence to detect and follow faces or objects.
- Mode inicial: Creates a spinning effect for dynamic 360-degree shots.
- Semi-Follow Mode: Smoothly follows horizontal movements while maintaining vertical stability.
- Rotació lenta: Provides a controlled, gradual rotation for cinematic effects.

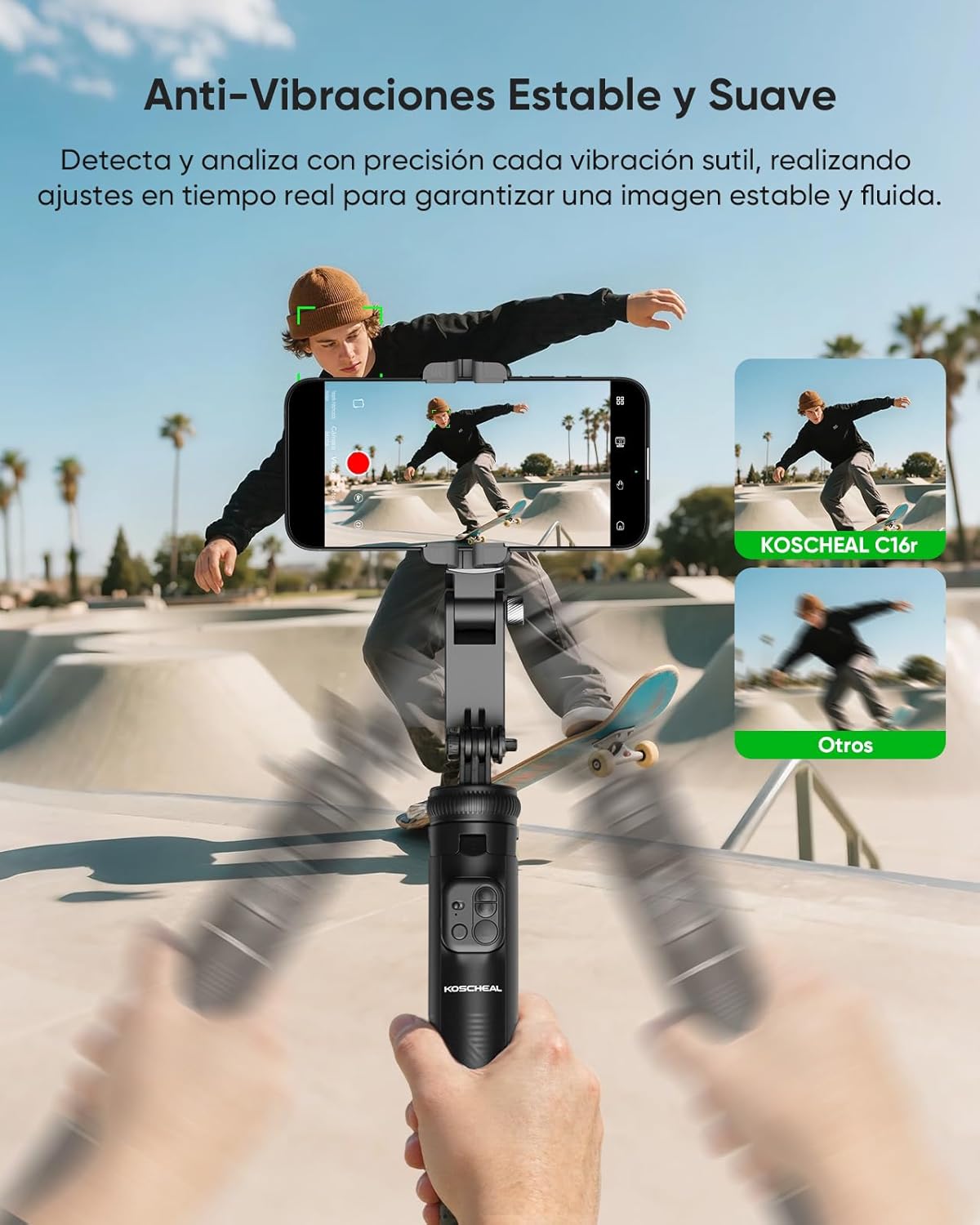

Image 6.1: The anti-vibration system detects and analyzes subtle vibrations, making real-time adjustments for stable and fluid images.
Image 6.2: The reinforced tripod allows for 360-degree rotation on horizontal and vertical axes, including Inception Mode for professional effects.
6.3 AI Facial Tracking and Gesture Control
For AI tracking, download the dedicated KOSCHEAL app (if required, check product packaging or official website). The device can detect faces and gestures:
- "OK" Gesture: Initiates facial tracking or protagonist mode.
- "PALM" Gesture: Initiates facial tracking.
- Double Click Remote Button: Disables gesture control.
Image 6.3: Enhanced AI facial tracking and object tracking with gesture control for intelligent capture.
Image 6.4: AI facial tracking with extended battery life, ensuring smooth and focused live streaming.
6.4 Ús de la llum de farciment
The integrated fill light offers adjustable brightness and three color tones:
- Llum càlida: For a soft, inviting glow.
- Llum natural: Mimics natural daylight.
- Llum blanca: Bright, clear illumination.
Press the light button to cycle through color tones and adjust brightness levels (9 levels available).
Image 6.5: Adjustable fill lights with three color tones (Warm, Natural, White) to optimize lighting for any environment.
6.5 Funcions de control remot
The detachable remote control provides convenient access to key functions:
- Feu clic a: Switch between horizontal/vertical orientation.
- Premsa llarga: Right rotation mode.
- Feu doble clic: Automatic rotation mode.
- Feu clic a: POV mode.
- Premsa llarga: Left rotation mode.
- Feu doble clic: Slow rotation mode.
- Feu clic a: Photo/Video recording.
Image 6.6: Detailed functions of the wireless remote control for various gimbal and camera operations.
7. Manteniment
7.1 Neteja
- Netegeu el dispositiu amb un drap suau i sec.
- No utilitzeu productes químics ni productes de neteja abrasius.
7.2 Emmagatzematge
- Guardeu el dispositiu en un lloc fresc i sec, lluny de la llum solar directa.
- Ensure the device is folded and compact for storage.

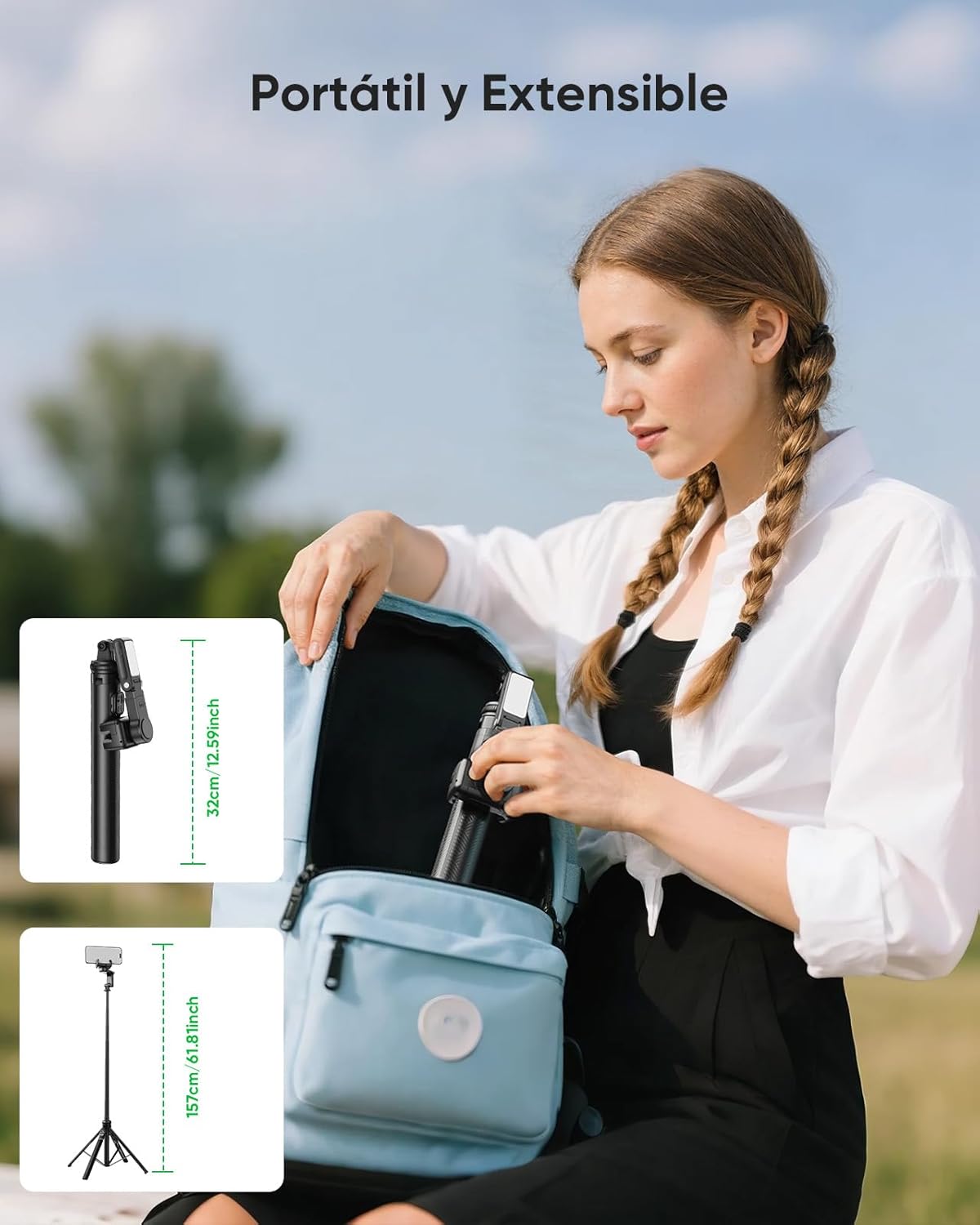

Image 7.1: The portable and extensible design allows for easy storage and transport in a backpack.
7.3 Cura de la bateria
- Carregueu el dispositiu regularment, fins i tot si no l'esteu fent servir, per mantenir la bateria en bon estat.
- Eviteu descarregar completament la bateria amb freqüència.
8. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| El dispositiu no s'encén. | Bateria baixa. | Carregueu el dispositiu completament. |
| Remote control not connecting. | No emparellat o fora de l'abast. | Ensure Bluetooth is on, re-pair, or move closer to the device. |
| Gimbal stabilization is not working. | Phone not balanced or mode incorrect. | Ensure phone is centered. Cycle through gimbal modes. |
| AI tracking is inaccurate. | Poor lighting or app issue. | Ensure adequate lighting. Restart the app and device. |
9. Especificacions
- Model: C16R
- Marca: KOCHEAL
- Mides plegades: 7.1 x 8.4 x 32 cm
- Longitud ampliada: Fins a 157 cm
- Pes: 535 g
- Material: Aluminum Alloy (extension rod)
- Durada de la bateria: Approximately 8 hours (main unit)
- Capacitat de la bateria: 480mAh (main unit)
- Wireless Remote Range: Fins a 10 metres (33 peus)
- Compatibilitat: Smartphones iOS i Android
- Llum d'ompliment: 3 color tones, 9 brightness levels

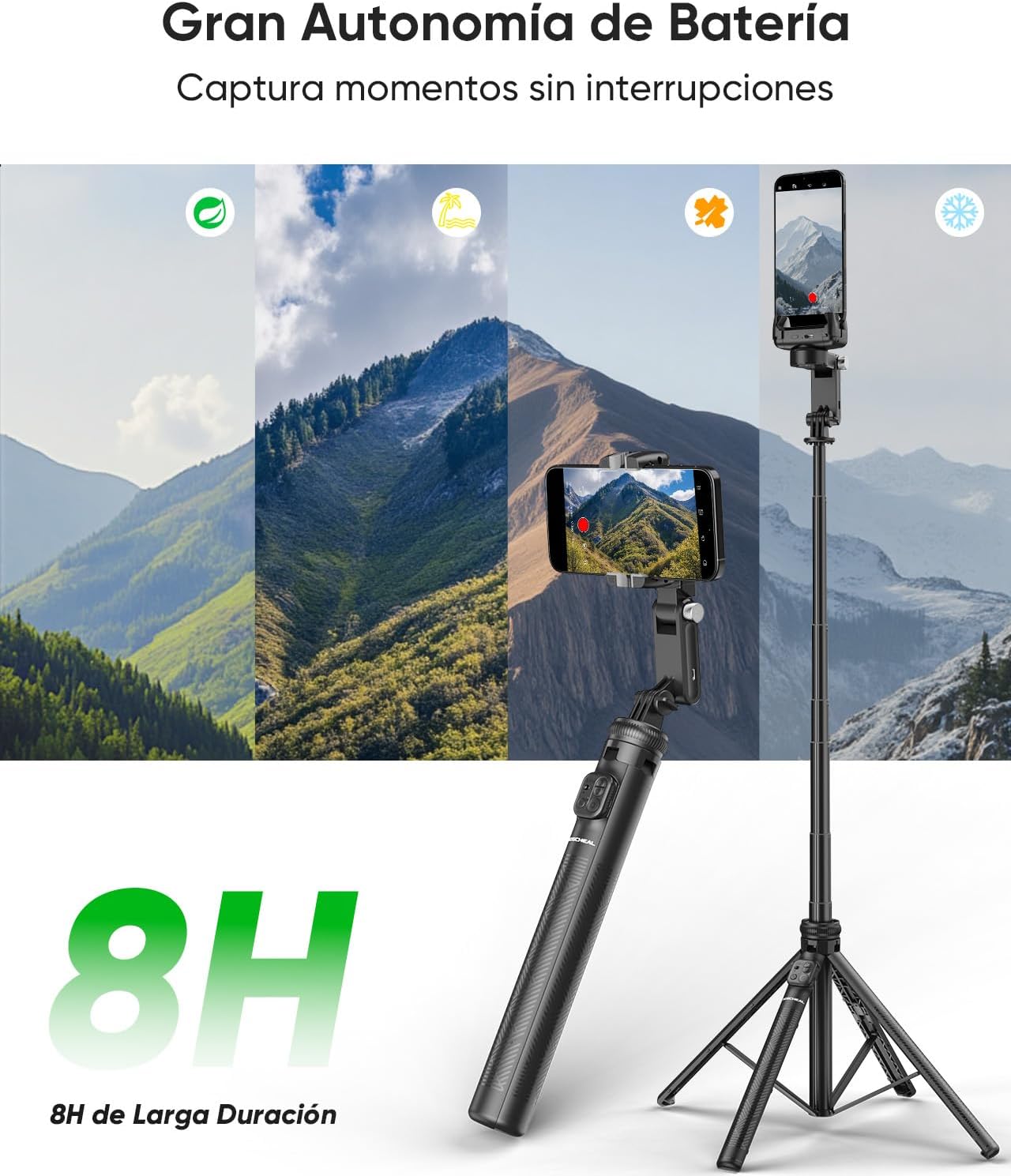

Image 9.1: The KOSCHEAL C16R offers up to 8 hours of battery life for extended use.
Image 9.2: The robust tripod features an aluminum alloy construction and an anti-slip silicone base for stability.
10. Garantia i Suport
KOSCHEAL products are designed for reliability and performance. For warranty information, please refer to the warranty card included with your purchase or visit the official KOSCHEAL website. If you encounter any issues or require technical assistance, please contact KOSCHEAL customer support through the contact information provided on our weblloc web o la vostra plataforma de compra.
We are committed to providing excellent service and support for your KOSCHEAL C16R.
