VECELO 16-inch Full Size Metal Platform Bed Frame Instruction Manual

1. Introducció

This instruction manual provides comprehensive guidance for the assembly, safe use, and maintenance of your VECELO 16-inch Full Size Metal Platform Bed Frame. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

The VECELO platform bed frame is designed to provide a sturdy foundation for your mattress without the need for a box spring. It features a durable steel construction, ample under-bed storage, and is engineered for quiet operation.

2. Informació de seguretat

• Do not exceed a weight of 600 pounds on the bed frame. Exceeding this limit may cause structural damage and injury.
• Be cautious of sharp edges during assembly and handling.
• Follow all assembly instructions carefully to prevent instability and ensure proper function.
• Ensure all screws and bolts are tightened securely before use and inspect them regularly for looseness.
• Keep children and pets away from the assembly area until the bed frame is fully assembled and stable.

3. Contingut del paquet

Abans del muntatge, verifiqueu que tots els components que s'enumeren a continuació siguin presents i no estiguin danyats. Si hi ha alguna peça que falti o que estigui danyada, poseu-vos en contacte amb el servei d'atenció al client.

• 1 x Estructura de llit (components desmuntats)
• 1 x Manual d'instruccions (aquest document)
• 1 x Assembly Kit (includes all necessary tools and fasteners)

4. Muntatge i muntatge

Assembly typically takes less than one hour. It is recommended to assemble the bed frame with two people.

1. Desempaquetar components: Carefully remove all parts from the packaging. Lay them out on a clean, soft surface (like a carpet) to prevent scratches.
2. Identifica les parts: Refer to the parts list in the assembly kit to identify each component.
3. Unfold Frame Sections: The bed frame features a foldable design. Carefully unfold the main frame sections as indicated in the diagram below.
4. Connect Frame: Align and connect the frame sections using the provided bolts and nuts. Ensure that the legs with pre-drilled holes for a headboard are positioned at the desired head of the bed.
5. Fixeu les potes de suport: Securely attach any additional central support legs if applicable.
6. Ajust inicial: Hand-tighten all screws and bolts initially. Do not fully tighten until the entire frame is assembled.
7. Ajustament final: Once all components are correctly assembled and aligned, fully tighten all screws and bolts using the provided tool. Ensure all legs remain in contact with the ground.

5. Ús

After successful assembly, your VECELO platform bed frame is ready for use.

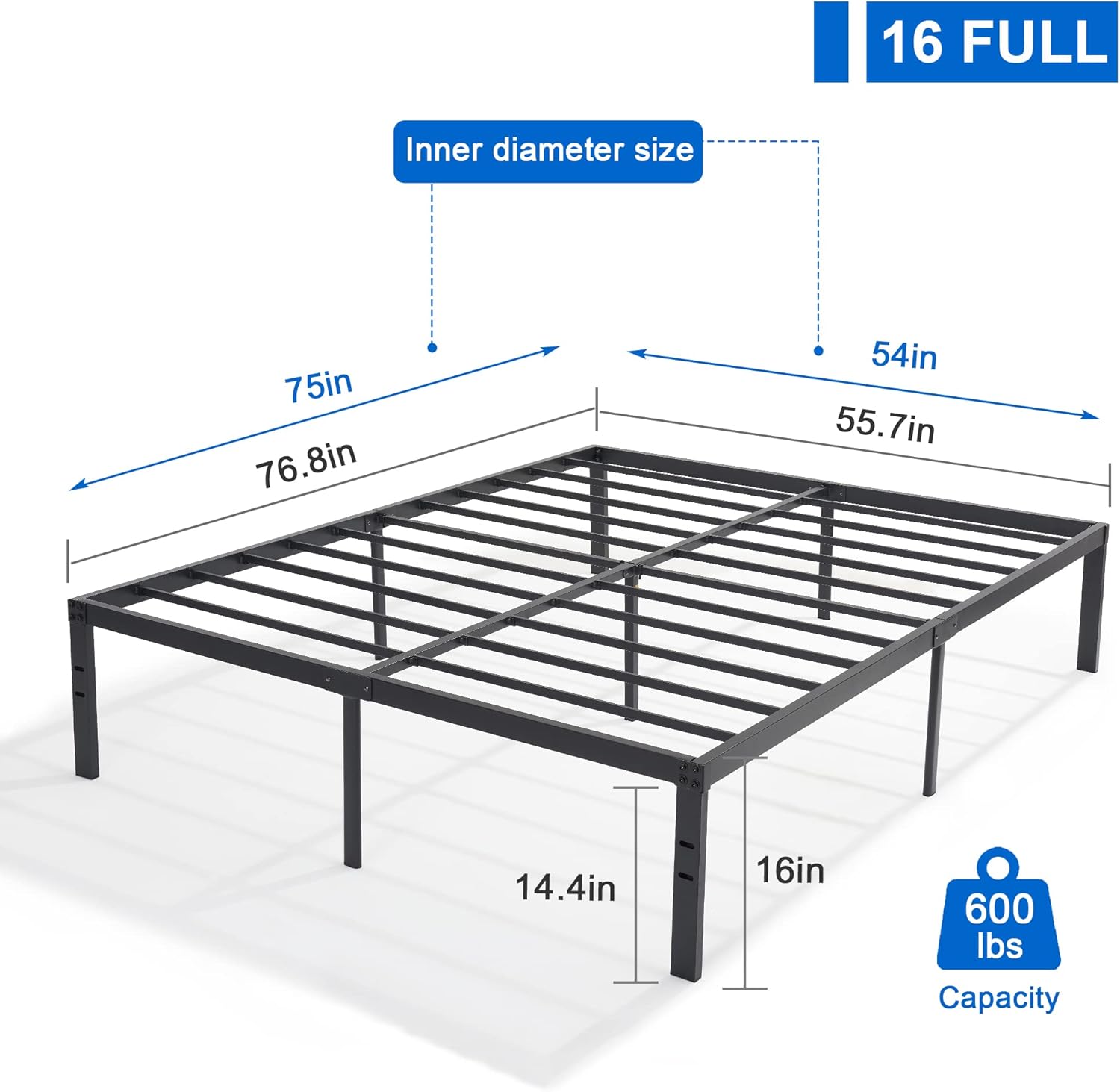

• Col·locació del matalàs: Place your latex, spring, or memory foam mattress directly onto the steel slatted platform. A box spring is not required. The recommended mattress size for this full-size frame is 75 x 54 inches.
• Emmagatzematge sota el llit: L'espai lliure de 14.4 polzades sota el llit proporciona ample space for storage boxes, shoes, or other items.
• Reducció de soroll: The square bed board and slats are designed to minimize mattress movement and reduce noise, contributing to a quiet sleeping environment.

6. Manteniment

To maintain the condition and longevity of your VECELO bed frame, follow these simple maintenance guidelines:

• Neteja: Wipe the metal surfaces with a dry cloth to remove dust and debris. Avoid using harsh chemicals or abrasive cleaners.
• Inspecció periòdica: Reviseu periòdicament tots els cargols i perns per assegurar-vos que estiguin ben ajustats. Torneu-los a apretar si detecteu alguna fluïdesa.
• Protecció del sòl: The bed frame is equipped with anti-scratch foot covers to protect your flooring. Ensure these covers remain in place.

7. Solució De Problemes

Si teniu algun problema amb el marc del llit, consulteu les solucions habituals següents:

• Sorolls de grinyols: If the bed frame produces squeaking noises, check all connection points. Loosen and then re-tighten all bolts and screws. Ensure the mattress is properly seated on the slats and not shifting.
• Inestabilitat/Troballament: Verify that all legs are firmly on the ground and that all bolts are fully tightened. Ensure the frame is assembled on a flat, level surface.
• Peces que falten: If you find any parts missing during assembly, do not attempt to force assembly. Contact VECELO customer support for assistance.

8. Especificacions

9. Garantia i Suport

VECELO offers a one-year free parts replacement warranty for this product. A limited 30-Day Return Policy is also in effect. Should you encounter any issues or require assistance, please do not hesitate to contact VECELO customer support. Our team is committed to resolving your concerns within 24 hours.

For support, please refer to the contact information provided with your purchase or visit the official VECELO weblloc.
