JOYING Android 13 Double Din Car Radio with CarPlay & Android Auto

1. Introducció

This manual provides detailed instructions for the installation, operation, and maintenance of your JOYING Android 13 Double Din Car Radio. Please read this manual thoroughly before using the product to ensure proper function and safety.

2. Què hi ha a la caixa

Els següents elements s'inclouen al paquet del producte:

• 10.1" radio x1
• Double Din Cage x1
• Left & Right Bracket x1
• Reinforced Shims x1
• Plastic Trim Out x1
• Manual d'instal·lació x1
• Antena WiFi x1
• Antena GPS x1
• Antena 4G x2
• Micròfon extern x1
• USB cable x2
• AR Cable x1
• Screen Ribbon Cable x1
• ISO Cable x1
• Manual d'usuari x1

3. Configuració i instal·lació

Proper installation is crucial for optimal performance. It is recommended to consult a professional for installation if you are unsure about any steps.

3.1 Notes generals d'instal·lació

• An installation frame kit (inner size 178 x 102mm), special ISO harness, amplifier adapter, or CANbus decoder may be required depending on your car's specific situation. These are not included and may need to be purchased separately.
• This unit does not support factory car GPS antenna, backup rear camera, Bluetooth, USB, or microphone. Only JOYING accessories are supported.

3.2 Muntatge de la unitat principal

The fixing position of the left and right brackets can be extended or telescoped to achieve the best fixing position according to your car's center console, adapting to a wider range of vehicles. If your car is a Hyundai or Kia brand, please contact us to get a different bracket.

3.3 Connexions de cablejat

Connect all necessary wiring harnesses, including power, speakers, and antennas, according to the provided wiring diagram in the Installation Manual. Ensure all connections are secure to prevent malfunctions.

3.4 Instal·lació de la càmera de marxa enrere

For connecting a backup camera, ensure the camera's power and video signals are correctly routed to the head unit. The red wire from the camera should connect to the reverse light's positive (+12V) wire, and the black wire to the reverse light's ground (GND). The reverse trigger wire from the camera should connect to the reverse trigger wire of the car stereo. The backup camera output connects to the backup camera input of the car stereo.

3.5 accessoris opcionals

The following accessories are not included in the package but can be ordered additionally to enhance your driving experience:

• OBD2 Scanner (ASIN: B076CD78HT): Connects via Bluetooth to retrieve real-time data and trouble codes from your vehicle computer.
• AR Front Camera (ASIN: B0CBX4N6V8): Records the front road in the background automatically while driving.
• AR Rear Camera (ASIN: B0CBX39S8M): Switches to the reverse display automatically when reversing the car.

4. Instruccions de funcionament

4.1 Funcionament bàsic

• Arrencada ràpida: Once the car key is inserted, the unit starts immediately and enters the user interface in approximately 2 seconds (first boot takes 30-40 seconds).

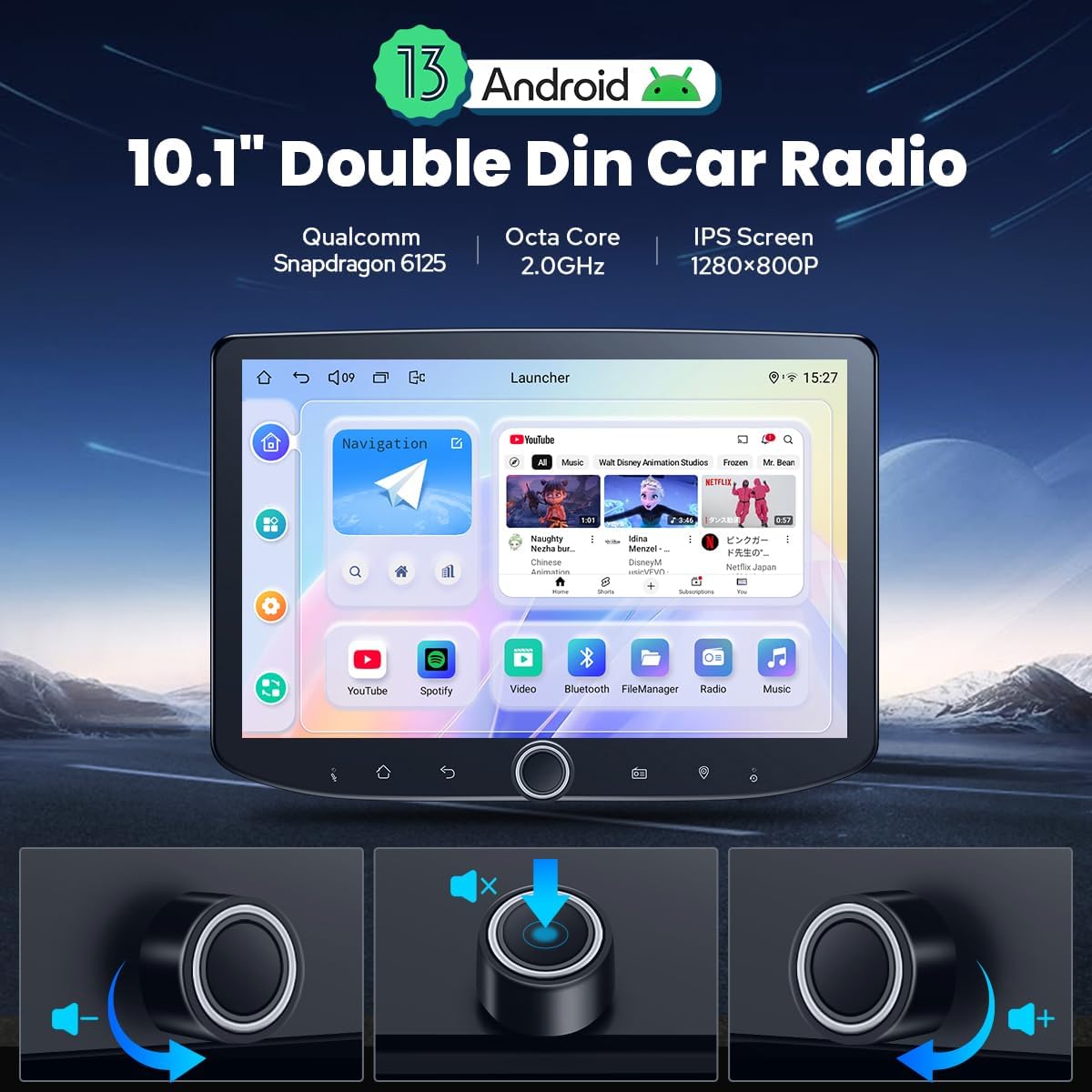

• Pom de volum: Use the physical volume knob for tactile control over audio levels.
• Pantalla tàctil: Navigate the interface using the responsive 10.1-inch 1280x800P touchscreen.

4.2 Connectivitat

• Bluetooth: Built-in Bluetooth for hands-free calls and audio streaming.
• Wi-Fi: Independent WiFi antenna ensures stable signal quality for fast and smooth internet access (802.11a/b/g/n/AC, 2.4GHz/5GHz).
• 4G Module: Insert a SIM card for internet access (supports FDD-LTE: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B38/B66/B71; TDD-LTE: B41). Note: Does not support phone calls or SMS.

4.3 Navigation & Media

• Navegació GPS: Precise GPS engines with included GPS antenna for accurate positioning and real-time navigation. Supports offline maps and synchronization with mobile phone map data via CarPlay/Android Auto.
• Ràdio AM/FM: Built-in AM/FM radio tuner.
• Sortida d'àudio: Optical Fiber and Coaxial Digital Output for high-quality sound with external ampaixecadors.

5. Característiques clau

5.1 Built-in CarPlay & Android Auto

Connect your mobile phone via USB cable or Bluetooth to share phone apps on the larger screen. This allows for easy access to navigation, phone calls, and music playback.

5.2 Control del volant

Supports steering wheel control for easy switching of songs, radio channels, and volume adjustment. Note: Cars with a CAN system may require an extra CANbus cable.

5.3 Split-screen Multitasking

Run two applications simultaneously on the screen. Tap the recent apps icon, find the app you want to run in split-screen, click the split-screen button, and then select the second app.

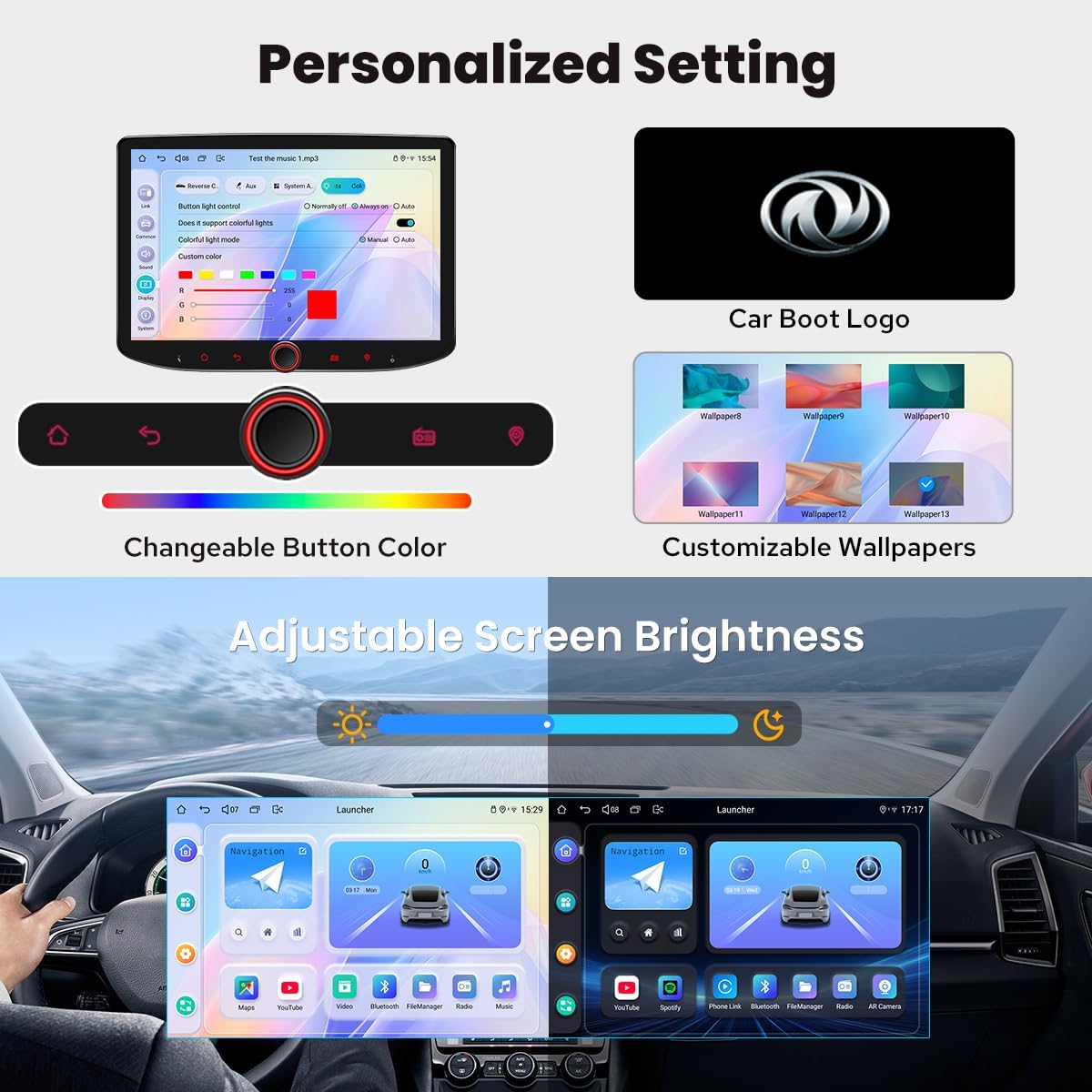

5.4 Personalized Settings

Customize your head unit with changeable button colors, customizable wallpapers, and adjustable screen brightness.

5.5 sortida HDMI

HDMI output supports projection screen display for passengers in the headrest and on-screen display for drivers on the main screen, providing 1080P clear picture without delays. Note: HDMI cable is not included.

6. Manteniment

6.1 Sistema de refrigeració

The unit features a dual heat sink design for superior heat dissipation and improved temperature control. You can set a warning value for CPU temperature or radio volume; if exceeded, the fan will automatically turn on to prevent overheating.

6.2 Atenció general

• Mantingueu la pantalla neta amb un drap suau i sec. Eviteu productes de neteja abrasius.
• Assegureu-vos una ventilació adequada al voltant de la unitat per evitar el sobreescalfament.

7. Solució De Problemes

Si teniu problemes, proveu els passos bàsics següents per resoldre problemes:

• Sense energia: Check all power connections and fuses. Ensure the ignition is on.
• Sense so: Verify speaker connections and volume levels. Check external amplifier connections if applicable.
• Problemes amb el senyal GPS: Assegureu-vos que l'antena GPS estigui instal·lada correctament i que tingui una vista clara view del cel.
• CarPlay/Android Auto no es connecta: Check USB cable connection or Bluetooth pairing. Ensure your phone's software is up to date.
• La pantalla no respon: Try restarting the unit. If the issue persists, consult the support section.

8. Especificacions

9. Garantia i assistència

9.1 Informació de la garantia

Your JOYING Android 13 Double Din Car Radio comes with a 2 anys de garantia des de la data de compra. Si us plau, conserveu el comprovant de compra per a reclamacions de garantia.

9.2 Atenció al client

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact JOYING customer support through their official weblloc web o el venedor on es va comprar el producte.
