1. Introducció
Thank you for choosing the VANNECT 918T Foldable Exercise Bike. This manual provides essential information for the safe and effective use of your new fitness equipment. Please read all instructions carefully before assembly and operation, and retain this manual for future reference.
Pautes de seguretat
- Consulteu un metge abans de començar qualsevol programa d'exercici.
- Assegureu-vos que totes les peces estiguin ben muntades abans de cada ús.
- Mantingueu els nens i les mascotes lluny de l'equip durant el funcionament.
- Col·loqueu la bicicleta estàtica sobre una superfície plana i estable.
- Porteu calçat i roba esportiva adequats.
- Deixa de fer exercici immediatament si et sents dèbil, marejat o tens dolor.
- The maximum user weight capacity is 150 kg (330 lbs).
2. Producte acabatview
The VANNECT 918T is a compact and efficient exercise bike designed for home use. It features a magnetic resistance system, an LCD monitor, and a foldable design for easy storage.
Figura 2.1: Mésview of the VANNECT 918T Foldable Exercise Bike.
Característiques principals:
- 16 Levels of Magnetic Resistance: Provides a wide range of intensity for various fitness levels.
- Multi-function LCD Monitor: Displays time, speed, distance, calories, and pulse.
- Integrated Mobile Device Holder: Conveniently holds your phone or tablet.
- Adjustable Padded Seat: Ergonomic design with 8 height adjustment options for comfort.
- Foldable Design with Transport Wheels: Fàcil d'emmagatzemar i moure.
- Solid Alloy Steel Construction: Supports users up to 150 kg.
- Funcionament silenciós: Magnetic drive system ensures a smooth and silent workout.
3. Instruccions de muntatge
The VANNECT 918T exercise bike arrives approximately 70% pre-assembled. The following steps detail the remaining assembly process. Ensure all components are present before beginning.
Llista de comprovació de components:
- Main Frame (pre-assembled)
- Tirador
- Monitor LCD
- Pedals (esquerra i dreta)
- Seient i respatller
- Estabilitzadors davanters i posteriors
- Assembly Hardware (bolts, washers, nuts, tools)
Muntatge pas a pas:
- Connecteu els estabilitzadors: Secure the front and rear stabilizers to the main frame using the provided bolts and washers. Ensure they are tightened firmly.
- Instal·lar pedals: Identify the Left (L) and Right (R) pedals. The left pedal screws counter-clockwise, and the right pedal screws clockwise. Thread them into the crank arms and tighten securely with a wrench.
- Mount Seat and Backrest: Attach the seat to the seat post, then slide the seat post into the main frame. Secure the backrest to the seat support. Adjust the seat height to your preference and lock it in place.
- Fixeu els manillars: Connect the handlebar post to the main frame. Ensure the pulse sensor wires are not pinched.
- Instal·lació del monitor LCD: Connect the sensor wires from the main frame and pulse sensors to the back of the LCD monitor. Mount the monitor onto the handlebar post.
- Comprovació final: Verify all bolts and nuts are tightened. Ensure the bike is stable and does not wobble.
For visual guidance, an assembly video is available. Please refer to the support section for details.
4. Instruccions de funcionament
Adjusting Resistance Levels:
The VANNECT 918T features 16 levels of magnetic resistance. To adjust the resistance, turn the tension control knob located below the handlebars. Turn clockwise for higher resistance (more challenging workout) and counter-clockwise for lower resistance (easier workout).

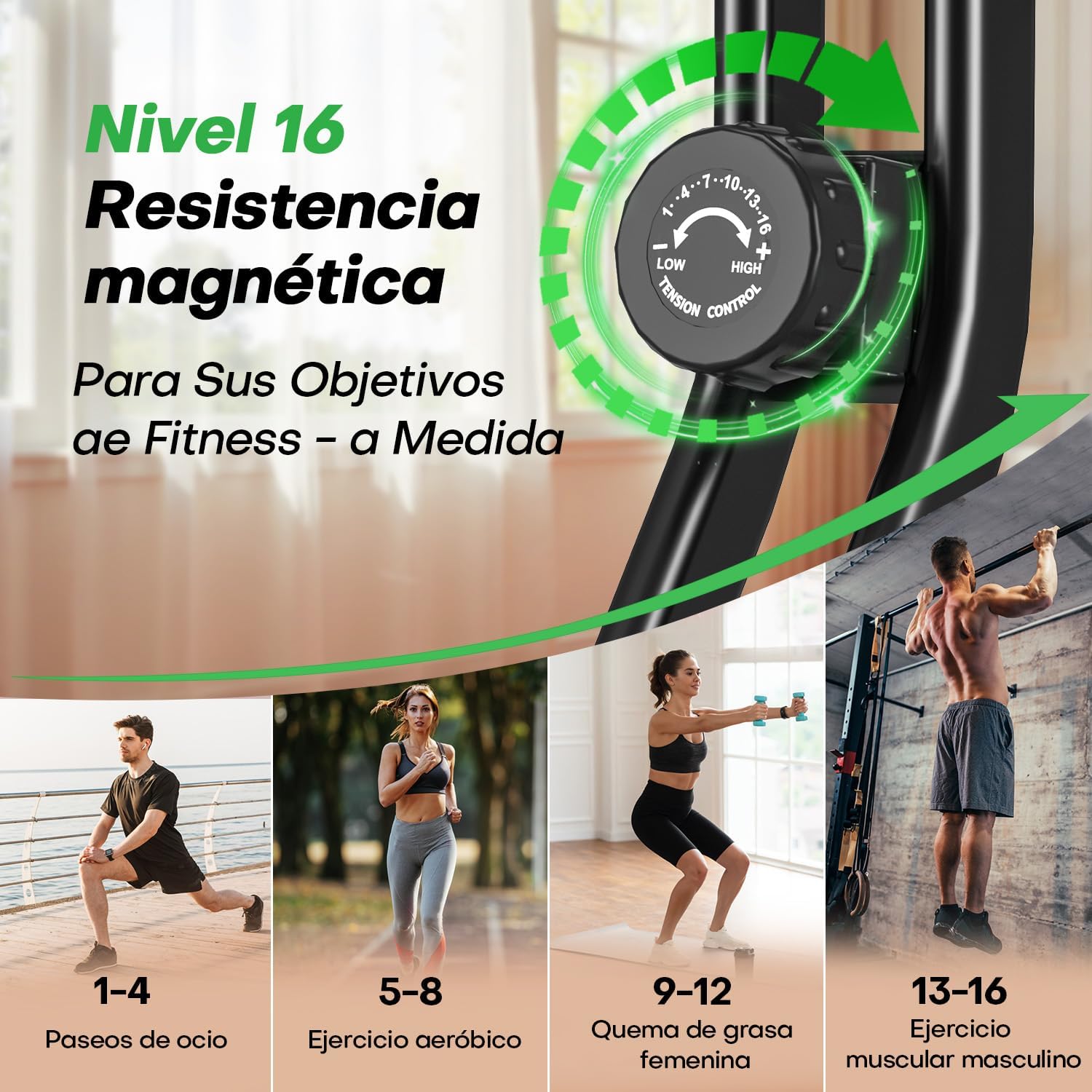

Figure 4.1: Resistance adjustment knob and suggested intensity levels.
Using the LCD Monitor:
La pantalla LCD mostra diverses mètriques d'entrenament per ajudar-vos a fer un seguiment del vostre progrés.
Figure 4.2: LCD monitor showing time, calories, distance, pulse, and speed.
- ESCANEAR: Automatically cycles through all metrics.
- HORA: Mostra la durada de l'entrenament actual.
- CALORIES: Estima les calories cremades durant l'entrenament.
- DISTÀNCIA: Mostra la distància recorreguda.
- IMPULS: Mostra la freqüència cardíaca quan subjectes els sensors de pols al manillar.
- VELOCITAT: Mostra la teva velocitat actual amb bicicleta.
- TOTAL DISTANCE: Accumulates total distance over time.
To reset the monitor, press and hold the button (if available) or remove and reinsert the batteries.
Ajust del seient:
The seat height can be adjusted to accommodate different user heights for optimal comfort and exercise posture. There are 8 height adjustment options.
- Loosen the adjustment knob located on the seat post.
- Slide the seat post up or down to the desired height.
- Ensure your knee has a slight bend at the bottom of the pedal stroke.
- Tighten the adjustment knob firmly to secure the seat in place.
Figure 4.3: Adjustable ergonomic seat for user comfort.
5. Manteniment
Un manteniment regular garanteix la longevitat i el rendiment òptim de la teva bicicleta estàtica.
- Neteja: Netegeu la bicicleta amb un anunciamp drap després de cada ús per eliminar la suor i la pols. Eviteu productes de neteja abrasius.
- Inspecció: Comproveu periòdicament tots els cargols, femelles i peces mòbils per assegurar-vos que estiguin ben ajustats i que no estiguin desgastats. Estrenyeu qualsevol element de fixació solt.
- Lubricació: The magnetic resistance system is generally maintenance-free. If any squeaking occurs, apply a small amount of silicone-based lubricant to pivot points, avoiding the flywheel or resistance mechanism.
- Emmagatzematge: When not in use, fold the bike and store it in a dry, cool place away from direct sunlight and moisture. Use the transport wheels to move it easily.

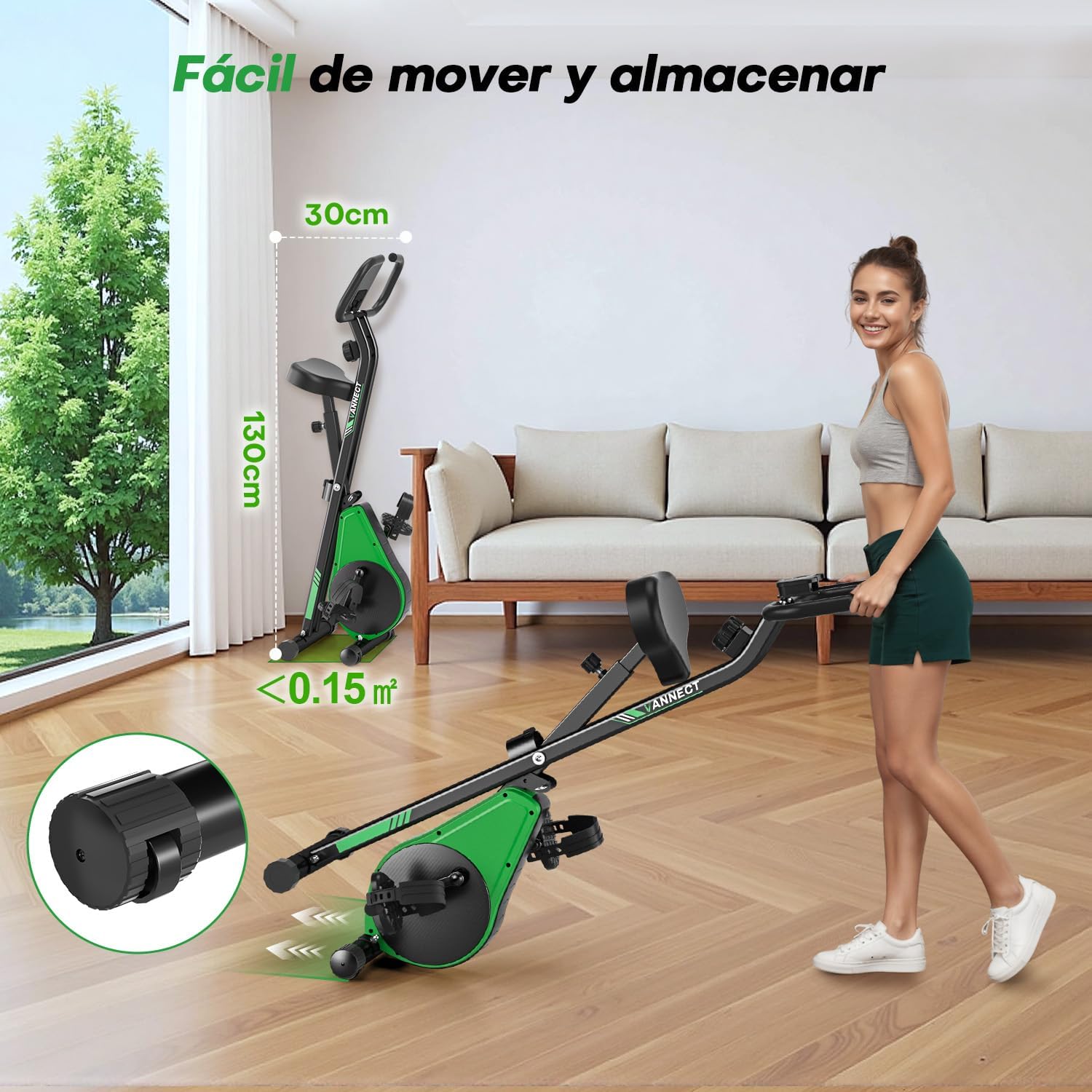

Figure 5.1: Folding and moving the exercise bike for convenient storage.
6. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| No es mostra al monitor LCD | Dead batteries; Loose connection | Replace batteries; Check all cable connections to the monitor. |
| Lectura de pols inexacta | Hands not firmly on sensors; Loose sensor connection | Ensure firm contact with both pulse sensors; Check sensor cable connections. |
| Soroll de grinyol o fregament | Loose parts; Lack of lubrication on pivot points | Tighten all visible bolts and nuts; Apply silicone lubricant to pivot points (not resistance mechanism). |
| La resistència no canvia | Cable de resistència desconnectat o danyat | Inspeccioneu la connexió del cable de resistència al pom i al mecanisme del volant d'inèrcia. Poseu-vos en contacte amb el servei d'atenció al client si està malmès. |
| Bike wobbles during use | Uneven surface; Loose stabilizers | Ensure the bike is on a flat surface; Tighten stabilizer bolts. |
7. Especificacions
- Model: 918T
- Marca: VANNECT
- Dimensions (desplegada): 71 cm (L) x 43 cm (A) x 115 cm (Al)
- Pes del producte: 20 kg
- Pes màxim de l'usuari: 150 kg (330 lliures)
- Sistema de resistència: 16-Level Magnetic Resistance
- Volant: 3kg Aluminum
- Material: Alumini, acer d'aliatge
- Font d'alimentació: Accionat per pedal (no elèctric)
- Visualització: Multi-function LCD (Time, Speed, Distance, Calories, Pulse)
- Ajust del seient: 8 nivells d'alçada
- Ús recomanat: Interior
Figure 7.1: Product dimensions and suitability for various family members.
8. Garantia i Suport
VANNECT is committed to providing high-quality products and excellent customer service.
- Garantia: Oferim a 5 any de garantia on free replacement parts for your entire VANNECT 918T Foldable Exercise Bike.
- Atenció al client: For any questions, assembly assistance, troubleshooting, or warranty claims, please contact our dedicated customer support team. Expert video support is available to guide you through any issues.
- Informació de contacte: Please refer to the contact details provided on your purchase receipt or the official VANNECT weblloc.
