Introducció
Thank you for choosing the Vannect 918T 3-in-1 Folding Exercise Bike. This manual provides essential information for the safe and efficient use of your new fitness equipment. Please read all instructions carefully before assembly and operation. Keep this manual for future reference.
Informació de seguretat
- Consulteu el vostre metge abans de començar qualsevol programa d'exercici, sobretot si teniu problemes de salut preexistents.
- Assegureu-vos que totes les peces estiguin ben subjectes abans de cada ús.
- The maximum user weight capacity for this exercise bike is 150 kg (330 lliures)No supereu aquest límit.
- Mantingueu els nens i les mascotes lluny de l'equip durant l'ús.
- Col·loqueu la bicicleta estàtica sobre una superfície plana i estable.
- Porteu roba i calçat adequats per fer exercici.
- Deixa de fer exercici immediatament si sents dolor, marejos o dificultat per respirar.
Contingut del paquet
Your Vannect 918T exercise bike is approximately 70% pre-assembled. The package should contain the following main components:
- Main Frame (partially assembled)
- Manillar
- LCD Display Console
- Pedals (esquerra i dreta)
- Seient i Tija de seient
- Stabilizer Bars (front and rear)
- Maquinari de muntatge (cargols, volanderes, femelles)
- Eines per al muntatge
- Manual d'instruccions
Muntatge i muntatge
Assembly typically takes less than one hour. Follow these steps carefully:
- Desempaquetar components: Traieu amb cura totes les peces de l'embalatge i col·loqueu-les sobre una superfície neta i plana. Consulteu la llista de contingut del paquet.
- Fixeu les barres estabilitzadores: Secure the front and rear stabilizer bars to the main frame using the provided bolts and nuts. Ensure they are tightened for stability.
- Instal·lar pedals: Identify the left (L) and right (R) pedals. The left pedal screws counter-clockwise, and the right pedal screws clockwise. Ensure they are fully tightened.
- Muntar la tija del seient i el seient: Insert the seat post into the main frame and adjust to your desired height. Secure the seat onto the seat post.
- Fixar el manillar: Connect the handlebar to the main frame. Ensure any pre-attached wires for the heart rate sensor are properly connected.
- Mount LCD Display: Attach the LCD display console to the handlebar post. Connect the sensor wires from the main frame to the back of the display.
- Comprovació final: Verify all bolts and nuts are securely tightened before first use.
Imatge: Principal view of the Vannect 918T Folding Exercise Bike, illustrating its overall structure.
Image: The Vannect 918T Exercise Bike highlighting its stable design and 150KG maximum weight capacity.
Instruccions de funcionament
1. Ajust dels nivells de resistència
The Vannect 918T features 16 levels of magnetic resistance. To adjust the resistance, turn the tension control knob located on the main frame. Turn clockwise for higher resistance (more challenging workout) and counter-clockwise for lower resistance (easier workout).

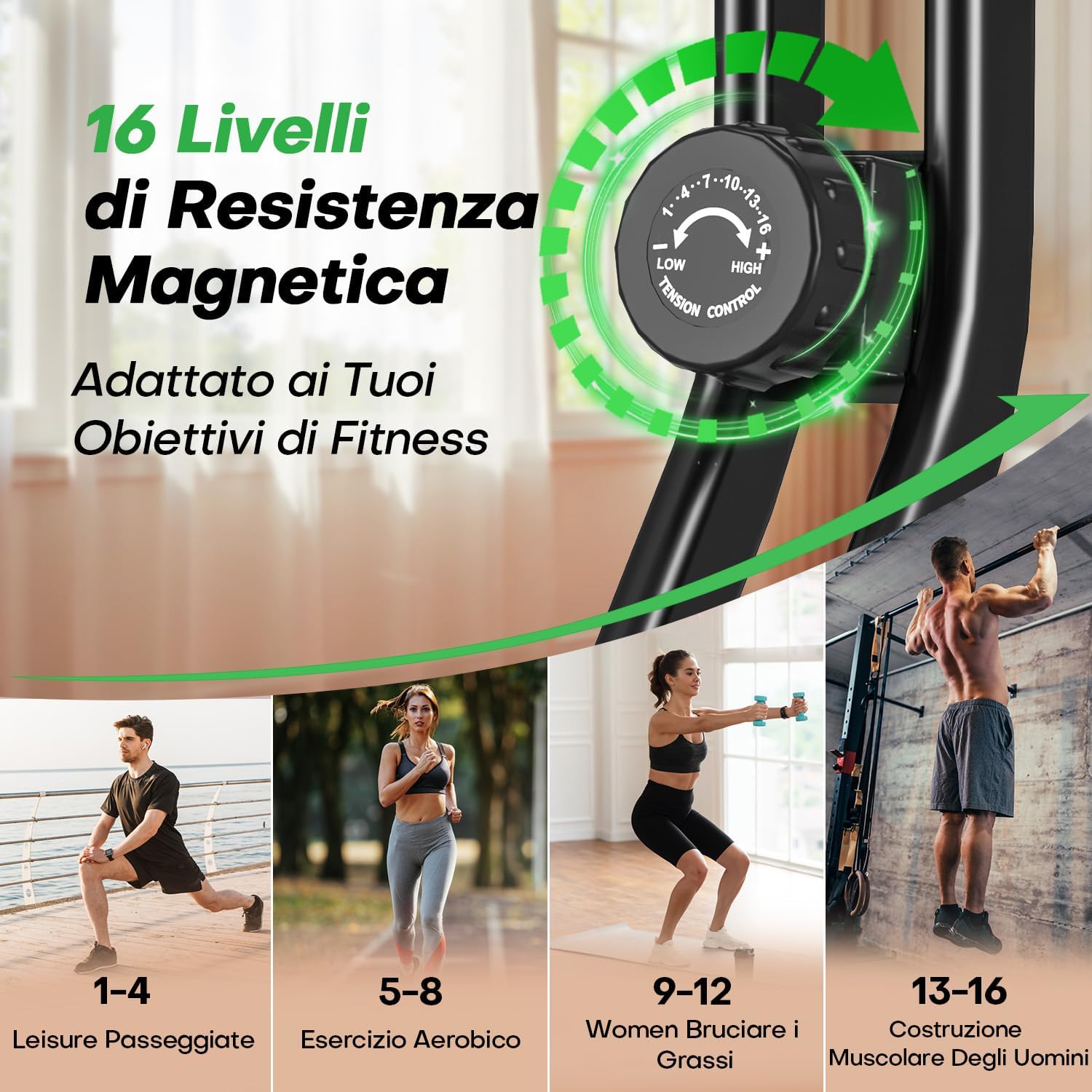

Image: Close-up of the resistance control knob, showing the 16 levels of magnetic resistance.
2. Ús del monitor LCD
The integrated LCD monitor displays your workout data in real-time. It is powered by pedaling (non-electric). The monitor typically cycles through the following metrics:
- ESCANEAR: Cicla automàticament per totes les funcions.
- HORA: Mostra la durada del teu entrenament.
- VELOCITAT: Mostra la teva velocitat actual amb bicicleta.
- DISTÀNCIA: Records the distance covered during your session.
- CALORIES: Estima les calories cremades.
- PULSE (Heart Rate): Displays your heart rate when holding the sensors.
To reset the display, press and hold the button (if available) or remove and reinsert the batteries (if applicable, refer to display specific instructions).
Image: The LCD monitor displaying various fitness data such as time, speed, distance, calories, and pulse.
3. Sensor de freqüència cardíaca
To measure your heart rate, firmly grip the pulse sensors located on the handlebars with both hands. Your heart rate will be displayed on the LCD monitor after a few seconds. Ensure your hands are clean and dry for accurate readings.
4. Ajust de l'alçada del seient
The seat height can be adjusted to accommodate users of different heights (recommended user height 4'4" - 6'2" / 134cm - 190cm). To adjust, loosen the adjustment knob on the seat post, slide the seat to the desired height, and then securely tighten the knob. Ensure the seat is stable before use.
Image: Illustration of the adjustable ergonomic seat, showing height adjustment options for optimal comfort.
Image: The exercise bike with family members, indicating its suitability for various user heights and showing key dimensions.
5. Plegable i emmagatzematge
The Vannect 918T is designed for easy folding and storage. To fold the bike, locate the folding mechanism (usually a pin or knob near the base of the main frame), release it, and carefully fold the bike. The integrated transport wheels on the front stabilizer allow for easy relocation.
Image: The exercise bike in its folded position, demonstrating its compact design for easy storage and transport.
Manteniment
- Neteja: Netegeu la bicicleta amb un anunciamp drap després de cada ús per eliminar la suor i la pols. Eviteu productes de neteja abrasius.
- Inspecció: Comproveu regularment tots els cargols, femelles i peces mòbils per assegurar-vos que estiguin ben ajustats i que estiguin desgastats. Estrenyeu qualsevol element de fixació solt.
- Lubricació: The magnetic resistance system is generally maintenance-free. No lubrication is typically required for the internal mechanism.
- Emmagatzematge: Guarda la bicicleta en un lloc sec i fresc, allunyat de la llum solar directa i de temperatures extremes.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| La pantalla LCD no funciona | Loose sensor connection; Dead batteries (if applicable); No pedaling activity. | Check all cable connections to the display. Replace batteries if necessary. Begin pedaling to activate the display. |
| Soroll inusual durant el funcionament | Loose parts; Friction from moving components. | Inspect and tighten all bolts and nuts. Ensure no parts are rubbing against each other. The bike is designed for quiet operation. |
| La resistència no canvia | Resistance cable disconnected or damaged; Internal mechanism issue. | Check the connection of the resistance cable to the tension knob and the internal mechanism. If the issue persists, contact customer support. |
| El seient tremola | Seat adjustment knob not tightened. | Ensure the seat adjustment knob is fully tightened after setting the height. |
Especificacions
- Nom del model: Vannect Cyclette 918T
- Mecanisme de resistència: Magnètic
- Nivells de resistència: 16
- Maximum Recommended Weight: 150 kg (330 lliures)
- Material: Alumini
- Font d'alimentació: Accionat per pedal (no elèctric)
- Característiques especials: Adjustable footrests, Foldable design, Heart rate sensor on handles
- Dimensions desplegades (aprox.): 112 cm (Height) x 69 cm (Length) x 38.5 cm (Width)
- Dimensions plegades (aprox.): 130 cm (alçada) x 30 cm (amplada)
- Pes de l'article: 16 kg (35.3 lliures)
- Ús recomanat: Interior
Garantia i Suport
VANNECT offers a 5 any de substitució gratuïta for all parts of your exercise bike. For any questions, technical assistance, or warranty claims, please contact our customer support. We provide specialized video support from experts to assist you with any issues.
Please refer to your purchase documentation or the official Vannect weblloc web per obtenir dades de contacte específiques.
