Generico Black Microswitch Instruction Manual

1. Introducció

This manual provides essential information for the installation, operation, and maintenance of the Generico Black Microswitch, a replacement component designed for specific Delonghi and Kenwood fan heater models. Please read these instructions carefully before attempting any installation or repair to ensure safe and correct usage.

2. Informació de seguretat

• Desconnecteu l'alimentació: Always ensure the fan heater is completely disconnected from the main power supply before attempting any inspection, installation, or repair. Failure to do so can result in electric shock or serious injury.
• Instal·lació professional recomanada: Installation of electrical components should ideally be performed by a qualified technician. If you are unsure about any step, consult a professional.
• Manejar amb cura: Microswitches are delicate components. Avoid dropping or applying excessive force during handling and installation.
• Correct Replacement: Use only the specified replacement part (Model: 5114003900) to ensure compatibility and proper function.

3. Producte acabatview

The Generico Black Microswitch (Model: 5114003900) is a critical electrical component used in various fan heaters. It typically functions as a safety cut-off or a control mechanism, responding to physical pressure or position changes within the appliance. This part is supplied as a factory replacement component.

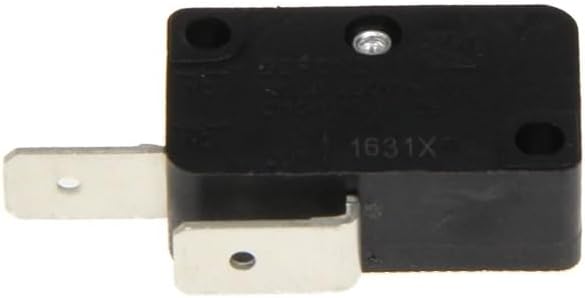

Figura 1: Primer pla view of the Generico Black Microswitch. This image shows the black microswitch with its metal terminals, ready for installation. The switch mechanism is visible on the side.

4. Compatibilitat

This microswitch is compatible with the following Delonghi and Kenwood fan heater models:

• Delonghi Models: DFH333, HBE3551, HBE35511, HMH433, HMH550, HVN2530, HVN2532, HVN2550, DFH 333MT, HBE 3551 TCB, HBE35511TCB EX:2, HBE3551TCB, HBE3551TCB EX:2, HMH 550, HMH 550R, HMH433T, HMH550R, HVN 2530B, HVN 2532B, HVN 2550TB, HVN2530B, HVN2532B, HVN2550TB
• Kenwood Models: FH443, FH 443

The known part number for this microswitch is 5114003900.

5. Instal·lació (Configuració)

Replacing a microswitch requires careful attention to detail. Follow these general steps, always prioritizing safety:

1. Desconnexió d'alimentació: Ensure the fan heater is unplugged from the electrical outlet.
2. Accedir al component: Carefully disassemble the fan heater casing to gain access to the internal components, specifically the area where the microswitch is located. Refer to your specific fan heater's service manual or an exploded diagram for guidance on component location and disassembly.
3. Locate the Microswitch: Identify the faulty microswitch. It is often connected via two or three wires and secured with screws or clips.
4. Desconnecta i elimina: Carefully disconnect the wires from the old microswitch, noting their original positions if not color-coded. Remove any screws or clips holding the microswitch in place.
5. Install New Microswitch: Position the new Generico Black Microswitch (Model: 5114003900) in the exact location of the old one. Secure it with the original screws or clips.
6. Reconnectar el cablejat: Reconnect the wires to the new microswitch, ensuring they are securely attached to the correct terminals. Double-check all connections.
7. Torneu a muntar: Carefully reassemble the fan heater casing, assegurant-se que tots els cargols estiguin ben apretats i que no hi hagi cables pinçats.
8. Prova: Plug the fan heater back into the power supply and test its functionality. Observe for proper operation and any unusual behavior.

Figura 2: Exploded diagram of a fan heater, illustrating various internal components. The microswitch, labeled as item 24, is highlighted within the diagram, indicating its typical placement within the appliance.

If you encounter any difficulties or are uncertain about the installation process, it is strongly recommended to seek assistance from a qualified appliance repair technician.

6. Funcionament

The microswitch itself does not have user-operable controls. Its function is internal to the fan heater's operation. It typically acts as a safety interlock (e.g., tip-over switch) or a component within the control circuit, ensuring the heater operates only under specific conditions or in response to certain user inputs (e.g., a button press). Once correctly installed, the microswitch will perform its intended function automatically as part of the fan heater's design.

7. Manteniment

The Generico Black Microswitch is a sealed component and does not require routine maintenance. Its lifespan is generally determined by the number of actuation cycles and environmental conditions. If the microswitch fails, it should be replaced rather than repaired.

• Inspecció: During any internal servicing of the fan heater, visually inspect the microswitch for signs of physical damage, corrosion on terminals, or loose connections.
• Neteja: If dust or debris accumulates around the microswitch, gently clean it using a soft brush or compressed air while the power is disconnected.

8. Solució De Problemes

If your fan heater is exhibiting issues that you suspect are related to the microswitch, consider the following:

• L'escalfador no s'encén: If the heater does not power on despite being plugged in and other components appearing functional, a faulty microswitch (especially a safety interlock switch) could be the cause.
• Funcionament intermitent: If the heater turns on and off unexpectedly, or only works when tilted or moved, the microswitch might be failing or have a loose connection.
• No Response to Controls: If a microswitch is part of a control button mechanism, a lack of response when pressing the button could indicate a faulty switch.

Resolució: If a microswitch is suspected to be faulty, it should be tested for continuity (if accessible and you have the appropriate tools and knowledge) or replaced with a new, compatible part (Model: 5114003900). Always ensure power is disconnected before any inspection or replacement.

9. Especificacions

10. Garantia i Suport

As a replacement component, specific warranty terms may vary. Please refer to the seller or the point of purchase for information regarding warranty coverage and return policies for this Generico Black Microswitch. For technical support or further assistance with installation, it is recommended to consult a qualified appliance repair professional.
