EMKE Round Bathroom Mirror with LED Lighting (Model OLM04CKD-NLADR) - User Manual

1. Introducció

Thank you for choosing the EMKE Round Bathroom Mirror with LED Lighting. This manual provides detailed instructions to ensure safe installation, proper operation, and effective maintenance of your new mirror. Please read this manual thoroughly before installation and use, and retain it for future reference.

Image 1.1: EMKE Round Bathroom Mirror with LED Lighting, featuring a black frame and adjustable leather strap.

2. Instruccions de seguretat importants

• Desconnecteu sempre l'alimentació abans de la instal·lació, el manteniment o la neteja.
• Si no esteu segurs, la instal·lació l'ha de dur a terme un electricista qualificat.
• Ensure the mounting surface is strong enough to support the mirror's weight.
• No exposeu el mirall a una humitat excessiva ni a ruixats d'aigua directes.
• Keep children away from the mirror during installation.
• No intenteu reparar o modificar el mirall vosaltres mateixos. Poseu-vos en contacte amb el servei d'atenció al client per obtenir ajuda.
• Eliminar els materials d'embalatge de manera responsable.

3. Contingut del paquet

Please check that all components are present and undamaged before proceeding with installation:

• EMKE Round Bathroom Mirror (1 unit)
• Adjustable Leather Hanging Strap (1 unit)
• Maquinari de muntatge (cargols, ancoratges de paret)
• Manual d'usuari (aquest document)

4. Especificacions del producte

Image 4.1: Diagram illustrating the mirror's dimensions (800mm diameter, 35mm thickness) and the location of hanging points.

5. Guia d'instal·lació

The EMKE Round Bathroom Mirror is designed for easy wall mounting. Follow these steps carefully:

1. Mesura: Determine the desired height and position for your mirror. Mark the center point on the wall.
2. Marca: Use a level to ensure the mirror will hang straight. Mark the positions for the mounting holes based on the mirror's hanging points.
3. Perforar: Drill holes at the marked positions. Ensure the drill bit size matches the wall anchors provided.
4. Insereix ancoratges: Gently tap the wall anchors into the drilled holes until flush with the wall surface.
5. Cargols de seguretat: Insert the mounting screws into the anchors, leaving a small gap for the mirror's hanging hooks.
6. Cablejat: Connect the mirror's electrical wiring to your household electrical supply. This step should be performed by a qualified electrician if you are not experienced with electrical work. Ensure power is OFF before connecting.
7. Muntatge: Carefully lift the mirror and align its hanging hooks with the screws on the wall. Lower the mirror to secure it in place.
8. Acabat: Ensure the mirror is stable and level. You can choose to attach the adjustable leather strap for aesthetic purposes or hang the mirror directly using the integrated hooks. The strap length is adjustable in 4 positions.

Image 5.1: Visual guide for the 8-step installation process, including measuring, marking, drilling, inserting anchors, securing screws, wiring, mounting, and finishing.

Image 5.2: Detail of the removable and adjustable leather strap, which can be set to four different lengths.

6. Instruccions de funcionament

The EMKE mirror features intuitive touch controls for its various functions.

6.1 Touch Switch Operation

• The touch switch illuminates softly in blue when the mirror's LED lighting is off, making it easy to locate in the dark.
• When the LED lighting is on, the touch switch illuminates in milky white.

Image 6.1: Illustration of the touch switch indicator light: blue when off, white when on.

6.2 Dimmable Lighting and Color Temperature Adjustment

• Encès/apagat: Tap the power icon on the touch panel to turn the LED lighting on or off.
• Adjust Brightness (Dimming Function): With the light on, press and hold the brightness icon (usually represented by a sun or plus/minus symbol) on the touch panel. The brightness will smoothly adjust from 10% to 100%. Release when the desired brightness is reached.
• Change Light Color (Color Temperature): With the light on, short press the 'M' (Mode) icon on the touch panel to cycle through the three available light colors: Cool White (6500K), Neutral White (4000K), and Warm White (3000K).

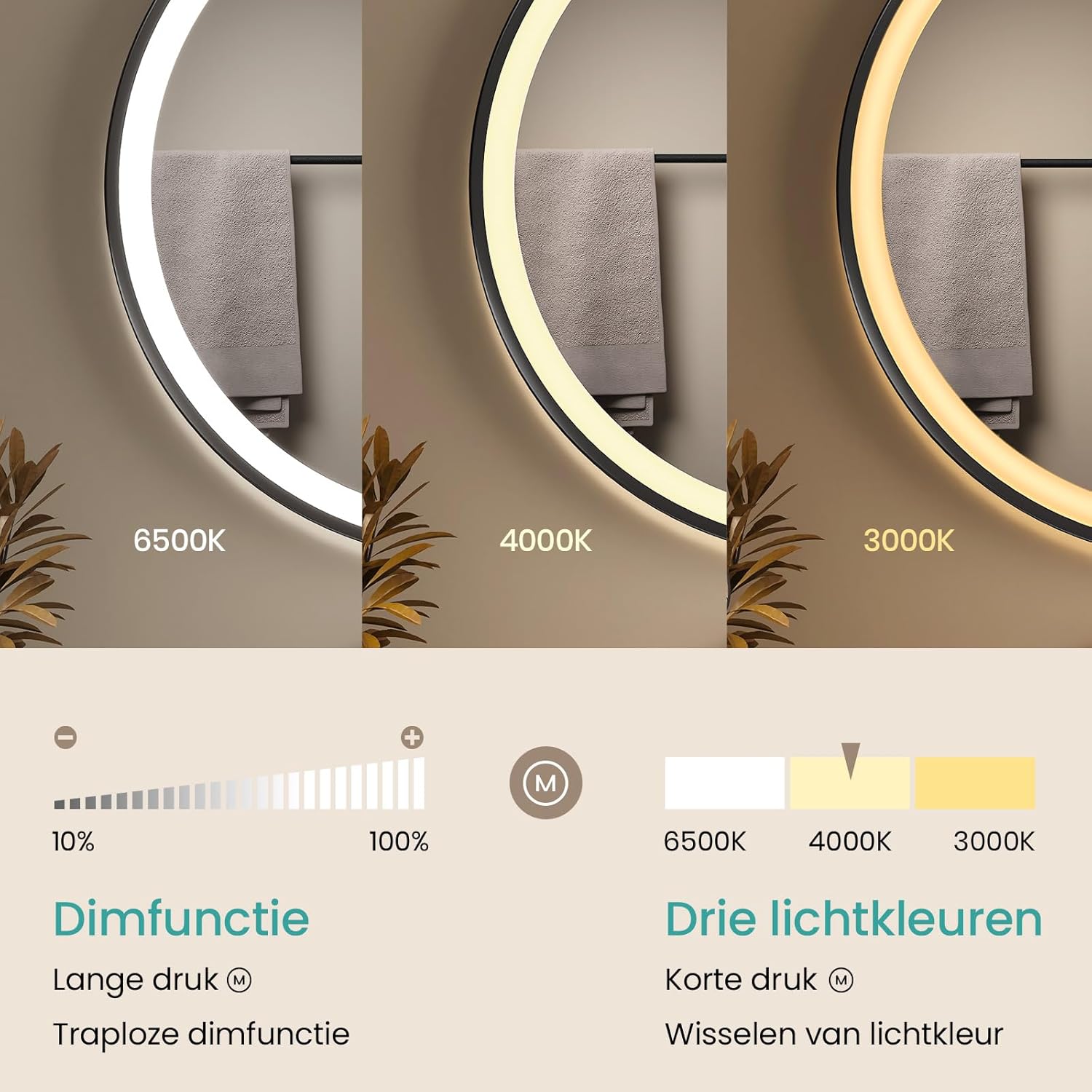

Image 6.2: Visual representation of the dimming range (10%-100%) and the three selectable light color temperatures (6500K, 4000K, 3000K).

6.3 Funció de memòria

The mirror is equipped with a memory function that retains the last used light setting (brightness and color temperature). When you turn the mirror off and then on again, it will automatically revert to your previous setting, eliminating the need to readjust it every time.

Image 6.3: Steps illustrating the memory function: 1. Set light (e.g., 4000K, 100%). 2. Turn off. 3. Restart, and the mirror automatically returns to 4000K, 100%.

6.4 Anti-fog Function

The mirror includes a separate anti-fog function to keep the mirror surface clear in humid environments. This function can be activated or deactivated as needed, saving energy.

• Activar/Desactivar: Tap the anti-fog icon (usually represented by steam or a fan symbol) on the touch panel to turn the anti-fog function on or off.

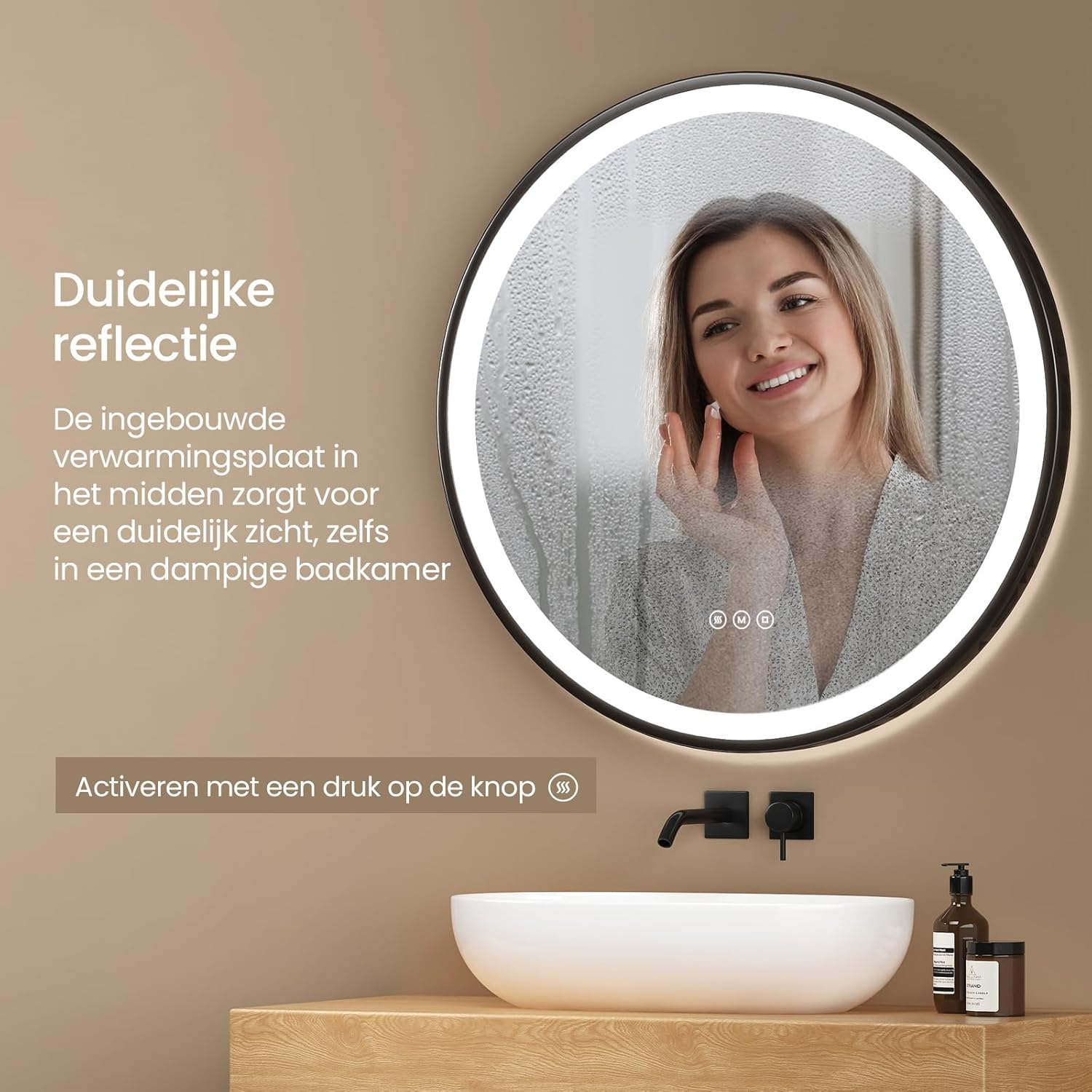

Image 6.4: The anti-fog function ensures a clear reflection even in a steamy bathroom environment.

6.5 Control d'interruptor de paret

In addition to the touch controls, the mirror's lighting can also be controlled via a wall switch. For this functionality to work, the mirror's touch button must remain in the "on" position. This allows for convenient control of the mirror's lighting from your existing wall switch.

Image 6.5: The mirror offers flexible control via its integrated touch panel or an external wall switch (wall switch not included).

6.6 Apagada automàtica

For energy saving, the mirror's LED lighting will automatically turn off after three hours of continuous operation.

Image 6.6: The mirror's LED lighting automatically turns off after three hours of inactivity to conserve energy.

7. Cura i Manteniment

To ensure the longevity and optimal performance of your EMKE bathroom mirror, follow these maintenance guidelines:

• Neteja de la superfície del mirall: Use a soft, lint-free cloth and a non-abrasive glass cleaner. Spray the cleaner onto the cloth, not directly onto the mirror, to prevent liquid from seeping into the electrical components.
• Neteja del marc: Wipe the black metal frame and leather strap with a soft, damp drap. Eviteu productes químics agressius o netejadors abrasius que puguin danyar l'acabat.
• Components elèctrics: Never spray water or cleaning solutions directly onto the electrical parts or touch panel. Ensure the mirror is completely dry before reconnecting power.
• Inspecció periòdica: Periodically check the mounting hardware to ensure it remains secure.

8. Solució De Problemes

If you encounter any issues with your EMKE mirror, please refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact EMKE customer support.

9. Garantia i atenció al client

EMKE products are manufactured to high-quality standards and come with a standard manufacturer's warranty. For specific warranty details, please refer to the documentation provided with your purchase or visit the official EMKE weblloc.

If you require technical assistance, have questions about your product, or need to report a defect, please contact EMKE customer support:

• Weblloc: www.emke.com (Si us plau, comproveu la regió correcta) weblloc)
• Correu electrònic: Refer to your purchase documentation for specific contact email.
• Telèfon: Refer to your purchase documentation for specific contact number.

Please have your model number (OLM04CKD-NLADR) and purchase date ready when contacting support.
