Manual d'usuari del patinet elèctric TODIMART T3

1. Introducció

This manual provides essential instructions for the safe operation, assembly, and maintenance of your TODIMART T3 Electric Scooter. Please read it thoroughly before your first ride to ensure proper usage and to maximize the lifespan of your scooter. The TODIMART T3 features a powerful 350W motor, a range of 30-35 km, a top speed of 25 km/h, app control, 8.5-inch solid tires, and a convenient foldable design.

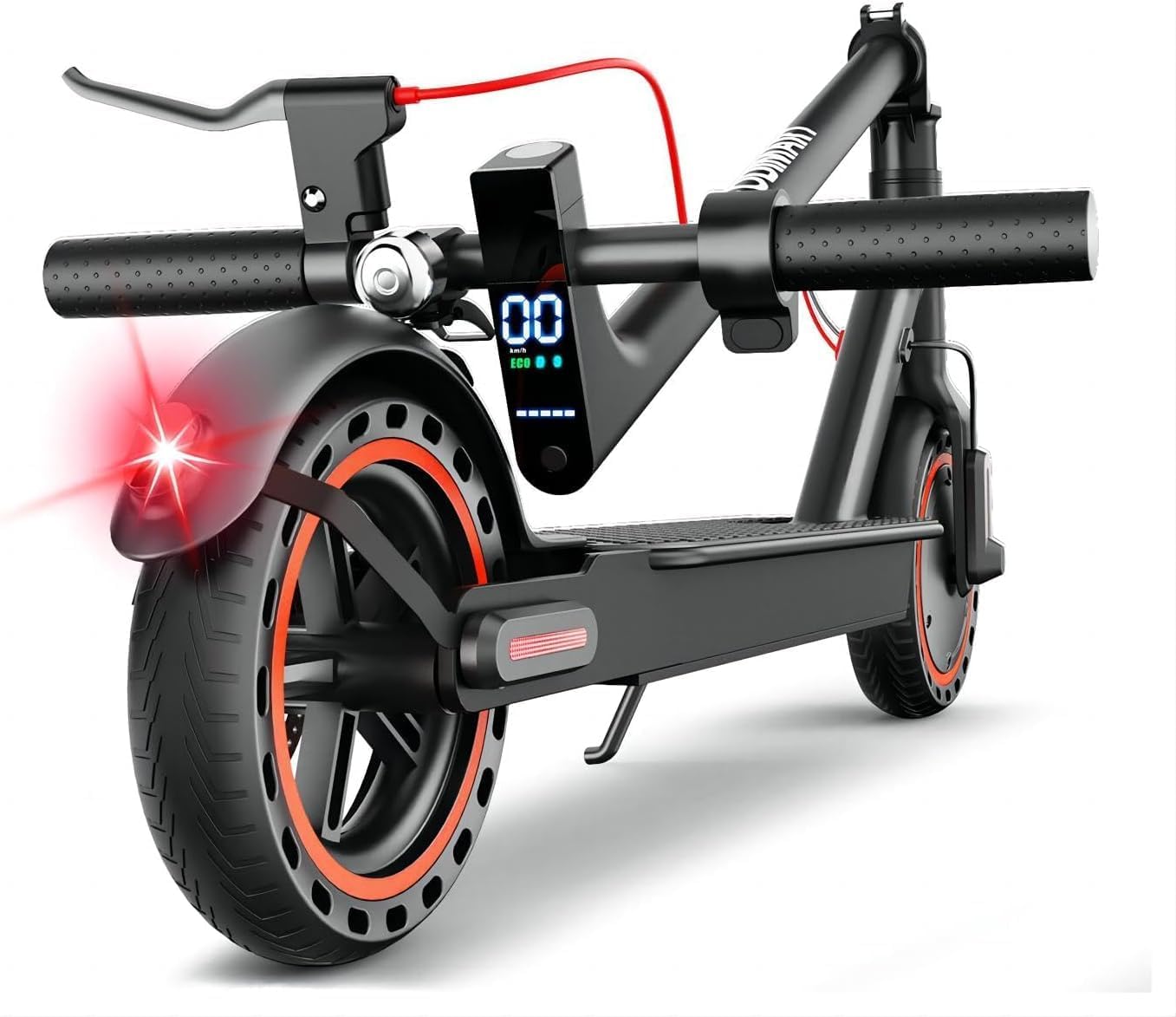

Image 1.1: The TODIMART T3 Electric Scooter, showcasing its sleek design and integrated lights.

2. Informació de seguretat

La vostra seguretat és primordial. Seguiu sempre les directrius següents:

• Always wear a helmet and appropriate protective gear (knee pads, elbow pads) while riding.
• Familiarize yourself with and obey all local traffic laws and regulations regarding electric scooters.
• Perform a pre-ride check: ensure brakes are functional, lights are working, and tires are in good condition.
• Do not ride in heavy rain, on slippery surfaces, or in extreme weather conditions.
• Avoid riding with passengers. The maximum load capacity is 120 kg.
• Mantingueu una distància de seguretat amb altres vehicles i vianants.
• No feu acrobàcies ni maniobres perilloses.
• Children under 12 years old should not operate the scooter. Adult supervision is recommended for riders aged 12-16.

3. Contingut del paquet

En obrir el paquet, comproveu que hi hagi tots els elements següents:

• Patinet elèctric TODIMART T3
• Carregador de bateria
• Manual d'usuari (aquest document)
• Eines de muntatge
• Head Fastening Screws

Si falta algun article o està danyat, poseu-vos en contacte amb el servei d'atenció al client immediatament.

4. Muntatge i muntatge

Your TODIMART T3 Electric Scooter requires minimal assembly to get you started. Follow these steps:

1. Desplega el patinet: Carefully lift the handlebar stem until it locks into the upright position. Ensure the folding mechanism is securely latched.
2. Attach Handlebar Components: If necessary, attach the handlebar grips, bell, and brake levers. Use the provided tools and fastening screws to secure them firmly.
3. Càrrec inicial: Before your first ride, fully charge the scooter's battery. Refer to Section 6 for detailed charging instructions.
4. Comprovació prèvia a la conducció: Before each use, inspect the brakes, lights, and tires for proper function and condition.

Image 4.1: The TODIMART T3 Electric Scooter in its folded state, ready for transport.

5. Instruccions de funcionament

5.1 Encès/Apagat

To turn the scooter on, press and hold the power button on the display until the screen illuminates. To turn it apagat, press and hold the power button again until the display turns off.

5.2 Modes de conducció

The TODIMART T3 offers multiple driving modes to suit your preference and riding conditions. While the scooter is on, press the power button once to cycle through the available modes:

• Mode ECO: For maximum battery efficiency and a smoother, slower ride.
• Mode estàndard: Un mode de transport equilibrat per als desplaçaments diaris.
• Mode esportiu: Provides maximum power and speed for dynamic riding.

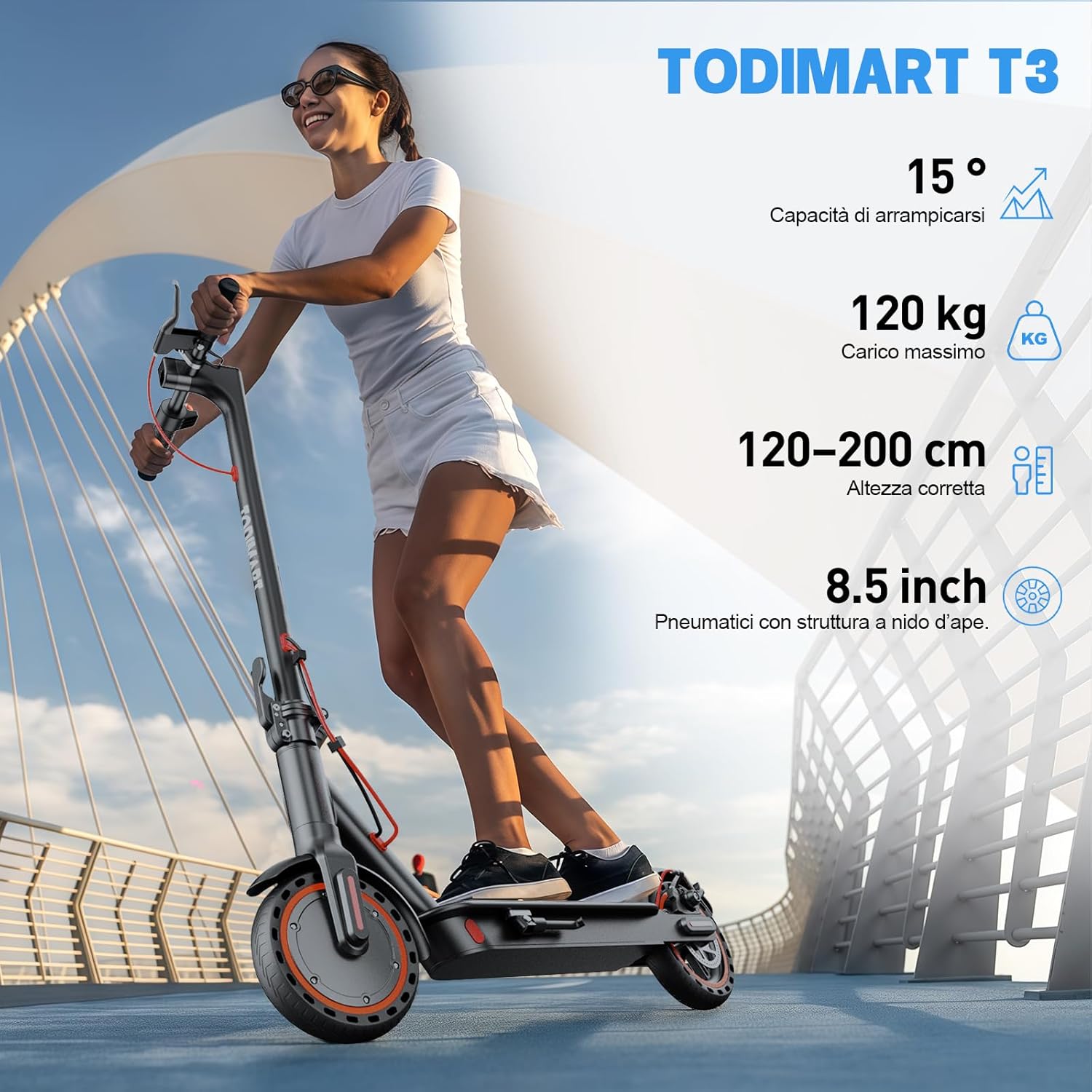

Image 5.1: A rider demonstrating the TODIMART T3 Electric Scooter in use, highlighting its performance capabilities.

5.3 Control d'aplicacions

Enhance your riding experience by connecting your TODIMART T3 to the dedicated mobile application via Bluetooth. The app provides additional functionalities:

• Remote anti-theft locking
• Customizable speed mode selection
• Control over lighting system
• Activació del control de creuer
• Real-time scooter status display (speed, battery level, mileage)

Image 5.2: The scooter's display and mobile app interface for control and monitoring.

5.4 Lights and Horn

The scooter is equipped with a bright front headlight, a rear brake light, and turn signals to ensure visibility and safety, especially during night rides. Use the integrated horn to alert others when necessary.

Image 5.3: Close-up of the scooter's front headlight for improved visibility.

Image 5.4: The scooter's rear brake light, enhancing safety during braking.

5.5 Sistema de frenada

The TODIMART T3 features a reliable dual braking system for effective stopping power. It includes both a drum brake and an EABS anti-lock brake on the rear wheel, ensuring a safe and controlled stop.

5.6 Plegament i transport

The scooter's foldable design allows for easy storage and transport. To fold, locate the folding mechanism at the base of the handlebar stem, release the latch, and fold the stem downwards until it locks into place. The lightweight aluminum frame (12 kg) makes it convenient to carry or store in a car trunk.

Image 5.5: The folded scooter easily fits into a car trunk for convenient transport.

6. Càrrega

Per carregar el teu patinet elèctric TODIMART T3:

1. Assegureu-vos que el patinet estigui apagat.
2. Localitzeu el port de càrrega del patinet.
3. Connecteu el cable del carregador al port de càrrega.
4. Connecteu el carregador a una presa de corrent estàndard.
5. The indicator light on the charger will typically show red during charging and turn green when fully charged.
6. A full charge usually takes approximately 5-6 hours. Do not overcharge the battery.

Image 6.1: Illustration of the scooter's battery compartment and charging time.

7. Manteniment

Regular maintenance ensures the longevity and optimal performance of your scooter:

• Pneumàtics: The 8.5-inch honeycomb solid tires are designed to be puncture-proof and require no inflation. Regularly inspect them for any signs of wear, cracks, or damage.
• Neteja: Clean the scooter regularly with a soft, damp cloth. Avoid using high-pressure water jets, abrasive cleaners, or harsh chemicals, as these can damage electronic components or the finish.
• Frens: Periodically check the brake levers and cables for proper tension and responsiveness. If you notice any degradation in braking performance, have it inspected by a qualified technician.
• Emmagatzematge: When not in use for extended periods, store the scooter in a cool, dry place away from direct sunlight and extreme temperatures. For long-term storage, ensure the battery is charged to approximately 50% to preserve its health.
• Elements de fixació: Reviseu periòdicament tots els cargols i perns per assegurar-vos que estiguin ben ajustats i segurs.

Image 7.1: Close-up of the 8.5-inch honeycomb solid tires, designed for a smooth and puncture-free ride.

8. Solució De Problemes

If you encounter any issues with your TODIMART T3 Electric Scooter, please refer to the following common troubleshooting steps:

• El patinet no s'encén: Check if the battery has sufficient charge. Ensure the power button is pressed and held correctly.
• Reduced range or speed: Verify that the battery is fully charged. Consider factors like rider weight, terrain (steep inclines), and ambient temperature, which can affect performance. Ensure you are not in ECO mode if you desire higher speed.
• Problemes de connectivitat de l'aplicació: Make sure Bluetooth is enabled on your mobile device and the scooter is powered on. Try restarting both the app and the scooter. Ensure the app is updated to the latest version.
• Brakes not responding: Check the brake levers and cables for any obstructions or damage. If the issue persists, do not ride the scooter and contact customer support.

For issues not covered here or if problems persist, please contact TODIMART customer support.

9. Especificacions

10. Garantia i Suport

Your TODIMART T3 Electric Scooter is covered by a Garantia de qualitat de 1 anys des de la data de compra. Aquesta garantia cobreix els defectes de fabricació en condicions d'ús normals.

For any questions, technical assistance, troubleshooting not covered in this manual, or to make a warranty claim, please contact TODIMART customer service. Our dedicated support team is available to assist you.

Si us plau, conserveu el comprovant de compra per validar la garantia.
