Introducció
The Daylight StitchSmart 2 Magnifier & Chartholder is an integrated workstation designed to enhance embroidery and crafting activities. This unit combines a sturdy, adjustable stand with an LED magnifier lamp and a chartholder, providing optimal support and visibility for detailed work. It features a 360° swivel jaw system for frame support, high-CRI LED lighting, and flexible arms for precise positioning of the magnifier and chartholder.
Contingut del paquet
Si us plau, comproveu que tots els components estiguin presents abans del muntatge:
- StitchSmart 2 Stand Base
- Main upright pole
- Frame support jaw system
- Lupa LED Lamp with flexible arm
- Chartholder with flexible arm
- Adaptador d'alimentació
Muntatge i muntatge
The StitchSmart 2 is designed for quick assembly, typically taking less than a minute with its three main parts. Follow these steps for proper setup:
- Attach the Upright Pole to the Base: Securely insert the main upright pole into the stand's base. Ensure it is firmly seated.
- Mount the Frame Support Jaw System: Place the frame support jaw system onto the top of the upright pole. Tighten any securing mechanisms to prevent movement.

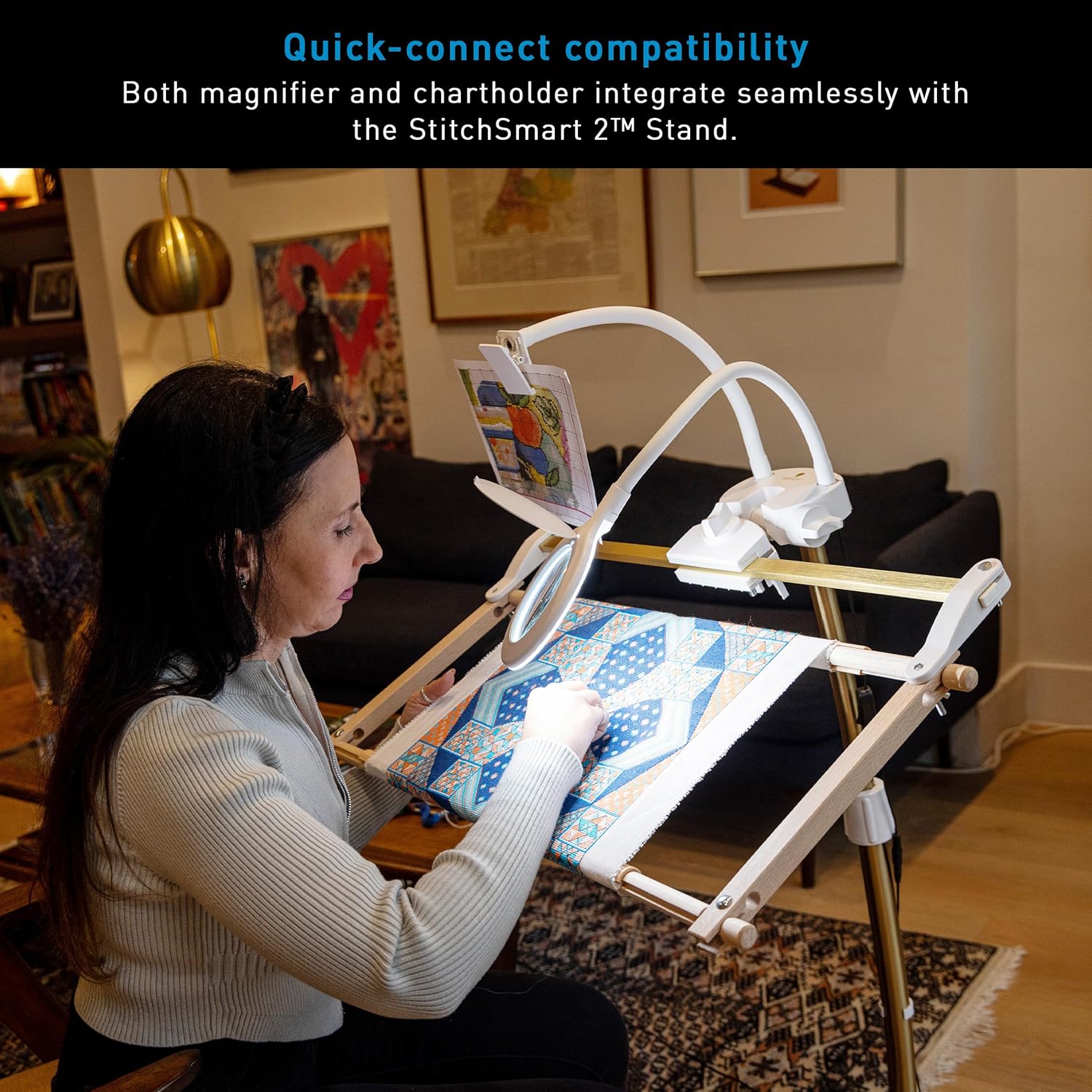

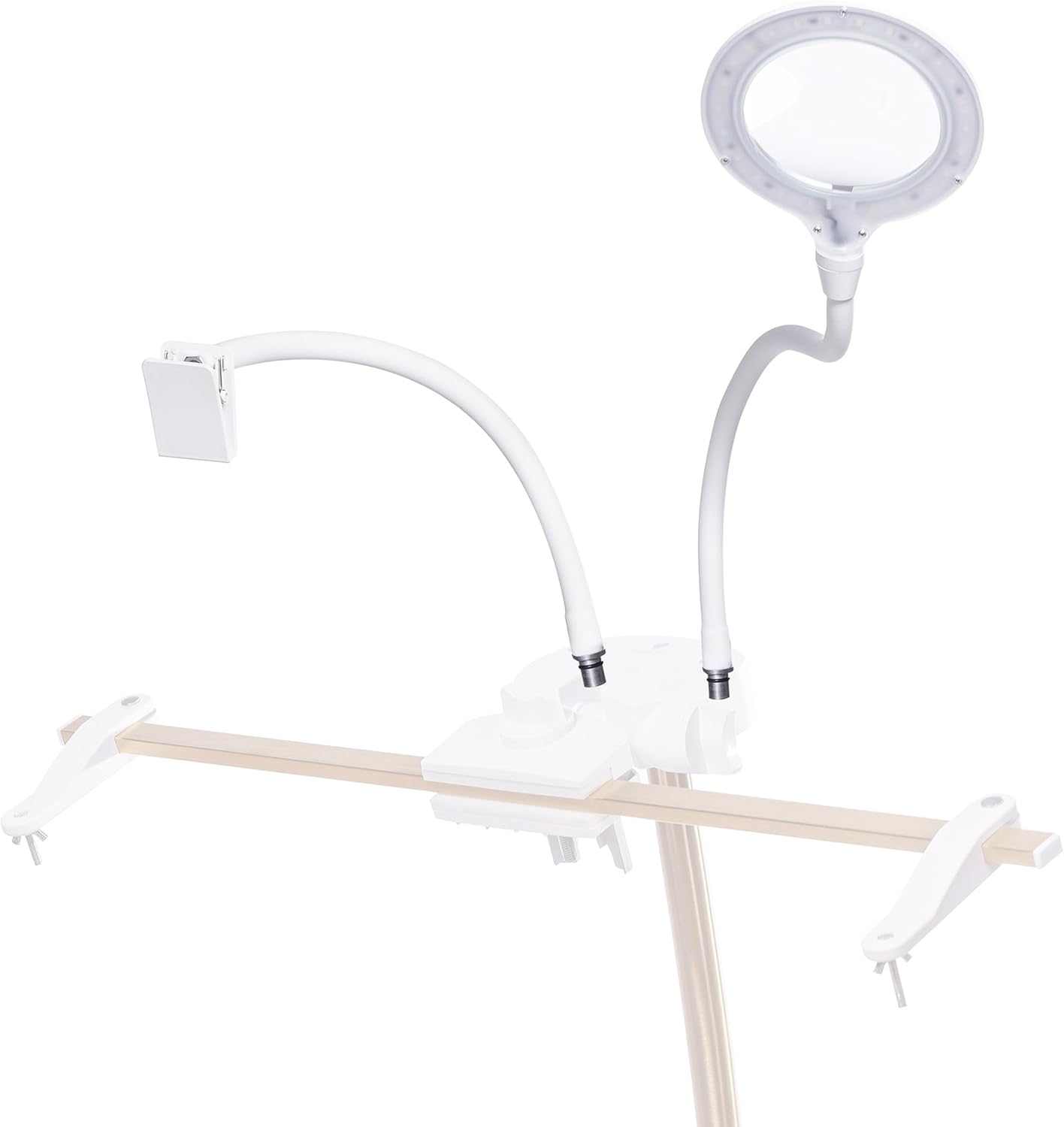

- Install Magnifier and Chartholder: Attach the flexible arms for the LED Magnifier Lamp and the Chartholder to the designated slots on the frame support system. These are designed for quick-connect compatibility.
- Connectar l'alimentació: Plug the power adapter into the LED Magnifier Lamp and then into a suitable power outlet.
Instruccions de funcionament
Using the Embroidery Frame Support
- Securing Your Frame: Open the jaw system on the stand and place your embroidery frame (up to 26" / 66 cm) securely within it. Tighten the jaw to hold the frame firmly.
- Adjusting Frame Position: The stand features a 360° swivel jaw system. This allows you to rotate your frame to access any part of your project without removing it from the stand. Adjust the height of the stand as needed for ergonomic comfort.
Utilizing the LED Magnifier Lamp
- Encès/apagat: Locate the power switch on the magnifier lamp head to turn the LED light on or off.

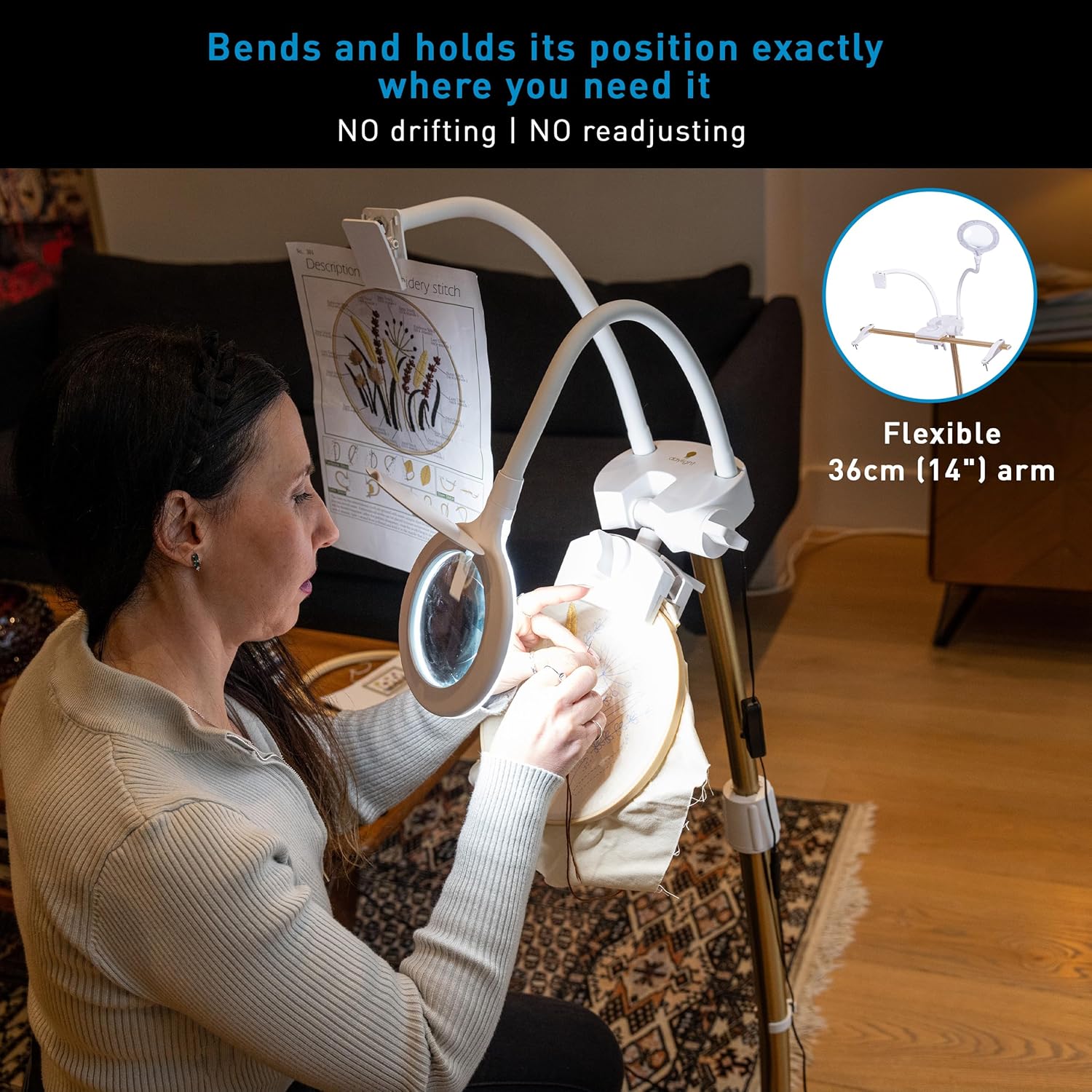

- Positioning the Magnifier: Use the 36 cm (14") flexible arm to position the 3 Diopter (1.75X) magnifying glass directly over your work area. The arm is designed to hold its position without drifting.
- Protecció de la lent: A built-in cover protects the magnifying lens when not in use. Ensure the cover is closed to prevent dust and scratches.
Using the Chartholder
- Attaching Charts: Use the chartholder's clip to secure your patterns or instructions.
- Positioning the Chartholder: Adjust the chartholder's flexible arm to place your chart at an optimal viewing angle, keeping your patterns clearly visible and your hands free.
Manteniment
- Neteja: Wipe the stand, magnifier, and chartholder with a soft, dry cloth. For stubborn marks, a slightly damp es pot fer servir un drap i assecar-lo immediatament. Eviteu netejadors o dissolvents abrasius.
- Cura de les lents: Use a specialized lens cleaning cloth and solution for the magnifying glass to avoid scratches and ensure clear vision.
- Estrènyer les connexions: Periodically check and tighten any screws or adjustment knobs to ensure the stand remains stable and secure during use.
Resolució de problemes
- Issue: Magnifier lamp no s'encén.
- Assegureu-vos que l'adaptador d'alimentació estigui ben connectat als dos cables lamp i una presa de corrent que funcioni.
- Check if the power switch on the lamp head is in the "on" position.
- Verifiqueu que la presa de corrent funciona provant-la amb un altre dispositiu.
- Issue: Embroidery frame feels loose or unstable.
- Ensure the jaw system holding the frame is tightened sufficiently.
- Check all assembly points of the stand (base, upright pole, jaw system) for secure connections. Retighten if necessary.
- Issue: Flexible arms do not hold position.
- The flexible arms are designed to hold position. If they are not, ensure they are correctly inserted into their attachment points. If the issue persists, contact customer support.
Especificacions
| Característica | Detall |
|---|---|
| Nom del model | StitchSmart 2 Magnifier & Chartholder |
| Número de model de l'article | U25088 |
| Marca | Llum del dia |
| Font de llum | LED |
| Brillantor | 4,200 Lux at 15 cm (6") |
| Temperatura de color | 6,000K (blanc llum del dia) |
| Precisió del color (CRI) | 95+ CRI |
| Ampliació | 3 Diopter (1.75X) |
| Diàmetre de la lent | 9 cm (3.5") |
| Flexible Arm Length | 36 cm (14") |
| Max Frame Size Supported | 26 polzades (66 cm) |
| Material | Metall |
| Dimensions del producte | 7.09"L x 19.69"W x 0.1"H (Accessories) |
| Pes de l'article | 2.55 pounds (Accessories) |
| Consum d'energia | 8W |
Informació de la garantia
Aquest producte està cobert per a 2 anys de garantia del fabricant. Please retain your proof of purchase for warranty claims. For detailed terms and conditions, refer to the manufacturer's official weblloc o poseu-vos en contacte amb el seu servei d'atenció al client.
Suport i Contacte
For further assistance, technical support, or to inquire about replacement parts, please contact Daylight customer service:
- Weblloc: Visit the official Daylight weblloc web per a preguntes freqüents i recursos de suport.
- Correu electrònic: Consulteu l'embalatge del producte o la fitxa oficial weblloc web per al correu electrònic de contacte.
- Telèfon: Consulteu l'embalatge del producte o la fitxa oficial weblloc web per a un número de telèfon de contacte.
When contacting support, please have your product model number (U25088) and purchase date available.
