1. Introducció
Welcome to the user manual for your realme Buds T200 Lite Bluetooth in-ear earbuds. These earbuds are designed to provide a high-quality audio experience with advanced features for calls, music, and gaming. Please read this manual carefully to ensure proper use and maintenance of your device.
2. Què hi ha a la caixa
- realme Buds T200 Lite Earbuds (Left and Right)
- Estoig de càrrega
- Manual d'usuari
3. Producte acabatview
The realme Buds T200 Lite feature a sleek design and are equipped with powerful audio technology. The compact charging case not only protects your earbuds but also provides extended battery life.

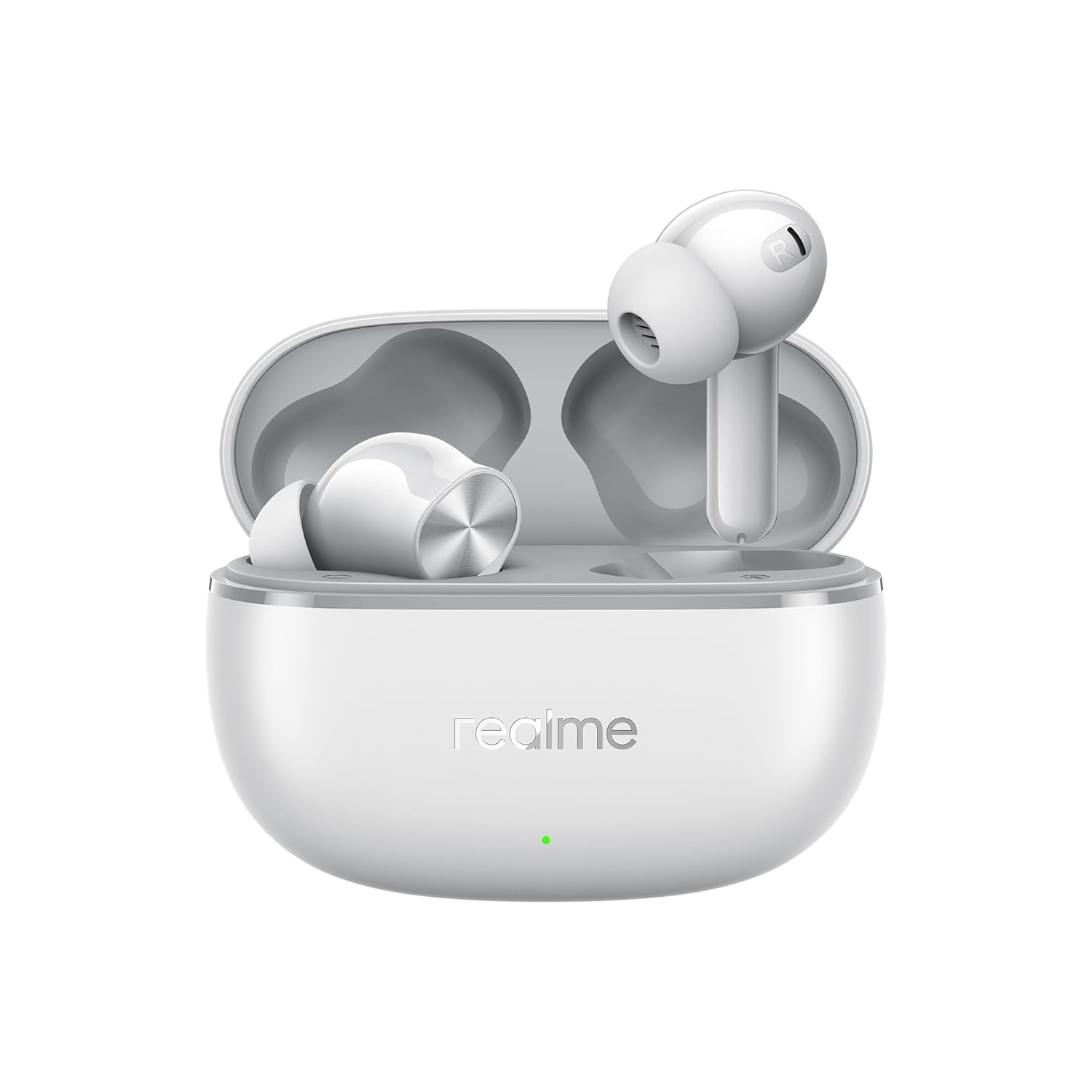

Figure 1: realme Buds T200 Lite Earbuds in their charging case.
Figure 2: realme Buds T200 Lite Earbuds removed from their charging case, showcasing el seu disseny.
Figura 3: Un primer pla view of a single realme Buds T200 Lite earbud, highlighting the in-ear design and touch control area.

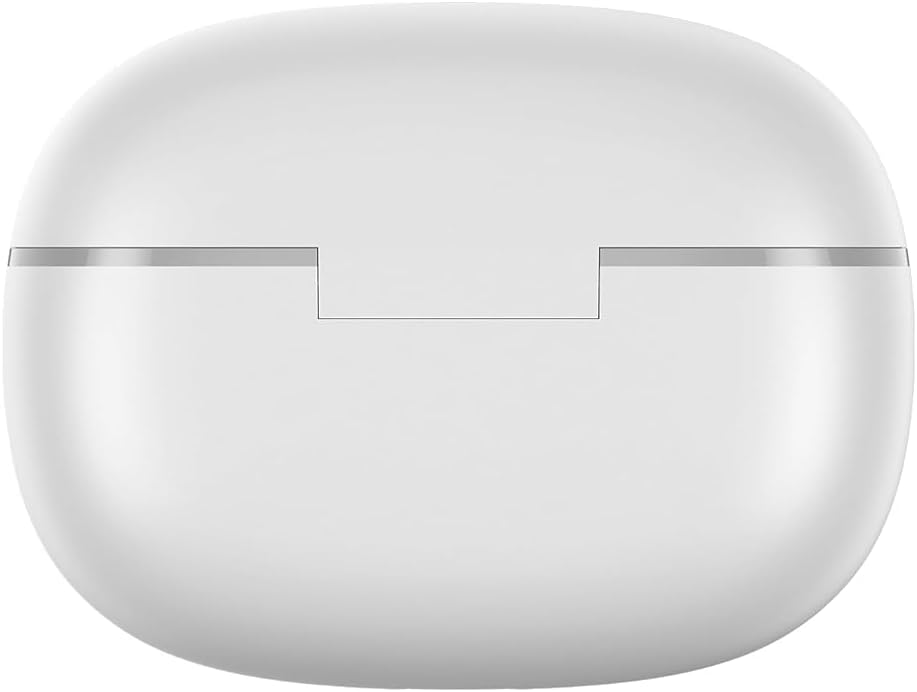

Figura 4: superior view of the realme Buds T200 Lite charging case, showing its smooth, rounded contours.
4. Configuració
4.1 Emparellament inicial
- Obre l'estoig de càrrega. Els auriculars entraran automàticament en mode d'emparellament.
- Al teu telèfon intel·ligent o tauleta, activa el Bluetooth.
- Cerca "realme Buds T200 Lite" in the list of available devices and select it to connect.
- For Android devices, Google Fast Pair will automatically detect the earbuds when the case is opened near your device, prompting a quick connection.
4.2 realme Link App Installation
For enhanced control and customization, download the realme Link app from your device's app store (Google Play Store or Apple App Store). The app allows you to:
- Comproveu els nivells de bateria de cada auricular i de l'estoig de càrrega.
- Personalitza els controls tàctils.
- Adjust sound effects and equalizer settings.
- Enable/disable features like Low Latency Gaming Mode and AI ENC.
Figure 5: Screenshot of the realme Link app interface, displaying earbud battery status and various control options.
5. Instruccions de funcionament
5.1 Controls tàctils
The earbuds feature intuitive touch controls. Default actions can be customized via the realme Link app.
| Acció | Funció per defecte |
|---|---|
| Fes doble toc | Reproduir / Pausar música, Respondre / Finalitzar trucada |
| Toca tres vegades | Pista següent |
| Tap & Hold (Left Earbud) | Baixa el volum |
| Tap & Hold (Right Earbud) | Puja el volum |
5.2 Gestió de trucades
The earbuds are equipped with 4 microphones and AI Environmental Noise Cancellation (AI ENC) for clear calls, even in noisy environments.
Figure 6: Illustration of Dual-Mic AI Noise Cancellation technology in realme Buds T200 Lite, ensuring clear communication.
5.3 Reproducció de música
Experience powerful audio with 12.4mm Dynamic Bass Drivers, delivering rich and immersive sound.
Figura 7: Mésview of key features, including the 12.4mm Dynamic Bass Driver for enhanced audio quality.
5.4 Mode de joc de baixa latència
Activate Low Latency Gaming Mode via the realme Link app for a synchronized audio-visual experience during gaming.
5.5 Connexió de dispositiu dual
The earbuds support dual device connection, allowing seamless switching between two paired devices (e.g., smartphone and tablet) without needing to disconnect and reconnect.
Figure 8: Visual representation of the dual-device connection feature, showing earbuds simultaneously linked to a smartphone and a tablet.
6. Càrrega
The realme Buds T200 Lite offer up to 48 hours of total playback time with the charging case. A quick 10-minute charge provides up to 5 hours of playback.
Figure 9: Graphic illustrating the impressive 48-hour total playback time and the fast charging capability of the realme Buds T200 Lite.
6.1 Càrrega dels auriculars
Col·loca els auriculars a l'estoig de càrrega. Començaran a carregar-se automàticament.
6.2 Càrrega de la funda
Connect the charging case to a power source using a USB-C cable. The indicator light on the case will show the charging status.
7. Manteniment i cura
7.1 Resistència a l'aigua
The earbuds are IPX4 water resistant, meaning they are protected against splashing water from any direction. This makes them suitable for workouts and light rain. However, they are not designed for swimming or showering.
7.2 Neteja
Netegeu regularment els auriculars i l'estoig de càrrega amb un drap suau i sec. Eviteu utilitzar productes químics agressius o materials abrasius.
8. Solució De Problemes
Auriculars 8.1 que no s'aparellen
- Assegura't que els dos auriculars estiguin a l'estoig de càrrega i que l'estoig tingui prou bateria.
- Open the case and check if the indicator light is blinking, indicating pairing mode.
- Desactiva i torna a activar el Bluetooth al dispositiu.
- Try resetting the earbuds (refer to realme Link app or product support for specific reset instructions).
8.2 Volum baix o qualitat de so deficient
- Check the volume levels on both your device and through the earbud touch controls.
- Assegureu-vos que els auriculars estiguin correctament col·locats a les orelles per a un segellat òptim.
- Netegeu qualsevol residu dels broquets dels auriculars.
- Adjust equalizer settings in the realme Link app.
9. Especificacions
| Característica | Detall |
|---|---|
| Nom del model | T200 Lite |
| Tipus de controlador d'àudio | Controlador dinàmic de 12.4 mm |
| Versió Bluetooth | 5.0 |
| Durada de la bateria (auriculars) | Fins a 10 hores (una sola càrrega) |
| Total Playback (with Case) | Fins a 48 hores |
| Càrrega ràpida | Càrrega de 10 minuts per a 5 hores de reproducció |
| Funcions de control de soroll | AI ENC for Calls, 4 Mics |
| Resistència a l'aigua | IPX4 |
| Tecnologia de connectivitat | Sense fil (Bluetooth) |
| Mètode de control | Aplicació, Toc |
| Dispositius compatibles | Cell Phones, Tablets |
| Pes de l'article | 10 grams (0.353 unces) |
| Material | Plàstic, silicona |
10. Garantia i Suport
For warranty information and technical support, please refer to the warranty card included in your product packaging or visit the official realme weblloc web. Conserveu el comprovant de compra per a qualsevol reclamació de garantia.
