Manual d'instruccions de la llanterna plana EDC TrustFire Mini X7

Introducció

This manual provides detailed instructions for the safe and effective operation of your TrustFire Mini X7 Flat EDC Flashlight. Please read this manual thoroughly before use and retain it for future reference.

Producte acabatview

Característiques principals:

• 3-in-1 Functionality: White LED (750 Lumens), Red Beam, and Distance Meter.
• Adjustable Brightness: Four white light modes.
• Real-time Distance Measurement: 0.03 to 30 meters with 2mm precision.
• Magnetic Tail: For hands-free operation.
• Durable Construction: Aluminum alloy, IPX6 waterproof, 1-meter impact resistance.
• Rechargeable: USB-C charging.

Contingut del paquet:

• TrustFire Mini X7 Flashlight
• Cable de càrrega tipus C.
• Manual d'usuari

Image: The TrustFire Mini X7 flashlight, showcasing its compact design and integrated display.

Image: Illustration of the Mini X7's three primary functions: white light, white light with red beam, and distance meter.

Configuració

Càrrega del dispositiu:

1. Localitzeu el port de càrrega USB-C al dispositiu.
2. Connect the provided Type-C cable to the flashlight and a compatible USB power source (e.g., computer, wall adapter).
3. The indicator light will show red during charging and turn green when fully charged.

Image: Visual representation of the charging status indicator: red for charging, green for fully charged.

Instruccions de funcionament

Selecció del mode:

The Mini X7 features a side toggle button for mode selection. Move the toggle to switch between modes:

• Top Position: Switch Mode (Power On/Off)
• Posició mitjana: Lighting Mode (Flashlight functions)
• Posició inferior: Distance Meter Mode

Image: Diagram illustrating the side toggle button positions for Switch, Lighting, and Distance Meter modes.

Flashlight Operation (Lighting Mode):

When the side toggle is in the middle position (Lighting Mode):

• Encès/apagat: Press the round button once to turn the white light on or off.
• Ajusta la brillantor: With the light on, short press the round button to cycle through brightness modes: Low (2.5lm), Medium (50lm), High (200lm), Extreme High (750lm).
• Mode estroboscòpic: Press and hold the round button for 3 seconds to activate strobe mode. (Strobe is only accessible in Lighting Mode).
• Red Beam Activation: Press and hold the round button for 1 second to turn on the red beam.

Image: Visual guide to the round button functions for brightness adjustment, strobe, and red beam activation.

Image: A person using the Mini X7 flashlight with both white light and red beam activated in an outdoor setting.

Distance Meter Operation (Distance Meter Mode):

When the side toggle is in the bottom position (Distance Meter Mode):

1. Mesura única: Short press the round button to start a measurement. Press again to stop and display the result.
2. Mesura contínua: Press and hold the round button for continuous measurement. Release to stop.
3. Changing Measurement Reference: In Measurement Mode, short press the round button to cycle through measurement reference points (Pre Datum Measurement or Post Datum Measurement).
4. Canvi d'unitats: The device supports meters (m), feet (ft), inches (in), and fractional inches (-/in). Refer to the settings mode for unit conversion.

Image: Diagram showing how to change the measurement reference point (Pre Datum vs. Post Datum) on the Mini X7's display.

Image: Illustration of the five measurement units available on the Mini X7: meters, feet, inches, and fractional inches.

Mode de configuració:

To enter Settings Mode (for CRL, Measurement Unit, Backlight On/Off):

1. Push the side toggle button to its top position (Switch Mode).
2. Press and hold the round button for 5 seconds.
3. Release immediately after the screen turns off.
4. Immediatament després de l'alliberamentasing (within 1 second), press and hold the round button again for 5 seconds to enter Settings Mode.
5. In Settings Mode: Short press the round button to change settings (cycle through CRL, Measurement Unit, Backlight On/Off). Press and hold for 1 second to confirm the setting and move to the next one.

Image: Step-by-step visual guide on how to access and navigate the settings mode for CRL, measurement units, and backlight control.

Magnetic Tail:

The integrated magnetic tail allows for hands-free operation by attaching the flashlight to metallic surfaces. This is useful for tasks requiring both hands, such as vehicle maintenance or workshop activities.

Imatge: Examples of using the Mini X7's magnetic base for hands-free lighting during home repair, camping, and workshop tasks.

Manteniment

• Neteja: Netegeu el cos de la llanterna amb un drap suauamp tela. No utilitzeu netejadors abrasius ni dissolvents.
• Emmagatzematge: Store the device in a cool, dry place away from direct sunlight when not in use for extended periods.
• Cura de la bateria: Recharge the battery regularly, even if not frequently used, to maintain battery health. Avoid fully discharging the battery for prolonged periods.
• Resistència a l'aigua: The Mini X7 is IPX6 waterproof. While it can withstand heavy rain and splashes, it is not designed for submersion. Ensure the charging port cover is securely closed to maintain water resistance.

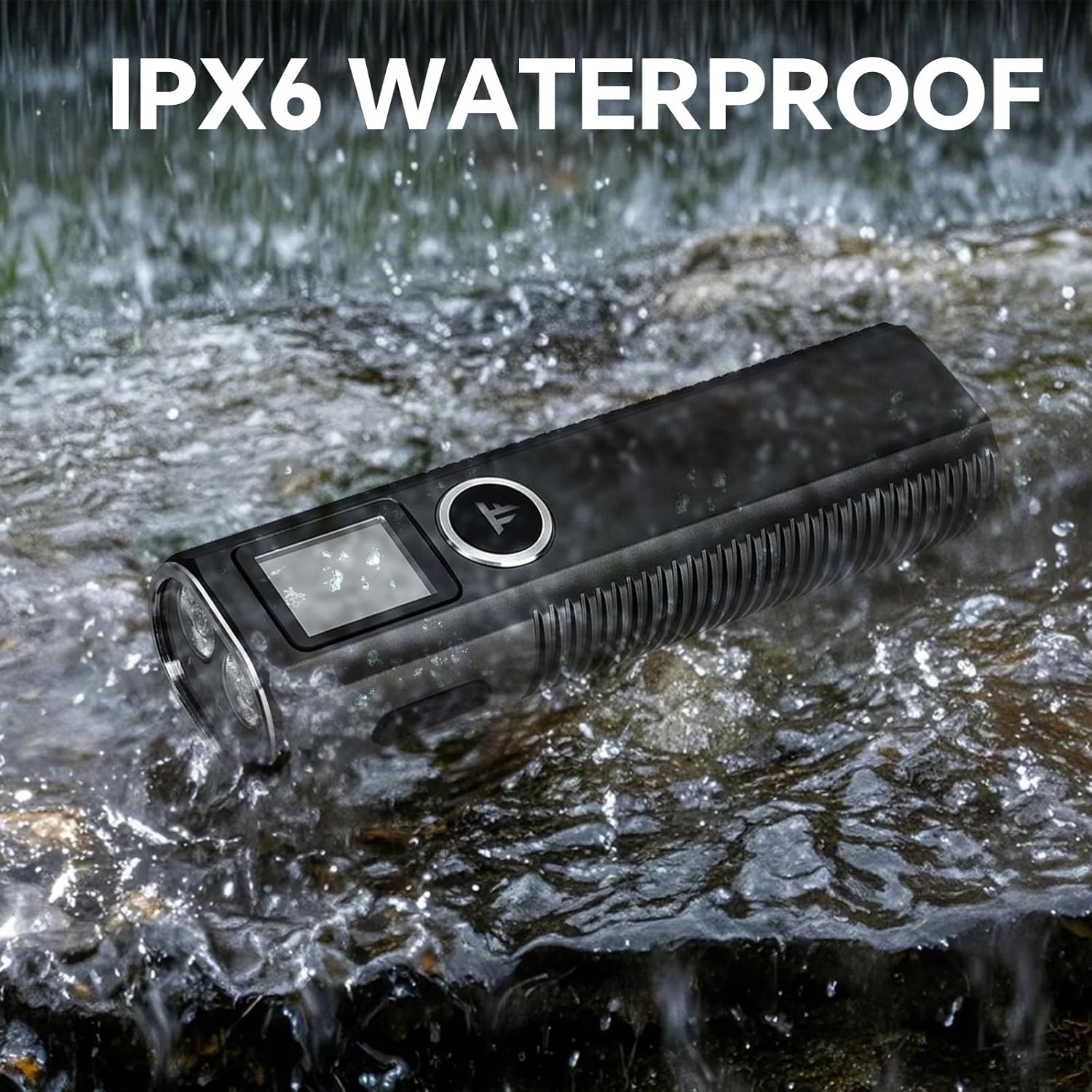

Image: The TrustFire Mini X7 flashlight being exposed to water splashes, demonstrating its IPX6 waterproof rating.

Resolució de problemes

Especificacions

Garantia i Suport

For warranty information and customer support, please refer to the official TrustFire weblloc web o poseu-vos en contacte amb el vostre distribuïdor. Conserveu el rebut de compra per a reclamacions de garantia.

You can visit the official TrustFire store on Amazon for more information: TrustFire Store
