1. Introducció
This manual provides comprehensive instructions for the RUIZHI 433MHz Garage Door Opener Remote Control, Model YY2-2067. It is designed to assist you with the setup, operation, and maintenance of your new remote control. Please read this manual thoroughly before use to ensure proper functionality and safety.
2. Informació de seguretat
ADVERTIMENT:
This product may pose a choking hazard for children under 3 years old. Keep the device and its components out of reach of small children. This remote control is a replacement device and should be used in accordance with the original garage door opener's safety guidelines. Ensure proper programming to prevent unintended operation.
Image: Warning label on the product packaging, indicating potential choking hazards for small children and advising careful use.
3. Contingut del paquet
Your RUIZHI Garage Door Opener Remote Control package includes:
- 2 x RUIZHI 433MHz Garage Door Remote Controls
- Built-in CR2032 batteries (pre-installed)
- Manual d'usuari (aquest document)
4. Producte acabatview
The RUIZHI 433MHz Garage Door Opener Remote Control is designed for reliable control of compatible garage door operators. It features a durable design and rolling code technology for enhanced security.
4.1 Característiques clau
- Models compatibles: Works with ME960LM, E960, LM50, and LM55EV/S/F garage door operators.
- Interval de freqüència: Operates at 433 MHz, 433.30 MHz, 433.92 MHz, and 434.54 MHz.
- Rolling Code Technology: Generates a new code with each use, preventing signal theft and enhancing security.
- Disseny exquisit: Features a sliding cover to protect buttons from accidental presses and an ergonomic grip.
- 4 canals: Capable of controlling up to four different garage doors or gates.
4.2 Components del producte
Image: Two RUIZHI garage door remote controls, each with a metal keychain attached.

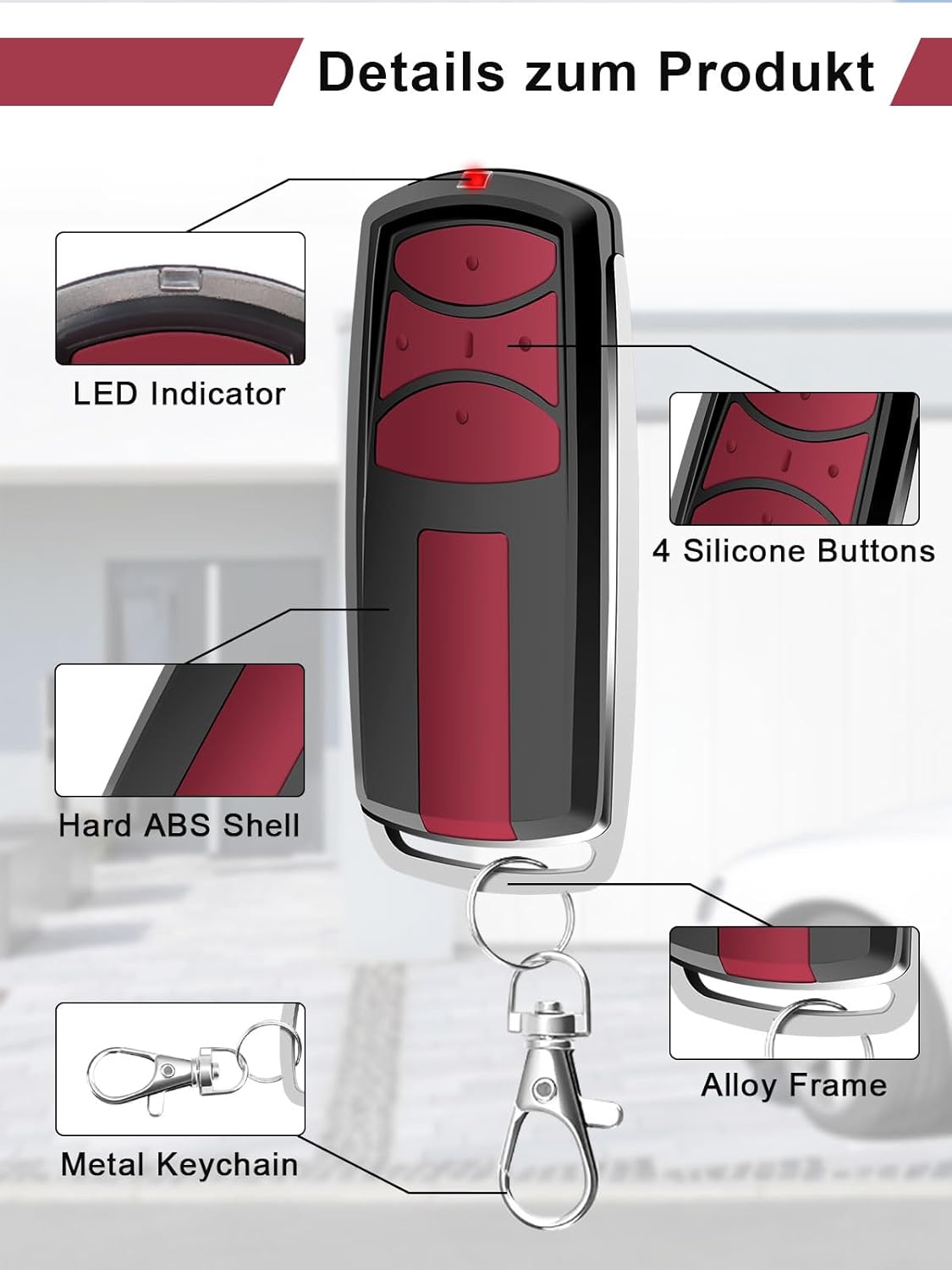

Image: A detailed diagram of the remote control, pointing out its key components: LED Indicator, 4 Silicone Buttons, Hard ABS Shell, Metal Keychain, and Alloy Frame.
4.3 Compatibility and Applications
Image: A hand holding the remote control, with a list of compatible garage door opener models displayed: ME960LM, E960, LM50, LM55EV/S/F.
Imatge: Quatre examples of where the remote control can be used: standard garage doors, roller shutter doors, retractable doors, and road gates.
5. Configuració i programació
Follow these steps to program your RUIZHI remote control with your garage door opener:
Image: A visual guide illustrating the programming steps for the remote control.
- Enter Code Mode: Press and hold buttons 2 and 3 (left + right) simultaneously for approximately 6 seconds until the indicator light illuminates steadily. Release the buttons to enter switch code mode.
- Botó Desa:
- Press the desired button once to save for Merlin 2.0 (433.3 MHz, 433.92 MHz, 434.54 MHz).
- Press the desired button twice to save for 433.92 MHz LM frequency.
- Exit Transcoding Mode: Press all three other buttons to exit transcoding mode.
- Utilitzeu el control remot: After completing the above steps, you can use the remote control to connect with the corresponding receiver.
Nota:
This remote control is not compatible with 868 MHz systems. Ensure your garage door opener operates on the 433 MHz frequency range.
6. Funcionament
Once programmed, operating your RUIZHI remote control is straightforward:
- Point the remote control towards your garage door opener's receiver.
- Press the programmed button corresponding to the desired action (e.g., open, close, stop).
- The indicator light on the remote will flash during transmission.
The remote control offers a range of 30-50 meters (100 meters barrier-free) for convenient operation.
7. Manteniment
7.1 Substitució de la bateria
The remote control uses a CR2032 button cell battery. When the remote's range decreases or the indicator light becomes dim, it's time to replace the battery.
- Obriu amb cura el comandament a distància casing.
- Traieu la bateria CR2032 antiga.
- Inseriu una nova bateria CR2032 amb el costat positiu (+) cap amunt.
- Tanqueu el comandament a distància casing de manera segura.
7.2 Neteja
Netegeu el comandament a distància amb un drap suau i sec. Eviteu utilitzar productes químics agressius o netejadors abrasius, ja que poden danyar el comandament a distància.asing o botons.
8. Solució De Problemes
- El comandament a distància no funciona:
- Comproveu si cal canviar la bateria.
- Ensure the remote is properly programmed to your garage door opener. Refer to Section 5.
- Verify that your garage door opener is powered on and functioning correctly.
- Interval reduït:
- Substituïu la bateria.
- Assegureu-vos que no hi hagi obstacles entre el comandament a distància i el receptor.
- Accidental presses:
- Utilize the sliding design of the remote to cover the buttons when not in use.
9. Especificacions
Image: Technical specifications of the remote control, including details on buttons, material, frequency, code, operating temperature, and voltage.
| Característica | Especificació |
|---|---|
| Número de model | YY2-2067 |
| Material del producte | ABS |
| Dimensions del producte | 70 x 40 x 20 mm (7 x 3 x 1 cm) |
| Pes del paquet de l'article | 45 g |
| Botons | 4 canals |
| Freqüència | 433.30 MHz / 433.92 MHz / 434.54 MHz |
| Tipus de codi | Rolling Code |
| Vol. Operatiutage | 3V (CR2032 Battery Included) |
| Temperatura de funcionament | -20 °C a +50 °C |
| Models compatibles | ME960LM, E960, LM50, LM55EV/S/F |
10. Garantia i Suport
For warranty information or technical support, please refer to the contact details provided with your purchase or contact the retailer. Keep your proof of purchase for any warranty claims.
