DOVAMAN GT10 Garden Shredder Instruction Manual

1. Introducció

This instruction manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your DOVAMAN GT10 Garden Shredder. Please read this manual thoroughly before operating the device and keep it for future reference. Proper use ensures optimal performance and extends the lifespan of your shredder.

The DOVAMAN GT10 is designed for shredding dry branches and woody material up to 45 mm in diameter. It features a powerful 2800W motor, an 8-tooth roller blade system, and a 55-liter collection box.

2. Instruccions de seguretat

Always prioritize safety when operating power tools. Failure to follow these instructions may result in serious injury or damage to the equipment.

• Equips de protecció individual (EPI): Always wear safety glasses, hearing protection, sturdy gloves, and appropriate footwear. Avoid loose clothing that could get caught in moving parts.
• Desconnexió d'alimentació: Disconnect the power supply before performing any assembly, cleaning, maintenance, or when clearing blockages.
• Àrea de treball neta: Ensure the work area is clear of bystanders, children, and pets. Maintain a safe distance from the shredder during operation.
• Superfície estable: Operate the shredder on a firm, level surface to prevent tipping.
• Tipus de material: Only shred dry branches and woody material. Do not attempt to shred wet, green, leafy, metallic, plastic, or stone materials, as this can damage the machine and pose a safety risk.
• Material d'alimentació: Feed material slowly and steadily. Never force material into the shredder. Use the provided push stick if necessary, and never use your hands or feet.
• Protecció de sobrecàrrega: The shredder is equipped with overload protection. If the motor stops, refer to the troubleshooting section.
• Collection Box: Ensure the collection box is correctly installed and the safety lock engaged before starting the shredder. The machine will not operate if the box is not secured.

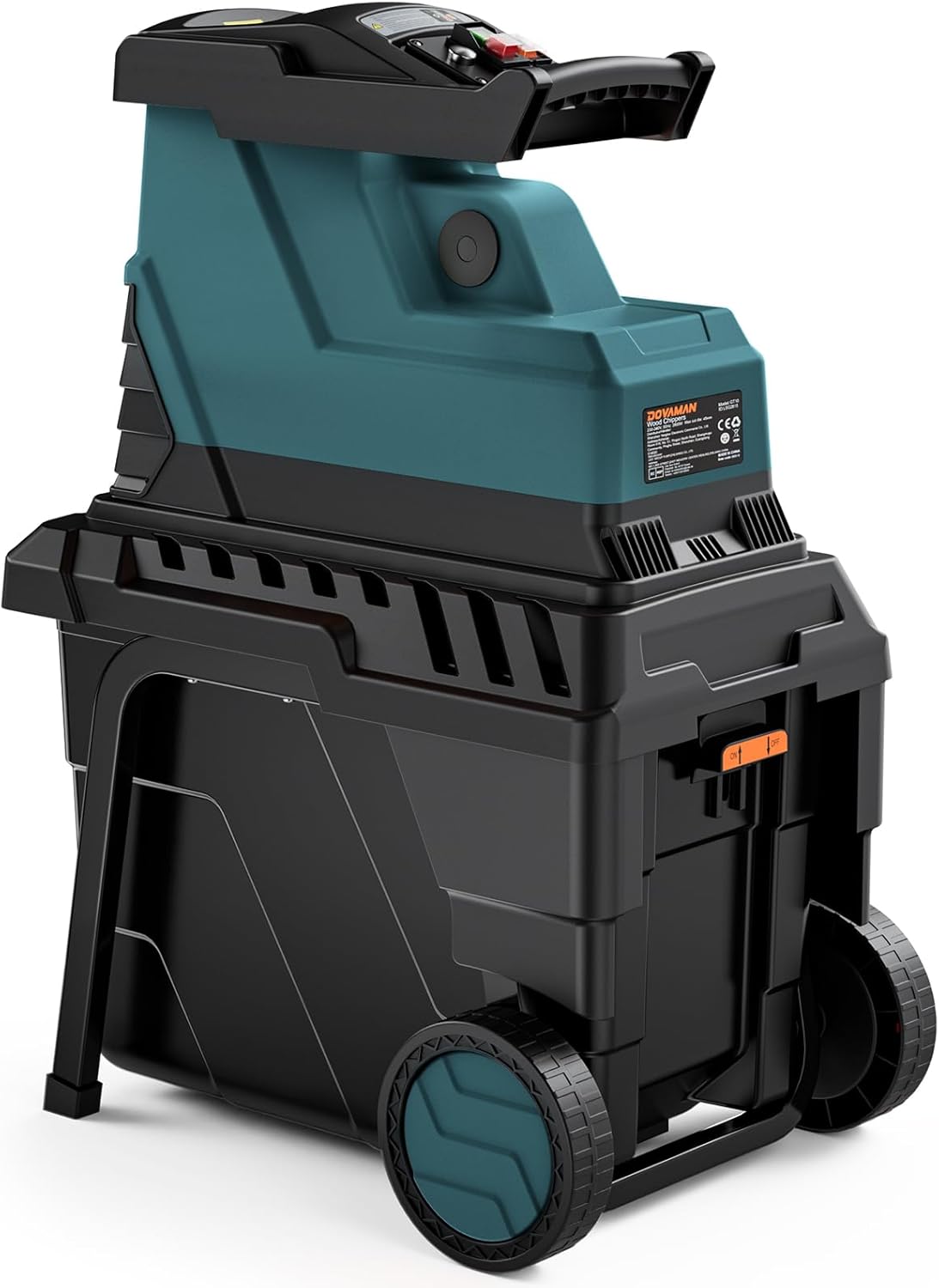

3. Components del producte

The DOVAMAN GT10 Garden Shredder package includes the following items:

• DOVAMAN GT10 Garden Shredder (2800W)
• 55 L Collection Box with Safety Lock
• Push Stick
• Manual d'usuari

4. Configuració

Follow these steps to set up your DOVAMAN GT10 Garden Shredder before first use:

1. Desembalatge: Traieu amb cura tots els components de l'embalatge. Inspeccioneu-ho per veure si hi ha algun dany.
2. Muntatge de rodes: Attach the wheels to the main unit as per the diagrams in the separate assembly guide (if provided). Ensure they are securely fastened.
3. Collection Box Installation: Slide the 55 L collection box into its designated slot at the bottom of the shredder. Ensure it clicks into place and the safety lock mechanism is engaged. The shredder will not power on if the collection box is not correctly installed and locked.
4. Col·locació: Position the shredder on a stable, level surface in a well-ventilated outdoor area. Ensure access to a suitable power outlet.

5. Instruccions de funcionament

Operating the DOVAMAN GT10 is straightforward, but always adhere to safety guidelines.

5.1 Starting the Shredder

1. Ensure the collection box is securely in place and the safety lock is engaged.
2. Connect the power cord to a suitable outdoor power outlet.
3. Press the green 'ON' button on the control panel to start the motor.

5.2 Material d'alimentació

The GT10 is equipped with an 8-tooth roller blade system designed for efficient shredding.

• Feed dry branches into the feeding chute one at a time. The roller blade will automatically draw the material in.
• Do not overload the shredder. Allow the machine to process each branch completely before feeding the next.
• Use the push stick for shorter branches or to assist feeding, but never force material.

5.3 Adjustable Cutting Slot

The shredder features an adjustable distance between the roller and the counter-plate, allowing adaptation to different material thicknesses.

• For thinner branches or those with more leaves, a narrower slot provides better grip.
• For thicker, dry branches, a wider distance is suitable.
• Adjust the slot using the knob as shown in Figure 3. Always ensure the machine is off and unplugged before making adjustments.

5.4 Stopping the Shredder

Press the red 'OFF' button on the control panel to stop the motor. Always disconnect the power supply after use.

5.5 Safety Lock Mechanism

The shredder is equipped with a safety interlock that prevents operation if the collection box is not correctly installed and locked.

Ensure the collection box is fully inserted and the orange lever is in the 'ON' position to engage the safety lock before starting the shredder.

6. Manteniment

Regular maintenance ensures the longevity and safe operation of your shredder.

• Neteja: After each use, disconnect the power and clean the feeding chute, cutting mechanism, and collection box. Remove any debris or wood chips. Use a brush or compressed air; never use water directly on electrical components.
• Inspecció de la fulla: Periodically inspect the 8-tooth roller blade for wear or damage. If the blades become dull or damaged, they may need to be replaced by a qualified service technician.
• Emmagatzematge: Store the shredder in a dry, secure location, away from moisture and extreme temperatures.

7. Solució De Problemes

This section addresses common issues you might encounter with your DOVAMAN GT10 Garden Shredder.

7.1 Shredder Does Not Start

• Comproveu si el cable d'alimentació està ben connectat a una presa de corrent que funcioni.
• Ensure the collection box is correctly installed and the safety lock is engaged (refer to Figure 4).
• Verify that the 'ON' button has been pressed.
• Check for tripped circuit breakers or blown fuses in your electrical supply.

7.2 Material Not Shredding Effectively

• Ensure you are only feeding dry branches. Wet or green material may not shred properly.
• Adjust the cutting slot for optimal performance based on the material thickness (refer to Figure 3).
• Inspect the blades for dullness or damage.

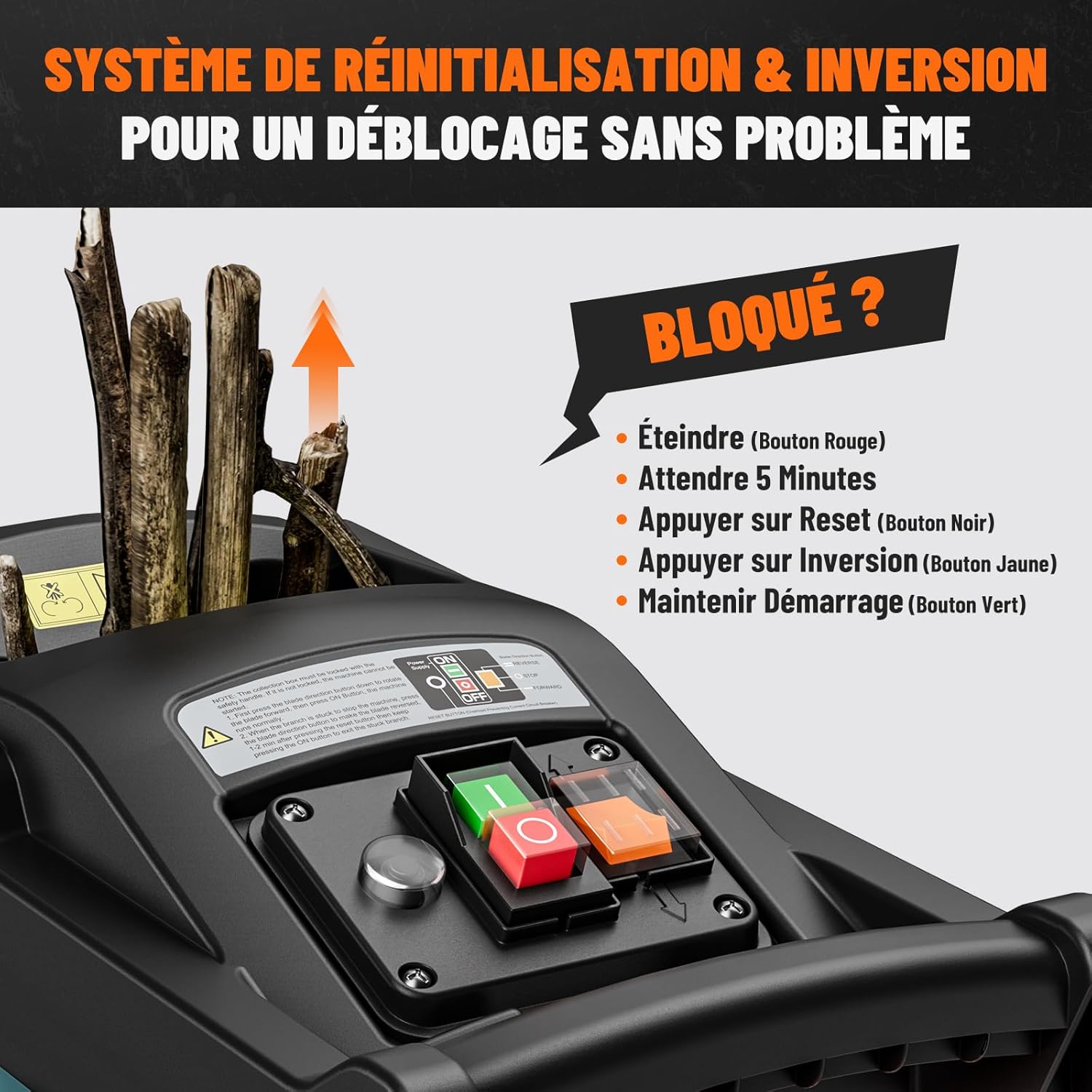

7.3 Shredder Becomes Blocked

The GT10 features a Reset & Reverse system to help clear blockages.

1. Apagar: Immediately press the red 'OFF' button.
2. Espera: Allow approximately 5 minutes for the motor to cool down.
3. Restablir: Press the black 'RESET' button.
4. Revers: Press the yellow 'REVERSE' button to attempt to clear the blockage by rotating the blades backward.
5. Reinicia: Hold the green 'START' button to resume normal operation.
6. If the blockage persists, disconnect power and carefully remove the material manually using the push stick or a suitable tool. Never use your hands.

8. Especificacions

Key technical specifications for the DOVAMAN GT10 Garden Shredder:

9. Garantia i Suport

DOVAMAN is committed to providing quality products and customer satisfaction. Your DOVAMAN GT10 Garden Shredder comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions.

For any questions, technical assistance, or warranty claims, please contact DOVAMAN customer service. Most inquiries are typically responded to within 48 hours.

Informació de contacte: Please refer to the contact details provided on the product packaging or the official DOVAMAN weblloc.
