Introducció
This manual provides detailed instructions for the safe and efficient use of your Kiarixo 20" Pressure Washer Surface Cleaner. Please read this manual thoroughly before operating the device to ensure proper function and to prevent injury or damage.
Marca: Kiarixo
Model: PHO_141O-02s3zS6V
Informació de seguretat
Seguiu sempre les precaucions de seguretat bàsiques quan utilitzeu aquest producte per reduir el risc de lesions o danys.
- Utilitzeu equips de protecció individual adequats, com ara protecció ocular, protecció auditiva i calçat resistent.
- Ensure all connections are secure before operating the pressure washer and surface cleaner.
- Do not direct the high-pressure spray at people, animals, or electrical equipment.
- Operate the surface cleaner on stable, level surfaces.
- Disconnect the surface cleaner from the pressure washer and relieve pressure before performing any maintenance or making adjustments.
- Mantingueu els nens i les mascotes lluny de la zona d'operacions.
Producte acabatview i Components
The Kiarixo 20" Pressure Washer Surface Cleaner is designed for efficient cleaning of large flat surfaces. It features a durable stainless steel construction and a dual-handle design for ease of use.
Figura 1: Acabatview of the Kiarixo 20" Pressure Washer Surface Cleaner and its accompanying accessories, including various connectors, O-rings, Teflon tape, nozzles, an adjustable wrench, and a cleaning needle.
Característiques principals:
- Fast and Ultra-Efficient Cleaning: Features a 20-inch diameter cleaning disc and a high flow rate of 2.7 gallons per minute for extensive coverage and reduced cleaning time.
- Convenient Quick Connector Setup: Equipped with a standard 3/8" quick connector and a 1/4" quick adapter kit for seamless, leak-free connections. Includes an on/off spanner for immediate operation.
- Astounding 4000 PSI High Water Pressure: Rated at 2,465 PSI with a maximum capability of 4,500 PSI. Utilizes a revolutionary 360° rapid dual-nozzle swivel cleaning technology to effectively remove dirt and grime.
- Ergonomic Double-Handle Design: Features a swivel handle with universal casters for easy maneuverability and control over cleaning direction. The swiveling nozzle and brush combination ensures thorough cleaning while keeping the user dry.
- Accessoris professionals: Comes with 8 professional accessories, including hose connectors, adapter kits, and an unclogging needle for comprehensive cleaning and maintenance.
Muntatge i configuració
Follow these steps to assemble your surface cleaner and connect it to your pressure washer.
- Attach the Handle Assembly: Securely connect the dual-handle assembly to the main cleaning disc unit. Ensure the latches are engaged to prevent accidental detachment.
Figura 2: The angle-adjustable handle and universal wheels facilitate easy pushing and maneuverability. The secure latching mechanism ensures the handle remains firmly attached during operation.
- Seleccioneu el connector adequat: Identify the correct quick connector or adapter kit (3/8" Quick Connect, 1/4" Quick Adapter Kit, M22-14mm, M22-15mm) that matches your pressure washer hose.
Figura 3: Various connectors and adapters are included to ensure compatibility with different pressure washer hoses, including standard 3/8" Quick Connect and 1/4" Quick Adapter Kit.
- Connecteu-vos a la rentadora a pressió: Attach the surface cleaner's hose to your pressure washer's spray gun using the selected quick connector. Ensure a tight, leak-free connection.
Figura 4: The surface cleaner features an easy 3/8" Quick Connect for rapid attachment to your pressure washer. Replaceable filters help prevent blockages, and various male adapters are provided for broad compatibility.
- Comproveu els broquets: Verify that the dual rotating nozzles underneath the cleaning disc are clear and properly installed. Use the included unclogging needle if any blockage is suspected.
Instruccions de funcionament
Operating your Kiarixo surface cleaner is straightforward. Follow these steps for effective cleaning.
- Prepara la zona: Clear the surface to be cleaned of any loose debris, large stones, or objects that could interfere with the cleaner's operation or damage the nozzles.
- Inicieu la rentadora a pressió: Turn on your pressure washer according to its manufacturer's instructions. Ensure it is capable of delivering at least 2,465 PSI, with a maximum of 4,500 PSI, and a flow rate of 2.7 GPM for optimal performance.
Figura 5: The surface cleaner is designed for compatibility with high-pressure washers up to 4000 PSI, effectively removing years of stains from various surfaces.
- Engage the Cleaner: With the pressure washer running, press the on/off spanner or trigger on the surface cleaner's handle to begin the water flow. The dual rotating nozzles will activate.

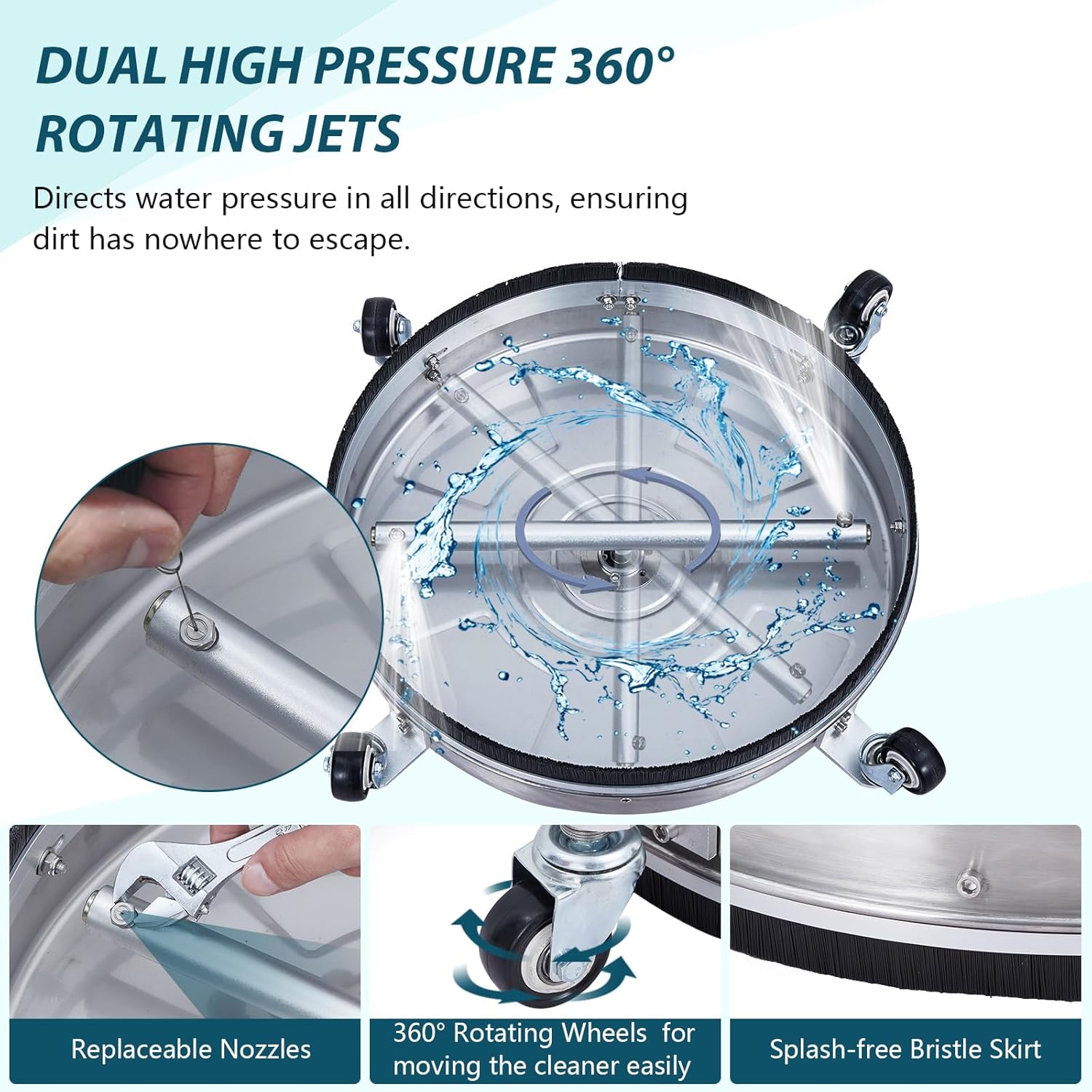

Figura 6: The innovative 360° rotating jets direct water pressure in all directions, ensuring thorough dirt removal. Features include replaceable nozzles, 360° rotating wheels for easy movement, and a splash-free bristle skirt.
- Netegeu la superfície: Guide the surface cleaner over the area to be cleaned using the dual handles and universal casters. Move at a steady, even pace to ensure consistent cleaning. The 20-inch cleaning disc provides wide coverage.
Figura 7: The 20-inch stainless steel cleaning disc offers wide coverage, significantly improving cleaning efficiency compared to standard spray nozzles. It is compatible with and quickly connects to pressure washers.
- Aplicacions: This surface cleaner is ideal for various outdoor surfaces including driveways, sidewalks, patios, and decks.
Figura 8: The Kiarixo surface cleaner is suitable for a wide range of applications, including cleaning driveways, sidewalks, patios, and decks, providing efficient and uniform results.
- Neteja final: Once the area is clean, release the spanner/trigger and turn off your pressure washer. Disconnect the surface cleaner.
Manteniment
Un manteniment regular garanteix la longevitat i el rendiment òptim del vostre netejador de superfícies.
- Neteja de broquets: Periodically inspect the nozzles for clogs or wear. Use the included unclogging needle to clear any debris. Replace worn nozzles promptly to maintain cleaning efficiency.
- Neteja general: After each use, rinse the surface cleaner thoroughly with clean water to remove dirt and chemical residues. Wipe down the exterior with a damp tela.
- Lubricació: Check the bearing and rotating parts for smooth operation. Lubricate as needed according to general pressure washer accessory maintenance guidelines.
- Emmagatzematge: Store the surface cleaner in a clean, dry place, protected from freezing temperatures.
Resolució de problemes
If you encounter issues with your surface cleaner, refer to the following common problems and solutions.
| Problema | Causa possible | Solució |
|---|---|---|
| Uneven cleaning or streaks | Clogged or worn nozzles | Clean nozzles with unclogging needle or replace them. |
| Reduced pressure or flow | Insufficient pressure washer output; clogged filter/inlet; hose kinked | Ensure pressure washer meets specifications (min 2465 PSI, 2.7 GPM). Check and clean inlet filter. Straighten hose. |
| Fuita d'aigua per les connexions | Loose connections; worn O-rings | Tighten all connections. Replace worn O-rings (spares included). Apply Teflon tape if necessary. |
| Cleaner not moving smoothly | Wheels obstructed or damaged | Clear any debris from wheels. Inspect wheels for damage. |
Especificacions
Technical specifications for the Kiarixo 20" Pressure Washer Surface Cleaner.
Figura 9: Més detallatview of professional accessories included and key product dimensions and specifications.
- Dimensions del producte: 29.53 x 24.02 x 10.24 polzades
- Pes de l'article: 28.4 lliures
- Marca: Kiarixo
- Número de model: PHO_141O-02s3zS6V
- Font d'alimentació: Hydraulic Powered
- Color: Plata
- Pressió màxima: 4500 PSI (lliura per polzada quadrada)
- Pressió nominal: 2465 PSI
- Cabal màxim: 2.7 GPM (galons per minut)
- Material: Acer inoxidable
- Cleaning Disc Diameter: 20 polzades
- Rang de pressió de treball: 2000 - 4000 PSI
- Temperatura màxima: 140 °F
- Cleanable Area per Unit Time: Approximately 15 mins / 500 sq ft
Garantia i Suport
For warranty information or technical support, please contact Kiarixo customer service directly. Refer to the product packaging or the manufacturer's official weblloc web per obtenir les dades de contacte i els termes de garantia més actualitzats.
Fabricant: Kiarixo
