JOYING JY-UTD14N4 12.95-inch Android 13 Car Stereo User Manual

1. Introducció

This manual provides detailed instructions for the installation, operation, and maintenance of your JOYING JY-UTD14N4 12.95-inch Android 13 Car Stereo. Please read this manual thoroughly before using the product to ensure proper function and safety. Keep this manual for future reference.

Image 1.1: The JOYING 12.95-inch Android 13 Car Stereo main unit, showcasing its large display and user interface.

2. Què hi ha a la caixa

Desembaleu amb cura el contingut i assegureu-vos que hi hagi tots els elements:

• 12.95" radio x1
• Double Din Cage x1
• Left & Right Bracket x1
• Reinforced Shims x1
• Plastic Trim Out x1
• Manual d'instal·lació x1
• Antena WiFi x1
• Antena GPS x1
• Antena 4G x2
• Micròfon extern x1
• USB cable x2
• AR Cable x1
• Screen Ribbon Cable x1
• ISO Cable x1
• Manual d'usuari x1

Imatge 2.1: acabatview of all accessories and components included with the JOYING JY-UTD14N4 car stereo.

3. Característiques clau

• Arrencada ràpida: The unit starts up and enters the user interface in approximately 2 seconds after the car key is inserted. Initial boot-up may take 30-40 seconds.
• Optical Fiber and Coaxial Digital Output: Provides direct connection to external amplifiers with Optical Fiber or Coaxial Digital Input for enhanced sound quality.
• Built-in 4G Module: Supports SIM card insertion for internet access (data only, no calls or SMS). Compatible with FDD-LTE: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B38/B66/B71 and TDD-LTE: B41.
• Navegació GPS: Equipped with precise GPS engines and an antenna for accurate positioning and faster real-time navigation. Supports offline maps by downloading data to the stereo. Mobile phone map data can be synchronized via CarPlay/Android Auto.
• Android Auto i Apple CarPlay: Connect your mobile phone via USB cable or Bluetooth to access phone apps, navigation, calls, and music on the larger screen.
• Control del volant (SWC): Supports steering wheel controls for easy song switching, radio channel adjustment, and volume control. Note: Vehicles with a CAN system may require an additional CANbus cable.
• Split-screen Multitasking: Allows running two applications simultaneously on the screen, such as navigation and media playback.
• Sortida HDMI: Full digital image and sound interface for uncompressed audio and video signals. Supports projection screen display for passengers and on-screen display with 1080P clarity. HDMI cable not included.
• Configuració personalitzada: Customize car boot logo, wallpapers, and adjustable screen brightness.
• Upgraded Cooling System: Dual heat sink design for superior heat dissipation and improved temperature control. Features a warning value setting for volume or CPU temperature to prevent overheating.
• Upgraded WiFi Signal: Independent WiFi antenna ensures stable signal quality and fast internet access (802.11a/b/g/n/AC, 2.4GHz/5GHz).

Image 3.1: The Android Auto interface displayed on the JOYING car stereo.

Image 3.2: The Apple CarPlay interface displayed on the JOYING car stereo.

Image 3.3: Demonstration of the split-screen multitasking feature, showing navigation and video playback simultaneously.

Image 3.4: Illustration of the HDMI output feature, allowing connection to external monitors for passenger entertainment.

4. Instal·lació

Installation of the JOYING JY-UTD14N4 car stereo requires careful attention to wiring and mounting. It is recommended to consult a professional for installation if you are unfamiliar with car audio systems.

4.1 Notes generals d'instal·lació

• You may need an installation frame kit with an inner size of 178 x 102mm, a special ISO harness, an amplifier adapter, or a CANbus decoder depending on your car's specific situation.
• The unit does not support factory car GPS antenna, backup rear camera, Bluetooth, USB, or microphone. Only JOYING accessories are supported.
• Optional accessories like DVR, OBDII scanner, reverse camera, TPMS, and steering wheel controller are not included and can be ordered separately.

4.2 Installation Structure and Adjustment

The fixing position of the left and right brackets can be extended or telescoped to achieve the best fixing position according to your car's center console, adapting to a wider range of vehicles. If your car is a Hyundai or Kia brand, contact customer support for a different bracket.

Image 4.1: Diagram illustrating the adjustable installation structure, allowing for flexible positioning within the car's dashboard.

4.3 Guia de vídeo d'instal·lació

5. Instruccions de funcionament

5.1 Aprenentatge del control del volant

To configure your steering wheel controls with the car stereo, follow these steps:

1. Open the "SW Learning" application on the head unit.
2. Click "Start" within the app.
3. Press a button on your steering wheel (e.g., Previous song).
4. Select the corresponding function on the head unit's screen.
5. Repeat for all desired steering wheel buttons (Next song, Volume +, Volume -, Mode switch).
6. Click "End" to complete the setting.

5.2 Personalized Settings

Customize your stereo's appearance and functionality:

• Car Boot Logo: Select a custom logo to display during startup.
• Customizable Wallpapers: Choose from various pre-installed wallpapers or upload your own.
• Brillantor de pantalla ajustable: Modify the screen brightness for optimal visibility in different lighting conditions.

Image 5.1: The personalized settings menu, showing options for car boot logo, wallpapers, and screen brightness adjustment.

6. Especificacions

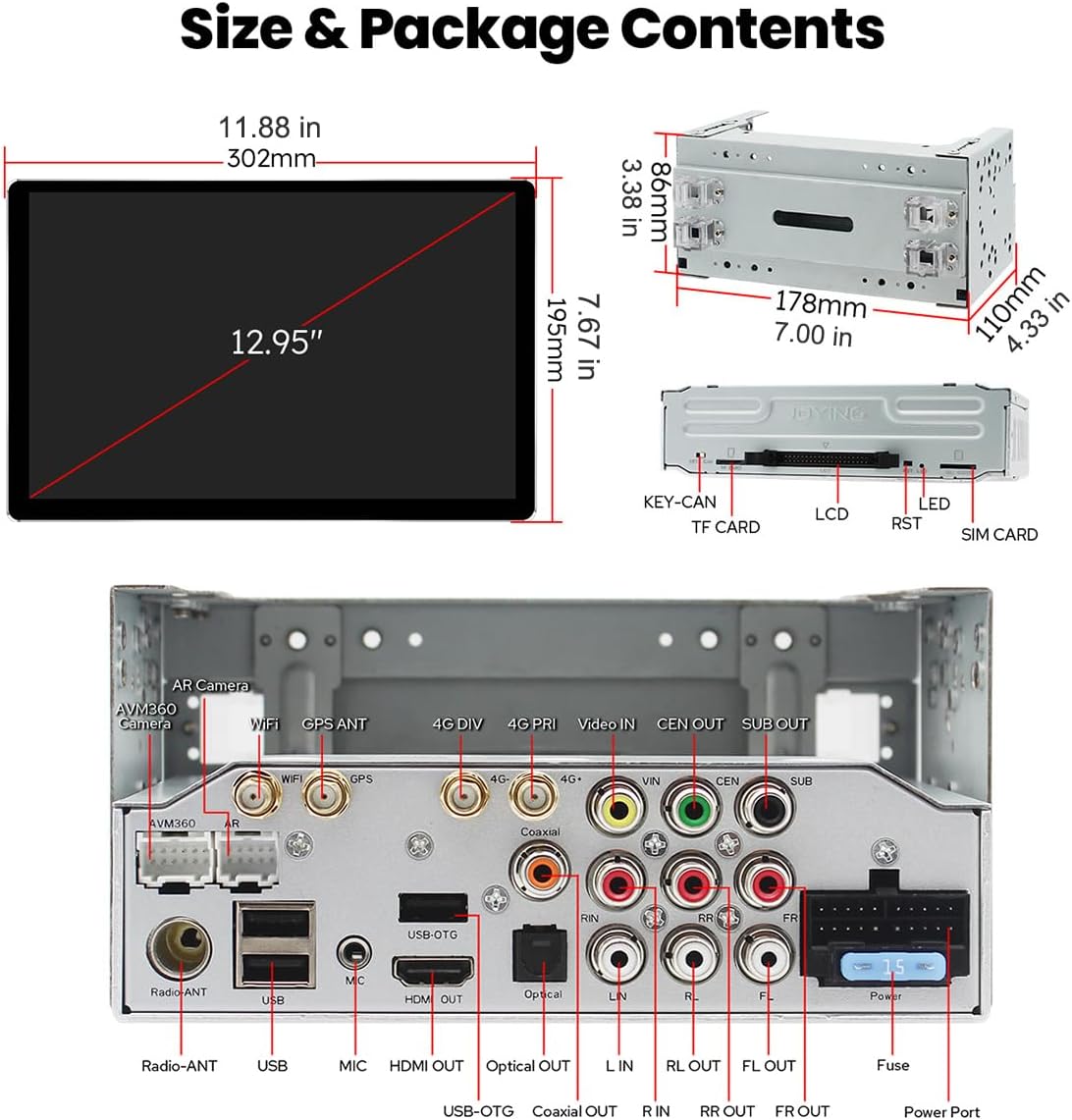

Image 6.1: Detailed diagram illustrating the dimensions of the 12.95-inch display and the various input/output ports on the main unit.

7. Solució De Problemes

If you encounter issues with your JOYING car stereo, consider the following general troubleshooting steps:

• Sense energia: Check all power connections and fuses. Ensure the car's ignition is on.
• Sense so: Verify speaker connections, volume levels, and audio source selection. Check amplifier connections if applicable.
• Pantalla tàctil que no respon: Try restarting the unit. If the issue persists, a factory reset might be necessary (consult the full installation manual for specific steps).
• Problemes amb el senyal GPS: Assegureu-vos que l'antena GPS estigui instal·lada correctament i que tingui una vista clara view del cel. Comproveu la connexió de l'antena.
• Bluetooth/Wi-Fi Connectivity Problems: Ensure the antennas are connected. Restart the unit and your mobile device. Check network settings.
• Els comandaments del volant no funcionen: Re-perform the SW Learning process as described in Section 5.1. Verify CANbus connection if required for your vehicle.

For more specific issues, refer to the comprehensive installation manual included in your package or contact JOYING customer support.

8. Manteniment

Proper maintenance ensures the longevity and optimal performance of your car stereo:

• Neteja de la pantalla: Use a soft, lint-free cloth to gently wipe the touchscreen. Avoid abrasive cleaners or harsh chemicals that can damage the display.
• Actualitzacions de programari: Periodically check for software updates from JOYING to ensure you have the latest features and bug fixes. Follow the instructions provided with the update.
• Control de temperatura: The unit has an upgraded cooling system. Ensure proper ventilation around the unit to prevent overheating, especially during prolonged use or in hot climates.
• Comprovacions de connexió: De tant en tant, comproveu totes les connexions del cablejat per assegurar-vos que estiguin ben fixades i que no presentin corrosió.

9. Garantia i Suport

Your JOYING JY-UTD14N4 car stereo comes with a 2 anys de garantiaSi us plau, conserveu el comprovant de compra per a reclamacions de garantia.

For technical support, warranty inquiries, or questions regarding accessories, please contact JOYING customer service through their official channels or the retailer where you purchased the product.
