1. Introducció
Welcome to the COSWHEEL GT20 Electric Bike user manual. This guide provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new electric bike. Please read this manual thoroughly before your first ride to ensure optimal performance and safety.
Image: The COSWHEEL GT20 Electric Bike, featuring its robust frame, fat tires, and distinctive design.
2. Informació de seguretat
Your safety is paramount. Always wear a helmet and appropriate safety gear when riding. Adhere to all local traffic laws and regulations. Perform a pre-ride inspection before each use, checking brakes, tires, battery level, and all connections.
Característiques clau de seguretat:
- Frens de disc hidràulics: Equipped with efficient hydraulic disc braking system on both front and rear wheels for reliable stopping power.
- Sistema d'il·luminació de seguretat: Features classic angel eye headlight, front and rear turn signal lights, and a highlight LED rear brake light for enhanced visibility.
Video: Demonstrates the COSWHEEL GT20 Electric Bike's safety lighting system, including the headlight, turn signals, and rear brake light, enhancing rider visibility.
3. Components mésview
Familiarize yourself with the main components of your COSWHEEL GT20 Electric Bike:
- Motor sense escombretes de 1500 W: Proporciona una assistència potent per a diversos terrenys.
- 48V/25Ah Removable Battery: High-capacity battery for extended range.
- Pneumàtics gruixuts de 20" x 4.0": All-terrain tires for stability and grip.
- Dual Hydraulic Disc Brakes: Front and rear braking system for reliable stops.
- Suspensió doble: Front aluminum alloy shock absorber and rear shock absorber for a comfortable ride.
- Shimano 7-Speed Gears: Permet un pedaleig versàtil i un control de velocitat.
- Large-sized LCD Display: Shows speed, riding time, mileage, and battery level.
- Sistema d'il·luminació: Angel eye headlight, front & rear turn signals, LED rear brake light.
Imatge: Més deview of key features including IP65 waterproof rating, Shimano 7-speed derailleur, comfortable sponge cushion, highlight LED rear light, and intelligent controller.
Imatge: Detallada view of the classic angel eye headlights, dual hydraulic disc brake, large-sized LCD display, and dual suspension system.
4. Muntatge i muntatge
Your COSWHEEL GT20 Electric Bike arrives 85% pre-assembled. The remaining assembly typically involves attaching the handlebars, front wheel, pedals, and fenders. A tool bag and user manual are included to assist you. For detailed visual instructions, please refer to the official installation tutorial video provided by COSWHEEL.
Passos inicials:
- Carefully unbox the bike and remove all packaging materials.
- Attach the handlebars, ensuring they are securely tightened.
- Install the front wheel and secure the hydraulic disc brake caliper.
- Attach the left and right pedals (note L/R markings).
- Install the front and rear fenders.
- Carregueu completament la bateria abans del primer ús.
Image: Illustrates the dimensions of the COSWHEEL GT20 and recommended rider height (5.1ft to 6.5ft) and payload capacity (330lbs).
5. Operating Your COSWHEEL GT20
Modes de conducció:
El GT20 ofereix tres modes de conducció diferents que s'adapten a les teves preferències i al terreny:
- Mode elèctric: Twist the throttle for full electric power without pedaling.
- Mode d'assistència al pedaleig (PAS): Provides motor assistance as you pedal, making rides easier and extending range.
- Mode bicicleta: Ride like a traditional bicycle, using only pedal power.
Image: Diagram illustrating the three riding modes: Bike Mode (pedaling only), Pedal Assist Mode (pedaling with motor assistance), and Electric Mode (throttle only).
Ús i càrrega de la bateria:
The 48V/25Ah removable battery provides a range of 83-93 miles per full charge in pedal-assist mode. Charging takes approximately 3.5-8 hours. You can charge the battery directly on the bike or remove it for charging indoors.
Image: Visual representation of the 48V 25Ah Lithium Battery, highlighting its removable high capacity, 3.5-8 hours full charge time, and 93 miles max range.
Video: Showcases the COSWHEEL GT20 Electric Motorcycle with its 48V/25AH battery, emphasizing its power and range capabilities.
Capacitat tot terreny:
The 20" x 4.0" fat tires are designed for high wear resistance and superior grip, allowing you to confidently ride on various surfaces including snow, mountain roads, sand, beach, and city streets. The dual suspension system further enhances comfort and stability on uneven terrain.
Image: Highlights the 20" x 4" fat tires and their adaptability to various terrains: snow, mountain, sand, beach, and city roads.
Video: Features the COSWHEEL Electric Mountain Bike conquering various terrains with ease, demonstrating its robust design and powerful motor.
6. Manteniment
Regular maintenance ensures the longevity and safe operation of your COSWHEEL GT20. Always turn off the bike and remove the battery before performing any maintenance.
Atenció general:
- Neteja: Netegeu el marc amb anunciamp drap. Eviteu rentar directament els components elèctrics a alta pressió.
- Pneumàtics: Check tire pressure regularly (refer to tire sidewall for recommended PSI). Inspect for wear and punctures.
- Frens: Periodically check brake pads for wear and ensure hydraulic lines are intact. Test brake effectiveness before each ride.
- Cadena: Mantingueu la cadena neta i lubricada per garantir canvis de marxes suaus i evitar l'oxidació.
Cura de la bateria:
- Guardeu la bateria en un lloc fresc i sec quan no la feu servir.
- Eviteu descarregar completament la bateria amb freqüència.
- Charge the battery at least once every two months if not used regularly to maintain its health.
7. Solució De Problemes
This section covers common issues you might encounter with your COSWHEEL GT20 and their potential solutions. If you experience a problem not listed here, or if the suggested solutions do not resolve the issue, please contact customer support.
Problemes comuns:
| Problema | Causa possible | Solució |
|---|---|---|
| La bicicleta no s'encén. | Bateria no carregada o no ben col·locada. | Assegureu-vos que la bateria estigui completament carregada i ben inserida. Comproveu el botó d'engegada. |
| El motor no ajuda. | Pedal-assist level too low, or throttle not engaged. | Increase pedal-assist level on the display. Ensure throttle is twisted correctly in electric mode. |
| Els frens es noten febles. | Pastilles de fre desgastades o aire a les línies hidràuliques. | Inspect brake pads for wear and replace if necessary. If hydraulic, professional service may be required to bleed the lines. |
| Sorolls inusuals durant la conducció. | Components solts, cadena seca o deixalles. | Check all bolts and connections. Lubricate the chain. Inspect for any foreign objects. |
8. Especificacions
Detailed technical specifications for the COSWHEEL GT20 Electric Bike:
| Característica | Especificació |
|---|---|
| Motor | 1500W (1000W rated) Brushless Motor, 80N.M Torque |
| Bateria | 48V/25Ah Removable Lithium Battery (UL-certified, BMS system) |
| Interval màxim | 83-93 Miles (Pedal-Assist Mode) |
| Temps de càrrega | 3.5-8 hores |
| Pneumàtics | 20" x 4.0" Fat Tires (All Terrain, Directional Tread) |
| Frens | Dual Hydraulic Disc Brakes (Front & Rear) |
| Suspensió | Dual Suspension (Front Aluminum Alloy Shock Absorber, Rear Shock Absorber) |
| Engranatges | Shimano de 7 velocitats |
| Material del marc | Aliatge d'alumini |
| Pes de l'article | 86 lliures |
| Recomanació de pes màxim | 330.7 lliures |
| Dimensions (LxWxH) | 70.8 x 27.2 x 41.7 polzades |
Imatge: Primer pla view of the 1500W peak powerful brushless motor, highlighting its 31MPH max speed, 80N.m max torque, and 35° climbing slope capability.

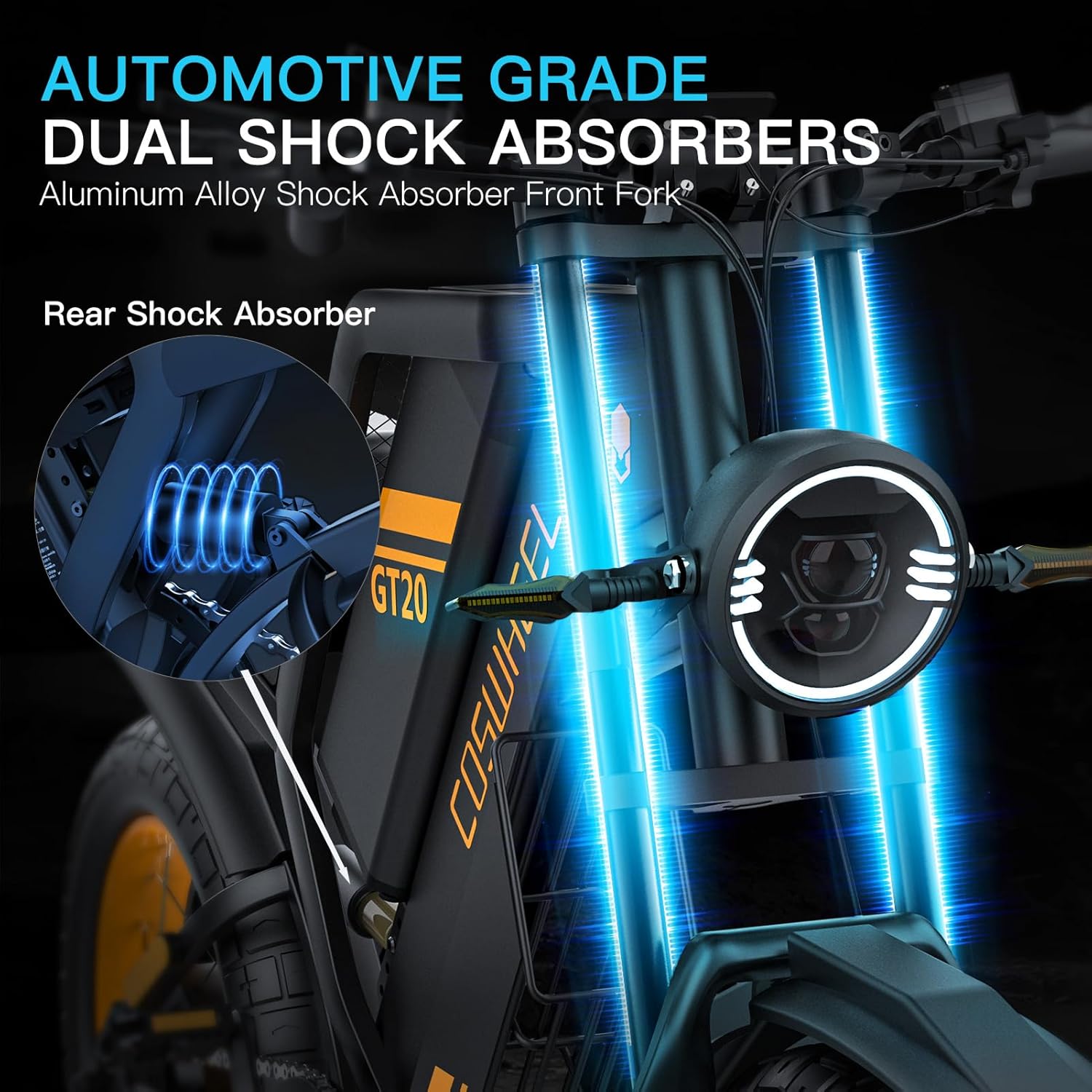

Image: Illustrates the automotive-grade dual shock absorbers, including the aluminum alloy shock absorber front fork and rear shock absorber, for enhanced ride comfort.
9. Garantia i Suport
Informació de la garantia:
Each COSWHEEL Electric Bike comes with a 1-year all-inclusive warranty service from the date of purchase. This warranty covers manufacturing defects and ensures your peace of mind.
Atenció al client:
COSWHEEL is committed to providing excellent customer service. If you have any questions regarding assembly, operation, maintenance, or require technical guidance, please do not hesitate to contact our professional technical support team. We aim to reply to all inquiries within 24 hours.
Please retain your original packaging for some time in case of any issues requiring return or service.
