Bonsenkitchen VS5100 Food Vacuum Sealer Machine Instruction Manual

1. Introducció

Thank you for choosing the Bonsenkitchen VS5100 Food Vacuum Sealer. This appliance is designed to preserve food freshness for longer periods, reduce food waste, and prepare ingredients for Sous Vide cooking. Please read this manual thoroughly before operating the machine to ensure safe and efficient use. Keep this manual for future reference.

2. Instruccions de seguretat importants

• Llegiu totes les instruccions abans d'utilitzar.
• No submergiu l'aparell, el cable d'alimentació ni l'endoll en aigua ni en altres líquids.
• Aquest aparell no està pensat per ser utilitzat per persones (inclosos nens) amb capacitats físiques, sensorials o mentals reduïdes, o amb manca d'experiència i coneixements, tret que hagin rebut la supervisió o instruccions sobre l'ús de l'aparell per una persona responsable de la seva seguretat. .
• Desendolleu la presa de corrent quan no utilitzeu i abans de netejar.
• No feu servir cap aparell amb un cable o un endoll danyats, o després que l'aparell funcioni malament o s'hagi fet malbé de cap manera.
• Utilitzeu només els accessoris recomanats pel fabricant.
• No utilitzar a l'aire lliure.
• No col·loqueu-lo sobre o prop d'un cremador de gas o elèctric calent, ni en un forn calent.
• Always ensure the lid is properly closed and locked before operating.
• Exercise extreme caution when handling hot sealing strip.

3. Producte acabatview

The Bonsenkitchen VS5100 features a robust design with intuitive controls for efficient food preservation.

3.1 Components

Descripció de la imatge: An exploded diagram of the Bonsenkitchen VS5100 vacuum sealer, highlighting its key components. These include (1) the control panel with buttons, (2) external accessory port, (3) bag clip, (4) integrated cutter, (5) internal bag roll storage, and (6) the vacuum chamber.

1. Tauler de control: Contains various buttons for different sealing modes and power.
2. External Accessory Port: For connecting external vacuum hoses for containers.
3. Bag Clip: Holds the vacuum bag in place during operation.
4. Tallador integrat: For custom-sizing vacuum bags from a roll.
5. Bag Roll Storage: Internal compartment for storing a vacuum bag roll.
6. Cambra de buit: Zona per on s'extreu l'aire de la bossa.
7. Tira de segellat: Heats to create a secure seal.
8. Easy-Lock Handle: For securing the lid with one hand.

3.2 Funcions del tauler de control

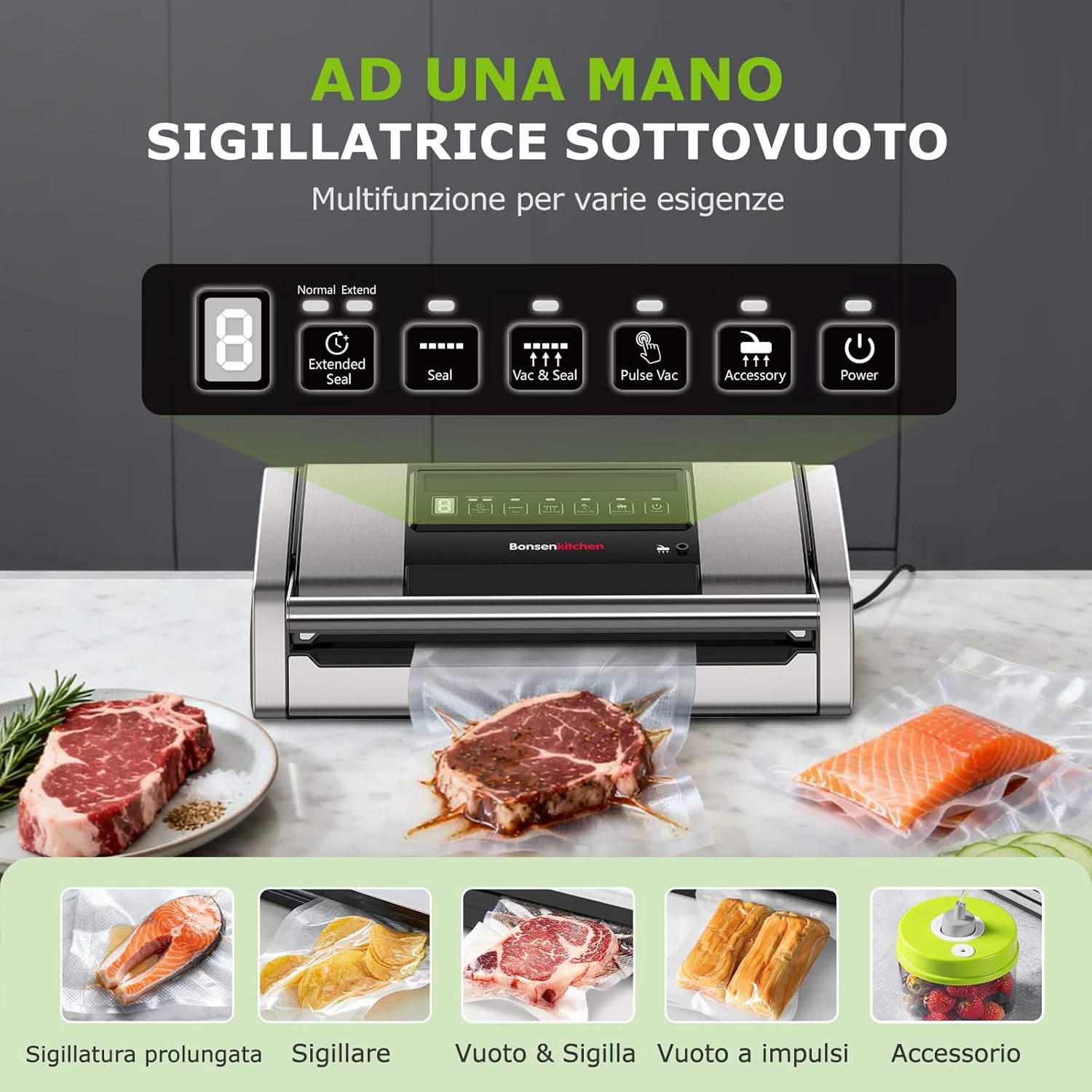

Descripció de la imatge: Un primer pla view of the Bonsenkitchen VS5100 control panel, displaying buttons for 'Extended Seal', 'Seal', 'Vac & Seal', 'Pulse Vac', 'Accessory', and 'Power'. An LED display shows a number '8'.

• Extended Seal: Extends the sealing time for thicker bags or wet items.
• Segell: Creates a seal without vacuuming, useful for making bags from a roll.
• Buidatge i segellat: Automatically vacuums and seals the bag. Ideal for dry foods.
• Vacuum de pols: Allows manual control over the vacuum process, suitable for delicate or moist foods.
• Accessori: Activates the vacuum function for external containers.
• Potència: Encén/apaga la màquina.

4. Configuració

4.1 Desembalatge i inspecció inicial

1. Traieu amb cura la segelladora al buit i tots els accessoris de l'embalatge.
2. Check for any signs of damage. Do not use if the appliance or cord is damaged.
3. Netegeu l'exterior de la màquina amb anunciamp drap. Assegureu-vos que la tira de segellat i la cambra de buit estiguin netes i seques.

4.2 Loading a Vacuum Bag Roll

Descripció de la imatge: The Bonsenkitchen VS5100 vacuum sealer is shown alongside its complete starter kit. This includes one roll of vacuum bags (28cm x 600cm), ten pre-cut vacuum bags (20cm x 30cm), an air suction tube, three external interfaces, a bag clip, and a user manual.

1. Obriu la tapa de la segelladora al buit.
2. Place the vacuum bag roll into the internal storage compartment (5).
3. Pull out a sufficient length of bag material.
4. Use the integrated cutter (4) to cut the bag to the desired length.
5. Place one end of the cut bag over the sealing strip. Close the lid and press the 'Seal' button to create the bottom seal of your custom bag.

4.3 Connexió d'alimentació

Plug the power cord into a standard electrical outlet. The machine is now ready for operation.

5. Instruccions de funcionament

5.1 General Vacuum Sealing Steps

Descripció de la imatge: This image illustrates the ease of use of the Bonsenkitchen VS5100 vacuum sealer. It shows a user initiating the vacuum and seal process with a single button press and demonstrating the convenient one-hand operation of the device.

1. Place the food item into a vacuum sealer bag, leaving at least 7-10 cm (3-4 inches) of space from the top edge.
2. Ensure the open end of the bag is clean, dry, and free of food particles or wrinkles.
3. Open the lid of the vacuum sealer. Place the open end of the bag into the vacuum chamber (6), ensuring it lies flat over the sealing strip. Use the bag clip (3) to hold it in place.
4. Close the lid and press down firmly on the Easy-Lock handle until it clicks into place.
5. Select the appropriate mode based on your food type (see 5.2 Operating Modes).
6. The machine will automatically vacuum and seal (for 'Vac & Seal') or perform the selected function.
7. Once the process is complete, the indicator light will turn off. Press the release buttons on the sides to open the lid and remove the sealed bag.

5.2 Modes de funcionament

Descripció de la imatge: This graphic details the five primary functions of the vacuum sealer, showing examples of food suitable for each mode. 'Extended Seal' is for items like salmon, 'Seal' for snacks like chips, 'Vac & Seal' for meats and nuts, 'Pulse Vac' for delicate items like bread and grapes, and 'Accessory' for vacuuming bottles or containers.

• Vac & Seal (Automatic Vacuum & Seal): Press this button for automatic vacuuming and sealing of dry foods.
• Pulse Vac (Manual Vacuum Control): Press and hold this button to manually control the vacuum process. Release the button when the desired vacuum level is reached, then press 'Seal' to complete the process. This is ideal for delicate foods (e.g., bread, pastries) or moist foods where over-vacuuming could crush or extract liquids.
• Seal (Manual Seal): Use this button to create a seal without vacuuming. This is useful for making custom-sized bags from a roll or for sealing bags that do not require vacuuming.
• Extended Seal: If you are sealing bags with a lot of moisture or thicker bags, press this button to increase the sealing time, ensuring a stronger, more secure seal.
• Accessori: Connect the external vacuum hose to the accessory port (2) and to a compatible vacuum container or bottle stopper. Press this button to begin vacuuming the container.

6. Manteniment i Neteja

6.1 Cleaning the Vacuum Sealer

1. Desconnecteu sempre l'aparell abans de netejar-lo.
2. Netegeu l'exterior de la màquina amb un damp tela. No utilitzeu netejadors abrasius ni dissolvents.
3. Clean the vacuum chamber (6) and sealing strip with a damp cloth after each use, especially if any liquids or food particles have entered. Ensure these areas are completely dry before storing or next use.
4. No submergiu l'aparell en aigua o cap altre líquid.

6.2 Emmagatzematge

Store the vacuum sealer in a dry, clean place. For optimal performance and to prevent deformation of the sealing strip, it is recommended to store the machine with the lid unlatched or slightly open.

7. Solució De Problemes

• La màquina no s'encén: Assegureu-vos que el cable d'alimentació estigui ben connectat a una presa de corrent que funcioni. Comproveu si s'ha premut el botó d'engegada.
• Machine vacuums but does not seal: Ensure the bag is placed correctly over the sealing strip. Check if the sealing strip is clean and free of debris. The sealing strip may be too hot from continuous use; allow it to cool down for a few minutes.
• Vacuum is weak or incomplete: Check for wrinkles in the bag inside the vacuum chamber. Ensure the lid is properly closed and locked with the Easy-Lock handle. Inspect the bag for any punctures or tears. Ensure the foam gaskets around the vacuum chamber are clean and intact.
• Air leaks into the bag after sealing: The seal might be incomplete. Try using the 'Extended Seal' mode. Ensure the bag material is suitable for vacuum sealing. Check for sharp edges on food items that might have punctured the bag.
• Bag melts during sealing: The sealing strip might be too hot. Allow the machine to cool down between seals. For thinner bags, consider using a shorter sealing time if available, or ensure you are not using 'Extended Seal' unnecessarily.

8. Especificacions

9. Garantia i Suport

This Bonsenkitchen VS5100 Food Vacuum Sealer includes three years of technical support from the manufacturer. For any questions, troubleshooting assistance, or warranty claims, please contact Bonsenkitchen customer service through their official website or the retailer where the product was purchased. Please have your model number (VS5100) and proof of purchase ready when contacting support.
