1. Introducció
Thank you for choosing the Kismile Water Cooler Dispenser with Ice Maker. This multi-functional appliance is designed to provide convenient access to hot, cold, and freshly made ice, making it ideal for various settings including homes and offices. Its integrated design saves space by combining three essential functions into one compact unit.
2. Informació de seguretat
Llegiu atentament totes les instruccions de seguretat abans de fer servir l'aparell. Conserveu aquest manual per a futures consultes.
- Assegureu-vos que l'aparell estigui col·locat en una superfície estable i plana.
- No feu funcionar l'aparell amb un cable d'alimentació o endoll danyats.
- Manteniu l'aparell lluny de la llum solar directa i de les fonts de calor.

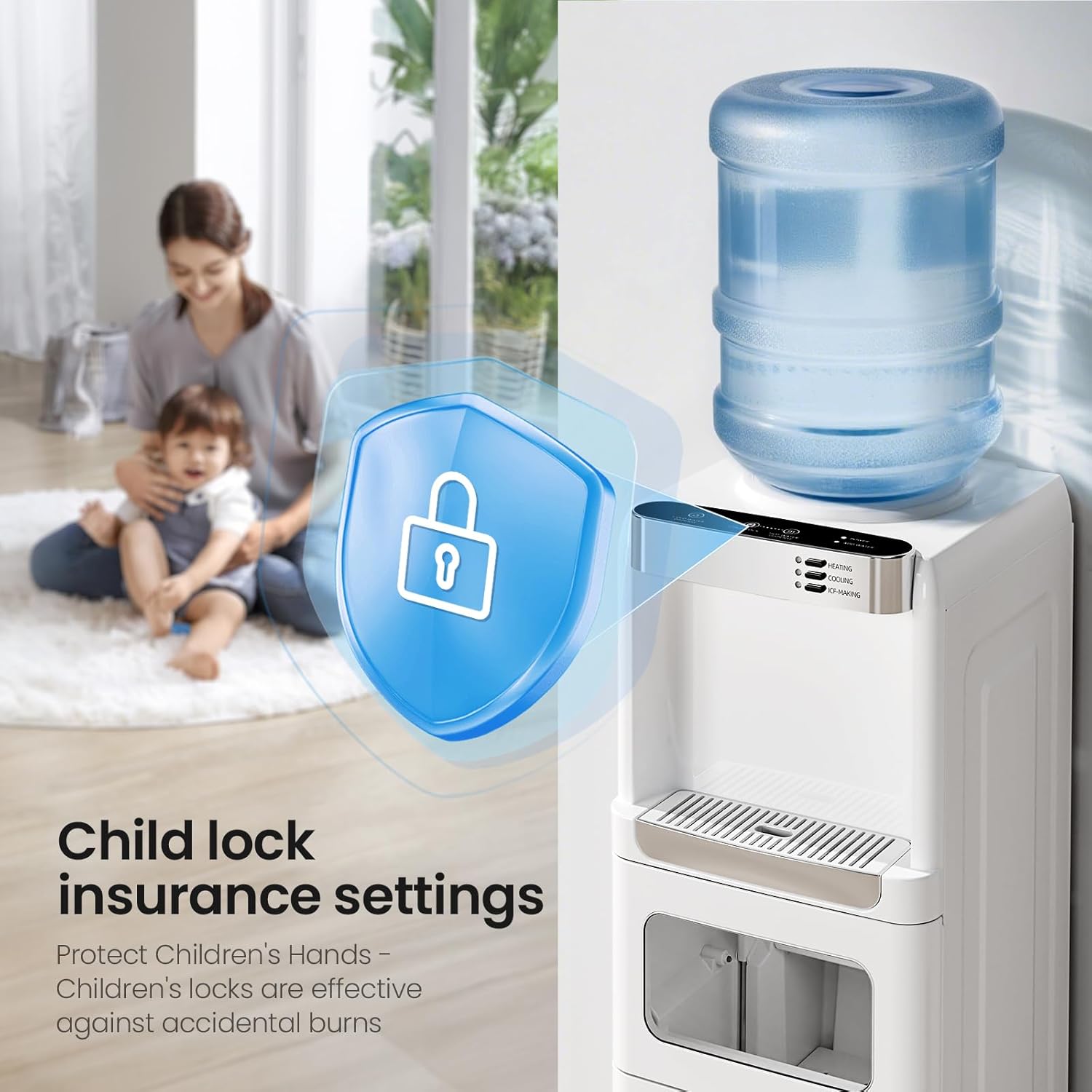

- Pany de seguretat infantil: The hot water dispenser is equipped with a child safety lock to prevent accidental scalding. Always engage the child lock when not in use, especially in households with children.
3. Configuració
- Desembalatge: Carefully remove the dispenser from its packaging. Inspect for any damage.
- Col·locació: Position the dispenser on a firm, level surface, ensuring adequate ventilation around the unit. Avoid placing it near direct heat or in direct sunlight.
- Instal·lació d'ampolles d'aigua: This dispenser uses a top-loading system. Place a 3 or 5-gallon water bottle onto the top reservoir. Ensure the bottle is securely seated and the puncturable seal is properly engaged to track water levels.
- Connexió d'alimentació: Connecteu el cable d'alimentació a una presa elèctrica amb connexió a terra.
- Buidat inicial: Before first use, dispense and discard several cups of water from both hot and cold spouts to flush the system.
4. Instruccions de funcionament
The Kismile Water Cooler Dispenser features an intelligent control panel with touch and mechanical buttons for intuitive operation.
4.1 Tauler de control acabatview
- Cold Water Dispense: Press the 'Cold Water Dispense' button to get chilled water.
- Hot Water Dispense: Press the 'Hot Water Dispense' button for hot water. Remember to disengage the child lock first.
- Bloqueig per a nens: Activate or deactivate the child lock for the hot water dispenser by pressing the 'Child Lock' button.
- Potència: Indica si la unitat està encesa.
- Afegeix aigua: Illuminates when the water bottle needs refilling.
- Heating/Cooling/Ice-Making: Use the mechanical buttons to activate or deactivate these functions as needed.
4.2 Fabricació de gel
The dispenser can produce up to 33 pounds of ice in 24 hours, with 9 bullet-shaped ice cubes ready in approximately 6-11 minutes. It has a 2.5L ice storage capacity.
- Ensure the 'Ice-Making' button is activated on the control panel.
- The unit will automatically begin producing ice.
- Once the ice storage is full, the ice maker will automatically stop.
- Use the provided scoop to retrieve ice from the ice compartment.
4.3 Dispensació d'aigua
- Col·loqueu la vostra tassa a la safata de degoteig.
- For cold water, press the 'Cold Water Dispense' button.
- For hot water, first disengage the child lock, then press the 'Hot Water Dispense' button.
5. Manteniment
- Neteja de l'exterior: Netegeu les superfícies exteriors amb un damp tela. No utilitzeu netejadors abrasius.
- Safata de degoteig: Regularly remove and empty the drip tray to prevent overflow and maintain hygiene. The drip tray is removable for easy cleaning.
- Neteja interior: Periodically clean the water reservoirs according to the detailed instructions in the full user manual (not provided in this summary).
6. Solució De Problemes
- Sense dispensació d'aigua: Check if the water bottle is empty. The 'Add Water' indicator will light up if the bottle needs replacement. Ensure the bottle is correctly installed.
- Sense producció de gel: Verify that the 'Ice-Making' function is activated. Check if the water reservoir has sufficient water. The ice maker automatically stops when the ice storage is full.
- No surt aigua calenta: Ensure the child safety lock is disengaged.
- Aigua no prou calenta/freda: Allow sufficient time for the heating/cooling elements to reach the desired temperature after activation.
7. Especificacions
| Característica | Detall |
|---|---|
| Marca | Somriure |
| Número de model | WD5815-1 |
| Color | Blanc |
| Material | Plàstic |
| Capacity (Water Bottles) | 3 o 5 galons |
| Dimensions del producte | 11.42 "P x 11.81" W x 32.91" H |
| Pes de l'article | 33 lliures |
| Capacitat de fabricació de gel | 33 lbs per 24 hours (9 cubes in 6-11 minutes) |
| Capacitat d'emmagatzematge de gel | 2.5L (approx. 0.66 gallons) |
| Potència de calefacció | 320W |
| Potència de refrigeració | 155W |
8. Garantia i Suport
For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or contact Kismile customer service directly. Contact details can typically be found on the manufacturer's weblloc o en els materials d'embalatge.
