1. Introducció
This manual provides instructions for the proper use and care of your Pagani Design PD1795 Quartz Watch. Please read this manual thoroughly to ensure optimal performance and longevity of your timepiece. The PD1795 features a precise Japan VX3H quartz movement, offering time, date, day, and moon phase functions within a durable stainless steel case and sapphire mirror.
2. Producte acabatview
The Pagani Design PD1795 is a men's quartz watch designed for reliability and functionality. It incorporates a unique moon phase display, a date sub-dial, and a day-of-the-week sub-dial. The watch is equipped with a scratch-resistant synthetic sapphire mirror and offers 100 meters of water resistance.

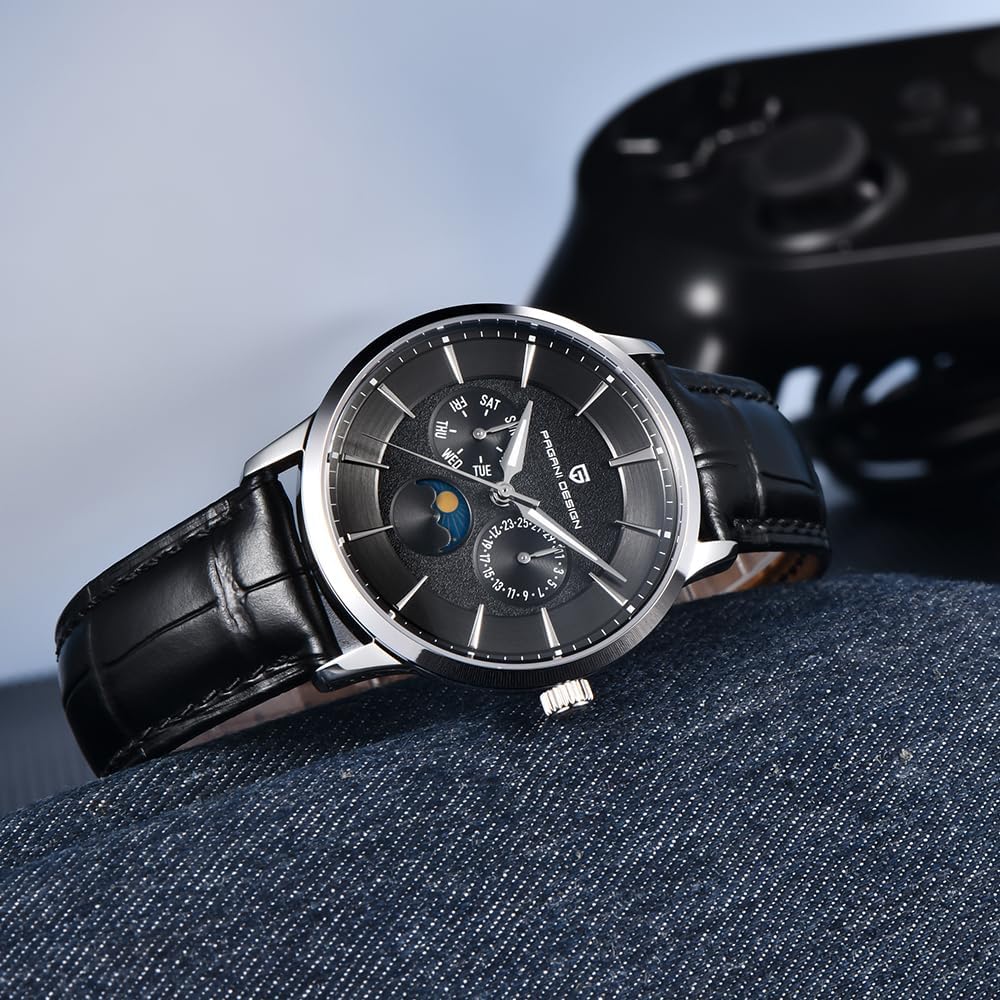

Figura 1: Frontal view of the Pagani Design PD1795 watch.
Figura 2: Pro lateralfile of the Pagani Design PD1795 watch.
3. Configuració i ajustaments
3.1 Crown Positions
- Position 0 (Normal): Crown pushed in completely.
- Position 1 (First Click): Crown pulled out one click. Used for quick adjustments of date/day/moon phase.
- Position 2 (Second Click): Crown pulled out two clicks. Used for setting the time.
3.2 Configuració de l'hora
- Estireu la corona fins a la posició 2. La maneta dels segons s'aturarà.
- Turn the crown to move the hour and minute hands to the desired time. Ensure AM/PM is correctly set, especially when setting the date.
- Push the crown back to Position 0 to start the watch.
3.3 Setting Date, Day, and Moon Phase
Important: To prevent damage to the movement, avoid adjusting the date, day, or moon phase between 9:00 PM and 3:00 AM (21:00 - 03:00). If adjustment is needed during this period, first set the time outside this range, make the adjustments, then reset the time.
- Estireu la corona cap a la posició 1.
- Gireu la corona en sentit horari per ajustar la data.
- Turn the crown counter-clockwise to adjust the day of the week.
- Use the small pusher button (if present, typically on the side of the case) or further crown rotation (depending on movement) to advance the moon phase display to the correct phase. Refer to a moon phase calendar for accuracy.
- Once all settings are correct, push the crown back to Position 0.
4. Operation and Water Resistance
4.1 Portar el rellotge
Adjust the strap to fit comfortably on your wrist. The leather strap is designed for comfort and lightweight wear. If you have a stainless steel band, it includes removable links and a strap adjustment tool for resizing.

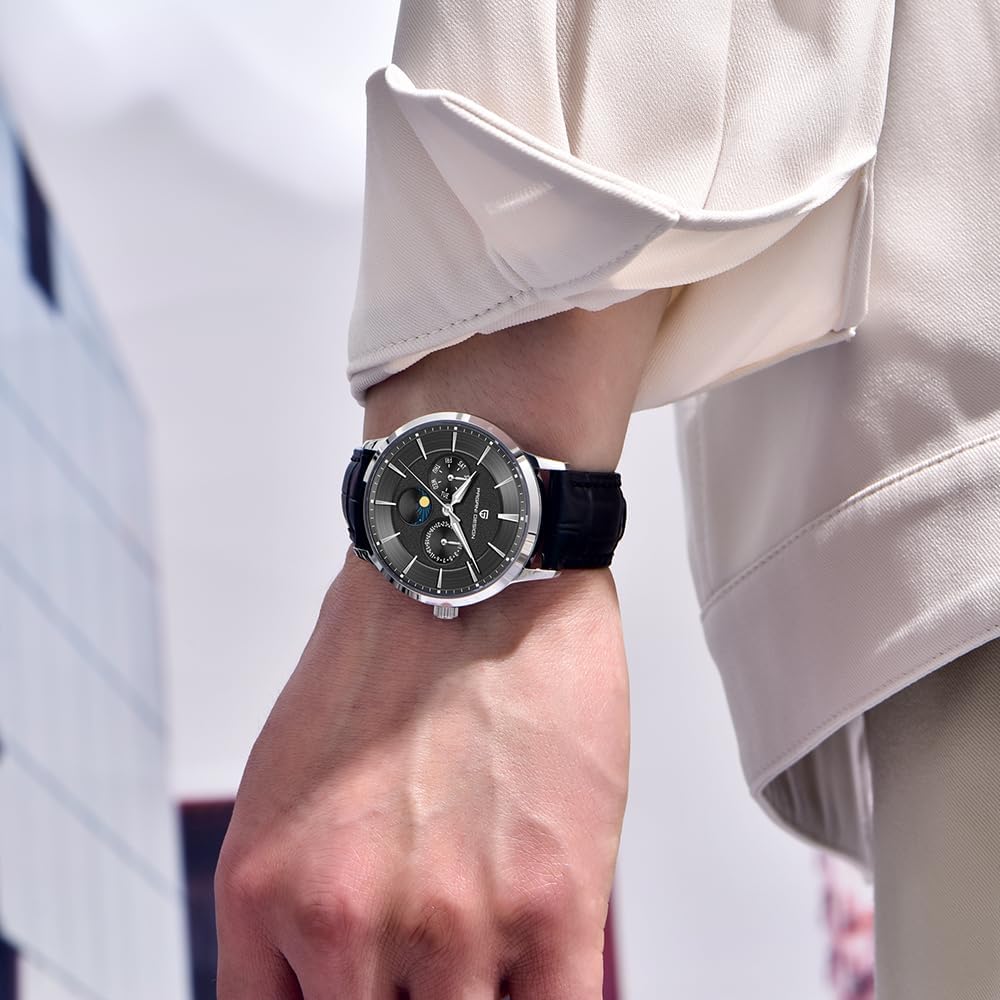

Figure 3: Pagani Design PD1795 watch on a wrist.
Resistència a l'aigua 4.2 (100M)
Your Pagani Design PD1795 watch is water-resistant to 100 meters (10 ATM). This rating means it is suitable for everyday use, including hand washing, face washing, and swimming. However, it is no suitable for diving or prolonged submersion at significant depths.
- Precaució: Do not press any buttons or operate the crown while the watch is wet or submerged.
- Evitar: Exposure to extremely hot or cold temperatures, such as hot showers, saunas, or very cold environments, as this can compromise the watch's seals and water resistance over time.
Video 1: Demonstration of the Pagani Design PD1795 watch's water resistance.
5. Manteniment
Regular maintenance helps preserve the appearance and functionality of your watch.
- Neteja: Netegeu la caixa i la corretja del rellotge regularment amb un drap suau i sec. Per a l'acer inoxidable, un drap lleugerament secamp cloth can be used, followed by drying. For leather straps, avoid excessive moisture and harsh chemicals.
- Substitució de la bateria: As a quartz watch, it is powered by a battery. When the watch stops or the second hand begins to jump erratically (End-of-Life indicator), the battery needs replacement. This should be performed by a qualified watch technician to ensure proper sealing and water resistance.
- Emmagatzematge: Quan no l'utilitzeu, guardeu el rellotge en un lloc fresc i sec, allunyat de la llum solar directa i de camps magnètics forts.
- Evita els impactes: Protect the watch from strong shocks or impacts, which can damage the internal movement or external components.
6. Solució De Problemes
- Mira No Corrent: If the watch stops, the battery may need replacement. Contact a professional watch service for battery replacement.
- Incorrect Time/Date/Day: Refer to Section 3, "Setup and Adjustments," to correctly set the time, date, and day. Ensure adjustments are not made between 9:00 PM and 3:00 AM.
- Condensació dins del cristall: If condensation appears under the sapphire mirror, it may indicate a breach in the water resistance. Have the watch inspected by a professional immediately.
7. Especificacions
| Característica | Detall |
|---|---|
| Número de model | PD1795 |
| Moviment | Japan VX3H Quartz Movement |
| Material de la caixa | Acer inoxidable |
| Material de la corretja | Stainless Steel / Leather (depending on variant) |
| Material del dial | Synthetic Sapphire |
| Resistència a l'aigua | 100M (10 ATM) |
| Diàmetre de la caixa | 40 mm / 1.57 polzades |
| Gruix de la caixa | 10 mm / 0.39 polzades |
| Amplada de la corretja | 20 mm / 0.78 polzades |
| Longitud de la corretja | 220 mm / 8.66 polzades |
| Pes | 110 grams |
| Funcions | Time (Hour, Minute, Second), Date, Day, Moon Phase |
Note: Measurements are approximate and subject to minor deviation.
8. Garantia i Suport
Your Pagani Design PD1795 Quartz Watch comes with a 1 any de garantia des de la data de compra, que cobreix els defectes de fabricació. A més, Política de devolució de 30 dies is offered. For warranty claims, returns, or any questions regarding your watch, please contact the seller or authorized service center. Keep your proof of purchase for warranty validation.

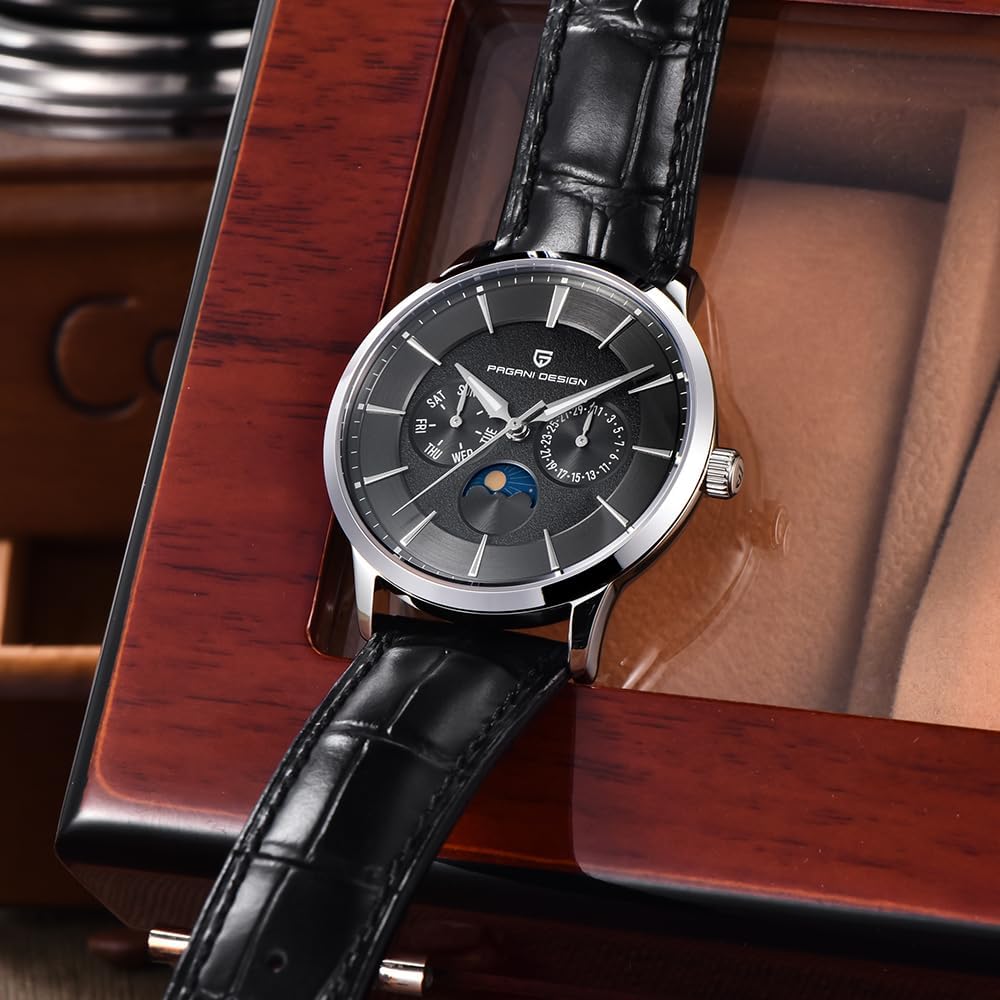

Figure 4: Pagani Design PD1795 watch packaging.
