NHJLFKSA AVR NTA-5A-2T Generator Automatic Voltage Manual d'usuari del regulador

1. Introducció

This manual provides detailed instructions for the installation, operation, and maintenance of the NHJLFKSA AVR NTA-5A-2T Automatic Voltage Regulator. Please read this manual thoroughly before using the product to ensure proper function and safety.

The NTA-5A-2T is designed to regulate the output voltage of a generator, ensuring stable power delivery. It is an essential component for maintaining optimal performance and protecting connected equipment from voltage fluctuacions.

2. Informació de seguretat

WARNING: Electrical components can cause serious injury or death. Installation and maintenance should only be performed by qualified personnel.

• Always disconnect power to the generator before installing, servicing, or inspecting the AVR.
• Assegureu-vos de posar a terra correctament per evitar descàrregues elèctriques.
• Do not operate the AVR in wet or damp condicions.
• Verify all connections are secure and correct before restoring power.
• Refer to the generator's manual for specific safety procedures.

3. Producte acabatview

The NHJLFKSA AVR NTA-5A-2T is a compact and robust automatic voltage regulator designed for generator applications. It features a circuit board with various electronic components, including capacitors, transformers, and a potentiometer for voltage ajust.

Figure 3.1: NHJLFKSA AVR NTA-5A-2T unit, showing the main circuit board housed in a metal tray, alongside a separate voltage adjustment potentiometer and wiring. The unit is presented in its product packaging.

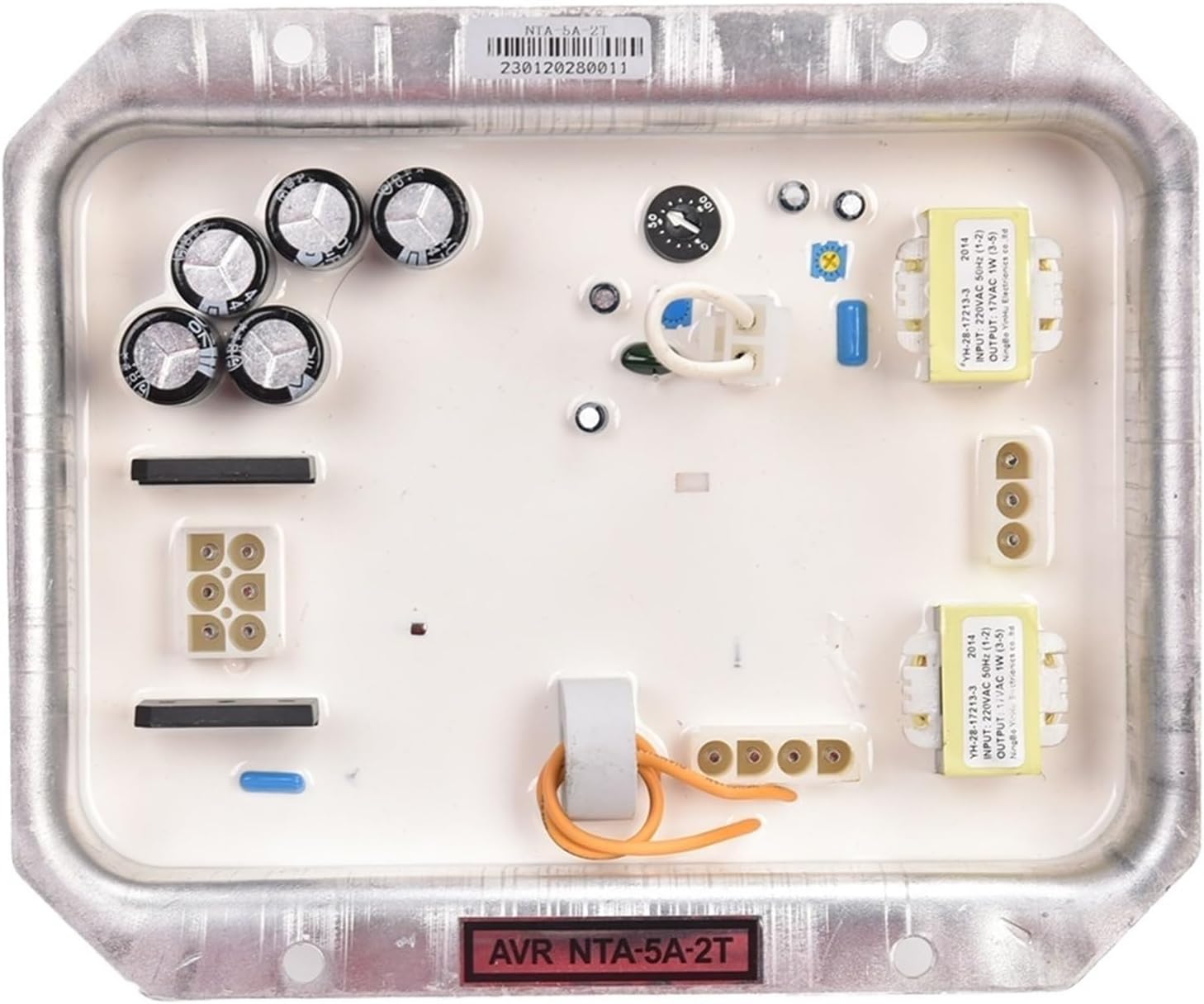

Figura 3.2: Detallada view of the NTA-5A-2T circuit board, highlighting key components such as capacitors, transformers, and connection terminals. The board is encased in a protective metal housing.

Components clau:

• Placa de circuit principal: Contains the primary voltage regulation circuitry.
• Condensadors: Store and release electrical energy, contributing to voltagi estabilitat.
• Transformadors: Isolate and step down/up voltages for various parts of the circuit.
• Potenciòmetre: An external adjustable resistor used for fine-tuning the output voltage.
• Connectors: For input, output, and sensing wires.

Note: While the NTA-5A-2T is the primary model, other variants like NTA-5A-27 (shown below) may have slight visual differences in component layout or external connections. Always refer to the specific model number for accurate identification.

Figure 3.3: Image of the NHJLFKSA AVR NTA-5A-27 circuit board, a related model, showing a different component arrangement and wiring harness compared to the NTA-5A-2T. This image is provided for reference to illustrate potential variations within the product line.

4. Configuració i instal·lació

Proper installation is crucial for the safe and effective operation of the AVR. Consult your generator's service manual for specific wiring diagrams and mounting locations.

1. Desconnexió d'alimentació: Ensure the generator is completely shut down and disconnected from any power source or load. Verify there is no residual voltage.
2. Muntatge: Securely mount the NTA-5A-2T AVR in a location that is free from excessive vibration, moisture, and extreme temperatures. Ensure adequate ventilation.
3. Connexions de cablejat:
   • Connect the excitation winding wires from the generator to the appropriate terminals on the AVR.
   • Connecteu el voltage sensing wires from the generator's output to the AVR's sensing terminals.
   • Connect the auxiliary power supply wires (if applicable) to the AVR.
   • Connect the external potentiometer (if supplied) to the designated terminals for voltage ajust.
   • Double-check all connections for polarity and tightness. Loose connections can lead to erratic operation or damage.
4. Vol inicialtage Ajust: Before starting the generator, set the external potentiometer to its midpoint or a recommended starting position as per your generator's manual.
5. Posada a terra: Ensure the AVR and generator frame are properly grounded according to local electrical codes.

5. Instruccions de funcionament

Once installed, the AVR operates automatically to maintain a stable output voltage. Manual adjustments are typically only required during initial setup or if voltage drift occurs.

1. Generator Start-up: Start the generator according to its manufacturer's instructions.
2. Voltage Seguiment: Monitor the generator's output voltage using a reliable voltmeter.
3. Voltage Ajust:
   • Si la sortida voltage is not at the desired level, slowly adjust the external potentiometer.
   • Turn the potentiometer clockwise to increase voltage and counter-clockwise to decrease voltage.
   • Make small adjustments and allow the system to stabilize before making further changes.
4. Load Application: Un cop el voltage is stable and correct, you may apply the load to the generator. The AVR will automatically compensate for load changes to maintain voltagi estabilitat.
5. Tancament: Shut down the generator according to its manufacturer's instructions. The AVR will power down with the generator.

6. Manteniment

The NHJLFKSA AVR NTA-5A-2T is designed for reliable operation with minimal maintenance. However, periodic checks can help ensure its longevity and performance.

• Inspecció visual (anual): With the generator off and power disconnected, visually inspect the AVR for any signs of damage, loose connections, or corrosion.
• Neteja: Keep the AVR free from dust and debris. Use a soft, dry brush or compressed air to gently clean the circuit board if necessary. Do not use liquids.
• Comprovacions de connexió: Periodically check that all wiring connections are secure and tight.
• Condicions ambientals: Assegureu-vos que l'entorn de funcionament es mantingui dins dels rangs de temperatura i humitat especificats.

Note: Do not attempt to repair the internal components of the AVR. If a fault is suspected, consult a qualified technician or replace the unit.

7. Solució De Problemes

This section outlines common issues and potential solutions. Always ensure the generator is safely shut down before performing any inspection or troubleshooting steps.

Si el problema persisteix després d'intentar aquestes solucions, poseu-vos en contacte amb un tècnic de servei qualificat.

8. Especificacions

The following are general specifications for the NHJLFKSA AVR NTA-5A-2T. Specific performance may vary based on generator model and operating conditions.

• Marca: NHJLFKSA
• Model: NTA-5A-2T
• Pes de l'article: Aproximadament 1.76 unces (50 grams)
• Dimensions del paquet: Approximately 0.39 x 0.39 x 0.39 inches (1 x 1 x 1 cm) - Note: These dimensions appear to be placeholder values and may not reflect the actual product size.
• Fabricant: NHJLFKSA
• Tipus: Volum automàtictage Regulator for Generators
• Funció: Regulates generator output voltage

For detailed electrical parameters (e.g., input voltage, output current, frequency range), please refer to the product's technical datasheet or consult the manufacturer directly.

9. Garantia i Suport

For warranty information, technical support, or service inquiries regarding your NHJLFKSA AVR NTA-5A-2T, please contact the retailer or manufacturer directly. Keep your purchase receipt as proof of purchase.

Per a consultes generals, podeu visitar el NHJLFKSA brand page on Amazon.
