Introducció
This manual provides instructions for the safe operation, installation, and maintenance of your jojofuny 30W Mini Ceiling Fan with LED Light and Remote Control. Please read this manual thoroughly before use and retain it for future reference.
Contingut del paquet
Verify that all items listed below are present and in good condition upon unpacking.
- 1 x jojofuny Mini Ceiling Fan with LED Light
- 1 x comandament a distància
- 1 x Manual d'usuari (aquest document)
Image: The jojofuny Mini Ceiling Fan with LED Light and its accompanying remote control.
Instruccions de seguretat
Seguiu sempre les precaucions de seguretat bàsiques quan utilitzeu aparells elèctrics per reduir el risc d'incendi, descàrrega elèctrica i lesions personals.
- Ensure the power supply is disconnected at the circuit breaker before installation, cleaning, or maintenance.
- No feu funcionar el ventilador amb un cable o un endoll danyats.
- Keep hands, hair, and loose clothing away from moving parts of the fan.
- Aquest aparell està dissenyat només per a ús en interiors.
- No exposeu el ventilador a l'aigua ni a una humitat excessiva.
- Use only the remote control provided with the unit.
Configuració i instal·lació
The jojofuny Mini Ceiling Fan is designed for easy installation into a standard E27 screw-in light socket.
- Apagar: Ensure the power to the light fixture is turned off at the circuit breaker before beginning installation. This prevents electric shock.
- Enroscar: Carefully screw the fan light into a standard E27 light socket until it is secure. Do not overtighten.
- Encès: Resta l'alimentació al disjuntor.
- Prova: Use the remote control to test the fan and light functions.

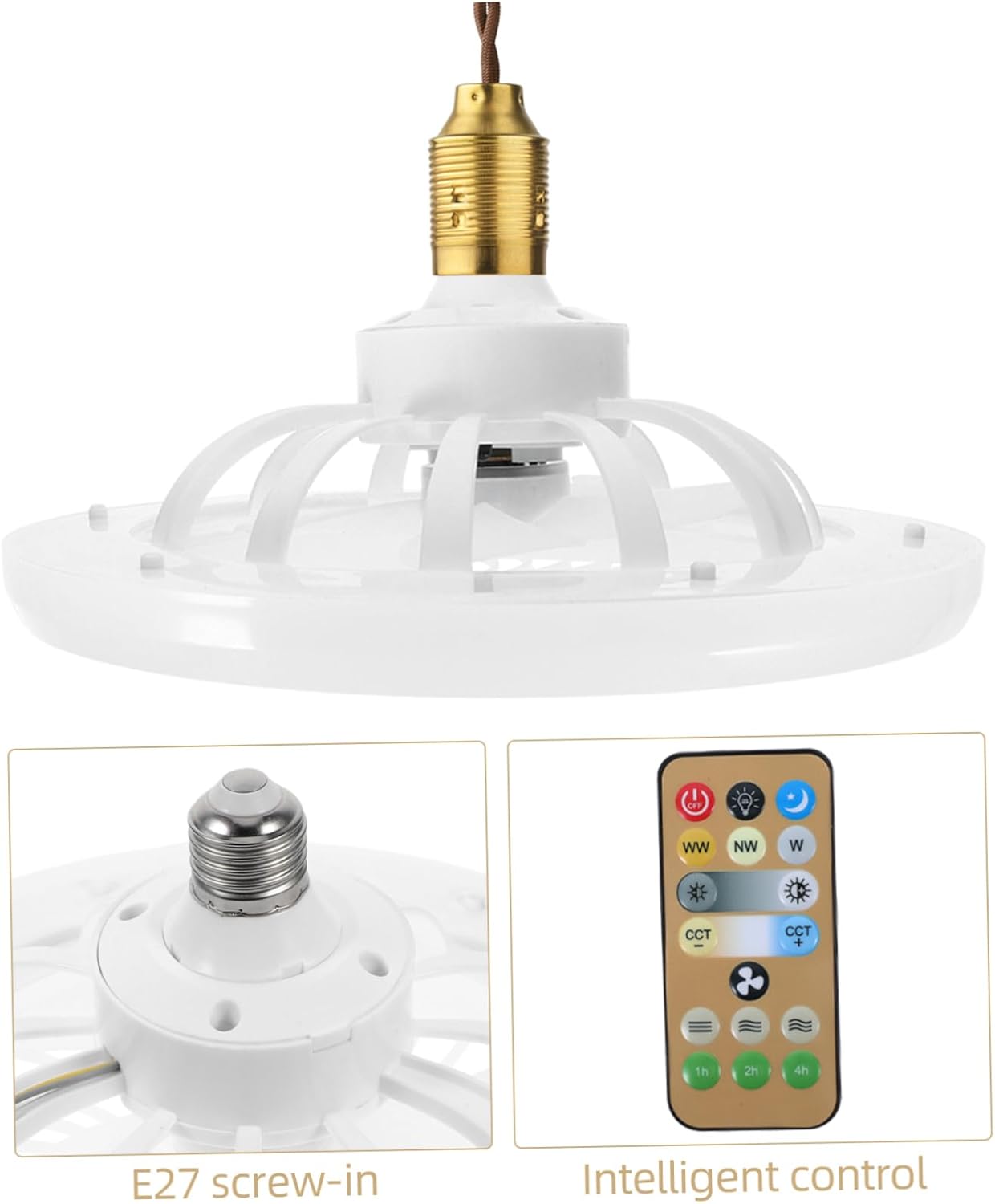

Imatge: Primer pla view of the E27 screw-in base for installation, alongside the remote control.

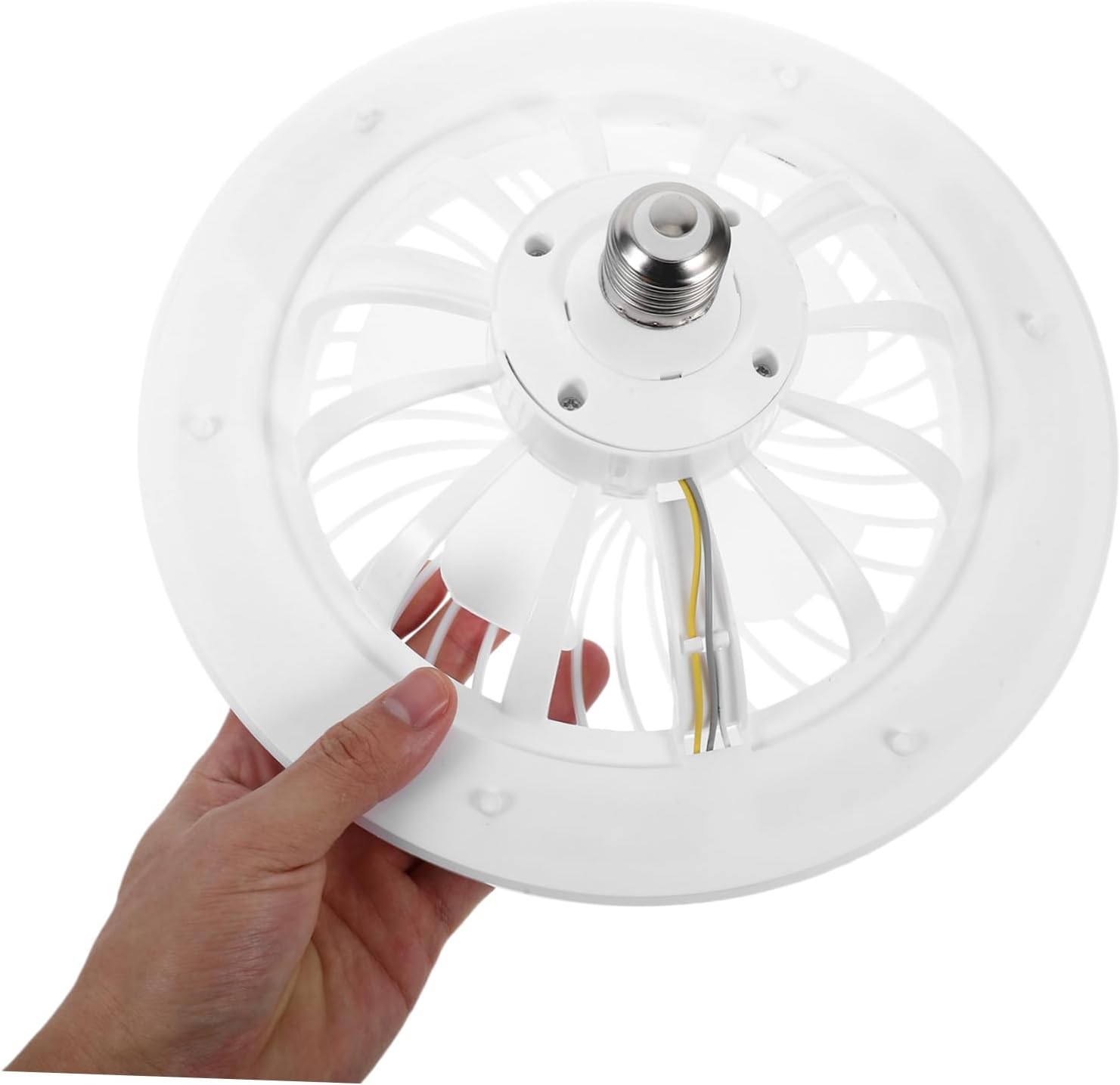

Image: A hand holding the fan light, illustrating its compact size and E27 screw-in base for easy handling.
Image: The mini ceiling fan installed and hanging from a ceiling fixture, ready for use.
Instruccions de funcionament
The fan and light functions are controlled via the included remote control.
Funcions de control remot
Image: The remote control for the fan light, showing various buttons for light and fan speed adjustments.
- Encès/apagat: Premeu el botó OFF button to turn off both the fan and light. Press any function button (e.g., light on, fan speed) to turn the unit on.
- Control de la llum:
- Ajust de brillantor: Use the sun icon buttons (light up/down) to increase or decrease the light intensity.
- Ajust de temperatura de color: Utilitza el WW (Warm White), NW (Neutral White), and W (Cool White) buttons to change the light color temperature.
- Mode de llum nocturna: Press the moon icon button for a low-brightness, soft light setting.
- Control de velocitat del ventilador: Use the fan icon buttons (fan up/down) to adjust the fan speed to your preference.
- Funció de temporitzador: Set the fan/light to turn off automatically after 1 hour, 2 hours, or 4 hours using the respective buttons.
Image: A hand operating the remote control, demonstrating its use with the installed ceiling fan light.
Manteniment
Regular maintenance ensures optimal performance and longevity of your fan light.
- Neteja: Always disconnect power at the circuit breaker before cleaning. Wipe the fan and light surfaces with a soft, damp cloth. Do not use abrasive cleaners, harsh chemicals, or solvents, as these may damage the finish.
- Eliminació de pols: Periodically remove dust from the fan blades and light cover to maintain efficient airflow and consistent light output. A soft brush or vacuum cleaner with a brush attachment can be used.
- Substitució de bombetes: The LED light source is integrated into the unit and is not user-replaceable. If the light fails, the entire unit may need servicing or replacement.
Resolució de problemes
If you encounter any issues with your fan light, refer to the table below for common problems and solutions.
| Problema | Causa possible | Solució |
|---|---|---|
| Fan/Light does not turn on. | No power to the socket; Remote control battery is dead; Unit not screwed in properly. | Check circuit breaker and wall switch; Replace remote battery; Ensure unit is securely screwed into the E27 socket. |
| Fan operates, but light does not. | Light function is off on remote; Integrated LED failure. | Press the light ON button on the remote; Contact customer support if the integrated LED is faulty. |
| El comandament a distància no respon. | Remote battery is dead or low; Obstruction between remote and fan; Remote not paired (if applicable). | Replace remote battery; Ensure clear line of sight to the fan; Refer to pairing instructions if the remote requires it (not typically for this model). |
| El ventilador fa soroll o vibra excessivament. | Loose installation; Obstruction in fan blades; Damaged fan blades. | Ensure unit is securely installed in the socket; Check for and remove any obstructions; Inspect blades for damage. |
Especificacions
Detailed technical specifications for the jojofuny Mini Ceiling Fan with LED Light.
| Característica | Detall |
|---|---|
| Marca | jojofuny |
| Número de model | QPW6304002SC263VF |
| Font d'alimentació | E27 Screw-in (Remote Control: Battery Powered) |
| Color | Blanc |
| Dimensions del producte | 25.80 cm x 25.80 cm x 11.00 cm de profunditat |
| Pes de l'article | 0.72 lliures (11.5 unces) |
| Característiques especials | Lightweight, Remote Control, Adjustable Brightness, Adjustable Color Temperature, Silent Operation |
| Components inclosos | Fan Light, Remote Control |
Image: Diagram showing the dimensions of the fan light: 25.8cm (10.14in) diameter and 11cm (4.32in) height.
Garantia i Suport
For warranty information or technical support, please contact jojofuny customer service. Refer to your purchase documentation for specific warranty terms and conditions.
