1. Introducció
The Amaran Verge Desk Clamp Stand is a fully-adjustable mounting solution designed for the amaran Verge or Verge Max lighting units. It provides a secure and tool-free method to attach your light directly to a desk or other mounting surface, offering flexible positioning for various creative needs.
Figure 1: Amaran Verge Desk Clamp Stand in use, holding a light panel.
2. Què hi ha a la caixa
Verifiqueu que tots els components siguin presents abans de continuar amb el muntatge:
- 1 x amaran Verge Desk Clamp
- 1 x amaran Verge Desk Clamp Columna d'ampliació
- 1 x amaran Verge Lock Extension Arm
Figure 2: Included components of the Amaran Verge Desk Clamp Dempeus.
3. Configuració
- Enganxeu l'escriptori Clamp: Position the amaran Verge Desk Clamp onto the edge of your desk or mounting surface. Ensure the surface thickness is between 2cm (0.79in) and 7cm (2.75in). Tighten the clamp securely until it is firm and stable.
- Insert the Extension Column: Slide the amaran Verge Desk Clamp Extension Column into the vertical receiver on the desk clamp. Tighten the locking knob on the clamp to secure the column at your desired height. The column offers up to 1m (3.28ft) of vertical height adjustment.
- Attach the Extension Arm: Connect the amaran Verge Lock Extension Arm to the top of the extension column. The quick-locking system ensures fast and secure attachment.
- Mount Your Amaran Verge Light: Attach your amaran Verge or Verge Max light directly to the end of the extension arm using its integrated mounting point.

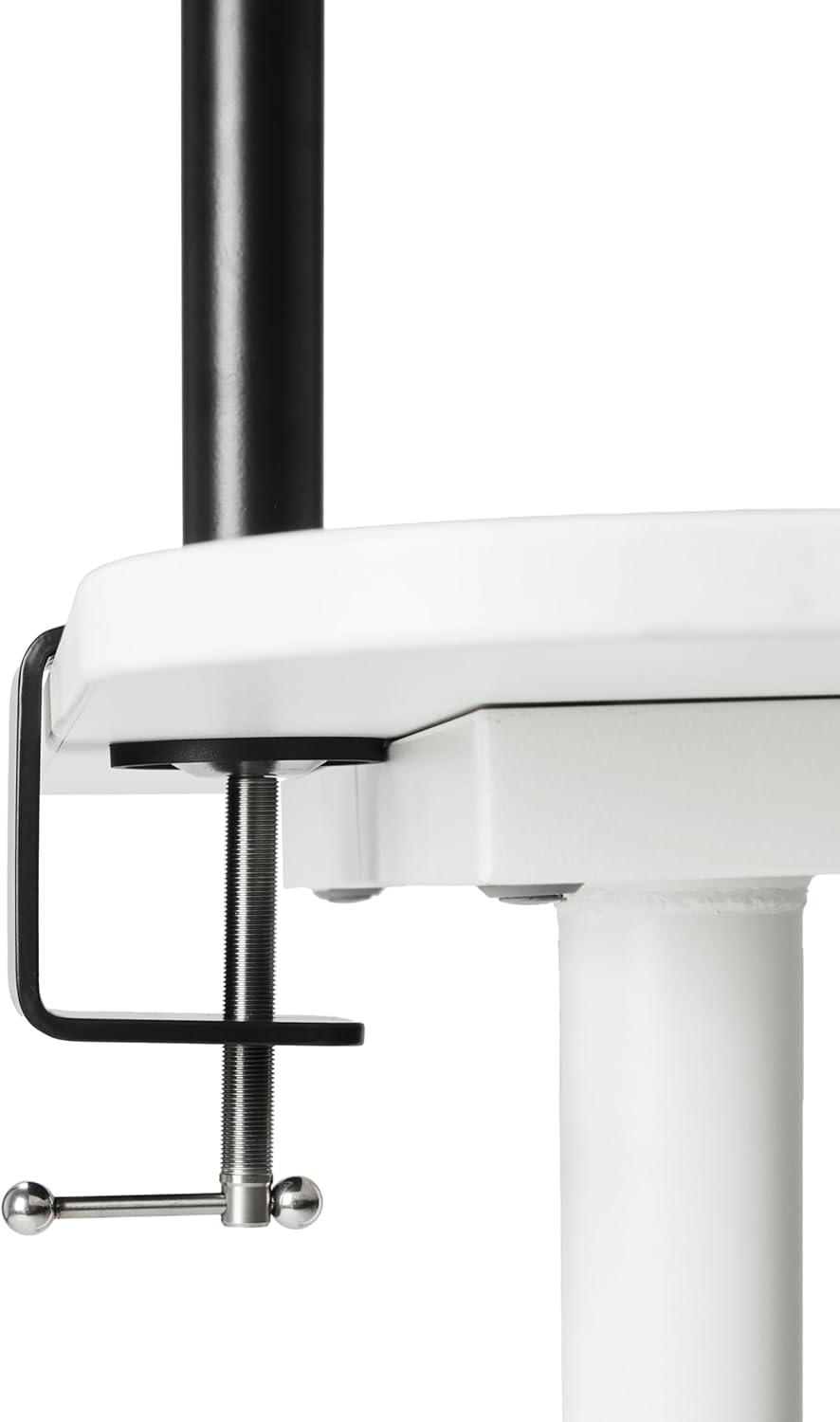

Figure 3: Securely attaching the desk clamp.
Figure 4: The extension arm, ready for attachment.
4. Instruccions de funcionament
The Amaran Verge Desk Clamp Stand offers versatile positioning for your lighting:
- Vertical Height Adjustment: Loosen the locking knob on the desk clamp to adjust the height of the extension column. Re-tighten to secure.
- Abast horitzontal: The 360º swing mounting arm allows you to extend and position your light precisely over your workspace. Loosen the knob on the arm to adjust its horizontal position, then tighten to lock.
- Control de panoràmica i inclinació: Utilize the 180º pan and tilt control on the extension arm to angle your light for dynamic overhead or low-angle illumination.
- Gestió de cables: Use the integrated cable management hooks to keep your desk setup clean and clutter-free.
Figure 5: Detail of the adjustable arm joint for precise positioning.
Vídeo de demostració
Video 1: An official Amaran video demonstrating the Amaran Verge Bi-color, edge-lit rectangular panel, which is compatible with this desk clamp stand. This video showcases the light's features and potential applications when mounted.
5. Manteniment
To ensure the longevity and optimal performance of your Amaran Verge Desk Clamp Stand:
- Neteja: Wipe the stand with a soft, dry cloth to remove dust and debris. Avoid using abrasive cleaners or solvents.
- Inspecció: Periodically check all screws, knobs, and joints for tightness. Re-tighten as necessary to maintain stability.
- Emmagatzematge: When not in use for extended periods, store the stand in a clean, dry environment.
6. Solució De Problemes
If you encounter issues with your Amaran Verge Desk Clamp Stand, consider the following:
- Inestabilitat del suport: Assegureu-vos que l'escriptori clamp is fully tightened to the desk surface. Verify that the desk surface is sturdy and within the recommended thickness range (2cm to 7cm). Check all locking knobs on the extension column and arm for tightness.
- Difficulty Adjusting Height/Position: Loosen the relevant locking knob sufficiently before attempting to adjust. Do not force adjustments if resistance is met.
- Light Panel Not Secure: Ensure your amaran Verge or Verge Max light is correctly attached to the extension arm's mounting point and securely fastened.
7. Especificacions
| Característica | Detall |
|---|---|
| Nom del producte | amaran Verge Desk Clamp Dempeus |
| Marca | Amaran |
| Model | Verge Desk Clamp Dempeus |
| Material | Adjustable Aluminum |
| Tipus de muntatge | Escriptori Clamp |
| Desk Thickness Compatibility | 2cm (0.79in) to 7cm (2.75in) |
| Ajust d'alçada vertical | Fins a 1 m (3.28 peus) |
| Balanç de braç | 360º |
| Control de panoràmica i inclinació | 180º |
| Color | Negre |
| Pes de l'article | 6.78 lliures |
| Dimensions del paquet | 27.56 x 8.5 x 3.94 polzades |
8. Garantia i assistència
This Amaran Verge Desk Clamp Stand is covered by the manufacturer's standard warranty. For detailed warranty information, product support, or service inquiries, please visit the official Amaran weblloc o poseu-vos en contacte amb el seu departament d'atenció al client.
També podeu visitar el Amaran Store on Amazon per obtenir informació addicional sobre el producte i recursos d'assistència.
