Introducció
This instruction manual provides essential information for the proper installation, operation, and maintenance of your UPTBSFLS Loncin CG125 Motorcycle Starter Motor. Please read this manual thoroughly before installation and use to ensure optimal performance and safety. This product is designed as a replacement or repair part for faults and defects in compatible motorcycle models.
Producte acabatview
The UPTBSFLS Starter Motor for Loncin CG125 motorcycles is a durable and waterproof component designed to replace or repair existing starter motors. It features a carbon brush type and is engineered for straightforward installation.
Característiques principals:
- Disseny impermeable: Ensures reliable operation in various weather conditions.
- Construcció duradora: Built for longevity and consistent performance.
- Carbon Brush Type: Standard brush type for efficient electrical contact.
- Instal·lació senzilla: Designed for easy replacement without complex procedures.
Compatibilitat
This starter motor is specifically designed for the Loncin CG125 Motorcycle. It is crucial to verify the model and year of your motorcycle to ensure proper fitment. This is a replacement part and not an original manufacturer's part.
Important: Abans de la compraasing or installing, please compare the specifications and images provided in this manual with your motorcycle's existing starter motor to confirm compatibility.
Instruccions d'instal·lació
Installation of the starter motor requires basic mechanical knowledge and tools. If you are unsure about any step, it is recommended to seek assistance from a qualified motorcycle mechanic.
Eines necessàries:
- Conjunt de claus
- Joc de tornavís
- Battery terminal cleaner (optional)
- Multímetre (per a proves, opcional)
Instal·lació pas a pas:
- La seguretat primer: Ensure the motorcycle is turned off and the battery's negative terminal is disconnected to prevent electrical shorts.
- Locate Old Starter Motor: Identify the position of the existing starter motor on your Loncin CG125.
- Desconnecteu el cablejat: Carefully disconnect all electrical connections leading to the old starter motor. Note their positions for re-connection.
- Treure els cargols de muntatge: Unscrew the bolts securing the old starter motor to the engine casing.
- Treure el motor antic: Gently pull out the old starter motor. Be mindful of any gaskets or seals.
- Preparació del motor nou: Inspect the new UPTBSFLS starter motor for any damage. Ensure mating surfaces are clean.
- Instal·lar un motor nou: Insert the new starter motor into position. Align the mounting holes.
- Cargols de muntatge segurs: Re-install and tighten the mounting bolts. Do not overtighten.
- Reconnectar el cablejat: Reconnect all electrical wires to the new starter motor, ensuring correct polarity and secure connections.
- Torneu a connectar la bateria: Reconnect the negative terminal of the motorcycle battery.
- Funcionalitat de prova: Attempt to start the motorcycle to confirm the new starter motor is functioning correctly. Listen for unusual noises.
If the motorcycle does not start or if you encounter any issues, refer to the Troubleshooting section.
Instruccions de funcionament
The starter motor operates automatically when the motorcycle's ignition switch is turned to the "ON" position and the start button is pressed. Its function is to crank the engine to initiate combustion.
- Ensure the motorcycle's battery is fully charged.
- Gireu la clau d'encesa a la posició "ON".
- Engage the clutch (if applicable) and press the start button.
- Release the start button once the engine has started.
Avoid prolonged cranking (more than 5-10 seconds) to prevent overheating the starter motor and draining the battery. If the engine does not start after a few attempts, allow the starter motor to cool down before trying again, and investigate potential issues.
Manteniment
The UPTBSFLS starter motor is designed for durability and requires minimal maintenance. However, periodic checks can extend its lifespan and ensure reliable performance.
- Comprovació de la connexió: Periodically inspect all electrical connections to the starter motor and battery terminals. Ensure they are clean, tight, and free from corrosion.
- Salut de la bateria: A healthy battery is crucial for starter motor operation. Regularly check your motorcycle battery's charge level and condition.
- Protecció del medi ambient: While the motor is waterproof, avoid prolonged exposure to extreme moisture or submersion.
- Neteja: Keep the exterior of the starter motor clean from dirt, oil, and debris.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Starter motor does not turn or turns slowly. | Low battery charge, loose battery terminals, faulty starter relay, faulty ignition switch, wiring issue. | Charge or replace battery. Clean and tighten battery terminals. Check starter relay and ignition switch. Inspect wiring for damage. |
| Clicking sound but no engine crank. | Low battery charge, loose connections, faulty starter solenoid. | Charge battery. Check and tighten all electrical connections. Test or replace starter solenoid. |
| El motor d'arrencada gira però el motor no fa de martell. | Faulty starter clutch (bendix gear), damaged flywheel teeth. | Inspect and replace starter clutch. Inspect flywheel for damage. |
| Starter motor overheats. | Prolonged cranking, internal short circuit, excessive resistance. | Avoid prolonged cranking. Check for internal faults or excessive current draw. |
If you are unable to resolve the issue after following these steps, please consult a professional motorcycle mechanic.
Especificacions
| Característica | Detall |
|---|---|
| Número de model | VISYYAI |
| Compatibilitat | Loncin CG125 Motorcycle |
| Material | Metall |
| Pes de l'article | 3.31 lliures (aproximadament 1.5 kg) |
| Dimensions del paquet | 0.39 x 0.39 x 0.39 inches (approximately 1 x 1 x 1 cm) - Note: These dimensions appear to be placeholder values from the source data and may not reflect actual product size. Refer to the 'Product Visuals' section for actual product dimensions. |
| Muntatge obligatori | No (as a single unit replacement) |
| Nombre de peces | 1 (Starter Motor) |
Visuals del producte
Figura 1: Davant view of the UPTBSFLS Loncin CG125 Motorcycle Starter Motor. This image shows the overall design and the output shaft with splines.

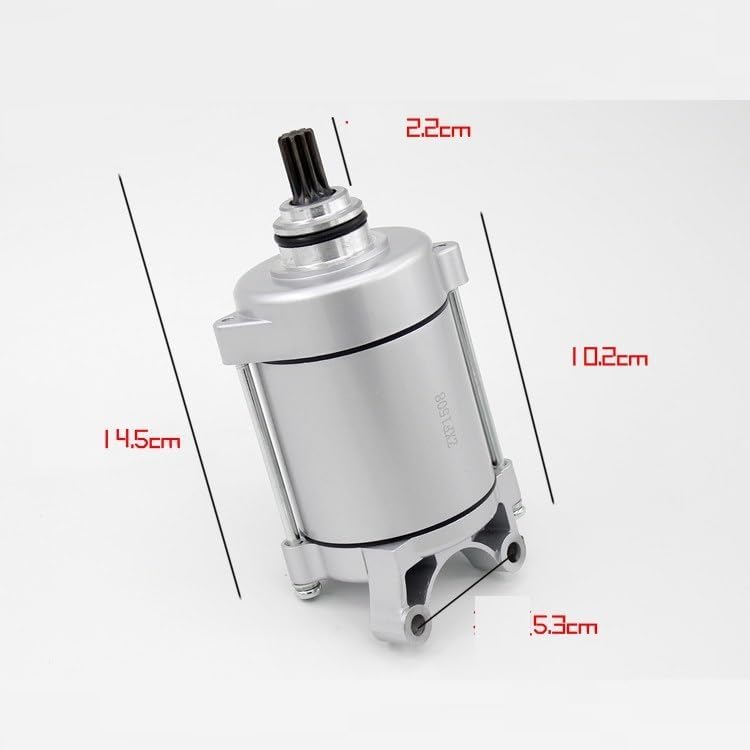

Figura 2: Starter motor with key dimensions indicated. Overall length is approximately 14.5 cm, body length 10.2 cm, mounting hole spacing 5.3 cm, and shaft diameter 2.2 cm. These measurements are critical for ensuring compatibility.
Figura 3: lateral view of the starter motor, highlighting the mounting brackets and the main body casing. The model number "ZKF1508" is visible on the casing.

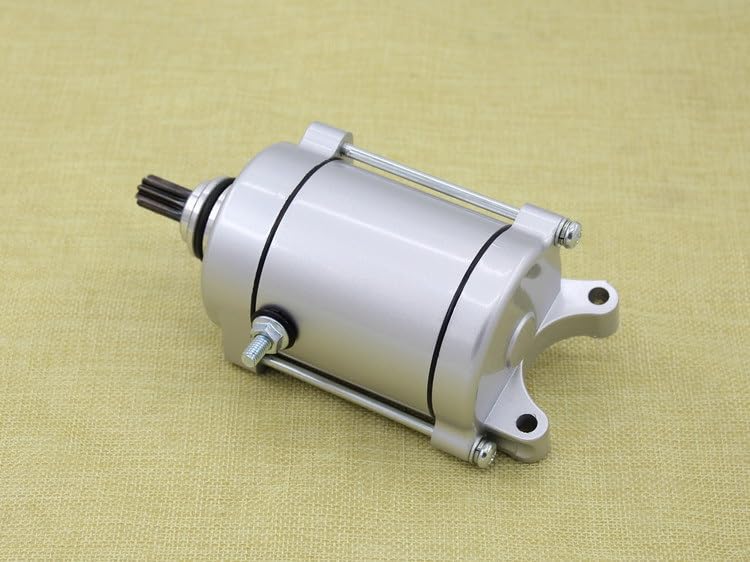

Figura 4: Un altre costat view of the starter motor, showing the electrical terminal and the robust construction of the unit.

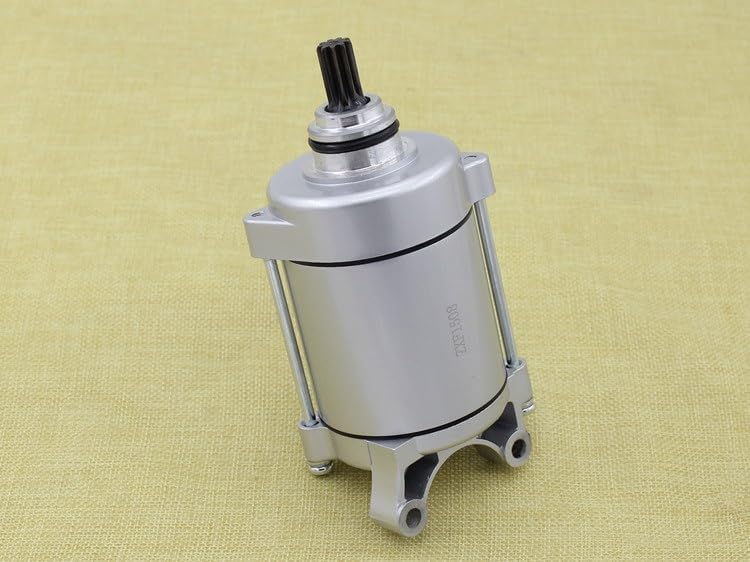

Figura 5: En angle view of the starter motor, providing a comprehensive look at its form factor and the arrangement of its components.
Suport i Contacte
For any questions regarding the UPTBSFLS Loncin CG125 Motorcycle Starter Motor, including compatibility concerns or installation assistance, please contact the seller directly through the platform where the purchase was made.
It is recommended to provide your specific motorcycle model and year when seeking support to ensure accurate assistance.
