COMOMY Hardware Mounted Baby Gate Instruction Manual

Informació important de seguretat

ADVERTÈNCIA: Si no es segueixen aquests avisos i instruccions, es poden produir lesions greus o la mort.

• Always install and use the gate as directed.
• This product is intended for use with children from 6 to 24 months.
• No deixeu mai el nen sense vigilància.
• Aquesta porta només és per a ús domèstic.
• Comproveu regularment tots els elements de fixació per assegurar-vos que estiguin ajustats i segurs.
• No l'utilitzeu si falta algun component o està danyat.
• Not suitable for drywall or plasterboard. Only install on wooden walls, concrete walls, or brick walls.
• Ensure the top and bottom drilled locations of the door wall hangings are in the same vertical plane.

Contingut del paquet

Please verify all parts are present before beginning installation.

Imatge: Explosió view of COMOMY Baby Gate components.

• Gate Panels (Adjustable)
• Latches (x5)
• Latch Screws (x10 pairs)
• Cargols (x8)
• Ancoratges de paret (x8)
• Hexagonal Wrenches (x2)
• Gate Positioning Paper (x1)
• Manual d'instruccions

Eines necessàries (no incloses)

• Trepant elèctric
• 15/64" (6mm) Drill Bit
• Cinta mètrica
• Llapis

Instruccions d'instal·lació

Follow these steps carefully for secure installation. Refer to the video for visual guidance.

Step 1: Measure Your Opening

Measure the width of your doorway or stairway opening. The COMOMY Baby Gate is adjustable from 27.5 inches to 43 inches wide. Ensure the walls are on the same level.

Image: Measuring the installation area.

Step 2: Install Latches on the Gate

Attach the four latches to the gate panels using the provided latch screws and hexagonal wrench. Do not fully tighten the screws at this stage, allowing for minor adjustments later.

Step 3: Position and Drill Holes

Attach the gate positioning paper to the wall, ensuring its bottom edge is close to the ground and perpendicular. Use a 6mm drill bit to drill holes at the marked locations. This gate is designed for wooden, concrete, or brick walls only. Do not install on drywall or plasterboard.

Image: Compatible wall types for installation.

Step 4: Mount the Gate

Align the gate with the drilled holes. Install the top screws first, then rotate the gate towards the wall until it's in the desired position and install the remaining screws to secure it. For concrete/brick walls, insert wall anchors before screws.

Step 5: Adjust and Secure the Gate

Peel off the adhesive backing on the vertical rod and adjust the gate's position. Ensure there is a small gap (approximately 2mm or 0.079 inches) between the vertical rod and the gate valve lock. Adjust the door width to ensure the distance between the handle and the vertical rod is less than 1mm (approximately 0.039 inches). Finally, tighten all latch screws securely with the hexagonal wrench.

Instruccions de funcionament

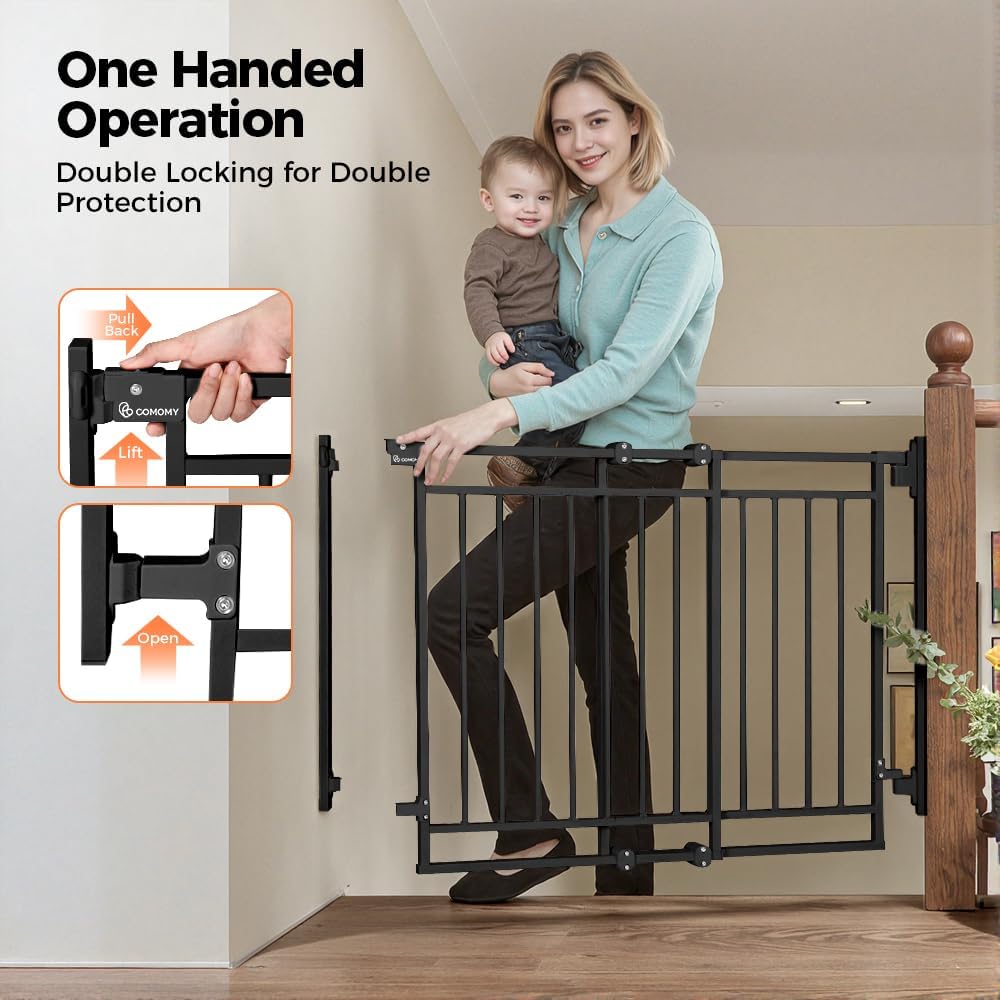

Opening the Gate (One-Handed Operation)

To open the gate, push back the first lock (Lock 1) and then lift the second lock (Lock 2) to release the gate. The gate can then be swung open.

Image: Demonstrating one-handed gate operation.

Auto-Close Feature

The gate features an auto-close mechanism. If the gate is opened less than 90 degrees, it will automatically swing shut and lock. If opened to 90 degrees or more, it will remain open for convenient passage.

Image: Auto-close and stay-open features.

No Bottom Bar Design

This gate is designed without a bottom bar, eliminating tripping hazards, especially when installed at the top of stairs or in high-traffic doorways.

Image: No bottom bar for smooth access.

Manteniment

• Neteja: Wipe the gate regularly with a damp cloth and mild soap. Avoid abrasive cleaners or harsh chemicals.
• Inspecció: Periodically check all parts for wear, damage, or loose connections. Ensure the locking mechanism functions smoothly.
• Lubricació: If the hinges or locking mechanism become stiff, apply a small amount of silicone-based lubricant.

Resolució de problemes

• Gate not closing properly: Check if the gate is level and if the wall mounts are securely fastened. Ensure the gap between the gate and the vertical rod is correct (less than 1mm).
• Gate difficult to open/close: Inspect the locking mechanism for any obstructions. Apply lubricant to hinges if necessary.
• Gate feels unstable: Re-check all screws and wall anchors for tightness. Ensure the gate is installed on a suitable wall material.

Especificacions

Garantia i Suport

For warranty information or technical support, please contact COMOMY customer service through the retailer where the product was purchased or visit the official COMOMY weblloc.
