Introducció
The WONEGG 18-Egg Incubator is designed for efficient and successful hatching of various poultry eggs, including chicken, duck, goose, and quail. This smart incubator features automatic egg turning, precise temperature and humidity control, and a built-in egg candler, making the incubation process straightforward for both beginners and experienced users.
Característiques del producte
- One-Click Smart Operation: Simplifies the hatching process with automated functions.
- Precision Auto-Rotation System: Automatically turns eggs at programmable intervals (60/120/180 min) and stops turning 4 days before hatching.
- Smart Temperature & Humidity Control: High-accuracy sensors monitor and auto-adjust to maintain stable incubation conditions.
- Built-in LED Egg Candling Light: Cold light source for safe and gentle embryo observation without harming eggs.
- Versatile Dual-Size Egg Trays: Compatible with various poultry eggs, including chicken, duck, goose, and quail.
- 360° Transparent ViewFinestra d'entrada: Provides unobstructed visibility of the incubation process from all angles.
- External Gravity Water System: Allows for easy external water refilling to maintain humidity without opening the lid.
- Hatch Days Display: Tracks and displays the remaining days until hatching.
- Removable & Washable Components: Detachable trays and base for easy cleaning and hygiene.
Què hi ha a la caixa
Verifiqueu que tots els components siguin presents abans de començar la configuració:
- Egg Incubator Unit
- Water Bottle x 2
- Manual d'usuari
- Small Egg Tray
- Large Egg Tray
- Adaptador d'alimentació
- Raspall de neteja
- Insulation Foam Box
Muntatge i configuració
Segueix aquests passos per al muntatge i la preparació inicials:
- Desempaquetar components: Carefully remove all items from the packaging and ensure no parts are missing.
- Assemble Egg Trays: Choose the appropriate egg tray (large or small) based on the size of your eggs and place it into the base.
- Connect Turning Gear: Attach the turning gear to the motor mechanism located in the top cover.
- Place Transparent Cover: Position the transparent cover securely over the egg tray and base.
- Attach Top Cover: Place the top cover onto the transparent cover, ensuring it aligns properly.
- Connecteu l'adaptador d'alimentació: Plug the power adapter into the incubator and then into a suitable power outlet.
- Fill Water Bottle: Fill one of the provided water bottles with clean water and attach it to the external water inlet. For initial setup, only fill the first bottle. The second bottle is typically used during the lockdown phase to increase humidity.
Instruccions de funcionament
Control de temperatura i humitat

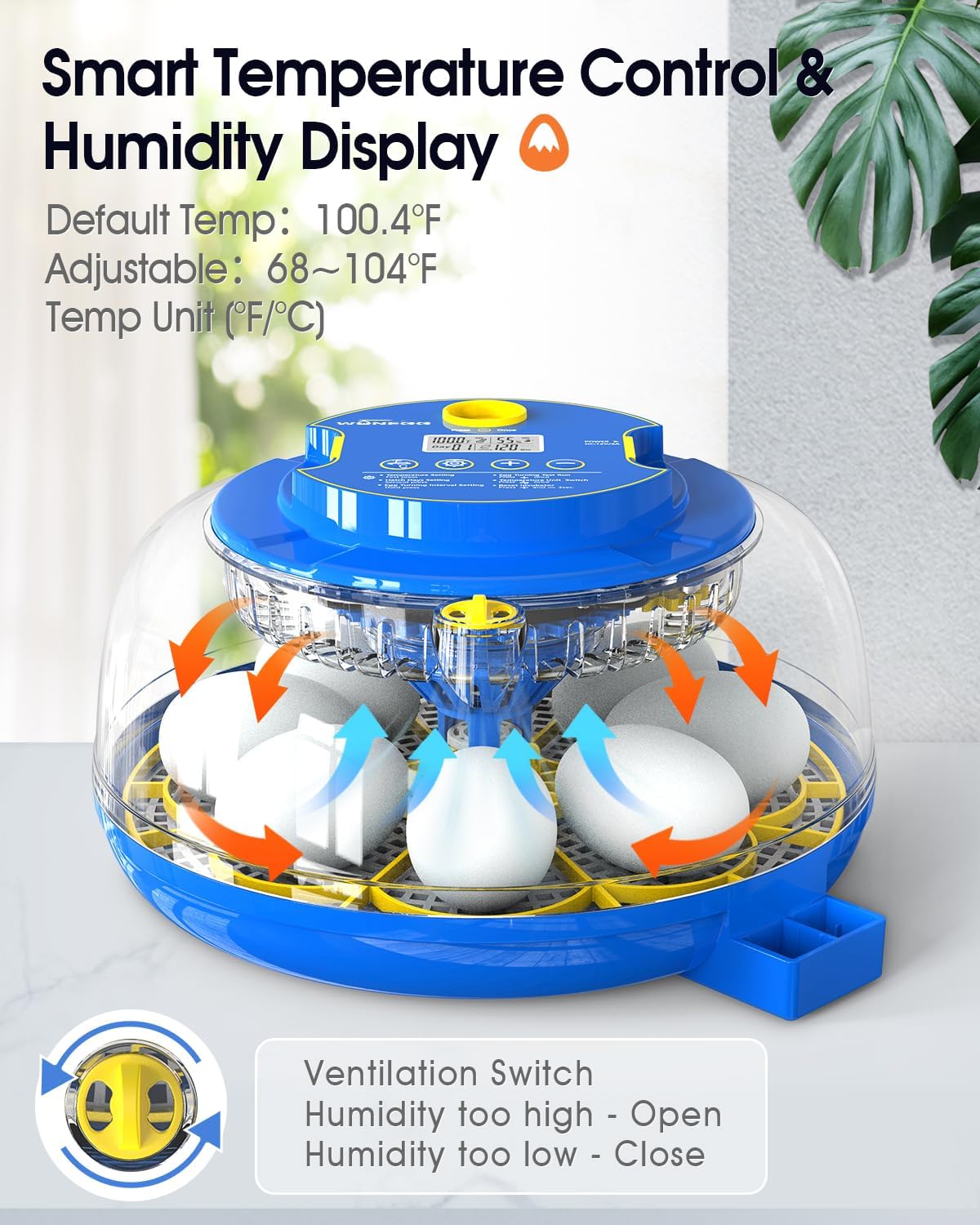

The incubator features smart sensors to maintain optimal temperature and humidity. The default temperature is 100.4°F (38°C), adjustable between 68°F and 104°F (20°C and 40°C). The display shows current temperature and humidity levels. Use the ventilation switch to adjust humidity: open for high humidity, close for low humidity.
Automatic Egg Turning
The incubator automatically turns eggs to simulate natural incubation. You can program rotation intervals to 60, 120, or 180 minutes. The system automatically ceases rotation during the lockdown phase (final 4 days) when pipping begins.
Built-in LED Egg Candling Light
Use the integrated cold LED light to observe embryo development without disturbing the eggs. This allows for safe monitoring of each stage, from visible veins on Day 5 to distinct features on Day 14, leading up to hatching on Day 21.
External Gravity Water System
The dual water tank system allows for external refilling, ensuring stable humidity and temperature without needing to open the incubator lid. Fill Tank A for days 1-18, and both Tank A and B for days 19-21 (lockdown phase) to increase humidity for hatching.
Incubation Day Tracker
The incubator's display tracks and logs incubation progress, showing the current day and remaining days until hatching. This feature helps in managing different incubation periods for various poultry species.
Poultry Incubation Parameters (For Reference Only)
| Espècie | Període d'incubació | Temperatura (°C/°F) | Humitat (%) | ||
|---|---|---|---|---|---|
| Primers Stage | Últims 3 dies | ||||
| Pollastre | 21 dies | 37.5~37.8°C / 99.5~100.0°F | 50~60 | 65~70 | |
| Ànec | 28 dies | 37.5~37.8°C / 99.5~100.0°F | 55~65 | 70~75 | |
| Oca | 30-32 dies | 37.5~38.0°C / 99.5~100.0°F | 60~65 | 75~80 | |
| Colom | 17-18 dies | 37.8~38.2°C / 100.0~100.8°F | 50~55 | 60~65 | |
| Guatlla | 16-18 dies | 37.5~37.8°C / 99.5~100.0°F | 55~60 | 70~75 | |
| Lloro | 18-30 dies * | 37.2~37.5°C / 99.0~99.5°F | 40~50 | 60~70 | |
Chicken Incubation Phases (21 Days)
| Stage | Dies | Temperatura (°C/°F) | Humitat | Key Developmental Milestones |
|---|---|---|---|---|
| Embryo Formation | 1-7 | 37.5~38.0°C / 99.5~100.0°F | 60-65% | Heart forms (Day 2), blood vessels (Day 3-4) |
| Organ Development | 8-14 | 37.5 °C / 99.5 °F | 50-55% | Feather follicles (Day 8), beak hardens (Day 10) |
| Hatching Preparation | 15-21 | 37.2~37.5°C / 99.0~99.5°F | 65-70% | Lungs activate (Day 16), pipping (Day 19-21) |
Manteniment
Proper cleaning and maintenance ensure the longevity and hygiene of your incubator.
- Components rentables: The base, grid, egg trays, transparent cover, and water bottles are detachable and washable. Clean them thoroughly with mild soap and water after each use to reduce cross-contamination risks.
- Non-Washable Components: The top cover, which contains electronic components, should not be submerged in water. Clean it with a dry wipe or a soft brush.
- Inspecció periòdica: Periodically check for any debris or blockages in the ventilation system and ensure all connections are secure.
Troubleshooting (For Reference Only)
| Problema | Causa possible | Solució |
|---|---|---|
| Stuck to shell | Low humidity/infrequent turning | Increase humidity to 70%, turn eggs regularly |
| Early hatching | Sobreescalfament | Calibrate thermostat, avoid fluctuations |
| Pollets febles | Oxygen/nutrition deficiency | Improve ventilation, check egg quality |
Especificacions
- Nom del model: Ecohatch18H
- Capacitat: 18 Eggs (Chicken)
- Dimensions (LxWxH): 12.8 x 11.8 x 6.6 polzades (32.7 x 30 x 16.9 cm)
- Pes de l'article: 4 lliures (1.8 kg)
- Material: Acrilonitril butadiè estirè (ABS)
- Color: Blau
- Recomanació de raça: Chicken eggs, duck eggs, goose eggs, quail eggs, pigeon eggs, parrot eggs
- Característiques especials: Automatic, Durable, Easy Assembly, Eco-Friendly, Temperature Adjustment
- Usos específics: Interior
Garantia i Suport
The WONEGG 18-Egg Incubator comes with a 2 any de garantia del fabricant. For any questions, assistance, or issues you may encounter, please contact WONEGG customer support via Amazon. Your hatching journey is important to us, and we are committed to providing support.
For further assistance, please refer to the contact information provided in your product packaging or through the WONEGG brand store on Amazon.
