Manual d'usuari de la minicarregadora de cadenes AGT de 0.7 tones amb direcció a peu

Introducció

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your AGT 0.7 Ton Stand-On Skid Steer Track Loader Crawler. Please read this manual thoroughly before operating the machine to ensure proper use and to prevent injury or damage.

Producte acabatview

The AGT 0.7 Ton Stand-On Skid Steer Track Loader Crawler (Model AGT-MX-CRT23) is a compact yet powerful machine designed for various tasks including construction, landscaping, and warehouse operations. It features a RATO Engine 24HP, a maximum lifting force of 800 kg, and a bucket capacity of 0.1 m³. Its robust design and track system provide excellent maneuverability and stability in diverse working conditions.

Figura 1: lateral view of the AGT 0.7 Ton Stand-On Skid Steer Track Loader Crawler, highlighting its compact design and track system.

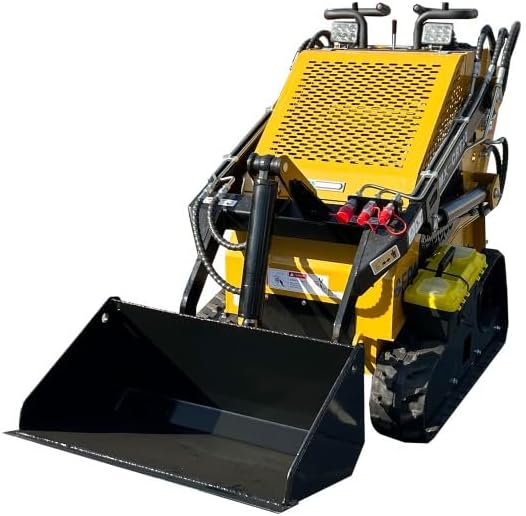

Figura 2: Frontal view of the skid steer, showing the bucket and overall width.

Informació de seguretat

Always prioritize safety when operating heavy machinery. Familiarize yourself with all safety decals on the machine and follow all local safety regulations. Ensure all operators are trained and understand the machine's controls and capabilities.

• Always wear appropriate personal protective equipment (PPE), including hard hat, safety glasses, and steel-toed boots.
• Never operate the machine under the influence of alcohol or drugs.
• Inspect the machine before each use for any damage or malfunctions.
• Assegureu-vos que la zona de treball estigui lliure de vianants i obstacles.
• Do not exceed the maximum lifting capacity of 800 kg.

Configuració

Desembalatge i muntatge

The AGT 0.7 Ton Skid Steer is shipped with the bucket detached. Follow these steps for initial setup:

1. Carefully uncrate the machine and its components.
2. Locate the included bucket.
3. Align the bucket's attachment points with the loader arms.
4. Secure the bucket using the provided pins and clips. Ensure all connections are firm and secure.

Figura 3: Primer pla view of the bucket attachment points, illustrating how the bucket connects to the loader arms.

Initial Fluid Checks

Before first operation, verify fluid levels:

• Oli de motor: Check the engine oil level using the dipstick. The RATO R740D engine requires 1.6 liters of oil.
• Fluid hidràulic: Verify the hydraulic oil level. The hydraulic oil tank capacity is 33 liters.
• Combustible: Fill the fuel tank with 92# gasoline. The fuel tank capacity is 19.6 liters.

Instruccions de funcionament

Controls acabatsview

The control panel is located at the operator's station. Familiarize yourself with the layout before starting the machine.

Figure 4: Operator control panel, displaying joysticks, gauges, and switches for machine operation.

Arrencada del motor

1. Assegureu-vos que el fre d'estacionament estigui activat.
2. Gireu la clau d'encesa a la posició "ON".
3. Pull the choke knob if the engine is cold.
4. Gireu la clau d'encesa a la posició "START" i deixeu-la anar un cop el motor s'hagi engegat.
5. Deixeu que el motor s'escalfi durant uns minuts abans de fer-lo funcionar.

Driving and Maneuvering

Use the two control levers (joysticks) to control the machine's movement and the loader arms.

• Push both levers forward to move straight ahead.
• Pull both levers back to move straight backward.
• Push one lever forward and pull the other back to turn in place (skid steer action).
• The maximum travel speed is 4 km/h.

Loader Arm and Bucket Operation

The loader arms and bucket are controlled by specific levers on the control panel.

• Aixecament: Use the right joystick to raise the loader arms. The lifting time is approximately 4.6 seconds.
• Baixada: Use the right joystick to lower the loader arms. The descent time is approximately 3.2 seconds.
• Tilting Bucket: Use the left joystick to tilt the bucket forward (dump) or backward (curl). The bucket discharge angle is 23°.
• La força màxima d'elevació és de 800 kg.
• The maximum working height is 2285 mm.
• The maximum unloading height is 1575 mm.

Figure 5: The skid steer with its bucket slightly raised, demonstrating the loader arm's initial range of motion.

Figure 6: The skid steer with its bucket fully raised, illustrating the maximum working height for unloading.

Manteniment

Regular maintenance is crucial for the longevity and optimal performance of your skid steer.

Manteniment del motor

• Canvi d'oli del motor: Replace engine oil every 50 operating hours or annually, whichever comes first. The engine oil replacement capacity is 1.6 liters.
• Filtre d'aire: Inspect and clean the air filter regularly, especially in dusty conditions. Replace if damaged.
• Bugies: Check and clean spark plugs periodically. Replace as needed.
• Filtre de combustible: Replace the fuel filter according to the engine manufacturer's recommendations.

Figura 7: Part posterior view of the skid steer, providing access to the engine compartment for maintenance.

Manteniment del sistema hidràulic

• Comprovació del fluid hidràulic: Check hydraulic fluid level daily before operation. Maintain the level within the specified range. The hydraulic oil tank capacity is 33 liters.
• Filtre hidràulic: Replace the hydraulic filter as recommended in the service schedule to ensure clean hydraulic fluid.
• Mànegues i connexions: Inspect all hydraulic hoses and connections for leaks, cracks, or damage. Replace any compromised components immediately.

Figura 8: View of the hydraulic cooler, an important component for maintaining optimal hydraulic system temperature.

Figure 9: Close-up of the hydraulic quick connect fittings, used for attaching hydraulic implements.

Track System Maintenance

• Tensió de la pista: Periodically check and adjust track tension to prevent premature wear and ensure proper operation.
• Neteja: Remove debris, mud, and rocks from the tracks and undercarriage after each use.

Resolució de problemes

Aquesta secció proporciona solucions a problemes operatius comuns. Per a problemes que no figuren aquí, poseu-vos en contacte amb l'atenció al client.

Especificacions

Detailed technical specifications for the AGT 0.7 Ton Stand-On Skid Steer Track Loader Crawler (Model AGT-MX-CRT23).

Informació de la garantia

Specific warranty details for the AGT 0.7 Ton Stand-On Skid Steer Track Loader Crawler are typically provided at the point of purchase or within separate warranty documentation. Please refer to your purchase agreement or contact AGT INDUSTRIAL directly for comprehensive warranty coverage information.

Els plans de protecció ampliada poden estar disponibles per a la compra per separat. Per exempleample, 3-Year and 4-Year Protection Plans are offered to extend coverage beyond the standard manufacturer's warranty.

Suport i Contacte

For technical assistance, parts inquiries, or further support regarding your AGT 0.7 Ton Stand-On Skid Steer Track Loader Crawler, please contact AGT INDUSTRIAL customer support.

• Fabricant: AGT INDUSTRIAL
• Botiga online: Visit the AGT INDUSTRIAL Store on Amazon
• For general inquiries or customer service, refer to the contact information provided with your purchase or on the official AGT INDUSTRIAL weblloc.
