1. Introducció
This manual provides detailed instructions for the installation, operation, and maintenance of your AINAVI Android 12 Car Stereo. Designed specifically for Toyota Corolla models from 2014 to 2016, this unit enhances your driving experience with advanced features such as Android 12 OS, wireless CarPlay, Android Auto, GPS navigation, Wi-Fi, and Bluetooth 5.0 connectivity. Please read this manual thoroughly before installation and use to ensure proper function and safety.
2. Què s'inclou
Verifiqueu que tots els components que s'enumeren a continuació siguin presents al vostre paquet:
- 1x Android Car Stereo Head Unit (10.1-inch QLED screen)
- Wiring Harness Power Cable
- Descodificador CANbus
- 1 x cable RCA
- 1 x Reversing cable
- 2 x cables USB
- 1 x Antena GPS
- 1 x posterior View Càmera
- 1 x micròfon
- Manual d'usuari (aquest document)
- Frame Panel (customized for Toyota Corolla 2014-2016)
- Frame removal tool
Image: All components included in the AINAVI Android Car Stereo package. Note that cable configurations may vary slightly by model.
3. Configuració i instal·lació
This car stereo is designed for a plug-and-play installation in Toyota Corolla models from 2014 to 2016. No modification of your car's original wiring is typically required. Professional installation is recommended if you are unfamiliar with car electronics.
3.1 Llista de comprovació prèvia a la instal·lació
- Assegureu-vos que el contacte del vehicle estigui apagat i que la bateria estigui desconnectada.
- Reuneix totes les eines necessàries (per exemple, tornavisos, eines per treure guarnicions).
- Confirm compatibility with your specific Toyota Corolla model year (2014-2016).
3.2 Passos d'instal·lació
- Carefully remove the original car stereo and trim panel using appropriate tools.
- Connect the provided wiring harness and CANbus decoder to the car's existing connectors. Ensure all connections are secure.
- Connect the GPS antenna, USB cables, microphone, and rearview camera (if installing) to the corresponding ports on the new head unit.
- Mount the new AINAVI Android Car Stereo into the dashboard opening, ensuring it fits securely within the provided frame panel.
- Torneu a connectar la bateria del vehicle i engegueu el contacte per provar la unitat.
- Perform initial setup and configuration as prompted on the screen.
Image: Visual comparison of the car's dashboard before and after the AINAVI Android Car Stereo installation, showing a seamless fit.
4. Instruccions de funcionament
4.1 Funcionament bàsic
- Encès/apagat: Premeu i manteniu premut el botó d'engegada de la unitat o feu servir el contacte del vehicle.
- Pantalla tàctil: Navigate the Android 12 interface using the responsive 10.1-inch QLED touchscreen.
- Control de volum: Ajusta el volum amb els botons físics o els controls en pantalla.
- Pantalla d'inici: Access various applications and widgets from the customizable home screen.
4.2 CarPlay sense fil i Android Auto
The unit supports both wireless and wired CarPlay, and wired Android Auto, allowing seamless integration with your smartphone for navigation, communication, and entertainment.
- CarPlay sense fil: Connect your iPhone via Bluetooth and then follow the on-screen prompts to establish a wireless CarPlay connection.
- CarPlay/Android Auto amb cable: Connect your iPhone or Android phone to the unit via a USB cable. The system will automatically detect and launch the respective interface.
Imatge: La pantalla de l'estèreo del cotxe mostraasing the Apple CarPlay and Android Auto interfaces, enabling smartphone integration.
4.3 Navegació GPS
The built-in GPS module provides reliable navigation. You can use pre-installed maps or download your preferred navigation apps from the Google Play Store.
- Navegació en línia: Connect the head unit to a Wi-Fi network (e.g., mobile hotspot) to receive real-time traffic information.
- Mapes fora de línia: Baixeu mapes fora de línia per navegar sense connexió a Internet.
Image: The car stereo screen displaying a detailed GPS navigation map, indicating current location and route.
4.4 Bluetooth & WiFi Connectivity
The unit features Bluetooth 5.0 for hands-free calls and audio streaming, and dual-band Wi-Fi (2.4GHz & 5GHz) for high-speed internet access.
- Emparellament Bluetooth: Go to Settings > Bluetooth, enable Bluetooth on your phone, and select the head unit from the list of available devices to pair.
- Connexió Wi-Fi: Go to Settings > Wi-Fi, turn on Wi-Fi, and connect to an available hotspot.
Image: The car stereo interface displaying Bluetooth phone functions and music, with a smartphone illustrating Wi-Fi connectivity.
4.5 Mode de pantalla dividida
Utilitzeu la funció de pantalla dividida per executar dues aplicacions simultàniament, com ara la navegació i la reproducció de música.
- Activació de la pantalla dividida: Open an application, then long-press the recent apps button or drag an app to one side of the screen to activate split-screen mode.

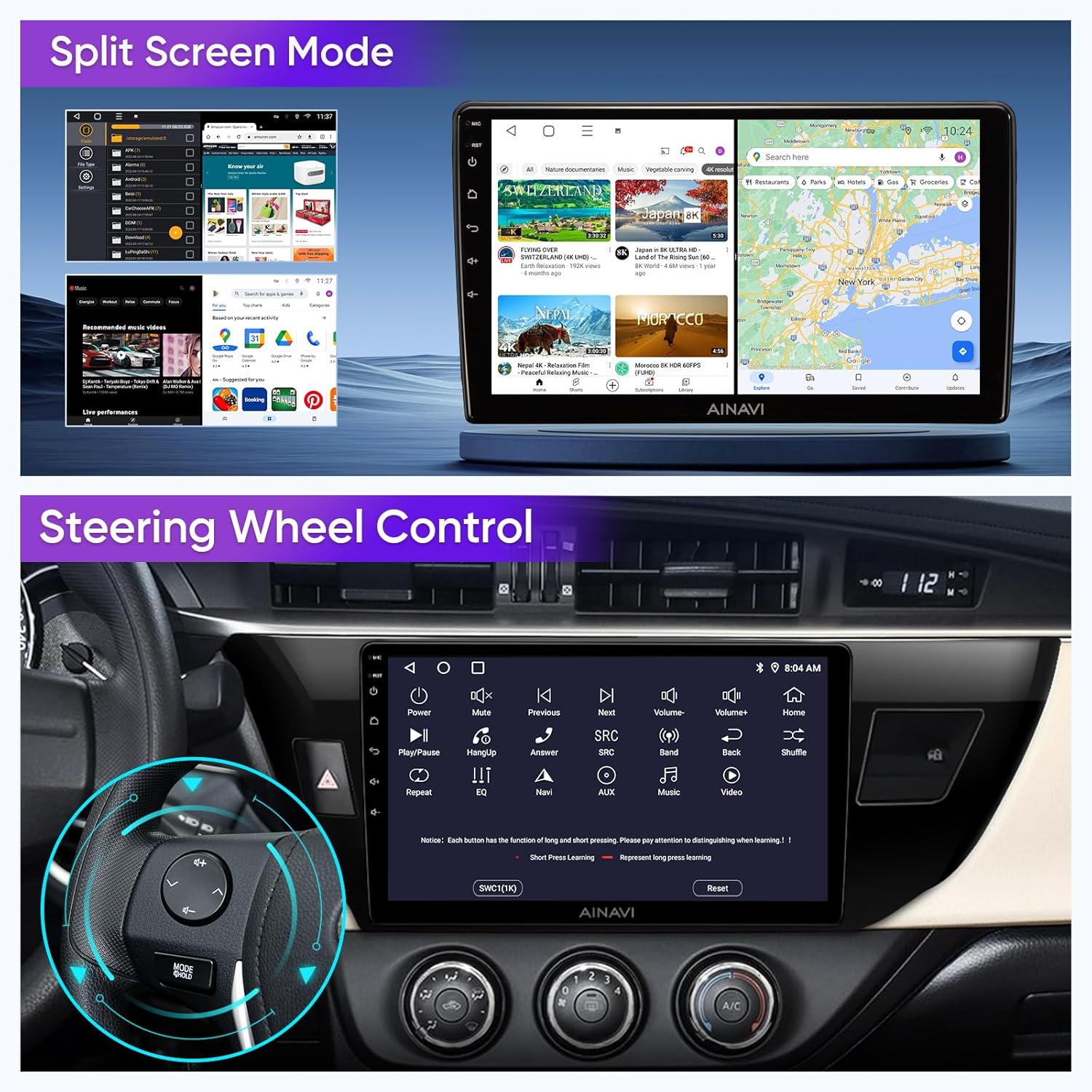

Image: The car stereo screen demonstrating split-screen functionality, with navigation and a video application running concurrently.
4.6 Control del volant
The unit supports your vehicle's original steering wheel controls, allowing you to manage audio and other functions without taking your hands off the wheel.
- Configuració: Access the Steering Wheel Control settings in the unit's menu to map functions to your vehicle's buttons.
Image: The car stereo interface for configuring steering wheel controls, with an overlay highlighting the steering wheel buttons.
4.7 Control de veu intel·ligent
Access voice commands through CarPlay/Android Auto by saying "Hey Siri" or "Hey Google," or by touching the microphone icon on the head unit. This allows for hands-free control of navigation, calls, messages, and music.
Image: The car stereo screen illustrating smart voice control capabilities, with examples of voice commands and integrated applications.
5. Manteniment
To ensure the longevity and optimal performance of your AINAVI car stereo, follow these maintenance guidelines:
- Neteja de pantalla: Feu servir un drap suau i sense borrissol per netejar suaument la pantalla tàctil. Per a taques difícils, fregueu lleugeramentampNetegeu el drap amb aigua o un netejador de pantalles. Eviteu productes químics agressius o materials abrasius.
- Actualitzacions de programari: Comproveu periòdicament si hi ha actualitzacions de programari a través de la configuració de la unitat o del fabricant. website to ensure you have the latest features and security patches.
- Cura del medi ambient: Eviteu exposar la unitat a temperatures extremes, a la llum solar directa durant períodes prolongats o a una humitat excessiva.
- Connexions de cable: Ensure all cables remain securely connected. Periodically check for any signs of wear or damage.
6. Solució De Problemes
If you encounter issues with your car stereo, refer to the following table for common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| La unitat no s'encén | Connexió d'alimentació fluixa, fusible cremat, problema amb la bateria del vehicle | Comproveu les connexions del cable d'alimentació. Inspeccioneu els fusibles del vehicle. Assegureu-vos que la bateria del cotxe estigui carregada. |
| Sense sortida de so | Volume too low, incorrect audio source, loose speaker wires | Increase volume. Select correct audio source. Check speaker wire connections. |
| El GPS no adquireix senyal | GPS antenna not properly connected or positioned, environmental interference | Assegureu-vos que l'antena GPS estigui connectada correctament i col·locada en un lloc sense obstacles (per exemple, al tauler de control). |
| Problemes de connexió Bluetooth | Device not in pairing mode, interference, incorrect pairing process | Ensure both devices are in pairing mode. Delete previous pairings and re-attempt. Restart both devices. |
| CarPlay/Android Auto no es connecta | Faulty USB cable, phone software issue, incorrect settings | Try a different USB cable. Ensure phone OS is updated. Check unit's settings for CarPlay/Android Auto activation. |
Si aquestes solucions no resolen el problema, poseu-vos en contacte amb l'atenció al client.
7. Especificacions
Key technical specifications of the AINAVI Android 12 Car Stereo:
| Característica | Detall |
|---|---|
| Sistema operatiu | Android 12 |
| Processador | Quad-Core |
| RAM | 2 GB |
| Emmagatzematge intern (ROM) | 64 GB |
| Mida de la pantalla | 10.1 polzades |
| Tipus de visualització | QLED, G+G Full Lamination |
| Resolució | 1280 x 720 |
| Viewangle ing | 178° completViewangle ing |
| AmpSortida més viva | Max. 4*45W |
| Equalitzador | 16-band EQ, Premium DSP |
| CarPlay | Built-in Wireless & Wired |
| Android Auto | Built-in USB Connection |
| Navegació GPS | Built-in GPS Module (supports online/offline maps) |
| Wi-Fi | Dual-band 2.4Ghz & 5Ghz |
| Bluetooth | Version 5.0 (Hands-free calls, music, phonebook) |
| Característiques especials | Split Screen Function, Steering Wheel Control, Voice Command (Siri/Google), Mobile Phone Mirroring (Tlink), RDS, Rear View Suport de càmera |
| Pes de l'article | 4.44 lliures |
| Dimensions del paquet | 18.94 x 8.62 x 4.8 polzades |
Imatge: Detallada view of the 10.1-inch HD QLED touchscreen, emphasizing its high resolution and wide viewangles d'ajust.
8. Garantia i Suport
AINAVI provides comprehensive support for its products.
8.1 Garantia del producte
Your AINAVI Android Car Stereo comes with a garantia del fabricant d'un any des de la data de compra. Aquesta garantia cobreix els defectes de materials i de fabricació en condicions d'ús normal. Conserveu el comprovant de compra per a reclamacions de garantia.
8.2 Suport tècnic
For any technical assistance, installation questions, or troubleshooting beyond what is covered in this manual, please do not hesitate to contact us. Our professional technical support team is available to assist you.
- Mètode de contacte: Please reach out to us via Amazon email. We aim to reply as soon as possible.
Image: Illustration of how to access customer installation support through the Amazon platform.
