Manual d'instruccions de la barrera de seguretat per a nadons de metall de 3 panells Dreambaby Discovery

1. Introducció

The Dreambaby Discovery 3 Panel Metal Baby Gate is designed to provide a secure barrier for children and pets in various home environments. Its configurable three-panel design allows for installation in straight, angled, wide, or irregular openings, including stairways and hallways. This gate features a bi-directional swinging door for convenient access and an optional one-way stopper for enhanced safety on stairs. The stay-open feature adds practicality for busy households.

This manual provides essential information for the correct installation, safe operation, and proper maintenance of your Dreambaby Discovery gate. Please read all instructions carefully before assembly and use.

Image 1.1: The Dreambaby Discovery 3 Panel Metal Baby Gate configured for a wide opening.

2. Informació important de seguretat

• ADVERTIMENT: Read all instructions before installation and use. Failure to follow these warnings and instructions could result in serious injury or death.
• Aquesta barrera de seguretat és només per a ús domèstic.
• This safety barrier is suitable for use with children from 6 to 24 months.
• No l'utilitzeu mai amb un nen que pugui enfilar-se o desplaçar la porta.
• Always ensure the gate is securely closed and latched before leaving a child unattended.
• Periodically check all fasteners to ensure they are tight and secure.
• No utilitzeu la barrera de seguretat si hi ha components danyats o mancats.
• The gate must be installed between rigid surfaces such as walls or door frames.
• When used at the top of stairs, the gate should be installed on the landing above the top step.
• When used at the bottom of stairs, the gate should be placed on the lowest step.
• This gate is designed for hardware mounting only. Do not rely on pressure mounting for safety.
• Keep children away from the gate during installation.

3. Contingut del paquet

Si us plau, comproveu que hi hagi tots els components abans de començar la instal·lació:

• Main Gate Panel with Door
• Panells laterals (2)
• Wall Mounting Hardware (brackets, screws, wall anchors)
• Connecting Hinges/Joints
• Optional One-Way Stopper
• Manual d'instruccions

4. Configuració i instal·lació

4.1 Comprovacions prèvies a la instal·lació

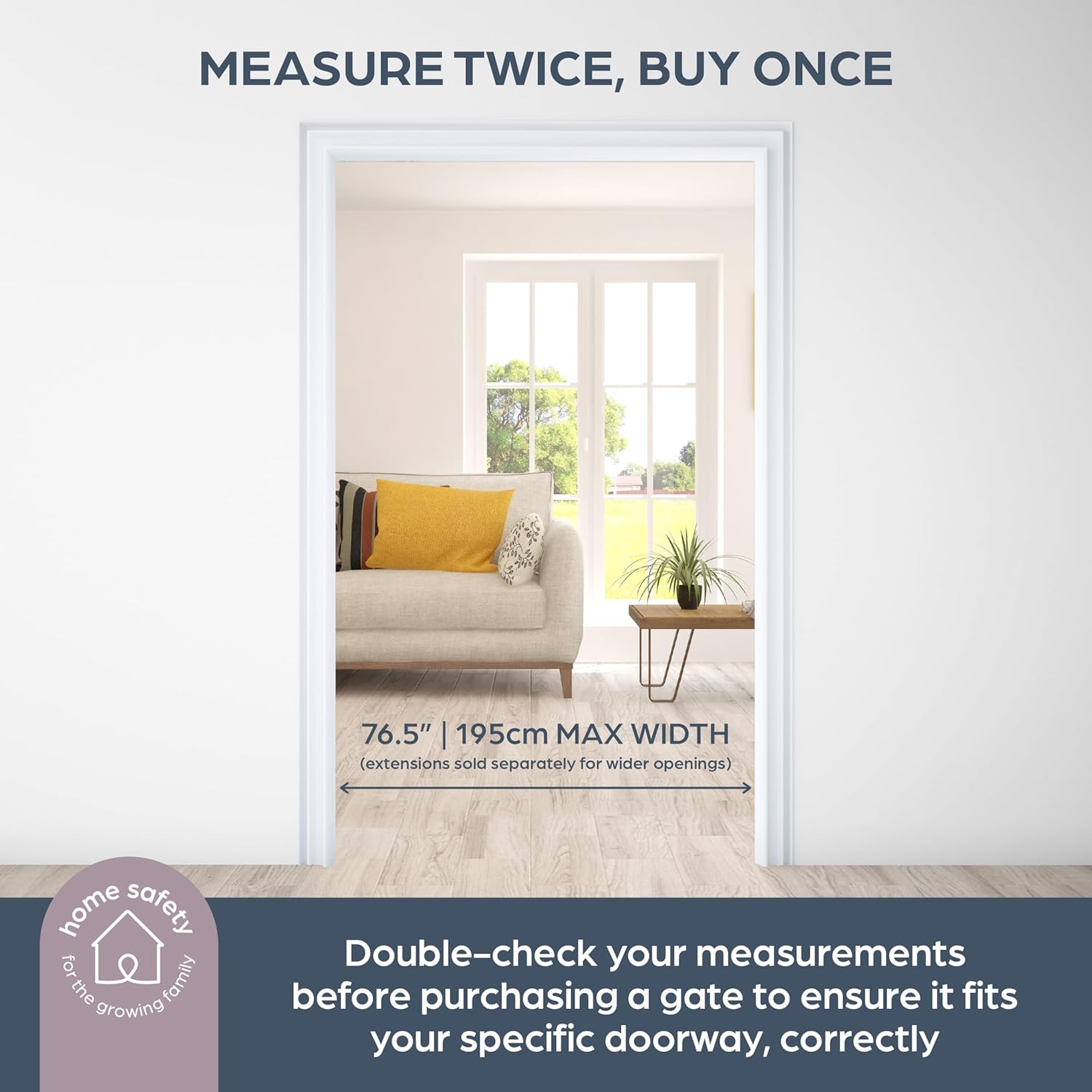

1. Mesura la teva obertura: Ensure your opening is within the gate's specified range of 74.5 cm (29 in) to 1.95 m (76.5 in) in width.


Image 4.1: Always measure your opening accurately before installation.

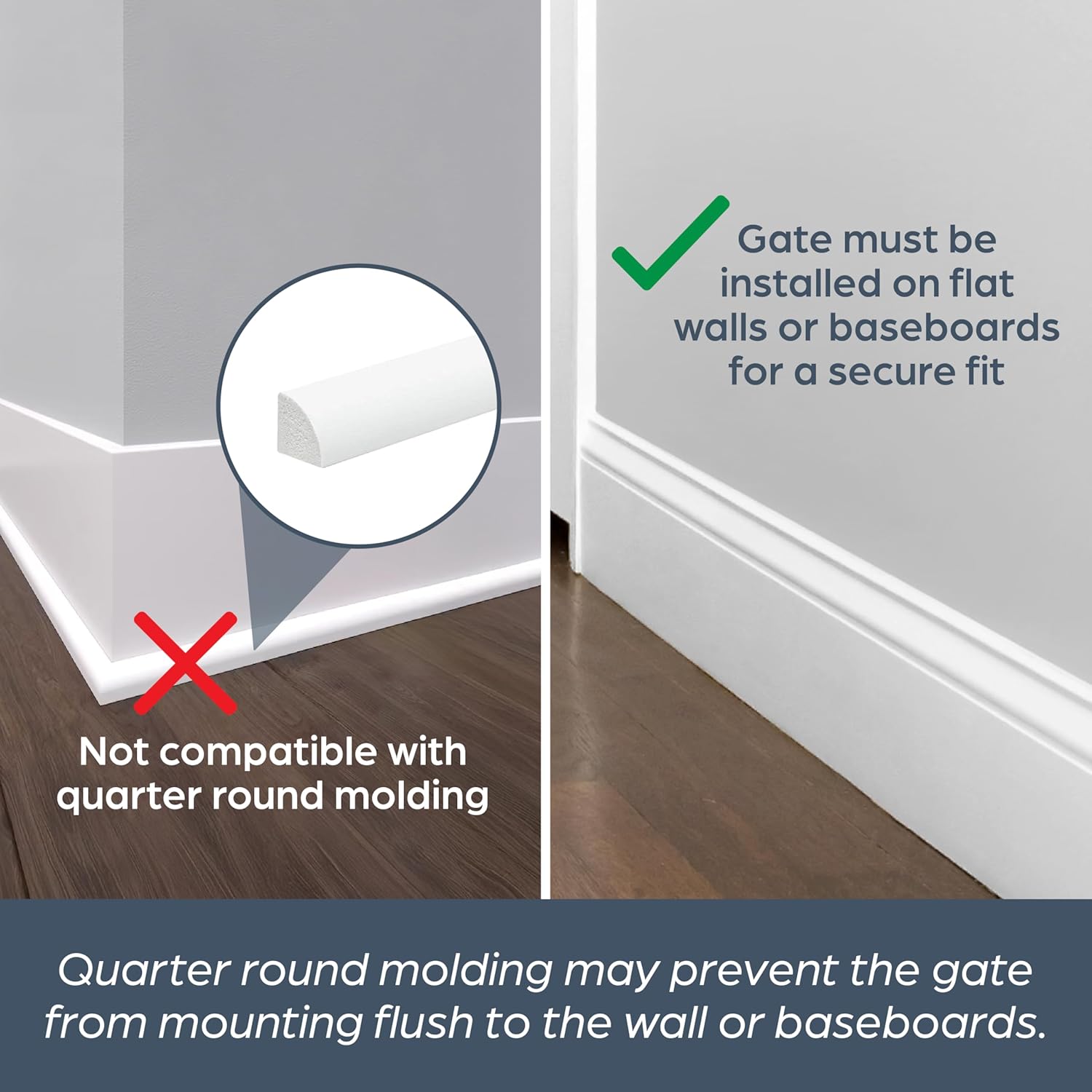

2. Wall Surface: The gate must be installed on flat, stable walls or baseboards for a secure fit. Avoid installing on quarter-round molding as this may prevent the gate from mounting flush to the wall.


Image 4.2: Ensure installation surfaces are flat for optimal security.

3. Ubicació: Determine the best configuration for your space (straight, angled, around obstacles).

4.2 Hardware Mounting Steps

This gate requires hardware mounting for maximum security. Follow these general steps:

1. Position the Gate: Place the gate in the desired opening. Adjust the panels to achieve the required angle and width.
2. Marqueu els punts de muntatge: Hold the gate panels against the wall or frame and mark the positions for the wall mounting brackets. Ensure the gate is level.
3. Instal·lar els suports: Drill pilot holes at the marked points. Secure the wall mounting brackets using the provided screws and wall anchors (if drilling into drywall).
4. Attach Gate Panels: Connect the gate panels to the installed wall brackets. Ensure all connections are tight and secure.
5. Ajustar i assegurar: Fine-tune the panel angles and tighten all connecting hinges/joints to create a rigid and stable barrier.
6. Seguretat de la prova: Once installed, firmly push and pull on the gate to ensure it is securely mounted and does not wobble.

Image 4.3: The gate adapts to various spaces, including angled openings.

5. Instruccions de funcionament

5.1 Opening and Closing the Gate

• To open the gate, locate the latch mechanism. Typically, this involves pressing a button or sliding a lever while lifting the gate door slightly.
• The gate door is designed to swing in both directions for convenience.
• To close, simply push the gate door until it clicks securely into the latch. Always ensure the latch is fully engaged.

5.2 Stay-Open Feature

For periods when the gate is not needed, or for easy passage, the gate includes a stay-open feature. To activate, open the gate door past a certain point (usually around 90 degrees), and it will remain open until manually closed. This is ideal for busy times when constant opening and closing is inconvenient.

5.3 One-Way Stopper for Stairs

When installing the gate at the top of stairs, it is recommended to use the included one-way stopper. This prevents the gate door from swinging out over the stairs, reducing the risk of falls. Follow the specific instructions in your gate's packaging for installing this component.

Image 5.1: The gate features a bi-directional door and an optional one-way stopper for stair safety.

6. Manteniment

• Neteja: Wipe the gate regularly with a damp cloth and mild soap. Do not use abrasive cleaners or harsh chemicals, as these can damage the finish.
• Comprovacions periòdiques: Periodically inspect all parts of the gate, including hinges, latches, and mounting points, for wear, damage, or loosening. Tighten any loose screws or connections immediately.
• Durabilitat: The gate is constructed from durable metal designed for everyday use. Proper maintenance will extend its lifespan.

Image 6.1: The gate's sturdy metal design ensures long-lasting durability.

7. Solució De Problemes

• Gate Wobbles After Installation: Ensure all wall mounting brackets are securely fastened and all connecting hinges/joints between panels are tightened. Re-check that the installation surface is flat and stable.
• Gate Latch Not Engaging Properly: Inspect the latch mechanism for any obstructions or damage. Ensure the gate is installed level and square within the opening, as misalignment can affect latch operation. If a plastic piece is broken, contact customer support for replacement parts.
• Gate Door Does Not Swing Freely: Check for any obstructions around the hinges or the bottom of the gate. Ensure the gate is not installed too tightly, which could impede movement.
• Gate Does Not Stay Open: Verify that the gate door is pushed past the designated stay-open point. If the mechanism is damaged, contact customer support.

8. Especificacions

9. Garantia i Suport

Dreambaby products are manufactured to high-quality standards. For specific warranty information, please refer to the documentation included with your purchase or visit the official Dreambaby website. If you require assistance with installation, troubleshooting, or replacement parts, please contact Dreambaby customer support.

Per obtenir més informació i suport, visiteu el Dreambaby Store on Amazon.
