MOOG RK623938 Suspension Control Arm and Ball Joint Assembly

1. Introducció

The MOOG RK623938 Suspension Control Arm and Ball Joint Assembly is a critical component designed to connect the vehicle's frame to the steering knuckle or wheel hub, allowing for controlled movement of the suspension. This assembly plays a vital role in maintaining proper wheel alignment, steering stability, and ride comfort. Engineered for structural strength and corrosion protection, this MOOG product ensures long-lasting dependability and performance for both foreign and domestic nameplates.

2. Característiques del producte

The MOOG RK623938 Control Arm and Ball Joint Assembly incorporates several design features to enhance durability and ease of installation:

• Fàcil d'instal·lar: Features wrench flats that ensure straightforward installation and removal, simplifying the replacement process.
• Sealed Boot Protection: Equipped with a sealed boot that effectively shields internal components from wear-causing contaminants such as dirt, water, and debris, extending the lifespan of the ball joint.
• Construcció resistent i duradora: Built with a thick connecting rod for added strength, complemented by metal bearings and rubber preload for long-term reliability and consistent performance.
• Materials premium: Manufactured using high-quality materials to ensure exceptional durability and resistance to wear and tear under various driving conditions.
• Proves rigoroses: Undergoes comprehensive testing throughout its design and development phases by MOOG engineers, guaranteeing a product that meets stringent quality standards.

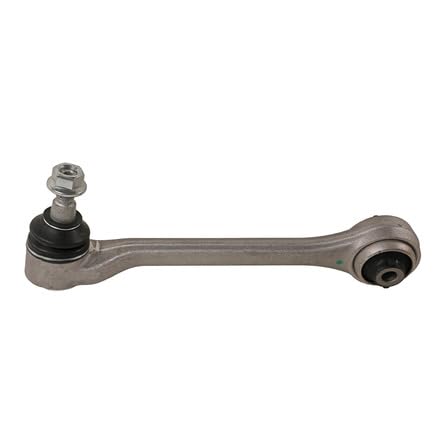

Image 1: The MOOG RK623938 Suspension Control Arm and Ball Joint Assembly. This image shows the complete assembly, highlighting the robust construction of the control arm and the integrated ball joint with its protective boot and mounting nut.

3. Pautes d'instal·lació

Installation of suspension components requires specialized tools and knowledge. It is highly recommended that the MOOG RK623938 Suspension Control Arm and Ball Joint Assembly be installed by a qualified automotive technician.

General Steps (Consult Vehicle Service Manual for Specifics):

1. La seguretat primer: Ensure the vehicle is safely lifted and supported on jack stands. Disconnect the battery if working near electrical components.
2. Remove Wheel: Remove the wheel from the side where the control arm is to be replaced.
3. Components d'accés: Locate the existing control arm and identify all mounting points (bolts, nuts, ball joint connection).
4. Disconnect Ball Joint: Carefully separate the ball joint from the steering knuckle using appropriate tools (e.g., ball joint separator).
5. Treure el braç de control: Unbolt the control arm from the vehicle frame or subframe. Note the orientation and any shims or washers.
6. Instal·leu el nou muntatge: Position the new MOOG RK623938 assembly and loosely attach the frame mounting bolts.
7. Connect Ball Joint: Connect the new ball joint to the steering knuckle. Ensure proper seating and torque the nut to manufacturer specifications.
8. Parell final: With the vehicle's weight on the suspension (or at ride height), torque all control arm mounting bolts to the vehicle manufacturer's specifications. This is crucial to prevent premature bushing wear.
9. Torneu a muntar: Torneu a instal·lar la roda i baixeu el vehicle.
10. Alineació: A wheel alignment is highly recommended after replacing any suspension components to ensure proper handling and tire wear.

Important: Always refer to your vehicle's specific service manual for detailed instructions, torque specifications, and safety precautions.

4. Principi de funcionament

The control arm, also known as a wishbone or A-arm, is a hinged suspension link that connects the chassis to the wheel hub or steering knuckle. Its primary function is to allow the wheel to move up and down relative to the vehicle body while maintaining proper alignment and stability. The integrated ball joint acts as a flexible pivot, allowing the steering knuckle to turn and articulate while the suspension moves. Together, they absorb road shocks, maintain tire contact with the road, and facilitate precise steering control.

5. Manteniment

While the MOOG RK623938 is designed for durability with its sealed ball joint, periodic inspection of your vehicle's suspension components is crucial for safety and longevity.

• Inspecció periòdica: During routine vehicle maintenance (e.g., oil changes, tire rotations), have a technician inspect the control arms, ball joints, and bushings for signs of wear, cracks, or damage.
• Comprovació de reproducció: Look for excessive play in the ball joint or bushings. This can indicate wear and necessitate replacement.
• Inspect Boots: Ensure the ball joint boot is intact and not torn or cracked. A damaged boot can lead to contamination and premature failure of the ball joint.
• Escolta els sorolls: Pay attention to any clunking, squeaking, or rattling noises coming from the suspension, especially over bumps or during turns. These can be indicators of worn components.

6. Solució De Problemes

If you experience any of the following symptoms, your control arm or ball joint assembly may require inspection or replacement:

• Sorolls de cops o esclafits: Often heard when going over bumps, turning, or braking, indicating loose or worn ball joints or bushings.
• Steering Wander or Looseness: The vehicle may feel less stable, requiring constant steering corrections to stay in a straight line.
• Desgast irregular dels pneumàtics: Worn suspension components can lead to improper wheel alignment, causing tires to wear unevenly.
• Vibracions: Vibrations felt through the steering wheel or floorboards, especially at certain speeds.
• Vehicle tirant cap a un costat: While many factors can cause this, a worn control arm or ball joint can contribute to the issue.

If you notice any of these symptoms, it is crucial to have your vehicle inspected by a professional technician immediately to prevent further damage and ensure driving safety.

7. Especificacions

8. Garantia i Suport

MOOG stands behind the quality and durability of its products. For specific warranty information regarding the RK623938 Suspension Control Arm and Ball Joint Assembly, please refer to the official MOOG weblloc web o contacteu directament amb el seu servei d'atenció al client. Conserveu el rebut de compra com a comprovant de compra per a qualsevol reclamació de garantia.

For technical assistance, installation questions, or to locate an authorized MOOG distributor, please visit the official MOOG website or contact their customer service department. Always ensure you are using genuine MOOG parts for optimal performance and safety.

Official MOOG Weblloc: www.moogparts.com
