MAHANCRIS FSHS130K01 Gaming Floating Shelf with LED Lights

1. Introducció

Thank you for choosing the MAHANCRIS FSHS130K01 Gaming Floating Shelf with LED Lights. This manual provides essential information for the safe assembly, operation, and maintenance of your new shelf. Please read these instructions carefully before installation and retain them for future reference.

1.1 Contingut del paquet

Ensure all components are present before beginning assembly. If any parts are missing or damaged, please contact customer support.

• 1 x Floating Shelf Frame
• 1 x Accessory Kit (screws, anchors, etc.)
• 1 x tira de llum LED
• 1 x Remote Control for LED Lights
• 4 x Movable S-Hooks
• 1 x manual d'instruccions

2. Informació de seguretat

ADVERTIMENT: Si no es segueixen aquestes instruccions de seguretat, es poden produir lesions o danys al producte.

• This product must be installed on a paret sòlida to support its weight and the items placed on it. Do not install on drywall alone without proper anchors into studs or concrete.
• Do not overload the shelves beyond their stated weight limits to prevent accidents. The maximum weight limit for the entire unit is 132 pounds (60 kg). Individual shelves have specific limits as detailed in the specifications.
• Mantingueu les peces petites i els materials d'embalatge lluny dels nens per evitar perills d'asfixia.
• Assegureu-vos que tots els cargols i elements de fixació estiguin ben ajustats durant el muntatge i comproveu periòdicament que estiguin ben ajustats.
• Do not climb on or hang from the shelf.
• Disconnect the LED light strip from the power source before cleaning or performing any maintenance.

3. Característiques del producte

The MAHANCRIS FSHS130K01 shelf is designed to enhance your space with both functionality and aesthetic appeal.

3.1 Hexagonal Design and Structure

The shelf features a unique hexagonal shape with smooth lines, providing a modern and distinctive look. The sturdy metal frame ensures stability and durability.

Image: Detail of the hexagonal frame, showing its robust design.

3.2 4-Tier Organization

This floating shelf offers a 4-tier layout, combining wooden and glass panels to create multiple display surfaces. This design allows for versatile organization of various items.

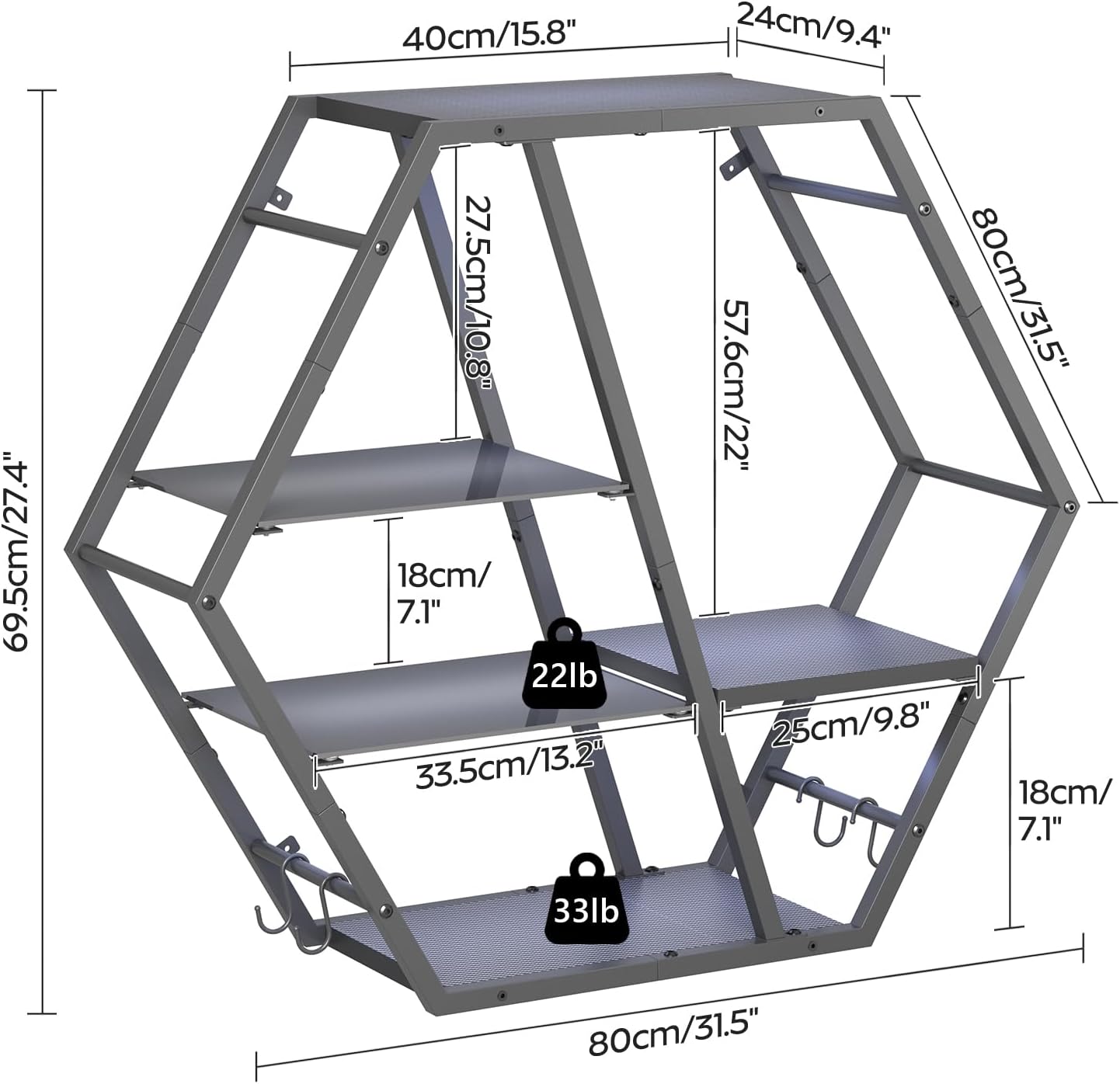

Image: Dimensional diagram of the 4-tier hexagonal shelf.

Sistema d'il·luminació LED 3.3

An integrated LED light strip allows you to customize the ambiance with various colors and modes using the included remote control. The black-gray semi-translucent glass panels enhance the lighting effects.

Image: Shelf with LED lights creating ambient lighting.

3.4 Material Composition

Constructed from premium MDF (Engineered Wood), glass, and metal, ensuring both aesthetic appeal and structural integrity.

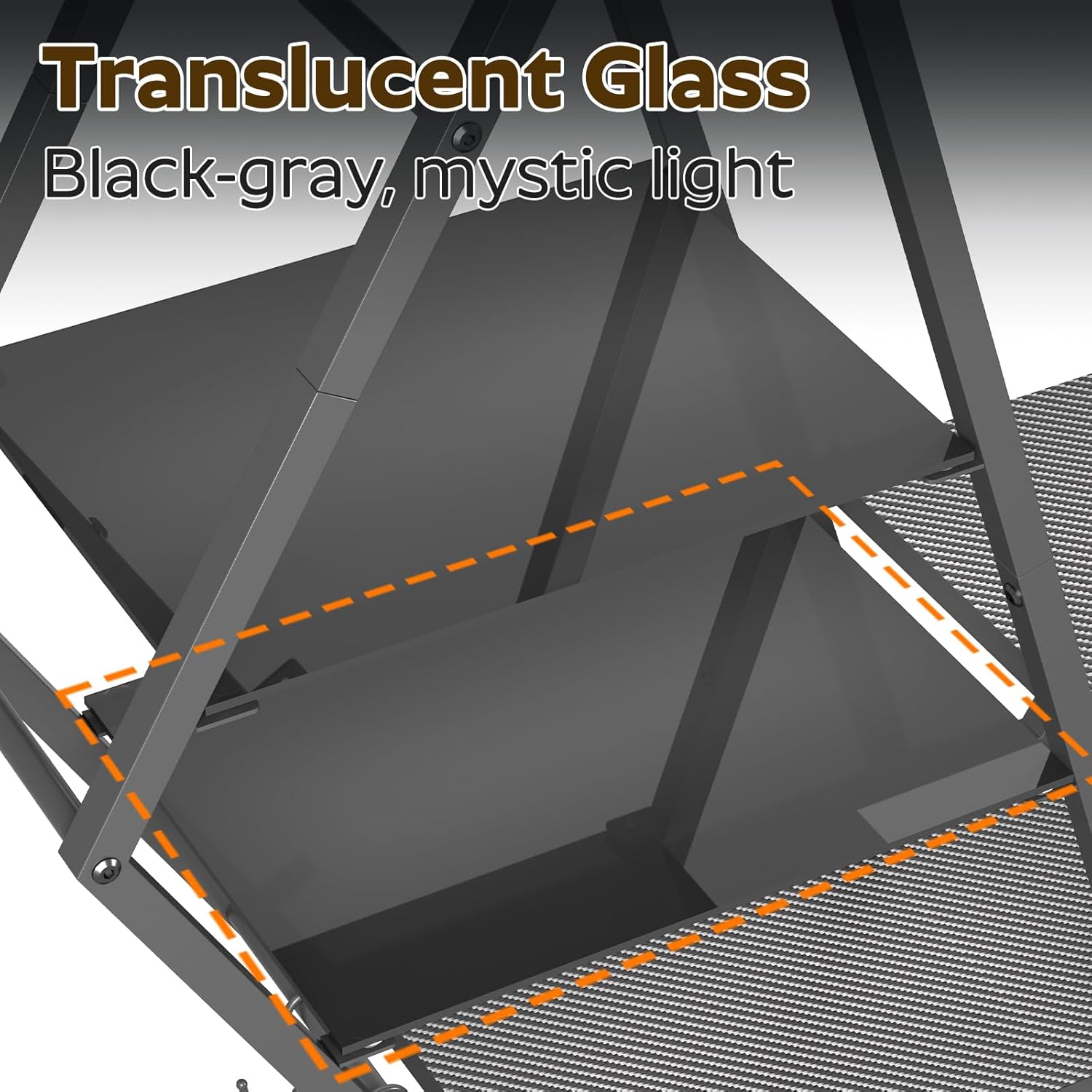

Image: Detail of the translucent glass panel.

Image: Detail of the retro-styled wooden panel.

3.5 característiques addicionals

• 4 Movable S-Hooks: Convenient for hanging additional items such as headphones, keys, or small accessories.
• Laser Patterns: The wooden panel features laser patterns that create dynamic visual effects under the LED lights.

Image: Detail of the movable S-hooks.

4. Especificacions

5. Configuració i instal·lació

Assembly of the MAHANCRIS FSHS130K01 shelf is required. Please follow the detailed assembly instructions included in your package. Ensure you have the necessary tools before starting.

5.1 Passos de muntatge (generals)

1. Desembaleu tots els components i verifiqueu-los amb la llista de contingut del paquet.
2. Assemble the hexagonal metal frame according to the diagrams in the separate assembly guide.
3. Install the wooden and glass panels into the designated slots within the frame. Ensure suction cups for glass panels are properly seated.
4. Attach the LED light strip to the designated area on the shelf.
5. Attach the S-hooks to the lower bar as desired.

5.2 Muntatge a la paret

This shelf is designed for wall mounting. Proper installation is crucial for safety and stability.

• Choose a Solid Wall: The shelf must be mounted on a solid wall (e.g., concrete, brick, or into wall studs). Do not mount directly onto drywall without locating studs or using appropriate heavy-duty anchors.
• Marcatge: Use a level and pencil to mark the desired mounting points on the wall.
• Perforació: Drill pilot holes at the marked locations. Use a drill bit appropriate for your wall material and anchor type.
• Àncores: Insert wall anchors (if required) into the drilled holes.
• Assegureu el prestatge: Align the shelf's mounting holes with the wall anchors/studs and secure it firmly with the provided screws. Do not overtighten.

Imatge: Example of the shelf installed in a gaming setup.

6. Instruccions de funcionament

6.1 Funcionament de la llum LED

The LED light strip is controlled by the included remote control.

1. Connect the LED light strip to a suitable USB power source (e.g., a USB wall adapter, not included). Ensure the extension cord length is sufficient for your setup.
2. Point the remote control towards the LED receiver on the light strip.
3. Use the remote to turn the lights ON/OFF, change colors, adjust brightness, and select different lighting modes (e.g., flash, fade, strobe).

Video: Demonstration of the MAHANCRIS Gaming Floating Shelf with LED Lights, showcasing color changes and ambient effects controlled by a remote.

7. Manteniment

To ensure the longevity and appearance of your MAHANCRIS floating shelf, follow these maintenance guidelines:

• Neteja: Wipe the shelf surfaces with a dry, soft cloth. Avoid abrasive cleaners or harsh chemicals that may damage the finish or glass.
• Pols: Regularly dust the shelf and LED strip to prevent accumulation.
• Inspecció: Reviseu periòdicament tots els cargols i els elements de muntatge per assegurar-vos que estiguin ben ajustats. Torneu a apretar-los si cal.
• Cura del vidre: For glass panels, use a glass cleaner and a soft cloth to remove smudges or fingerprints.

8. Solució De Problemes

If you encounter issues with your MAHANCRIS floating shelf, refer to the following common problems and solutions:

8.1 Els llums LED no funcionen

• Comproveu la connexió d'alimentació: Ensure the LED light strip is securely connected to a working USB power source.
• Bateria remota: Verify that the remote control has a working battery. Replace if necessary.
• Remote Signal: Ensure there are no obstructions between the remote and the LED receiver. Point the remote directly at the receiver.
• Light Strip Damage: Inspect the LED strip for any visible damage or loose connections.

8.2 Shelf Instability

• Muntatge: Re-check that the shelf is securely mounted to a solid wall and all mounting screws are tight.
• Sobrecàrrega: Ensure the shelf is not overloaded beyond its weight capacity. Redistribute items if necessary.
• Muntatge: Verify that all assembly screws for the frame and panels are properly tightened.

9. Garantia i Suport

MAHANCRIS products are manufactured with quality and customer satisfaction in mind. For specific warranty information, please refer to the documentation included with your purchase or contact MAHANCRIS customer support directly.

If you have any questions, require assistance with assembly, or need to report a missing/damaged part, please contact our customer service team. Provide your model number (FSHS130K01) and purchase details for faster service.
