1. Introducció
This manual provides essential information for the safe and efficient operation of your Defy DMO243 Digital Convection Microwave. Please read these instructions thoroughly before using the appliance and retain them for future reference. This appliance combines microwave, convection, and grilling functions to offer versatile cooking options.

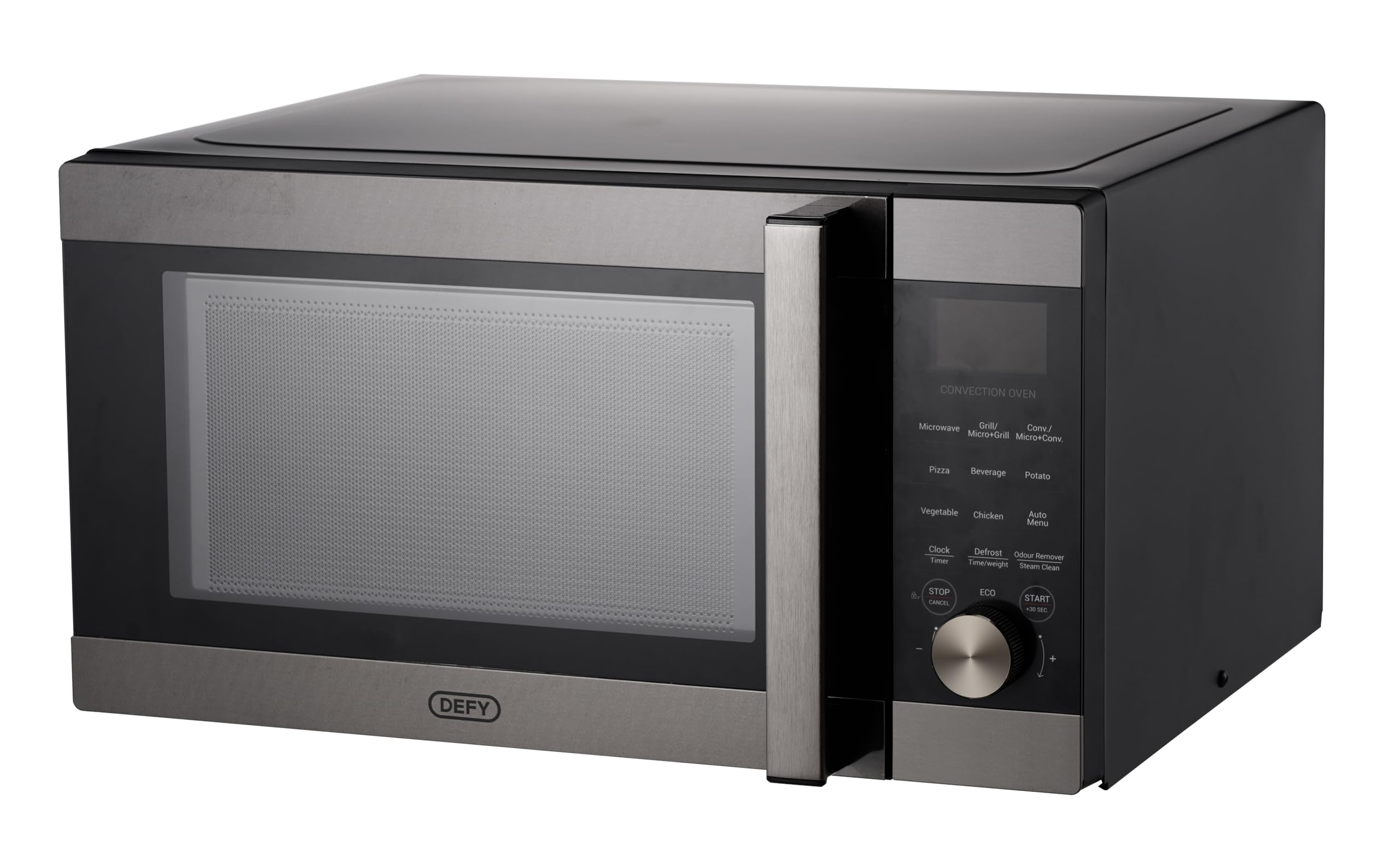

Image: The Defy DMO243 Digital Convection Microwave, showcasing its black and silver finish and digital control panel.
2. Instruccions de seguretat
Seguiu sempre les precaucions de seguretat bàsiques quan feu servir aparells elèctrics per reduir el risc d'incendi, descàrrega elèctrica, lesions a persones o exposició a un excés d'energia de microones.
- No intenteu fer funcionar aquest forn amb la porta oberta, ja que això pot provocar una exposició nociva a l'energia de les microones.
- No col·loqueu cap objecte entre la cara frontal del forn i la porta ni deixeu que s'acumuli terra o residus de neteja a les superfícies de segellat.
- No feu funcionar el forn si està malmès. És especialment important que la porta del forn tanqui correctament i que no hi hagi danys a la porta, les frontisses o les juntes.
- Només el personal de servei qualificat ha d'ajustar o reparar aquest aparell.
- Assegureu-vos que l'aparell estigui ben connectat a terra.
- No escalfeu líquids ni altres aliments en recipients tancats ja que poden explotar.
- Netegeu regularment la cavitat del forn, la porta i les juntes.
3. Configuració i instal·lació
3.1 Desembalatge
Carefully remove all packaging materials from the oven cavity and accessories. Check the oven for any damage, such as dents or a broken door. Do not install if the oven is damaged.
3.2 Col·locació
Place the oven on a flat, stable surface that can support its weight and the heaviest food item likely to be cooked in it. Ensure adequate ventilation by leaving a minimum of 20 cm (8 inches) of space above the oven, 10 cm (4 inches) at the rear, and 5 cm (2 inches) on both sides. Do not block any ventilation openings.
Imatge: Frontal view of the Defy DMO243 microwave, illustrating its compact design for countertop placement.
3.3 Connexió elèctrica
Plug the oven into a standard household electrical outlet. Ensure the voltage i la freqüència coincideixen amb les especificacions de l'etiqueta de classificació de l'aparell.
3.4 Muntatge del plat giratori
Place the roller ring in the depression on the oven floor. Place the glass turntable on top of the roller ring, ensuring it is seated correctly. The turntable must always be used during operation.
Imatge: Interior view of the Defy DMO243 microwave with the door open, showing the glass turntable and roller ring.
3.5 Configuració del rellotge
Upon initial power-up, the display will show '0:00'. To set the clock, refer to the detailed instructions in the operating section of this manual.
4. Instruccions de funcionament
4.1 Tauler de control acabatview
The control panel features a digital display, function buttons for Microwave, Grill, Convection, and various pre-programmed settings, along with a rotary dial for time/weight adjustment and a Start/Stop button.
Image: A close-up of the Defy DMO243 control panel, highlighting the digital display and various function buttons.
4.2 Modes de cocció
- Cocció al microones: Press the 'Microwave' button, rotate the dial to select power level (e.g., P100 for 100%), then rotate again to set cooking time. Press 'Start'.
- Cuina a la brasa: Press the 'Grill' button, rotate the dial to set cooking time. Press 'Start'.
- Cocció per convecció: Press the 'Convection' button, rotate the dial to select temperature, then rotate again to set cooking time. Press 'Start'. Convection mode uses a fan to circulate hot air, similar to a conventional oven.
Image: Illustration of the convection cooking feature, showing a baked pie, indicating even heat distribution.
- Cuina combinada: This oven offers Micro+Grill and Micro+Convection modes for combined cooking. Refer to the specific instructions in the full manual for setting these modes.
4.3 Pre-programmed Functions
The Defy DMO243 includes 15 pre-programmed cooking functions for convenience. These include settings for Popcorn, Beverage, Potato, Auto Reheat, Rice, Pizza, Vegetables, Frozen Dinner, Weight Defrost, Speed Defrost, Chicken, Beef/Mutton, Skewered Meat, and Cake. Select the desired function and follow the on-screen prompts.
4.4 Descongelació
The appliance offers both Weight Defrost and Speed Defrost options. Select the appropriate defrost function and input the weight or time as required. The system will automatically calculate the defrosting time.
4.5 Cuina exprés
Press the '+30 Sec' button for a quick 30-second start at full microwave power. Each press adds 30 seconds to the cooking time.
Image: The microwave on a kitchen counter, illustrating the convenience of the express cooking function for quick meal preparation.
4.6 Mode ECO
Activate ECO mode to turn off the display during standby, conserving power. Refer to the full manual for activation instructions.
Image: The ECO mode icon, indicating the power-saving feature of the microwave.
4.7 Bloqueig infantil
The Child Lock feature prevents accidental operation by children. To activate or deactivate, refer to the specific instructions in the full manual.
Image: A child stirring a bowl, representing the child safety lock feature that prevents accidental operation.
5. Manteniment i Neteja
5.1 Neteja general
Regularly clean the oven interior and exterior with a damp cloth and mild detergent. Avoid abrasive cleaners or scouring pads. Ensure the door seals are clean and free from food debris.
5.2 Odour Removal (Steam Clean)
The Steam Clean function helps soften grime and remove odors. Place a bowl of water with lemon slices inside the oven and activate the Steam Clean function. Wipe the interior clean after the cycle.
Image: A woman looking into the microwave, illustrating the effectiveness of the Steam Clean and Odour Remover function for maintaining cleanliness.
6. Solució De Problemes
If you encounter issues with your microwave, consult the following table before contacting service.
| Problema | Causa possible | Solució |
|---|---|---|
| El forn no s'engega | Cable d'alimentació no connectat; Porta no tancada correctament; Fusible fundit o interruptor automàtic saltat. | Ensure plug is securely inserted; Close door firmly; Check household fuse or reset circuit breaker. |
| El menjar no s'escalfa | Temps de cocció/nivell de potència incorrecte; Porta no tancada correctament. | Ajusteu el temps/potència; Tanqueu la porta fermament. |
| El plat giratori no gira | Turntable not properly seated; Roller ring dirty or damaged. | Re-seat turntable; Clean or replace roller ring. |
7. Especificacions
Key technical specifications for the Defy DMO243 Digital Convection Microwave:
- Número de model: 8690842691607
- Capacitat: 43 litres
- Potència/Wattage: 2200 watts
- Material: Acer inoxidable
- Dimensions del producte (P x A x A): 55.3 x 58.2 x 31.1 cm
- Pes de l'article: 23.8 kg
- Color: Negre/Plata
- Característiques especials: Large Capacity, Portable, Programmable, Child Lock, ECO Mode, Steam Clean
Image: The Defy DMO243 microwave with its dimensions (height, width, depth) clearly indicated.
Image: An illustration highlighting the 43-liter capacity, suitable for larger meals.
8. Garantia i Suport
For warranty information and customer support, please refer to the warranty card included with your product or visit the official Defy website. You may also contact Defy customer service directly for assistance with product registration, troubleshooting, or spare parts.
Fabricant: Defy Appliances (Pty) Ltd
Defy Weblloc: www.defy.co.za
