1. Introducció

Gràcies per la compraasing the HYPER GO H14BM V3 1/14 Brushless RC Truck. This high-performance 4WD off-road truggy is designed for extreme speed bashing, offering an exhilarating remote control experience. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your RC truck to ensure long-lasting enjoyment and optimal performance.

Please read this manual thoroughly before operating your vehicle. Keep it for future reference.

2. Contingut del paquet

Before proceeding, please verify that all items listed below are included in your package:

• 1 x HYPER GO H14BM V3 RC Truck
• 1 comandament a distància de 2.4 GHz
• 1 x 3S 2000mAh LiPo Battery
• 1 x carregador USB
• Extra Paddle Tires (4 pcs)
• Additional Accessories (e.g., F/R Lower Swing Arm Fixed Shaft, High Rebound Shock Spring, Clips, F/R Swing Set, F/R Shock Tower, F/R Body Pillars, Spoiler)

Image: The HYPER GO H14BM V3 RC Truck, its remote controller, and the included batteries.

Imatge: Una imatge detallada view of the HYPER GO H14BM V3 RC Truck with its various components and the included extra accessories, such as spare body shells, paddle tires, and suspension parts.

3. Configuració

3.1 Càrrega de la bateria

The included 3S LiPo battery must be fully charged before first use. Use only the provided USB charger or a compatible LiPo balance charger.

1. Connect the USB charger to a suitable USB power source (e.g., computer USB port, USB wall adapter).
2. Connect the battery's balance plug (white connector) to the charger's corresponding port.
3. El llum indicador del carregador mostrarà l'estat de càrrega (per exemple, vermell per a la càrrega, verd per a la càrrega completa).
4. Un cop estigui completament carregat, desconnecteu la bateria del carregador.

Precaució: Never leave charging batteries unattended. Do not overcharge or discharge LiPo batteries. Store batteries in a cool, dry place away from direct sunlight and heat.

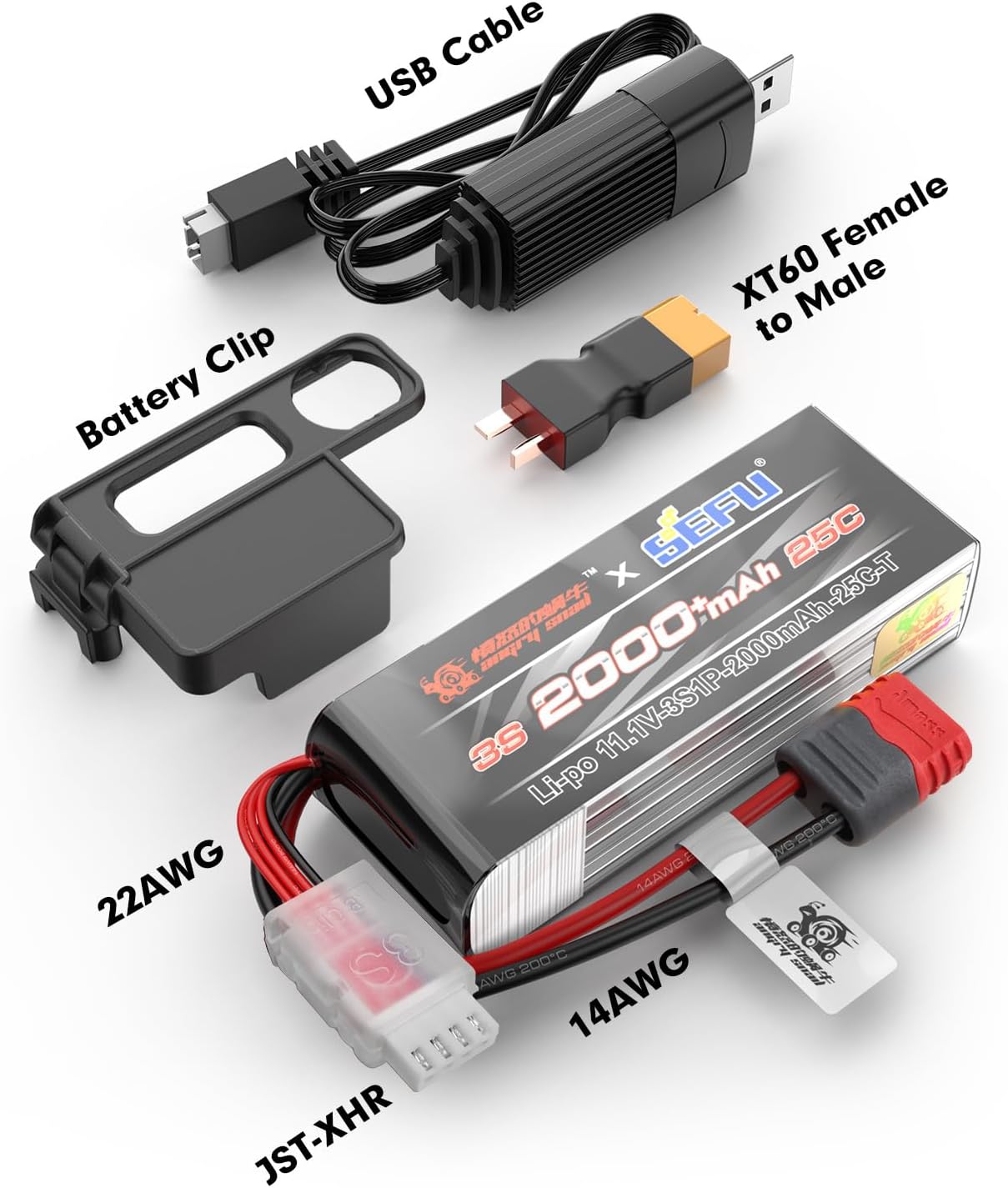

Image: The USB charging cable, an XT60 female to male adapter, and the 3S 2000mAh LiPo battery, illustrating the components involved in battery charging and connection.

3.2 Installing the Battery in the Truck

1. Remove the body shell of the RC truck.
2. Carefully place the charged battery into the battery compartment.
3. Connect the battery's main power connector (red/black wires) to the ESC's power input connector. Ensure correct polarity.
4. Secure the battery using the provided battery strap or clip.
5. Reattach the body shell.

3.3 Configuració del comandament a distància

The remote controller requires 4 AA batteries (not included).

1. Obriu el compartiment de la bateria a la part posterior del comandament a distància.
2. Insert 4 AA batteries, observing the correct polarity (+/-).
3. Tanqueu el compartiment de la bateria.
4. Turn on the remote controller. The indicator light should illuminate.

4. Instruccions de funcionament

4.1 Powering On and Binding

1. Ensure the remote controller is turned on first.
2. Turn on the RC truck by pressing the power button on the ESC.
3. The truck and remote controller should automatically bind. If not, refer to the binding procedure in the troubleshooting section.

4.2 Controls de conducció

• Volant: Turn left or right to control the direction of the truck.
• Activador de l'accelerador: Pull to accelerate forward, push to brake or reverse.
• ST Trim: Adjusts the steering neutral position. If the truck pulls to one side, adjust this trim until it drives straight.
• TH Trim: Adjusts the throttle neutral position. If the truck moves without throttle input, adjust this trim.
• Speed Limit Switch: The transmitter allows setting throttle limits at 70% for new users.

4.3 Unlocking Full Speed (50 mph)

The factory speed limit is approximately 33 mph. To unlock the full speed potential of 45+ mph (73 km/h) with the included 3S battery, or up to 50 mph (80 km/h) with an Angry Snail 3S2000 battery (not included), follow these steps:

• With the truck and remote controller powered on and bound, press the speed limit switch on the remote controller 5 times in quick succession.
• The truck's speed limit will be removed, allowing access to its maximum speed capabilities.

Image: The HYPER GO H14BM V3 Bash Speed Truggy in action, highlighting its brushless 2852 4400KV motor and independent E45K2 ESC, capable of reaching 73 km/h with a 3S battery.

4.4 Terrain Considerations

The HYPER GO H14BM V3 is designed for off-road use and can conquer various terrains thanks to its 4WD system, durable components, and optional paddle tires.

• Rough Terrain: The aluminum chassis, heavy-duty drivetrain, and oil-filled shocks provide excellent durability and handling over bumps and uneven surfaces.
• Snow/Sand/Mud: Utilize the included paddle tires for enhanced traction and performance in loose or slippery conditions.
• Aigua: The truck features a waterproof receiver box, offering protection against splashes and light moisture. Avoid submerging the vehicle.

Imatge: Un primer pla view of the adjustable, oil-filled shocks on the HYPER GO H14BM V3 RC Truck, showing their design and adjustability for different terrains.

Image: The included paddle tires for enhanced traction in snow and sand, alongside the waterproof receiver box, demonstrating features for all-terrain capability.

5. Manteniment

Regular maintenance is crucial for the longevity and performance of your RC truck.

5.1 Neteja

• Després de cada ús, especialment en condicions brutes o humides, netegeu a fons el camió.
• Use a soft brush or compressed air to remove dirt, dust, and debris from the chassis, suspension, and drivetrain.
• Wipe down the body shell with a damp tela.
• Avoid using harsh chemicals or solvents that could damage plastic or painted surfaces.

5.2 Cura i emmagatzematge de la bateria

• Always disconnect the battery from the truck when not in use.
• Store LiPo batteries at a storage voltage (al voltant de 3.8 V per cel·la) si no s'utilitza durant períodes prolongats.
• Guardeu les piles en una bossa o recipient ignífug en un lloc fresc i sec.
• Inspect batteries regularly for any signs of damage or swelling. Discontinue use immediately if damaged.

5.3 Inspecció de components

Periodically inspect the following components for wear, damage, or looseness:

• Engranatges: Check the metal gears in the servo and differential for wear. The V3 model features durable metal gears for improved longevity.
• Xocs: Ensure oil-filled shocks are not leaking and operate smoothly.
• Eixos de transmissió: Inspect steel driveshafts for bends or damage.
• Cargols i elements de fixació: Premeu els cargols solts.
• Pneumàtics: Check for wear and tear. Replace if necessary.

Image: A comparison illustrating the difference between V2 and V3 components, specifically highlighting the upgrade to metal gears for enhanced durability and agility, and an improved ESC design for smoother low-speed performance.

6. Solució De Problemes

If you encounter issues with your HYPER GO H14BM V3, refer to the following common problems and solutions:

Binding Procedure (if needed)

1. Ensure both the remote controller and the truck are turned off.
2. Enceneu el comandament a distància.
3. Press and hold the bind button (if available, refer to remote manual) or follow specific power-on sequence for binding.
4. Turn on the truck. The indicator lights on both devices should confirm successful binding.

7. Especificacions

• Model: H14BM V3
• Escala: 1/14
• Sistema d'accionament: 4WD
• Motor: Brushless 2852 4400KV (4-pole, high-torque with metal heatsink and cooling fans)
• ESC: 45A (compatible with 2S/3S LiPo batteries)
• Velocitat màxima: Up to 50 mph (80 km/h) with Angry Snail 3S2000 battery (not included); 45+ mph (73 km/h) with included 3S battery.
• Material del xassís: 6061 Aluminum alloy with metal center body support
• Drivetrain Components: Steel differential outdrives, metal gearbox internals, durable steel universal telescopic drive shafts.
• Suspensió: Adjustable, oil-filled shocks.
• Receptor: Independent, waterproof receiver box.
• Transmissor: 2.4GHz 3-Channel Radio with light control, ST/TH Trim function.
• Interval de control: 300+ FT
• Bateria inclosa: 1 x 3S 2000mAh LiPo Battery
• Dimensions (Car): Approximately 32.3 cm x 22 cm x 11.8 cm (L x W x H)

8. Suport

For further assistance, technical support, or inquiries regarding spare parts, please contact HYPER GO customer service through the official HYPER GO store or website. Please have your product model number (H14BM V3) and purchase details ready when contacting support.
