Ledvion Double LED TL Batten Luminaire, 60CM, 7W, 4000K, IP65

Introducció

This high-quality Ledvion double LED TL batten luminaire is designed for both indoor and outdoor use. It features a robust, impact-resistant plastic housing, ensuring durability and a long service life. With an IP65 rating, it is protected against dust and water, making it suitable for various environments. The luminaire is supplied with all necessary installation materials, including stainless steel fixings and connectors, for quick and easy setup. It is compatible with various LED TL tubes, providing a reliable and long-lasting lighting solution for professional and domestic applications.

Informació de seguretat

Llegiu atentament totes les instruccions de seguretat abans de la instal·lació i l'ús. Si no seguiu aquestes instruccions, podeu patir descàrregues elèctriques, incendis o altres perills.

• Assegureu-vos que el subministrament elèctric estigui desconnectat abans de la instal·lació, el manteniment o la neteja.
• La instal·lació l'ha de dur a terme un electricista qualificat d'acord amb les normes elèctriques locals.
• No modifiqueu la lluminària ni els seus components.
• Do not operate the luminaire if any part is damaged.
• Mantenir allunyat de materials inflamables.
• This product is rated IP65 for dust and water protection. Ensure all seals and connections are properly secured during installation to maintain this rating.
• The luminaire is designed for use with compatible LED TL tubes. Using incompatible tubes may cause damage or safety hazards.

Què hi ha a la caixa

El paquet inclou els components següents:

• Ledvion Double LED TL Batten Luminaire (60CM)
• LED TL Tube (4000K, 2x60cm)
• Stainless Steel Fixing Materials
• Connectors

Image: The luminaire housing with stainless steel clips and internal wiring, illustrating the components.

Configuració i instal·lació

Follow these steps for proper installation of your Ledvion LED TL Batten Luminaire:

1. Preparació: Ensure the power supply to the installation area is turned off at the main circuit breaker. Gather all necessary tools (drill, screwdriver, wire strippers, etc.).
2. Mounting the Luminaire:
   • Position the luminaire in the desired location. Mark the drilling points for the mounting clips on the ceiling or wall.
   • Perforeu els forats als punts marcats i inseriu els tacs de paret adequats (si cal).
   • Secure the stainless steel mounting clips to the surface using screws.
   • Attach the luminaire housing to the mounted clips. The clips are designed for easy attachment and secure holding.
3. Cablejat:
   • Open the luminaire housing carefully.
   • Connect the electrical wires from your power supply to the luminaire's terminal block. Ensure correct polarity (Live, Neutral, Earth) according to local wiring standards.
   • Assegureu-vos bé totes les connexions.
   • Ensure the cable gland is properly tightened to maintain the IP65 rating.
4. Installing LED TL Tubes:
   • Insert the provided LED TL tubes into the lamp holders within the luminaire. Ensure they are firmly seated.
   • The luminaire is designed for flicker-free operation with the included 4000K natural light LED tubes.
5. Assemblea final: Close the luminaire housing, ensuring all latches are securely fastened to maintain the IP65 dust and water protection.
6. Prova: Restore power at the main circuit breaker and test the luminaire.

Image: An installed Ledvion LED TL Batten Luminaire on a ceiling, demonstrating its appearance in operation.

Imatge: Una imatge detallada view of the included flicker-free LED tube, highlighting its 4000K natural light output.

Instruccions de funcionament

Once properly installed and connected to the power supply, the Ledvion LED TL Batten Luminaire operates simply:

• Encès/apagat: Use the wall switch connected to the luminaire's circuit to turn the light on or off.
• Sortida de llum: The luminaire provides 1120 lumens of 4000K natural white light, suitable for various applications.

Manteniment

Regular maintenance ensures optimal performance and longevity of your luminaire:

• Neteja: Disconnect power before cleaning. Wipe the exterior of the luminaire with a soft, damp cloth. Do not use abrasive cleaners or solvents, as these can damage the plastic housing.
• Inspecció: Periodically inspect the luminaire for any signs of damage, loose connections, or wear. If any issues are found, disconnect power and consult a qualified technician.
• Substitució del tub: If an LED TL tube needs replacement, ensure the power is off. Carefully remove the old tube and insert a new, compatible LED TL tube.

Image: The luminaire's IP65 rating, indicating its resistance to water and dust, which simplifies cleaning.

Resolució de problemes

If you encounter issues with your luminaire, refer to the following common problems and solutions:

Si el problema persisteix després de provar aquestes solucions, poseu-vos en contacte amb l'atenció al client.

Especificacions tècniques

Image: Dimensional drawing of the luminaire and LED tube.

Image: EU Energy Label for the Ledvion luminaire. For more details, visit eprel.ec.europa.eu/qr/2026176.

Informació de la garantia

This Ledvion LED TL Batten Luminaire comes with a 2 any de garantia from the date of purchase. The warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by improper installation, misuse, accidents, modifications, or unauthorized repairs.

Conserveu el vostre comprovant de compra per a reclamacions de garantia.

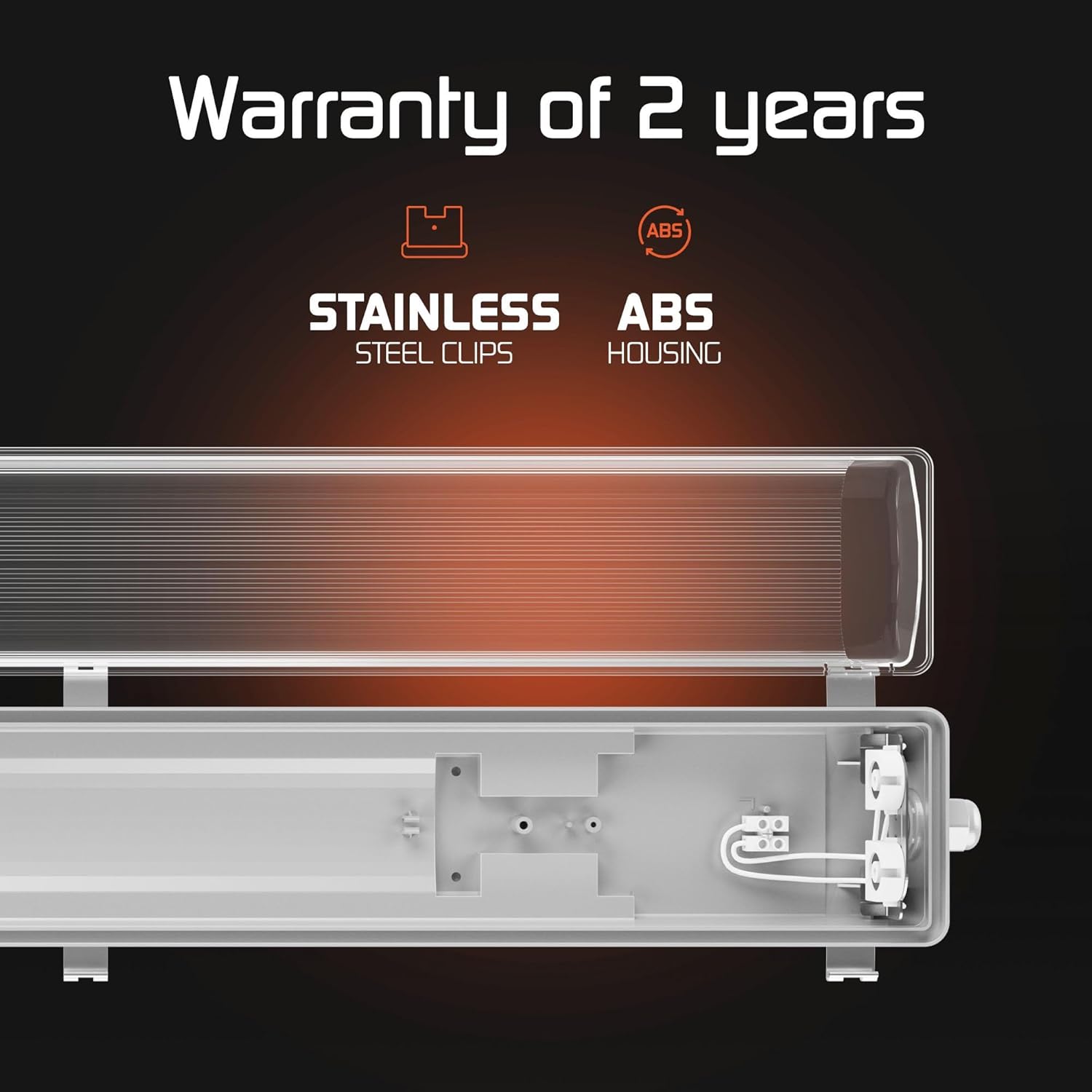

Image: The luminaire's construction details and warranty period.

Atenció al client

For technical assistance, warranty claims, or any questions regarding your Ledvion LED TL Batten Luminaire, please contact Ledvion customer service through the retailer where the product was purchased or visit the official Ledvion weblloc per obtenir dades de contacte.

When contacting support, please have your model number (LV30016-4000K) and proof of purchase readily available.
