Manual d'usuari del soldador MIG ARCCAPTAIN 135A

1. Introducció

This manual provides essential information for the safe and effective operation of your ARCCAPTAIN 135A MIG Welder. Please read this manual thoroughly before operating the machine to ensure proper usage, maximize performance, and prevent injury or damage.

The ARCCAPTAIN 135A MIG Welder is a versatile 3-in-1 welding machine designed for Flux Core Gasless MIG, Lift TIG, and MMA (Stick) welding. It features a large LED display, synergistic settings for ease of use, and robust safety protections.

2. Informació de seguretat

Prioritzeu sempre la seguretat quan feu servir equips de soldadura. Si no seguiu les pautes de seguretat, podeu patir lesions greus o la mort.

• Una descàrrega elèctrica pot matar: Do not touch live electrical parts. Wear dry welding gloves and protective clothing. Ensure the work area is dry.
• Els fums i els gasos poden ser perillosos: Mantingueu el cap allunyat dels fums. Utilitzeu la ventilació o l'extracció per eliminar els fums de la zona de respiració.
• Els raigs d'arc poden cremar els ulls i la pell: Wear a welding helmet with a proper shade filter. Wear protective clothing to protect skin.
• Perill d'incendi i explosió: Remove all flammable materials from the welding area. Have a fire extinguisher readily available.
• Les parts calentes poden causar cremades greus: Allow welded materials and equipment to cool before handling.
• Llegiu tot el manual: Understand all instructions and safety precautions before operation.

Figure 2.1: Safety Features - The ARCCAPTAIN 135A MIG Welder includes built-in overheating, overcurrent, and overload protection, along with an IP21S water rating for enhanced safety and durability.

3. Contingut del paquet

Verifiqueu que tots els elements siguin presents al paquet:

• 1 x ARCCAPTAIN MIG135 Flux Core Welder
• 1 x 6.5ft MIG Gun
• 1 x 9.8ft Ground Clamp
• 1 x 9.8ft Electronic Holder
• 1 x 0.35"/2lbs Flux Core Wire
• 1 x Wire Feed Roller (K .030-.035)
• 2 x Contact Tips (.030 & .035)
• 1 raspall i martell
• 1 x Shoulder Straps

Figure 3.1: Package Contents - A visual representation of all items included with your ARCCAPTAIN MIG135 Welder.

4. Producte acabatview

The ARCCAPTAIN 135A MIG Welder is a compact and powerful welding solution. Key features include:

• Pantalla digital LED gran: Provides clear visibility of welding parameters, even in low-light conditions, simplifying setup and monitoring.
• 3-in-1 Multi-Functionality: Supports Flux Core Gasless MIG, Lift TIG (torch sold separately), and MMA (Stick) welding.
• Amistosos per a principiants: Features synergistic settings that automatically match wire feeding speed and voltage based on wire size and metal thickness.
• Precise Manual Adjustment: Allows experienced welders to fine-tune wire feeding speed, voltage (±1V in MIG), Hot Start, and Arc Force (0-60A in Stick).
• Excellent Welding Effect: Engineered with a fully digital MCU and robust circuit design for improved arc starts, higher efficiency, and consistent weld beads.
• Light & Portable: Weighing approximately 9.48 lbs, with a carrying handle and shoulder strap for easy transport.
• High Quality & Safe: Built-in over-current, over-load, overheating, and over-voltage protection to extend machine lifespan.

Figure 4.1: ARCCAPTAIN 135A MIG Welder - Front view of the welding machine with accessories.

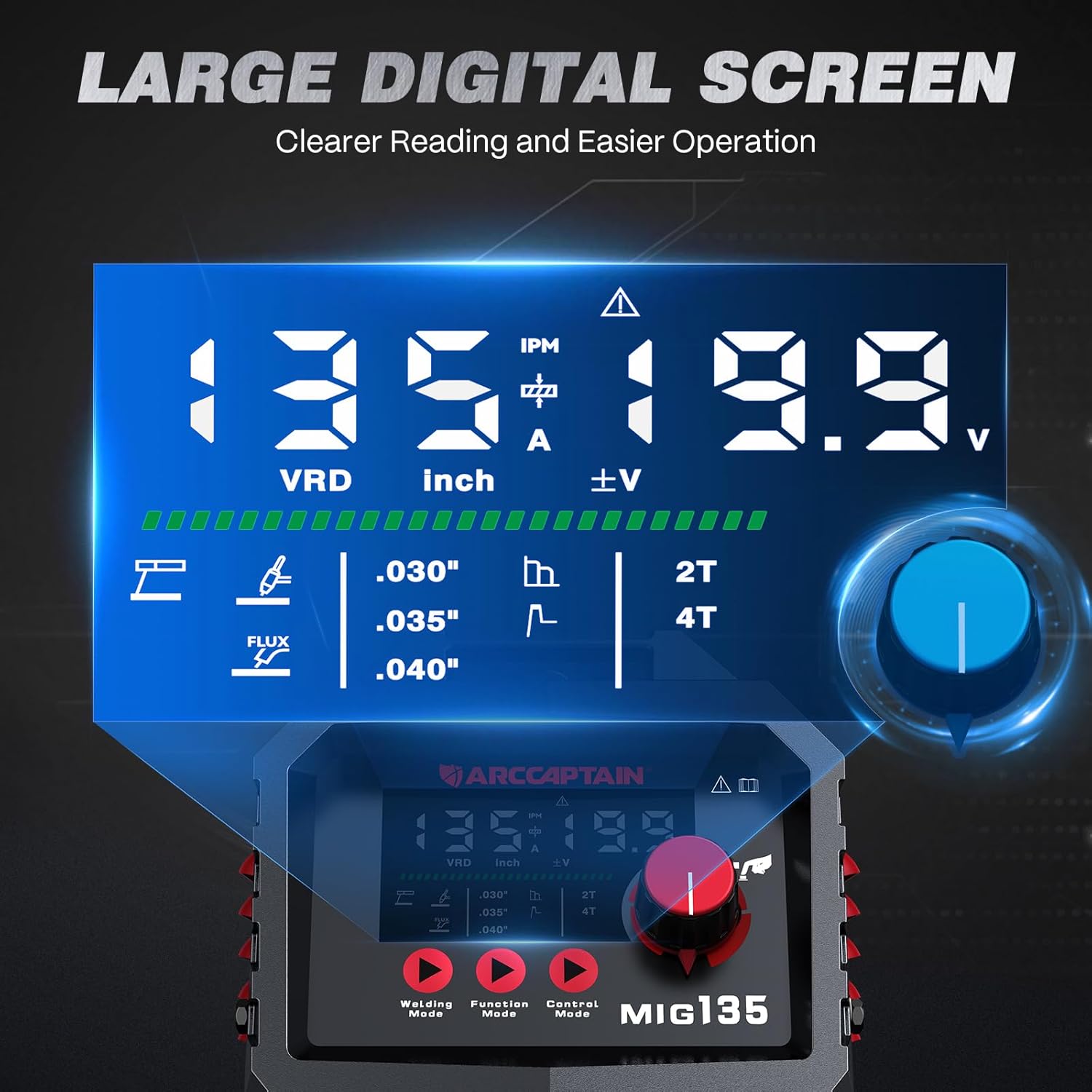

Figure 4.2: Large LED Digital Display - The clear display for easy parameter monitoring.

Figure 4.3: 3-in-1 Welding Capabilities - Illustrates the versatility of the machine across different welding types.

5. Configuració

5.1 Connexió d'alimentació

The ARCCAPTAIN MIG135 operates on 110V AC power. Ensure your power source meets the machine's requirements.

• Connecteu el cable d'alimentació a una presa de corrent de 110 V amb connexió a terra.
• Verify the power switch on the back of the unit is in the OFF position before connecting.

5.2 MIG Welding Setup (Flux Core Gasless)

1. Instal·leu el cable amb nucli de flux: Open the wire feed compartment. Place the flux core wire spool onto the spindle. Thread the wire through the guide and into the drive roller mechanism. Ensure the correct groove on the drive roller is selected for your wire size (e.g., .030" or .035").
2. Connect MIG Gun: Attach the MIG gun cable to the positive (+) terminal on the front panel.
3. Connecteu la terra Clamp: Enganxa el terra clamp cable al terminal negatiu (-) del panell frontal. Assegureu el cable de terraamp a la peça de treball o a la taula de soldadura, garantint un bon contacte elèctric.
4. Cable d'alimentació: With the MIG gun pointed away from yourself and others, press and hold the trigger to feed the wire through the gun liner until it exits the contact tip.
5. Install Contact Tip: Once the wire is fed, install the appropriate contact tip (.030" or .035") and nozzle onto the MIG gun.

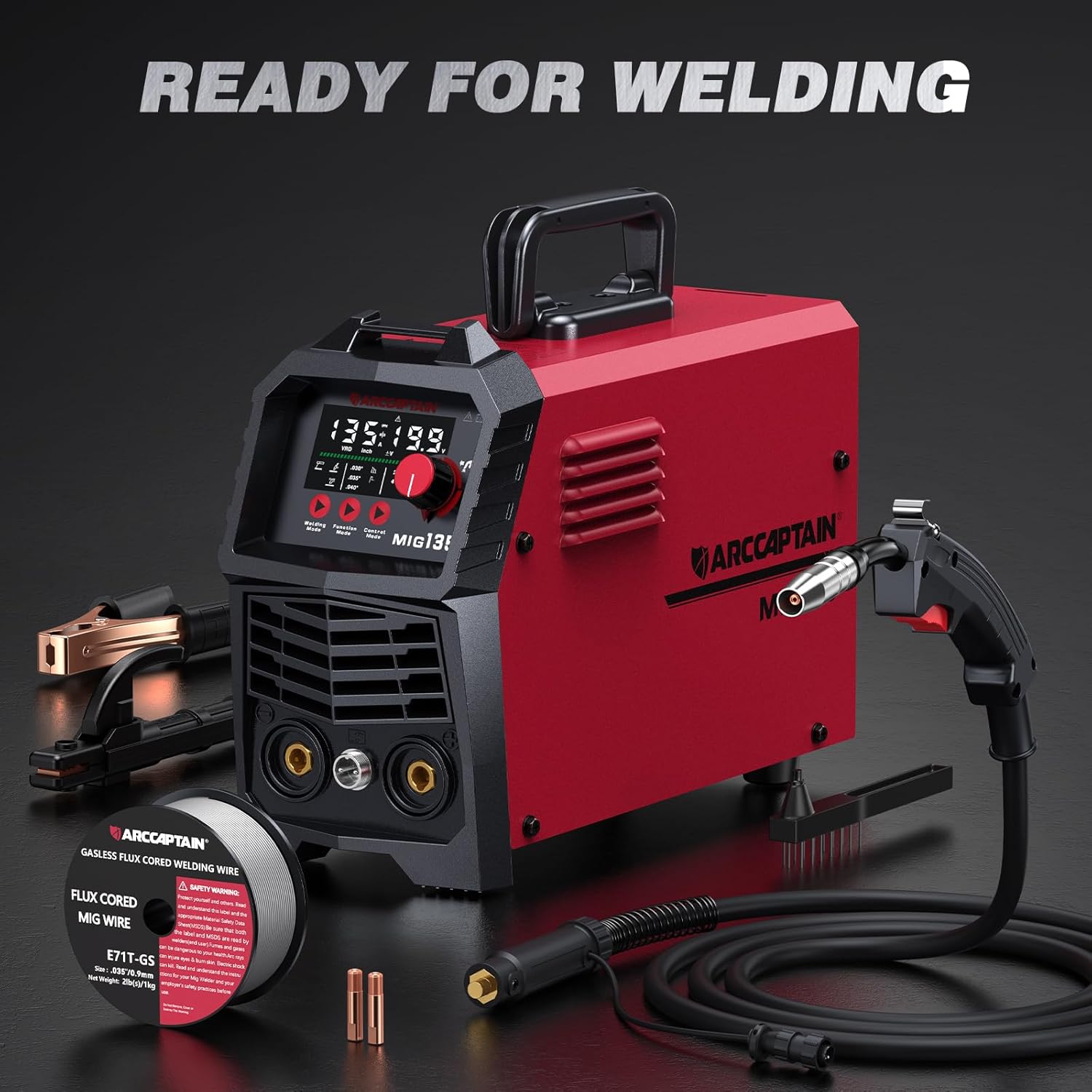

Figure 5.1: Ready for Welding - All components prepared for setup.

Figure 5.2: Connection Diagrams - Visual guide for connecting accessories for different welding processes.

5.3 Lift TIG Welding Setup (Optional)

A Lift TIG torch is required and sold separately for this mode.

1. Connecteu la torxa TIG: Connect the TIG torch cable to the negative (-) terminal on the front panel.
2. Connecteu la terra Clamp: Enganxa el terra clamp cable al terminal positiu (+) del panell frontal.
3. Connexió de gas: If using shielding gas (e.g., 99.9% Argon), connect the gas hose from your regulator to the gas inlet on the machine (if applicable, consult TIG torch manual for specific connections).
4. Install Tungsten: Insert the appropriate tungsten electrode into the TIG torch collet and tighten.

5.4 Configuració de soldadura amb electrodo electromagnètic (MMA)

1. Connecteu el portaelèctrodes: Attach the electrode holder cable to the positive (+) terminal on the front panel.
2. Connecteu la terra Clamp: Enganxa el terra clamp cable al terminal negatiu (-) del panell frontal.
3. Inseriu l'elèctrode: Securely insert the welding electrode into the electrode holder.

6. Instruccions de funcionament

6.1 Engegada i selecció de mode

1. Assegureu-vos que totes les connexions siguin segures.
2. Turn the power switch to the ON position. The LED display will illuminate.
3. Use the "Welding Mode" button to cycle through Flux Core MIG, Lift TIG, and MMA (Stick) modes.

Figure 6.1: Control Panel - The main interface for setting welding parameters.

6.2 Flux Core MIG Welding

This mode is ideal for general fabrication and repairs without the need for external shielding gas.

• Synergistic Settings (Beginner Friendly):
  • Select the wire size (.030", .035", or .040") and metal thickness on the display.
  • The machine will automatically set recommended wire feeding speed and voltage.
• Manual Adjustment (Experienced Welders):
  • Adjust the wire feeding speed (30-260 IPM) using the main knob.
  • Fine-tune the voltage between -1V and +1V using the voltage trimming function.
  • Select "2T" (two-touch) for standard trigger operation or "4T" (four-touch) for continuous welding without holding the trigger.
• Procés de soldadura: Position the MIG gun at the start of your weld. Press the trigger to initiate the arc and begin welding. Maintain a consistent travel speed and gun angle.

Figure 6.2: Adjustable Parameters - Details on controlling wire feed speed, current, voltage, and arc characteristics.

Figure 6.3: Flux Core Welding - Demonstrates the process and expected weld quality.

6.3 Soldadura TIG amb elevació

This mode is suitable for precise welding, especially on stainless steel. (Lift TIG torch not included).

• Seleccioneu el mode Lift TIG.
• Set the desired welding current using the main knob.
• To initiate the arc, gently touch the tungsten electrode to the workpiece and then lift it slightly. The arc will start.
• Maintain a consistent arc length and feed filler rod manually if required.

Figure 6.4: Lift TIG Welding - Illustrates the TIG welding process and its results.

6.4 Soldadura amb electrodo endollable (MMA)

This mode is robust for various materials and outdoor conditions.

• Select MMA (Stick) mode.
• Set the desired welding current using the main knob.
• Adjust Hot Start and Arc Force (0-60A) for optimal arc performance.
• Strike the electrode against the workpiece to initiate the arc. Maintain a consistent arc length and travel speed.
• Note: Can be welded with E6013 & E7018 electrodes; CAN NOT be welded with E6010 & E6011.

Figure 6.5: Stick Welding - Depicts the stick welding process and its outcome.

7. Manteniment

Un manteniment regular garanteix la longevitat i el rendiment òptim del vostre soldador.

• Neteja: Regularly clean the machine's exterior with a dry, soft cloth. Use compressed air to blow out dust and debris from cooling vents.
• Sistema d'alimentació de filferro: Inspeccioneu els rodets i el revestiment d'alimentació del filferro per detectar desgast o bloquejos. Netegeu-los o substituïu-los segons calgui per garantir una alimentació del filferro suau.
• Contact Tips and Nozzles: Replace worn contact tips and clean spatter from nozzles regularly to maintain good arc performance.
• Terra Clamp: Assegureu-vos que el sòl clamp connection is clean and free of rust or paint for effective grounding.
• Emmagatzematge: Guardeu el soldador en un entorn sec i net quan no l'utilitzeu.

8. Solució De Problemes

Aquesta secció tracta problemes comuns que podeu trobar.

9. Especificacions

Technical specifications for the ARCCAPTAIN MIG135 Welder:

Figure 9.1: Technical Parameters - Detailed electrical specifications for the MIG135.

Figure 9.2: Quality Assurance - The welder has passed over 300 authoritative laboratory tests.

10. Garantia i assistència

ARCCAPTAIN products typically come with a manufacturer's warranty. For specific warranty details and customer support, please refer to the warranty card included with your product or visit the official ARCCAPTAIN weblloc.

For technical assistance, troubleshooting beyond this manual, or parts inquiries, please contact ARCCAPTAIN customer service.
